GRACO INC. S10595

GRACO INC. S10595 branded products

View as Grid List

Sort by

LOWER, CHEMICAL, 010, SST, UCUP, HW

GG L010S5

LOWER, CHEMICAL, 010, SST, UCUP, HW

Graco L010S5 Z-Pump, 10cc, High Wear, S5

Z-Pumps are positive displacement pump components for use with the Graco and meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

High Wear coatings and 1/2 inch (1.27 cm) checks easily manage material wear from thermal interface material (TIMs), acrylics, or other abrasive material applications.
Precision control eliminates pressure spikes and guarantees on ratio dispense.
Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

Model: Z-Pump
Series: S5

Ambient/Warm Melt/Hot Melt: Ambient
Application: Industrial
Ball Check Size (in): .5"
Ball Material: Silicon Nitride
Coating Type: High Wear
Feed Type: Pressure Feed
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 3/4-16
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: SAE
For Use With: EFR, HFR
Maximum Flow Rate (GPM): 0.16
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 10
Maximum Pump Speed (CPM): 60
Maximum Viscosity (cP): 3000000
Maximum Working Pressure (psi): 3500

$21,390.00

LOWER, SM060 MAXLIFE SST

GG L060SM

LOWER, SM060 MAXLIFE SST

Graco L060SM Stainless Steel MaxLife Check-Mate 60 Lower

Application: With priming piston, rod and cylinder.

Model: Check-Mate

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Fluid Outlet Size (in): 3/4
Fluid Outlet Thread Gender: Male
Fluid Outlet Thread Type: NPT
For Use With: Check-Mate Pump Packages
Maximum Flow Rate (GPM): 0.9
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 60
Maximum Pump Speed (CPM): 60
Maximum Working Pressure (psi): 6100

$8,960.00

LOWER, CHEMICAL, 80, SST, UCUP

GG L080S1

LOWER, CHEMICAL, 80, SST, UCUP

Z-Pump, 80 cc, Severe Duty, S1 Z-Pumps are positive displacement pump components for use with the Graco meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls. Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives. Precision control eliminates pressure spikes and guarantees on ratio dispense. Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

$10,980.00

LOWER, SS060, SEVERE DUTY SST

GG L060SS

LOWER, SS060, SEVERE DUTY SST

Graco L060SS Stainless Steel Severe Duty Check-Mate 60 Lower

Application: With priming piston, rod and cylinder.

Model: Check-Mate

$7,130.00

LOWER, CHEMICAL, 86, SST, UCUP

GG L086S1

LOWER, CHEMICAL, 86, SST, UCUP

Graco L086S1 Z-Pump, 86 cc, Severe Duty, S1

Z-Pumps are positive displacement pump components for use with the Graco meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
Precision control eliminates pressure spikes and guarantees on ratio dispense.
Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

Model: Z-Pump
Series: S1

Ambient/Warm Melt/Hot Melt: Ambient
Application: Industrial
Ball Check Size (in): 1
Ball Material: Silicon Nitride
Coating Type: Severe Duty
Feed Type: Pressure Feed
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: SAE
For Use With: HFR
Maximum Flow Rate (GPM): 1.36
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 86
Maximum Pump Speed (CPM): 60
Maximum Viscosity (cP): 3000000

$11,860.00

LOWER, CHEMICAL, 90, SST, UCUP

GG L090S1

LOWER, CHEMICAL, 90, SST, UCUP

Z-Pump, 90 cc, Severe Duty, S1 Z-Pumps are positive displacement pump components for use with the Graco meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls. Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives. Precision control eliminates pressure spikes and guarantees on ratio dispense. Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

$11,740.00

LOWER, CHEMICAL, 30, SST, UCUP

GG L030S1

LOWER, CHEMICAL, 30, SST, UCUP

Graco L030S1 Z-Pump, 30 cc, Severe Duty, S1

Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
Precision control eliminates pressure spikes and guarantees on ratio dispense.
Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

Model: Z-Pump
Series: S1

Ambient/Warm Melt/Hot Melt: Ambient
Application: Industrial
Ball Check Size (in): 1
Ball Material: Silicon Nitride
Coating Type: Severe Duty
Feed Type: Pressure Feed
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: SAE
For Use With: HFR
Maximum Flow Rate (GPM): 0.48
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 30
Maximum Pump Speed (CPM): 60
Maximum Viscosity (cP): 3000000

$11,740.00

LOWER, CHEMICAL, 10, SST, UCUP, LP

GG L010S3

LOWER, CHEMICAL, 10, SST, UCUP, LP

Z-Pump, 10 cc, Severe Duty, S3 Z-Pumps are positive displacement pump components for use with the Graco NVH meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls. Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, and structural adhesives. Precision control eliminates pressure spikes and guarantees on ratio dispense. Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

$16,927.90

KING SPRAYER, 60:1, H-P, NF, HD, BARE

GG K60NH0

KING SPRAYER, 60:1, H-P, NF, HD, BARE

Graco K60NH0 King 60:1 Sprayer, Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit

High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.

Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings

Simple Maintenance
- Improved Icing Performance
  - Less Pulsation
    With more than 145% higher exhaust capacity in the air valve, you&prime, ll achieve a faster, smoother changeover.
    Eliminating the &Prime, wink&Prime, in your pattern - it is a difference you will feel.
  - New Air Motor
    Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
  Approved for Hazardous Locations: Yes
  Compatible Material: Protective Coating
  Control Type: Fixed Ratio
  Convertible: Non-Convertible
  Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
  Fluid Inlet Size (in): 1-1/4
  Fluid Inlet Size (mm): 31.75
  Fluid Inlet Thread Type: NPT
  Fluid Outlet Size (in): 1
  Fluid Outlet Size (mm): 25.4
  Fluid Outlet Thread Type: NPT
  Frame Configuration: Heavy-Duty Cart
  Gun Model: No Applicator
  Includes: Pump, Lower, Motor, Standard Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit
  Lower Type: Non-Filter
  Material Application: Paints, Primers
  Maximum Air Inlet Pressure (psi): 150
  Maximum Fluid Working Pressure (psi): 6000
  Maximum Sound Pressure Level (dB(A)): 81.48
  Maximum Tip Size (in): Variable
  Maximum Working Pressure (bar): 417
  Maximum Working Pressure (kPa): 41700
  Maximum Working Pressure (MPa): 41.7
  Maximum Working Pressure (psi): 6000
  Motor Type: XL High Performance
  Number of Guns: 0
  Package

$12,630.00

LOWER, CHEMICAL, 100, SST, UCUP

GG L100S4

LOWER, CHEMICAL, 100, SST, UCUP

Graco L100S4 Z-Pump, 100 cc, Severe Duty, S4

Severe Duty coatings and 1/2 inch (1.27 cm) checks easily manage material wear from silicones, sealants, epoxies, and structural adhesives.
Precision control eliminates pressure spikes and guarantees on ratio dispense.
Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

Model: Z-Pump
Series: S4

Ambient/Warm Melt/Hot Melt: Ambient
Application: Industrial
Ball Check Size (in): 1/2
Ball Material: Silicon Nitride
Coating Type: Severe Duty
Feed Type: Pressure Feed
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: SAE
For Use With: EFR, HFR
Maximum Flow Rate (GPM): 1.59
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 100
Maximum Pump Speed (CPM): 60
Maximum Viscosity (cP): 3000000

$11,600.00

Lower, CM100 Servere Duty

GG L100CS

Lower, CM100 Servere Duty

Graco L100CS Carbon Steel Severe Duty Check-Mate 100 Lower

Application: With priming piston, rod and cylinder.

Model: Check-Mate

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Fluid Outlet Size (in): 3/4
Fluid Outlet Thread Gender: Male
Fluid Outlet Thread Type: NPT
For Use With: Check-Mate Pump Packages
Maximum Flow Rate (GPM): 1.6
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 100
Maximum Pump Speed (CPM): 60
Maximum Working Pressure (psi): 6300

$3,960.00

LOWER, CHEMICAL, 100, S8

GG L100S8

LOWER, CHEMICAL, 100, S8

Z-Pump, 100 cc, Elite, S8 Z-Pumps are positive displacement pump components for use with the Graco and meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls. Elite coatings and 7/8 inch (2.22 cm) checks easily manage material wear from thermal interface material (TIMs) or other abrasive applications. Precision control eliminates pressure spikes and guarantees on ratio dispense. Elite high-wear pump seals reduce maintenance downtime and repair costs.

$20,290.00

LOWER, CHEMICAL, 105, SST, UCUP

GG L105S1

LOWER, CHEMICAL, 105, SST, UCUP

Graco L105S1 Z-Pump, 105 cc, Severe Duty, S1

Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
Precision control eliminates pressure spikes and guarantees on ratio dispense.
Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

Model: Z-Pump
Series: S1

Ambient/Warm Melt/Hot Melt: Ambient
Application: Industrial
Ball Check Size (in): 1
Ball Material: Silicon Nitride
Coating Type: Severe Duty
Feed Type: Pressure Feed
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: SAE
For Use With: HFR
Maximum Flow Rate (GPM): 1.66
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 105
Maximum Pump Speed (CPM): 60
Maximum Viscosity (cP): 3000000

$11,740.00

LOWER, CHEMICAL, 50, SST, UCUP

GG L050S1

LOWER, CHEMICAL, 50, SST, UCUP

Graco L050S1 Z-Pump, 50 cc, Severe Duty, S1

Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
Precision control eliminates pressure spikes and guarantees on ratio dispense.
Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

Model: Z-Pump
Series: S1

Ambient/Warm Melt/Hot Melt: Ambient
Application: Industrial
Ball Check Size (in): 1
Ball Material: Silicon Nitride
Coating Type: Severe Duty
Feed Type: Pressure Feed
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: SAE
For Use With: HFR
Maximum Flow Rate (GPM): 0.79
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 50
Maximum Pump Speed (CPM): 60
Maximum Viscosity (cP): 3000000

$11,600.00

DURA-FLO LEGACY 1000 PUMP, RECIP, DISPL

GG L10XCS

DURA-FLO LEGACY 1000 PUMP, RECIP, DISPL

Carbon Steel 1000 cc Lower With priming piston, rod and cylinder.

$10,720.00

LOWER, CHEMICAL, 5, SST, UCUP

GG L005S1

LOWER, CHEMICAL, 5, SST, UCUP

Graco L005S1 Z-Pump, 5 cc, Severe Duty, S1

Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
Precision control eliminates pressure spikes and guarantees on ratio dispense.
Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

Model: Z-Pump
Series: S1

Ambient/Warm Melt/Hot Melt: Ambient
Application: Industrial
Ball Check Size (in): 1
Ball Material: Silicon Nitride
Coating Type: Severe Duty
Feed Type: Pressure Feed
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: SAE
For Use With: HFR
Maximum Flow Rate (GPM): 0.08
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 5
Maximum Pump Speed (CPM): 60
Maximum Viscosity (cP): 3000000

$11,740.00

LOWER, SS100, SEVERE DUTY, SST

GG L100SS

LOWER, SS100, SEVERE DUTY, SST

Graco L100SS Stainless Steel Severe Duty Check-Mate 100 Lower

Application: With priming piston, rod and cylinder.

Model: Check-Mate

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Fluid Outlet Size (in): 3/4
Fluid Outlet Thread Gender: Male
Fluid Outlet Thread Type: NPT
For Use With: Check-Mate Pump Packages
Maximum Flow Rate (GPM): 1.6
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 100
Maximum Pump Speed (CPM): 60
Maximum Working Pressure (psi): 6300

$8,340.00

Lower, Xtreme, 180, Nf, Pe/Lthr

GG L180C1

Lower, Xtreme, 180, Nf, Pe/Lthr

$4,000.00

LOWER, CM200 MAXLIFE

GG L200CM

LOWER, CM200 MAXLIFE

Graco L200CM Carbon Steel MaxLife Check-Mate 200 Lower

Application: With priming piston, rod and cylinder.

Model: Check-Mate

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Fluid Outlet Size (in): 1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
For Use With: Check-Mate Pump Packages
Maximum Flow Rate (GPM): 3.2
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 200
Maximum Pump Speed (CPM): 60
Maximum Working Pressure (psi): 6200

$9,670.00

Lower, Cm200 Maxlife

GG L200SM

Lower, Cm200 Maxlife

$19,470.00

LOWER, CM200 SEVERE DUTY SST

GG L200SS

LOWER, CM200 SEVERE DUTY SST

Graco L200SS Stainless Steel Severe Duty Check-Mate 200 Lower

Application: With priming piston, rod and cylinder.

Model: Check-Mate

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Fluid Outlet Size (in): 1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
For Use With: Check-Mate Pump Packages
Maximum Flow Rate (GPM): 3.2
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 200
Maximum Pump Speed (CPM): 60
Maximum Working Pressure (psi): 6200

$16,460.00

Lower, Xtreme, 220, Nf, Pe/Lthr

GG L220C1

Lower, Xtreme, 220, Nf, Pe/Lthr

$3,910.00

Lower, Xtreme, 220, w/Filt, Pe/Lthr

GG L220C2

Lower, Xtreme, 220, w/Filt, Pe/Lthr

$4,040.00

DURA-FLO 220 PUMP, RECIP, DISPL

GG L220SS

DURA-FLO 220 PUMP, RECIP, DISPL

Graco L220SS Dura-Flo 900 (220 cc) Lower, Stainless Steel, Severe-Duty Rod and Cylinder, 3 UHMWPE/2 PTFE Packings

Application: With priming piston, rod and cylinder.

Model: Check-Mate

Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
Fluid Inlet Size (cm): 5.08
Fluid Inlet Size (in): 2
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
For Use With: Dura-Flo Pumps
Maximum Flow Rate (GPM): 3.4
Maximum Operating Temperature (°F): 150
Maximum Output (cm³): 220
Maximum Pump Speed (CPM): 60
Maximum Working Pressure (psi): 6000

$11,700.00

LOWER, CM250 SEVERE DUTY

GG L250CS

LOWER, CM250 SEVERE DUTY

Graco L250CS Carbon Steel Severe Duty Check-Mate 250 Lower

Application: With priming piston, rod and cylinder.

Model: Check-Mate

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Fluid Outlet Size (in): 1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
For Use With: Check-Mate Pump Packages
Maximum Flow Rate (GPM): 4
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 250
Maximum Pump Speed (CPM): 60
Maximum Working Pressure (psi): 6200

$8,110.00

LOWER, CM250 SEVERE DUTY SST

GG L250SS

LOWER, CM250 SEVERE DUTY SST

Graco L250SS Stainless Steel Severe Duty Check-Mate 250 Lower

Application: With priming piston, rod and cylinder.

Model: Check-Mate

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Fluid Outlet Size (in): 1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
For Use With: Check-Mate Pump Packages
Maximum Flow Rate (GPM): 4
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 250
Maximum Pump Speed (CPM): 60
Maximum Working Pressure (psi): 6200

$17,480.00

Lower, Xtreme, 290, Nf, Pe/Lthr

GG L290C1

Lower, Xtreme, 290, Nf, Pe/Lthr

$3,820.00

Lower, Xtreme, 290, w/Nf, Ptfe

GG L290C3

Lower, Xtreme, 290, w/Nf, Ptfe

$3,820.00

DURA-FLO 290 PUMP, RECIP, DISPL

GG L290SS

DURA-FLO 290 PUMP, RECIP, DISPL

Dura-Flo 1200 (290 cc) Lower, Stainless Steel, Severe-Duty Rod and Cylinder, 3 UHMWPE/2 PTFE Packings With priming piston, rod and cylinder.

$12,400.00

PRO XP GUN, ES, 40KV

GG L40T10

PRO XP GUN, ES, 40KV

Pro Xp40 Air Spray Manual Electrostatic General Gun Model, 40 kV, 0.055 in (1.5 mm) nozzle, standard display, standard coatings This 40 kV electrostatic air spray gun comes in a compact, lightweight package. Each paint spray gun meets strict requirements for spray pattern, mechanical and electrical performance. Durable, easy-to-repair components are backed by a three-year warranty and A+ Service. Painters experience less muscle strain and fatigue when using ergonomic, lightweight gun. Smooth, curved ergonomic handle fits nicely in your hand for more comfortable spraying Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements

$4,810.00

PRO XP GUN, ES, 40KV, 1.2

GG L40T12

PRO XP GUN, ES, 40KV, 1.2

Pro Xp40 Air Spray Manual Electrostatic General Gun Model, 40 kV, 0.047 in (1.2 mm) nozzle, standard display, standard coatings Available in 40 kV, this general model is the smallest profile gun with an internal power supply on the market. The 1.2 mm nozzle is for lower fluid flow. For applying Class A or decorative finishes with standard and specialty coatings Painters experience less muscle strain and fatigue when spraying with the ergonomic, lightweight electrostatic gun model. Electrostatic air spray gun meets strict requirements for spray pattern, mechanical and electrical performance. Durable, easy-to-repair components are backed by a three-year warranty and A+ Service.

$4,800.00

PRO XP GUN, ES, 40KV, GROUND POINT

GG L40T14

PRO XP GUN, ES, 40KV, GROUND POINT

Graco L40T14 Pro Xp40 Air Spray Manual Electrostatic Gun, 40 kV Booster, 0.055 in (1.5 mm) nozzle, standard display

Get the transfer efficiency of a 60 kV electrostatic air spray gun in the compact size of a 40 kV gun. The smaller and lighter ergonomics make it ideal for operators who work in tight spaces.

Easily adjust gun performance with large, simple-to-use, control knobs.
Durable components are backed by a three-year warranty and A+ Service.
Made in the USA
Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco&prime, s requirements

Model: Pro Xp
Series: 40

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, Standard
Applicator Type: Manual
Coating Type: Standard
Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
Display Type: Standard
Fluid Inlet Size (in): 3/8
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 560
Gun Weight (kg): 0.56
Gun Weight (lb): 1.23
Gun Weight (oz): 19.75
Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): Infinity
Minimum Paint Resistivity (megohm/cm): 25
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 22.1
Overall Length (in): 8.7
Overall Length (mm): 221

$8,470.00

PRO XP GUN, ES, 40KV, GROUND POINT, HC

GG L40T15

PRO XP GUN, ES, 40KV, GROUND POINT, HC

Pro Xp40 Air Spray Manual Electrostatic Gun, 40 kV Booster, standard display, 0.055 in (1.5 mm) high wear nozzle, high conductivity tube Gain the transfer efficiency of a 60 kV electrostatic gun in the compact size of a 40 kV air spray gun. The longer high conductivity fluid tube lets you spray lower resistivity material. Smaller and lighter ergonomics make the manual electrostatic spray gun ideal for painters who work in tight spaces. Metal tip precision high-wear nozzle, high-wear electrode, and more durable fluid tube improve longevity. Durable components are backed by a three-year warranty and A+ Service. Made in the USA Smooth, curved ergonomic handle fits nicely in your hand for more comfortable spraying Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements

$8,880.00

PRO XP GUN, ES, 40KV, WBX

GG L40T28

PRO XP GUN, ES, 40KV, WBX

Pro Xp WBx Air Spray Manual Waterborne External Charge Electrostatic Gun, 40 kV, standard display Externally charged waterborne air spray gun reduces material and environmental costs without the expense and limitations of an electrostatic isolation system. For spraying conductive, waterborne fluids – no isolation system needed Waterborne material stays grounded in the gun and is charged at the tip of the electrostatic spray gun with the assistance of a probe. Two probe options meet different needs. The long probe provides the best transfer efficiency and wrap. The shorter probe is for low profile electrostatic charging.

$6,520.00

DURA-FLO 430 PUMP, RECIP, DISPL

GG L430SM

DURA-FLO 430 PUMP, RECIP, DISPL

Graco L430SM Dura-Flo 1800 (430 cc) Lower, Stainless Steel, 4 Leather, 3 UHMWPE Throat/3 UHMWPE, 2 Leather Piston Packings

Application: With priming piston, rod and cylinder.

Model: Dura-Flo

Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Compatible Material: Motor Oil, Gear Oil, Automatic Transmission Fluid, Oil
Fluid Inlet Size (cm): 5.08
Fluid Inlet Size (in): 2
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Thread Gender: Male
Fluid Outlet Thread Type: NPT
For Use With: Dura-Flo Oil Pumps
Maximum Flow Rate (GPM): 6.9
Maximum Operating Temperature (°F): 150
Maximum Output (cm³): 430
Maximum Pump Speed (CPM): 60
Maximum Working Pressure (psi): 4700

$16,670.00

Lower, CM500 Maxlife

GG L500CM

Lower, CM500 Maxlife

Graco L500CM Carbon Steel MaxLife Check-Mate 500 Lower

Application: With priming piston, rod and cylinder.

Model: Check-Mate

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Thread Gender: Male
Fluid Outlet Thread Type: NPT
For Use With: Check-Mate Pump Packages
Maximum Flow Rate (GPM): 8
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 500
Maximum Pump Speed (CPM): 60
Maximum Working Pressure (psi): 3900

$13,050.00

LOWER, CM500 SEVERE DUTY

GG L500CS

LOWER, CM500 SEVERE DUTY

Graco L500CS Carbon Steel Severe Duty Check-Mate 500 Lower

Application: With priming piston, rod and cylinder.

Model: Check-Mate

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Thread Gender: Male
Fluid Outlet Thread Type: NPT
For Use With: Check-Mate Pump Packages
Maximum Flow Rate (GPM): 8
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 500
Maximum Pump Speed (CPM): 60
Maximum Working Pressure (psi): 3900

$9,060.00

PRO XP GUN, ES, 60KV, SMART, HC

GG L60M16

PRO XP GUN, ES, 60KV, SMART, HC

Graco L60M16 Pro Xp60 Air Spray Manual Electrostatic High Conductivity Gun, 60 kV, 0.055 in (1.5 mm) precision high wear nozzle, smart display

This 60 kV high conductivity model combines material savings and excellent finish quality into a small, light gun body, making it easy to spray.

Application: For spraying low resistivity materials, such as abrasives and metallic coatings

Smart controls help you analyze performance, adapt to your voltage needs and troubleshoot easily.
Metal tip precision high-wear nozzle, high-wear electrode, and more durable fluid tube improve longevity.
Removable black fluid tube cover allows operator to see fluid movement.
Made in the USA

Model: Pro Xp
Series: 60

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, High Conductivity, High Wear
Applicator Type: Manual
Coating Type: Abrasive, Metallic, High Conductivity, High Wear
Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
Display Type: Smart
Fluid Inlet Size (in): 3/8
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 670
Gun Weight (kg): 0.67
Gun Weight (lb): 1.48
Gun Weight (oz): 23.63
Includes: Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): 25
Minimum Paint Resistivity (megohm/cm): 1
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 24.13
Overall Length (in): 9.5
Overall Length (mm): 241.3

$9,490.00

PRO XP GUN, ES, 60KV, SMART, WB

GG L60M18

PRO XP GUN, ES, 60KV, SMART, WB

Pro Xp60 WB Air Spray Manual Electrostatic Gun, 60 kV, 0.055 in (1.5 mm) nozzle, smart display, for waterborne coatings Superior quality air spray consistently achieves high quality, Class A or decorative finishes with waterborne material. For spraying conductive, waterborne fluids with an isolation system Available in 60 kV, it’s the smallest profile gun with an internal power supply on the market. Painters experience less muscle strain and fatigue when spraying with the ergonomic, lightweight applicator. Smart controls help you analyze performance, adapt voltage needs and troubleshoot easily. Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements. Made in the USA

$9,480.00

PRO XP GUN, ES, 60KV, MOLD RELEASE

GG L60M19

PRO XP GUN, ES, 60KV, MOLD RELEASE

Graco L60M19 Pro Xp60 WB Air Spray Manual Electrostatic Gun, 60 kV, smart display, for mold release applications

Superior quality air spray consistently achieves high quality, Class A or decorative finishes with waterborne material.

Application: For spraying waterborne mold release materials with an isolation system

Model for spraying mold release materials delivers fine atomized particles in a low-pressure spray with a fine finish tip.
Available in 60 kV, it’s the smallest profile gun with an internal power supply on the market.
Painters experience less muscle strain and fatigue when spraying with the ergonomic, lightweight applicator.
Made in the USA

Model: Pro Xp
Series: 60

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, Waterborne, Mold Release
Applicator Type: Manual
Coating Type: Waterborne, Mold Release
Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
Display Type: Smart
Fluid Inlet Size (in): 3/8
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 670
Gun Weight (kg): 0.67
Gun Weight (lb): 1.48
Gun Weight (oz): 23.63
Includes: Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): 1
Minimum Paint Resistivity (megohm/cm): 0
Overall Length (cm): 24.13
Overall Length (in): 9.5
Overall Length (mm): 241.3

$10,810.00

LOWER, CM200 SEVERE DUTY

GG L200CS

LOWER, CM200 SEVERE DUTY

Graco L200CS Carbon Steel Severe Duty Check-Mate 200 Lower

Application: With priming piston, rod and cylinder.

Model: Check-Mate

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Fluid Outlet Size (in): 1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
For Use With: Check-Mate Pump Packages
Maximum Flow Rate (GPM): 3.2
Maximum Operating Temperature (°F): 180
Maximum Output (cm³): 200
Maximum Pump Speed (CPM): 60
Maximum Working Pressure (psi): 6200

$6,650.00

PRO XP GUN, ES, 60KV, 1.2 NOZZLE

GG L60T12

PRO XP GUN, ES, 60KV, 1.2 NOZZLE

Graco L60T12 Pro Xp60 Air Spray Manual Electrostatic General Gun Model, 60 kV, 0.047 in (1.2 mm) nozzle, standard display, standard coatings

The 60 kV electrostatic air spray gun is the smallest profile gun with an internal power supply on the market. The 1.2 mm nozzle is for lower fluid flow.

Internal power supply reduces operator fatigue with no heavy cords to slow painters down.
Each electrostatic gun meets strict requirements for spray pattern, mechanical and electrical performance.
Built-in durability means the paint spray gun is designed to last – and made in the USA.

Model: Pro Xp
Series: 60

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, Standard
Applicator Type: Manual
Coating Type: Standard, Specialty
Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
Display Type: Standard
Fluid Inlet Size (in): 3/8
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 600
Gun Weight (kg): 0.6
Gun Weight (lb): 1.32
Gun Weight (oz): 21.16
Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): Infinity
Minimum Paint Resistivity (megohm/cm): 25
Nozzle Size (cm): 0.12
Nozzle Size (in): 0.047
Nozzle Size (mm): 1.2
Overall Length (cm): 24.13
Overall Length (in): 9.5
Overall Length (mm): 241.3

$8,130.00

PRO XP GUN, ES, 60KV

GG L60T10

PRO XP GUN, ES, 60KV

Graco L60T10 Pro Xp60 Air Spray Manual Electrostatic General Gun Model, 60 kV, 0.055 in (1.5 mm) nozzle, standard display, standard coatings

The 60 kV electrostatic air spray gun is the smallest profile gun with an internal power supply on the market.

Internal power supply reduces operator fatigue with no heavy cords to slow painters down.
Durable, easy-to-repair components are backed by a three-year warranty and A+ Service.
High transfer efficiency equals less waste, saving you money on material.

Model: Pro Xp
Series: 60

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, Standard
Applicator Type: Manual
Coating Type: Standard, Specialty
Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
Display Type: Standard
Fluid Inlet Size (in): 3/8
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 600
Gun Weight (kg): 0.6
Gun Weight (lb): 1.32
Gun Weight (oz): 21.16
Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): 25
Minimum Paint Resistivity (megohm/cm): 1
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 24.13
Overall Length (in): 9.5
Overall Length (mm): 241.3

$8,130.00

PRO XP GUN, ES, 60KV, HC

GG L60T16

PRO XP GUN, ES, 60KV, HC

Graco L60T16 Pro Xp60 Air Spray Manual Electrostatic High Conductivity Gun, 60 kV, 0.055 in (1.5 mm) precision high wear nozzle, standard display

This 60 kV high conductivity model produces material savings and excellent finish quality with a small, light gun body that’s easy to spray.

Application: For spraying low resistivity materials, such as abrasives and metallic coatings

Metal tip precision high-wear nozzle, high-wear electrode, and more durable fluid tube improve longevity.
Removable black fluid tube cover allows operator to see fluid movement.
Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier
Made in the USA

Model: Pro Xp
Series: 60

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, High Conductivity, High Wear
Applicator Type: Manual
Coating Type: Abrasive, Metallic, High Conductivity, High Wear
Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
Display Type: Standard
Fluid Inlet Size (in): 3/8
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 600
Gun Weight (kg): 0.6
Gun Weight (lb): 1.32
Gun Weight (oz): 21.16
Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): 25
Minimum Paint Resistivity (megohm/cm): 1
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 24.13
Overall Length (in): 9.5
Overall Length (mm): 241.3

$8,470.00

PRO XP GUN, ES, 60KV, WB

GG L60T18

PRO XP GUN, ES, 60KV, WB

Pro Xp60 WB Air Spray Manual Electrostatic Gun, 60 kV, 0.055 in (1.5 mm) nozzle, standard display, for waterborne coatings Superior quality air spray consistently achieves high quality, Class A or decorative finishes with waterborne material. For spraying conductive, waterborne fluids with an isolation system Available in 60 kV, it’s the smallest profile gun with an internal power supply on the market. Painters experience less muscle strain and fatigue when spraying with the ergonomic, lightweight applicator. Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements. Made in the USA

$8,570.00

PRO XP GUN, ES, 85KV, SMART, HC

GG L85M16

PRO XP GUN, ES, 85KV, SMART, HC

Graco L85M16 Pro Xp85 Air Spray Manual Electrostatic High Conductivity Gun, 85 kV, 0.055 in (1.5 mm) precision high wear nozzle, smart display

The ergonomic design and efficiency of this 85 kV high conductivity model can help you save money and improve quality.

Application: For spraying low resistivity materials, such as abrasives and metallic coatings

Metal tip precision high-wear nozzle, high-wear electrode, and more durable fluid tube improve longevity.
Smart controls help you analyze performance, adapt voltage needs and troubleshoot easily.
Alternator speed indicator light ensures turbine speed is running at the correct level.
Rugged, dependable design supported by a three year warranty
Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco&prime, s requirements

Model: Pro Xp
Series: 85

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, High Conductivity, High Wear
Applicator Type: Manual
Coating Type: Abrasive, Metallic, High Conductivity, High Wear
Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
Display Type: Smart
Fluid Inlet Size (in): 3/8
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 675
Gun Weight (kg): 0.675
Gun Weight (lb): 1.49
Gun Weight (oz): 23.81
Includes: Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): 25
Minimum Paint Resistivity (megohm/cm): 1
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 26.67
Overall Length (in): 10.5
Overall Length (mm): 266.7

$10,550.00

PRO XP GUN, ES, 85KV, 1.2

GG L85T12

PRO XP GUN, ES, 85KV, 1.2

Pro Xp85 Air Spray Manual Electrostatic General Gun Model, 85 kV, 0.047 in (1.2 mm) nozzle, standard display, standard coatings Available in 85 kV, this general model is the smallest profile gun with an internal power supply on the market. The 1.2 mm nozzle is for lower fluid flow. For applying Class A or decorative finishes with standard and specialty coatings Painters experience less muscle strain and fatigue when spraying with the ergonomic, lightweight electrostatic gun model. Electrostatic air spray gun meets strict requirements for spray pattern, mechanical and electrical performance. Durable, easy-to-repair components are backed by a three-year warranty and A+ Service.

$9,330.00

Kit, Lower, Bare, Bellows, 100Cc

GG LB100B

Kit, Lower, Bare, Bellows, 100Cc

$7,870.00

MD2 Valve, 10:1 Wide Ratio, Soft Seat Electricall Actuated Gun Trigger

GG LC0006

MD2 Valve, 10:1 Wide Ratio, Soft Seat Electricall Actuated Gun Trigger

$7,430.00

PRO XP GUN, ES, AUTO BOTTOM, HC

GG LA2T16

PRO XP GUN, ES, AUTO BOTTOM, HC

Graco LA2T16 Pro Xp Auto Air Spray Electrostatic Spray Gun, 85 kV, Standard, Bottom Manifold, 1.5 mm (0.055 in) Nozzle, High Conductive/High Wear

Pro Xp Auto Air Spray has an 85 kV power supply and internal power so there’s no electrical cord to damage or replace. Standard gun models always run at 85 kV power and include an alternator speed indicator to display electrostatic performance. Ideal for low pressure, high quality spraying.

Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns
Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
85 kV power supply and internal power so there&prime, s no electrical cord to worry about damaging or replacing
Durable components reduce cost of ownership, supported by a three year warranty

Model: Pro Xp
Series: Auto

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, High Conductivity, High Wear
Applicator Type: Automatic
Coating Type: High Conductivity
Compatible Paint Type: High-Conductivity
Display Type: Standard
Fluid Inlet Size (in): 1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
For Use With: Pro Xp Auto Control Module
Gun Activation: Automatic
Gun Type: Electrostatic
Gun Weight (g): 1197
Gun Weight (kg): 1.2
Gun Weight (lb): 2.64
Gun Weight (oz): 42.24
Manifold Type: Bottom
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): Infinity
Minimum Paint Resistivity (megohm/cm): 3
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 25.91
Overall Length (in): 10.2
Overall Length (mm): 259.1

$14,650.00

MIXER, STATIC, 3/8XCOMBO, 50 QTY

GG LC0081

MIXER, STATIC, 3/8XCOMBO, 50 QTY

Graco LC0081 50-Pack of 3/8 in (9.8 mm) Combo Element PosiMixer®

Disposable mixers – simply attach, dispense and dispose

Spiral mixing action thoroughly mixes two-component materials
No solvent flushing means less mess and reduced disposal expenses
Rugged, chemical-resistant mixer housing and mixing elements

Model: PR70

For Use With: PR70? Meter, Mix and Dispense Systems
Includes: (50) 3/8 x Combo Mixers
Inside Diameter (cm): 9.8
Inside Diameter (in): 3/8
Inside Diameter (mm): 98
Maximum Working Pressure (bar): 207
Maximum Working Pressure (kPa): 20700
Maximum Working Pressure (MPa): 20.7
Maximum Working Pressure (psi): 3000
Mix Type: Static
Number of Pieces: 50
Orifice Diameter (in): 0.375
Outside Diameter (in): 0.5
Overall Length (cm): 34.8
Overall Length (in): 13.7
Overall Length (mm): 348

$1,215.00

PRO XP GUN, ES, AUTO REAR, SMART

GG LA1M10

PRO XP GUN, ES, AUTO REAR, SMART

Graco LA1M10 Pro Xp Auto Air Spray Electrostatic Spray Gun, 85 kV, Smart, Rear Manifold, 1.5 mm (0.055 in) Nozzle, Standard Coating

Pro Xp Auto Air Spray has an 85 kV power supply and internal power so there’s no electrical cord to damage or replace. Smart gun models connect to a control module for kV control and displaying gun performance. Ideal for low pressure, high quality spraying.

Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns
Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
85 kV power supply and internal power so there&prime, s no electrical cord to worry about damaging or replacing
Durable components reduce cost of ownership, supported by a three year warranty

Model: Pro Xp
Series: Auto

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, Standard
Applicator Type: Automatic
Coating Type: Standard
Compatible Paint Type: Solvent borne
Display Type: Smart
Fluid Inlet Size (in): 1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
For Use With: Pro Xp Auto Control Module
Gun Activation: Automatic
Gun Type: Electrostatic
Gun Weight (g): 1197
Gun Weight (kg): 1.2
Gun Weight (lb): 2.64
Gun Weight (oz): 42.24
Manifold Type: Rear
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): Infinity
Minimum Paint Resistivity (megohm/cm): 3
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 26.92
Overall Length (in): 10.6
Overall Length (mm): 269.2

$13,630.00

PRO XP GUN, ES, AUTO BOTTOM, SMT, HC

GG LA2M16

PRO XP GUN, ES, AUTO BOTTOM, SMT, HC

Graco LA2M16 Pro Xp Auto Air Spray Electrostatic Spray Gun, 85 kV, Smart, Rear Manifold, 1.5 mm (0.055 in) Nozzle, Standard Coating

Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns
Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
85 kV power supply and internal power so there&prime, s no electrical cord to worry about damaging or replacing
Durable components reduce cost of ownership, supported by a three year warranty

Model: Pro Xp
Series: Auto

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, Standard
Applicator Type: Automatic
Coating Type: Standard
Compatible Paint Type: High-Conductivity
Display Type: Smart
Fluid Inlet Size (in): 1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
For Use With: Pro Xp Auto Control Module
Gun Activation: Automatic
Gun Type: Electrostatic
Gun Weight (g): 1197
Gun Weight (kg): 1.2
Gun Weight (lb): 2.64
Gun Weight (oz): 42.24
Manifold Type: Rear
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): Infinity
Minimum Paint Resistivity (megohm/cm): 3
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 25.91
Overall Length (in): 10.2
Overall Length (mm): 259.1

$14,130.00

MIXER, STATIC, 3/16X32, 250 PACK

GG LC0084

MIXER, STATIC, 3/16X32, 250 PACK

Graco LC0084 250-Pack of 3/16 in (4.8 mm) x 32 Element PosiMixer®

Disposable mixers – simply attach, dispense and dispose

Spiral mixing action thoroughly mixes two-component materials
No solvent flushing means less mess and reduced disposal expenses
Rugged, chemical-resistant mixer housing and mixing elements

Model: PR70

For Use With: PR70? Meter, Mix and Dispense Systems
Inside Diameter (cm): 4.8
Inside Diameter (in): 3/16
Inside Diameter (mm): 48
Maximum Working Pressure (bar): 207
Maximum Working Pressure (kPa): 20700
Maximum Working Pressure (MPa): 20.7
Maximum Working Pressure (psi): 3000
Mix Type: Static
Number of Pieces: 250
Outside Diameter (in): 0.315
Overall Length (cm): 18.8
Overall Length (in): 7.4
Overall Length (mm): 188

Call for pricing

MIXER, STATIC, 3/8X24, 250 QTY

GG LC0086

MIXER, STATIC, 3/8X24, 250 QTY

Graco LC0086 250-Pack of 3/8 in (9.8 mm) x 24 Element PosiMixer®

Disposable mixers – simply attach, dispense and dispose

Spiral mixing action thoroughly mixes two-component materials
No solvent flushing means less mess and reduced disposal expenses
Rugged, chemical-resistant mixer housing and mixing elements

Model: PR70

For Use With: PR70? Meter, Mix and Dispense Systems
Includes: (250) 3/8 x 24 Mixers
Inside Diameter (cm): 9.8
Inside Diameter (in): 3/8
Inside Diameter (mm): 98
Maximum Working Pressure (bar): 207
Maximum Working Pressure (kPa): 20700
Maximum Working Pressure (MPa): 20.7
Maximum Working Pressure (psi): 3000
Mix Type: Static
Number of Pieces: 250
Orifice Diameter (in): 0.375
Outside Diameter (in): 0.5
Overall Length (cm): 24.5
Overall Length (in): 9.7
Overall Length (mm): 245

Call for pricing

PRO XP GUN, ES, AUTO REAR, SMART, HC

GG LA1M16

PRO XP GUN, ES, AUTO REAR, SMART, HC

Graco LA1M16 Pro Xp Auto Air Spray Electrostatic Spray Gun, 85 kV, Smart, Rear Manifold, 1.5 mm (0.055 in) Nozzle, High Conductive/High Wear

Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns
Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
85 kV power supply and internal power so there&prime, s no electrical cord to worry about damaging or replacing
Durable components reduce cost of ownership, supported by a three year warranty

Model: Pro Xp
Series: Auto

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, High Conductivity, High Wear
Applicator Type: Automatic
Coating Type: High Conductivity
Compatible Paint Type: High-Conductivity
Display Type: Smart
Fluid Inlet Size (in): 1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
For Use With: Pro Xp Auto Control Module
Gun Activation: Automatic
Gun Type: Electrostatic
Gun Weight (g): 1197
Gun Weight (kg): 1.2
Gun Weight (lb): 2.64
Gun Weight (oz): 42.24
Manifold Type: Rear
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): Infinity
Minimum Paint Resistivity (megohm/cm): 3
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 26.92
Overall Length (in): 10.6
Overall Length (mm): 269.2

$16,020.00

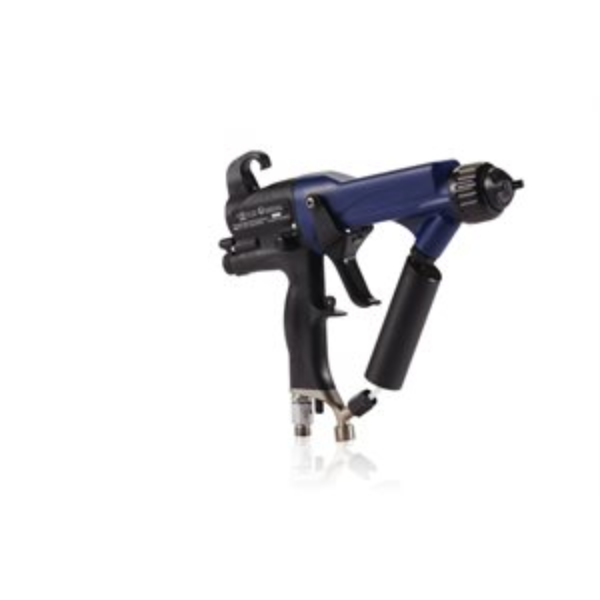

PRO XP GUN, ES, 85KV, HC

GG L85T16

PRO XP GUN, ES, 85KV, HC

Graco L85T16 Pro Xp85 Air Spray Manual Electrostatic High Conductivity Gun, 85 kV, 0.055 in (1.5 mm) precision high wear nozzle, standard display

The ergonomic design and efficiency of this 85 kV high conductivity model can help your paint line save money and improve quality.

Application: For spraying low resistivity materials, such as abrasives and metallic coatings

Internal power supply reduces operator fatigue with no heavy cords to slow painters down.
Metal tip precision high-wear nozzle, high-wear electrode, and more durable fluid tube improve longevity.
Made in the USA
Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco&prime, s requirements

Model: Pro Xp
Series: 85

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, High Conductivity, High Wear
Applicator Type: Manual
Coating Type: Abrasive, Metallic, High Conductivity, High Wear
Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
Display Type: Standard
Fluid Inlet Size (in): 3/8
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 676
Gun Weight (kg): 0.675
Gun Weight (lb): 1.49
Gun Weight (oz): 23.81
Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): 25
Minimum Paint Resistivity (megohm/cm): 1
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 26.67
Overall Length (in): 10.5
Overall Length (mm): 266.7

$9,630.00

Valve, Assy 1:1 Lever Elec

GG LC0005

Valve, Assy 1:1 Lever Elec

$6,550.00

Dryer, Air, Desiccant, Disposable, w/Adapt

GG LC0097

Dryer, Air, Desiccant, Disposable, w/Adapt

$275.00

Dryer, Desiccant

GG LC0098

Dryer, Desiccant

$215.00

Kit, Rebuild, Seal, Pump, Rear, Pr

GG LC0094

Kit, Rebuild, Seal, Pump, Rear, Pr

$145.00

MIXER, STATIC, 1/4X24, 50 QTY

GG LC0078

MIXER, STATIC, 1/4X24, 50 QTY

Graco LC0078 50-Pack of 1/4 in (6.5 mm) x 24 Element PosiMixer®

Disposable mixers – simply attach, dispense and dispose

Spiral mixing action thoroughly mixes two-component materials
No solvent flushing means less mess and reduced disposal expenses
Rugged, chemical-resistant mixer housing and mixing elements

Model: PR70

For Use With: PR70? Meter, Mix and Dispense Systems
Includes: (50) 1/4 x 24 Mixers
Inside Diameter (cm): 6.5
Inside Diameter (in): 1/4
Inside Diameter (mm): 65
Maximum Working Pressure (bar): 207
Maximum Working Pressure (kPa): 20700
Maximum Working Pressure (MPa): 20.7
Maximum Working Pressure (psi): 3000
Mix Type: Static
Number of Pieces: 50
Orifice Diameter (in): 0.25
Outside Diameter (in): 0.375
Overall Length (cm): 18.8
Overall Length (in): 7.4
Overall Length (mm): 188

Call for pricing

7.5 L Stainless Steel Tank Lid with Pneumatic Agitator

GG LC0130

7.5 L Stainless Steel Tank Lid with Pneumatic Agitator

$6,070.00

MIXER, STATIC, 3/8X36, 50 QTY

GG LC0080

MIXER, STATIC, 3/8X36, 50 QTY

Graco LC0080 50-Pack of 3/8 in (9.8 mm) x 36 Element PosiMixer®

Disposable mixers – simply attach, dispense and dispose

Spiral mixing action thoroughly mixes two-component materials
No solvent flushing means less mess and reduced disposal expenses
Rugged, chemical-resistant mixer housing and mixing elements

Model: PR70

For Use With: PR70? Meter, Mix and Dispense Systems
Inside Diameter (cm): 9.8
Inside Diameter (in): 3/8
Inside Diameter (mm): 98
Maximum Working Pressure (bar): 207
Maximum Working Pressure (kPa): 20700
Maximum Working Pressure (MPa): 20.7
Maximum Working Pressure (psi): 3000
Mix Type: Static
Number of Pieces: 50
Outside Diameter (in): 0.5
Overall Length (cm): 34.8
Overall Length (in): 13.7
Overall Length (mm): 348

Call for pricing

PRO XP GUN, ES, AUTO REAR, SMART, WBX

GG LA1M28

PRO XP GUN, ES, AUTO REAR, SMART, WBX

Pro Xp Auto Waterborne Air Spray Electrostatic Spray Gun, external charging, smart model, with rear manifold, 60 kV Pro Xp Auto waterborne air spray guns are ideal for low pressure spraying without an isolation system. 60 kV power supply and internal power so there’s no electrical cord to damage or replace. Versatile product line gives you more models to choose from and greater spraying flexibility with air spray and waterborne guns Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting 60 kV power supply and internal power so there’s no electrical cord to worry about damaging or replacing Higher transfer efficiency equals less waste, saving you money on material Durable components reduce cost of ownership, supported by a three year warranty

$15,380.00

PRO XP GUN, ES, 85KV, FIXED FLUID

GG L85T90

PRO XP GUN, ES, 85KV, FIXED FLUID

Graco L85T90 Pro Xp85 Air Spray Manual Electrostatic 85kV, standard display, HW electrode, 0.055 in (1.5 mm) PHW nozzle, fixed fluid flow, standard tube

High air flow 85 kV electrostatic spray gun models give painters the feel and reach they need to paint from a distance and around large, complex areas.

Application: For applications that require abrasive, metallic, and extremely abrasive materials – often used to coat extruded aluminum and automotive components

An electrostatic (ES) on/off with a fixed fluid valve extends electrode and nozzle life.
More durable electrodes and nozzles extend applicator life.
No fluid adjustment knob eliminates reducing fluid flow at the gun, requiring a regulator to change fluid flow.

Model: Pro Xp
Series: 85
Product Series: A

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, Abrasive, Metallic
Applicator Type: Manual
Coating Type: Abrasive, Metallic
Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
Display Type: Standard
Fluid Inlet Size (in): 3/8
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 676
Gun Weight (kg): 0.675
Gun Weight (lb): 1.49
Gun Weight (oz): 23.81
Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kg/cm²): 7.14
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): Infinity
Minimum Paint Resistivity (megohm/cm): 25
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 26.67
Overall Length (in): 10.5
Overall Length (mm): 266.7

$9,400.00

PRO XP GUN, ES, 85KV, SOFT SPRAY

GG L85T71

PRO XP GUN, ES, 85KV, SOFT SPRAY

Pro Xp85 Air Spray Manual Electrostatic Gun, 85 kV, 0.039 in (1.0 mm) nozzle, standard display, soft spray air cap Soft spray air cap and nozzle are ideal for small, lightweight parts that need a fine finish with minimal paint flow. Lower atomizing airflow and fluid flow help keep the part in place while it’s being sprayed. This improves transfer efficiency and finish quality on anything that’s small and lightweight.

$9,400.00

Mixer, Assembly, Shroud, 3/8-24, 10 Pack

GG LC0058

MIXER,ASSY,SHROUD,3/8-24

Graco LC0058 10-Pack of 3/8 in (9.8 mm) x 24 Element PosiMixer with Shroud

Model: PR70

Call for pricing

Two 7.5 L Stainless Steel Tanks With High and Low Sensors With Refill Logic

GG LC0284

Two 7.5 L Stainless Steel Tanks With High and Low Sensors With Refill Logic

$5,360.00

PRO XP GUN, ES, AUTO BOTTOM

GG LA2T10

PRO XP GUN, ES, AUTO BOTTOM

Graco LA2T10 Pro Xp Auto Air Spray Electrostatic Spray Gun, 85 kV, Standard, Bottom Manifold, 1.5 mm (0.055 in) Nozzle, Standard Coating

Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns
Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
85 kV power supply and internal power so there&prime, s no electrical cord to worry about damaging or replacing
Durable components reduce cost of ownership, supported by a three year warranty

Model: Pro Xp
Series: Auto

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, Standard
Applicator Type: Automatic
Coating Type: Standard
Compatible Paint Type: Solvent borne
Display Type: Standard
Fluid Inlet Size (in): 1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
For Use With: Pro Xp Auto Control Module
Gun Activation: Automatic
Gun Type: Electrostatic
Gun Weight (g): 1197
Gun Weight (kg): 1.2
Gun Weight (lb): 2.64
Gun Weight (oz): 42.24
Manifold Type: Bottom
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7.0
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): Infinity
Minimum Paint Resistivity (megohm/cm): 3
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 25.91
Overall Length (in): 10.2
Overall Length (mm): 259.1

$12,610.00

Kit, Check Valve, Carbide Ball

GG LC0318

Kit, Check Valve, Carbide Ball

$105.00

10 Pack 1/2 in x 36 Element Mixer with Shroud

GG LC0296

10 Pack 1/2 in x 36 Element Mixer with Shroud

$2,640.00

Bracket, Mounting, Hmi, Pr70

GG LC0293

Bracket, Mounting, Hmi, Pr70

$1,280.00

PR70 HOSE, ASSY, FITTINGS, 1/4X120, SS

GG LC0805

PR70 HOSE, ASSY, FITTINGS, 1/4X120, SS

1/4 in x 120 in PR70 Stainless Steel Hose Package

$970.00

PR70 HOSE, ASSY, FITTINGS, 1/4X30, SS

GG LC0804

PR70 HOSE, ASSY, FITTINGS, 1/4X30, SS

1/4 in x 30 in PR70 Stainless Steel Hose Package

$655.00

Hose, 3/8in x 2.5ft

GG LC0807

Hose, 3/8in x 2.5ft

$610.00

Hose, Assy, Heated, 1/4 x 120 Inch, 240 V, 360 W, 1 R

GG LC0882

Hose, Assy, Heated, 1/4 x 120 Inch, 240 V, 360 W, 1 R

$4,530.00

Hose, Assy, Heated, Fittings, 3/8 x 120, SS

GG LC0885

Hose, Assy, Heated, Fittings, 3/8 x 120, SS

$4,660.00

PRO XPC GUN, RECIPRICATOR, STD

GG LC1020

PRO XPC GUN, RECIPRICATOR, STD

Graco LC1020 Pro Xpc Automatic Electrostatic Air Spray Gun, rear manifold for Solvent borne material, 100 kV

Pro Xpc Auto is safe, durable, PLC controllable, designed for efficient system integration and comes with a serialized certificate of performance. The system has 250 user settable presets and maintenance reminders that can be controlled from a PLC or switchbox control. This improves the flexibility of the client, who can spray with a wide variety of shapes and sizes.

Robot friendly with a weight and size that allows robots greater reach capabilities
Improve processes with switch box that makes spraying flexible
Invest in safer equipment with design features that reduce risks
System integration with nozzle tips to assemble a robot movement system or fixture

Model: Pro Xpc
Series: Auto

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Application: Electrostatic, Solvent borne
Applicator Type: Automatic
Coating Type: Solvent borne
Compatible Paint Type: Solvent borne
Fluid Inlet Size (in): 1/4
For Use With: Pro Xpc Auto Control Module
Gun Activation: Automatic
Gun Type: Electrostatic
Gun Weight (g): 545
Gun Weight (kg): 0.545
Gun Weight (lb): 1.2
Gun Weight (oz): 19.22
Manifold Type: Rear
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): Infinity
Minimum Paint Resistivity (megohm/cm): 1
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 14.48
Overall Length (in): 5.7
Overall Length (mm): 144.8

$9,830.00

Meter, Assembly, Pr70, 084, Ss/Nyl, 10.34 mm , Unassembled

GG LC1084

Meter, Assembly, Pr70, 084, Ss/Nyl, 10.34 mm , Unassembled

$3,140.00

PRO XPC GUN, WATERBORNE, STD-CABLE

GG LC1028

PRO XPC GUN, WATERBORNE, STD-CABLE

Pro Xpc Automatic Electrostatic Air Spray Gun, rear manifold for waterborne material, 60 kV Pro Xpc Auto is safe, durable, PLC controllable, designed for efficient system integration and comes with a serialized certificate of performance. The system has 250 user settable presets and maintenance reminders that can be controlled from a PLC or switchbox control. This improves the flexibility of the client, who can spray with a wide variety of shapes and sizes. Robot friendly with a weight and size that allows robots greater reach capabilities Improve processes with switch box that makes spraying flexible Invest in safer equipment with design features that reduce risks Maximize profits with patent pending charge points for high transfer efficiency and reduced material usage System integration with nozzle tips to assemble a robot movement system or fixture

$11,280.00

Meter, Assembly, Pr70, 090, Ss/Nyl, 10.70

GG LC1090

Meter, Assembly, Pr70, 090, Ss/Nyl, 10.70

$3,140.00

Meter, Assembly, Pr70, 100, Ss/Nyl, 11.28

GG LC1100

Meter, Assembly, Pr70, 100, Ss/Nyl, 11.28

$1,585.00

Meter, Assembly, Pr70, 094, Ss/Nyl, 10.94 mm , Unassembled

GG LC1094

Meter, Assembly, Pr70, 094, Ss/Nyl, 10.94 mm , Unassembled

$3,140.00

Meter Assembly, Pr70, 120, Ss/Nyl, 12.36 mm , Unassembled

GG LC1120

Meter Assembly, Pr70, 120, Ss/Nyl, 12.36 mm , Unassembled

$1,525.00

Meter, Assembly, Pr70, 240, Ss/Nyl, 17.48

GG LC1240

Meter, Assembly, Pr70, 240, Ss/Nyl, 17.48

$1,900.00

Meter Assembly, Pr70, 160, Ss/Nyl, 14.27 mm , Unassembled

GG LC1160

Meter Assembly, Pr70, 160, Ss/Nyl, 14.27 mm , Unassembled

$1,730.00

Meter Assembly, Pr70, 320, Ss/Nyl, 20.19 mm , Unassembled

GG LC1320

Meter Assembly, Pr70, 320, Ss/Nyl, 20.19 mm , Unassembled

$1,765.00

Meter, Assembly, Pr70, 960, Ss/Nyl, 34.96

GG LC1960

Meter, Assembly, Pr70, 960, Ss/Nyl, 34.96

$1,955.00

PRO XPC GUN, ROBOT, STD-CABLE

GG LC2020

PRO XPC GUN, ROBOT, STD-CABLE

Graco LC2020 Pro Xpc Automatic Electrostatic Air Spray Gun, bottom manifold for Solvent borne material, 100 kV

Robot friendly with a weight and size that allows robots greater reach capabilities
Improve processes with switch box that makes spraying flexible
Invest in safer equipment with design features that reduce risks
System integration with nozzle tips to assemble a robot movement system or fixture

Model: Pro Xpc
Series: Auto

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Application: Electrostatic, Solvent borne
Applicator Type: Automatic
Coating Type: Solvent borne
Compatible Paint Type: Solvent borne
Fluid Inlet Size (in): 1/4
For Use With: Pro Xpc Auto Control Module
Gun Activation: Automatic
Gun Type: Electrostatic
Gun Weight (g): 545
Gun Weight (kg): 0.545
Gun Weight (lb): 1.2
Gun Weight (oz): 19.22
Manifold Type: Bottom
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): Infinity
Minimum Paint Resistivity (megohm/cm): 1
Nozzle Size (cm): 0.15
Nozzle Size (in): 0.055
Nozzle Size (mm): 1.5
Overall Length (cm): 14.48
Overall Length (in): 5.7
Overall Length (mm): 144.8
