Piston

GG P15LSB

DURA-FLO PUMP, 3400/430

Dura-Flo NXT 2-Ball Piston Pump, 15:1, Low Noise Exhaust Motor, SST, 3 UHMW / 2 Tuffstack Packings

Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

Positive displacement, 2 ball piston design provides uniform and easily controlled deliveryHigh pump pressure and flow performance to handle a broad range of paints and coatingsImproved serviceability with fewer parts, faster repairs and lower ownership costMonitor and protect your pump with DataTrak

GG 224341

PUMP, DISPL, RECIP

Graco 224341 Severe-Duty, UHMWPE/PTFE Packed Stainless Steel Displacement Pump

• Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

GG 246831

Pump Displacement, w/Lube, 552

GG 24Y211

DURA-FLO 1800 PUMP, XL, 47:1, (18 CM CSTL)

Graco 24Y211 47:1 - 430cc Dura-Flo Pump with XL 10000 Air Motor, Severe Duty, Long Carbon Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plants production capacity.

Application: Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer

• XL 1000 Air Motor


  Modular design for easier maintenance

  Rugged body armor wont rust or dent

  Highest technology air motor on the market

• 430cc Dura-Flo Lower


  Severe Duty coatings on rods and cylinder Extends production time

• Standard Threaded Coupler -

• Replaceable Seat

  Minimizes service costs

• Cast Outlet and Inlet Housing

  Improves structural integrity




  • Air Inlet Size (in): 1
  • Air Inlet Size (mm): 25.4
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
  • Fluid Outlet Size (in): 1-1/2
  • Fluid Outlet Size (mm): 38.1
  • Fluid Outlet Thread Gender: Male
  • Fluid Outlet Thread Type: NPT
  • Material: Carbon Steel
  • Maximum Air Inlet Pressure (bar): 6.9
  • Maximum Air Inlet Pressure (kPa): 690
  • Maximum Air Inlet Pressure (psi): 100
  • Maximum Continuous Cycle Rate (CPM): 60
  • Maximum Flow Rate (GPM): 6.9
  • Maximum Flow Rate (L/min): 26.12
  • Maximum Operating Temperature ( degree C): 66
  • Maximum Operating Temperature ( degree F): 150
  • Maximum Working Pressure (bar): 310
  • Maximum Working Pressure (kPa): 31000
  • Maximum Working Pressure (MPa): 31
  • Maximum Working Pressure (psi): 4500
  • Portable: Non-Portable
  • Power Type: Pneumatic
  • Pump Ratio: 47:1

GG 245971

Pump, Displacement, .552/356.26

GG 24Y212

DURA-FLO XL PUMP, 47:1, (18 CM CSTL)

47:1 - 430cc Dura-Flo Pump with XL 10000 Air Motor, Severe Duty, Right Hand Carbon Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant's production capacity.

Long-lasting durability - Dura-Flo pumps are a time-tested, proven performerXL 1000 Air Motor

• Modular design for easier maintenance
• Rugged body armor won't rust or dent
• Highest technology air motor on the market

430cc Dura-Flo Lower

• Severe Duty coatings on rods and cylinder Extends production time

Standard Threaded Coupler -

Replaceable 1 1/2"-11 1/2 NPT Male Outlet Fitting

• Reduces repair costs

Replaceable Seat

• Minimizes service costs

Cast Outlet and Inlet Housing

• Improves structural integrity

GG 24Z834

T3 PUMP, CS

T3 Supply Pump (Carbon Steel): 3:1 Fluid to Air RatioTransfer Pumps are required to move A and B materials to the Reactor Spray Systems. The T3 Transfer Pump combines Graco’s proven Merkur air-motor and popular T2 stainless steel lower. The T3 is a 3:1 ratio pump – using less air pressure to provide the same fluid pressure required.Easier to maneuver - The overall height of the T3 is 3.7 inches (9.4 cm) shorter above the drum than the T2, making it easier to remove from the drum inside of a spray rig.More quiet – Studies show the T3 Transfer Pump is about 3x more quiet than the T2 Transfer Pump.Less maintenance - the Merkur air-motor is based on air pilot valve technology. The air-motor switchingis purely pneumatic. This differs from T1 and T2 Transfer Pumps, which use a mechanicalreversing mechanism in the air-motor

GG 218956

MONARK PUMP, 5-1

Monark 5:1 Pneumatic 2-Ball Piston Pump, Carbon SteelDesigned for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers and varnishes.Drum and stubby length models available for mounting and application flexibilityPositive displacement, 2-ball piston design provides uniform and easily controlled deliveryStainless steel or carbon steel models available to handle various fluidsFluid return stanchion for circulation back to the pumpUltra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids

GG 237795

CHECK-MATE 800 PUMP, SHOVEL, 8CM HOTMELT, 55GL

Graco 237795 55 gal (200 liter) Hot Melt Pump with 8 cm Shovel

Application: For use with hot-melt applications

• Model: Check-Mate

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Extended Rod Height (in): 31.25

• Fluid Outlet Size (in): 1
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3

• Maximum Operating Temperature ( degree F): 400

• Maximum Working Pressure (psi): 5850

GG 215932

Pump, Displacement, Recip

GG 217580

PRESIDENT PUMP, 15:1

President 15:1 Pneumatic 2-Ball Piston Pump, CS, Stubby Length2-ball pneumatic piston pumps for a wide range of applications.Reliable President air motor designed for low maintenance operation and long lifePositive displacement, 2-ball piston design provides uniform and easily controlled deliveryStainless steel or carbon steel models available to handle various fluids, including catalyzed materials

GG 224342

PRESIDENT PUMP, 10:1

President 10:1 Pneumatic 2-Ball Piston Pump, SST, Stubby2-ball pneumatic piston pumps for a wide range of applications.Reliable President air motor designed for low maintenance operation and long lifePositive displacement, 2-ball piston design provides uniform and easily controlled deliveryStainless steel or carbon steel models available to handle various fluids, including catalyzed materials

GG 24F159

MERKUR SPRAYER, ES, AA, 15:1, SST, STAND

15:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with PerformAA 15 gun, suction hose, and stainless steelThe Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.Quick flush system requires less than 1 minute to flush45% less material to fill the system than the leading competitorsDelivers a superior, consistent spray finishLow profile spray package makes it easy to transportEasily set and monitor air control, plus an integrated carrying handle for transportAir motor provides consistent finishes with smooth, rapid changeoverSuction hose and strainer leaves less material in the supply containerLightweight, flexible 1/8 in fluid hose reduces material and solvent usage

GG 224344

PUMP, DISPL, RECIP.

Viscount I Displacement Pump

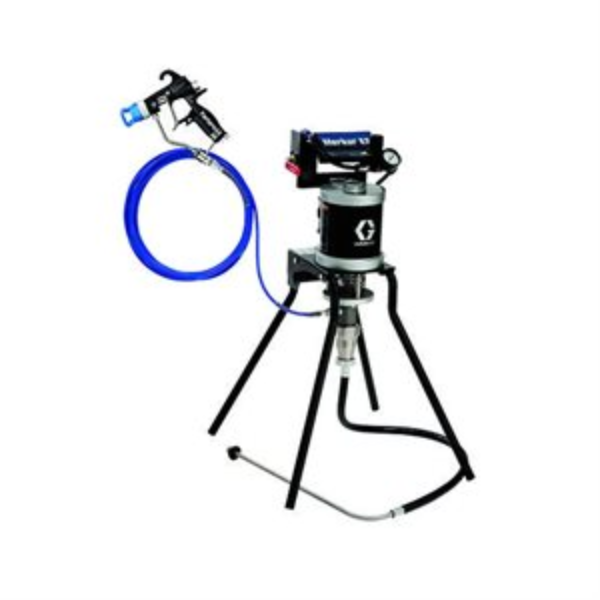

GG 24F155

MERKUR SPRAYER, ES, AL, 30;1, CS, STAND

30:1 Merkur ES Airless Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with PerformAA 50 Airless gun, suction hose, and plated steelThe Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.Quick flush system requires less than 1 minute to flush45% less material to fill the system than the leading competitorsDelivers a superior, consistent spray finishLow profile spray package makes it easy to transportEasily set and monitor air control, plus an integrated carrying handle for transportAir motor provides consistent finishes with smooth, rapid changeoverSuction hose and strainer leaves less material in the supply containerLightweight, flexible 1/8 in fluid hose reduces material and solvent usage

GG 222801

PUMP, RECIP, DISPL

Graco 222801 Dura-Flo 2400 (580 cc) Lower, Carbon Steel, 3 PTFE/2 Leather Packings

GG 222834

VISCOUNT II PUMP, 20:1

Viscount Hydraulic Motor with Dura-Flo 2400 (580 cc) Lower, 3 PTFE/2 Leather PackingsThe rugged pump lower construction with Severe Duty rods and cylinders reduces downtime and extends the interval between repairs. The simple construction makes service and repair fast and easy. The efficient hydraulic powered piston makes these pumps the ideal choice for factory and outdoor mobile use, even at below freezing temperatures.Clean, quiet operation with no airborne contaminationUp to three times more energy efficient than comparable compressed air systemsPositive displacement, 2-ball piston design provides uniform and easily controlled deliveryReduce routine maintenance and cut repairs time in half of comparable pump lowersEliminate downtime without ice build-up

GG 224346

PRESIDENT PUMP, 10:1

President 10:1 Pneumatic 2-Ball Piston Pump, SST, Stubby, UHMWPE/Neoprene Packings2-ball pneumatic piston pumps for a wide range of applications.Reliable President air motor designed for low maintenance operation and long lifePositive displacement, 2-ball piston design provides uniform and easily controlled deliveryStainless steel or carbon steel models available to handle various fluids, including catalyzed materials

GG 239326

PRESIDENT PUMP, 10:1

Graco 239326 10:1 Ratio President Hydra-Clean Pump

• Reliable, low maintenance air motor

• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery

• Carbon Steel Model

  Drum Length

• Model: President

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

GG 246081

KIT, COMPLETE, 2:1(AIR/FLUID)

Graco 246081 T2 Complete Package: Includes 2 Pumps (Stainless Steel), 2 Supply Hoses, Air Supply Kit and Desicant Dryer Kit

Gracos family of transfer pumps maintains performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.

Application: Ideal for moving A and B materials to Reactor spray machines.

• Provide consistent feed pressures and flow rates for dependable results
• Lower pressure drops with higher viscosity materials at any ambient temperature
• Designed and manufactured by the worldwide leader in pump technology
• Quick-release bung adapter for easy drum removal without interference from hose connections
• Stainless steel wetted parts for corrosion-resistance
• PTFE seals for improved performance and less maintenance

• Model: T2

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Polyurethane Materials

• Cycles Per Gallon: 15.9

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: HFR Metering System

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 12.5
• Maximum Air Inlet Pressure (kPa): 1250
• Maximum Air Inlet Pressure (MPa): 1.2
• Maximum Air Inlet Pressure (psi): 180

• Maximum Flow Rate (GPM): 5
• Maximum Flow Rate (L/min): 19

• Maximum Operating Temperature ( degree C): 88
• Maximum Operating Temperature ( degree F): 190

• Maximum Working Pressure (bar): 28
• Maximum Working Pressure (kPa): 2800
• Maximum Working Pressure (MPa): 2.8
• Maximum Working Pressure (psi): 405

• Package Options: Air Supply & Supply Hose

• Pump Ratio: 2.25:1

GG 237514

Pump, Lower, Dura-Flo 1200 (290 cc), SST, Severe-Duty Rod and Cylinder

GG 279037

PUMP, FTB100, 1:1, 200L DRUM, METL

Fast-Ball 100 55 Gallon Drum, Universal Pump, Steel TubeDesigned for enhanced quality, durability and reliability, the Fast-Ball 100 air-operated piston pump is easy to install, easy to operate, and simple design allows for efficient serviceability when necessary to minimize downtime and keep your operations running.Ideal for low-volume transfer of petroleum and synthetic-based oils with a continuous duty flow rate of up to 5 gpm (19lpm).In-line design with fewer parts for less pump wearDouble-acting pump provides reliable fluid flowDifferential air motor ensures smooth pumpingPump comes with a 34.5" downtube designed to fit a 55 gallon drum

GG W15BAS

Kit, Pump, 15:1, 50Cc, Ss, Std

GG 222803

PUMP,RECIP,DISPL

Graco 222803 Dura-Flo 2400 (580 cc) Lower, Stainless Steel, 3 UHMWPE/2 PTFE Packings

GG 16W969

Cylinder, Piston
