Bellows

GG 17K656

KIT,PUMP,4B,BELLOWS,750 CC

Graco 17K656 Sealed 4-Ball Lower, 750 cc, Stainless Steel, Ultralife Rod & Cylinder, Tri-Clamp Fittings

GG 220667

GLUTTON PUMP, (12:1 SST)

Graco 220667 Glutton 12:1 Bellows Pump, SST, UHMWPE Seals

The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1

• Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
• Designed to handle a broad range of applications, including abrasive materials
• Reversible outlet manifold simplifies plumbing installations

• Model: Glutton
• Series: Bellows

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: Sealed

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 7.57

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Working Pressure (bar): 83
• Maximum Working Pressure (kPa): 8300
• Maximum Working Pressure (MPa): 8.3
• Maximum Working Pressure (psi): 1200

• Portable: Non-Portable

• Pump Ratio: 12:1

GG 17K657

KIT,PUMP,4B,BELLOWS,1000 CC

Graco 17K657 Sealed 4-Ball Lower, 1000 cc, Stainless Steel, Ultralife Rod & Cylinder, Tri-Clamp Fittings

GG 17K658

KIT, PUMP, 4B, BELLOWS, 1500 CC

Graco 17K658 Sealed 4-Ball Lower, 1500 cc, Stainless Steel, Ultralife Rod & Cylinder, Tri-Clamp Fittings

GG 237009

GLUTTON PUMP, (12:1 CS)

Graco 237009 Glutton 12:1 Bellows Pump, CS, Series A

The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1

• Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
• Designed to handle a broad range of applications, including abrasive materials
• Reversible outlet manifold simplifies plumbing installations

• Model: Glutton
• Series: Bellows

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: Sealed

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 7.57

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Working Pressure (bar): 83
• Maximum Working Pressure (kPa): 8300
• Maximum Working Pressure (MPa): 8.3
• Maximum Working Pressure (psi): 1200

• Portable: Non-Portable

• Pump Ratio: 12:1

BB 192881

GG 237008

GLUTTON PUMP, (4:1 CS)

Graco 237008 Glutton 4:1 Bellows Pump, CS, Series A

The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1

• Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
• Designed to handle a broad range of applications, including abrasive materials
• Reversible outlet manifold simplifies plumbing installations

• Model: Glutton
• Series: Bellows

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: Sealed

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 5.6
• Maximum Flow Rate (L/min): 21.2

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Working Pressure (bar): 28
• Maximum Working Pressure (kPa): 2800
• Maximum Working Pressure (MPa): 2.8
• Maximum Working Pressure (psi): 400

• Portable: Non-Portable

• Pump Ratio: 4:1

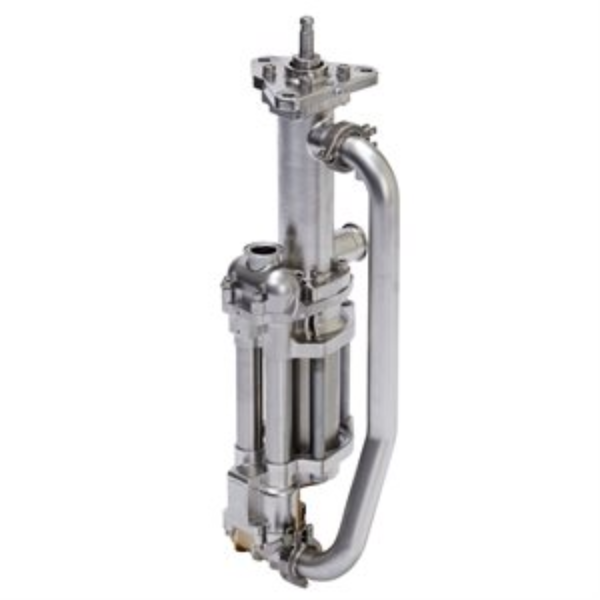

GG 17K659

KIT, PUMP, 4B, BELLOWS, 2000 CC

Graco 17K659 Sealed 4-Ball Lower, 2000 cc, Stainless Steel, Ultralife Rod & Cylinder, Tri-Clamp Fittings

Graco's Sealed 4-Ball Lower needs no routine maintenance and prevents unexpected downtime. The sealed fluid section eliminates the need for TSL (throat seal liquid). Designed to keep pumping in the event of a bellows failure, the lower allows you to schedule maintenance.

• Ultralife coating on lower rods and cylinders means a smoother finish, better wear and longer seal life for most applications.
• Connection kits contain tie rods and adapters – everything required to upgrade most legacy Graco circulation pumps to the latest technology. Refer to manual 311876 for complete information.

• Fluid Inlet Size (cm): 3.81
• Fluid Inlet Size (in): 1.5
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: Tri-Clamp

• Fluid Outlet Size (in): 1.5
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: Tri-Clamp

• Maximum Flow Rate (GPM): 10.6

• Maximum Operating Temperature (°F): 150
• Maximum Output (cm³): 40000

• Maximum Pump Speed (CPM): 20

• Maximum Working Pressure (psi): 460

GG 220668

GLUTTON PUMP, (25:1 SST)

Graco 220668 Glutton 25:1 Bellows Pump, SST, UHMWPE Seals

The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1

• Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
• Designed to handle a broad range of applications, including abrasive materials
• Reversible outlet manifold simplifies plumbing installations

• Model: Glutton
• Series: Bellows

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: Sealed

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.41

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Working Pressure (bar): 172
• Maximum Working Pressure (kPa): 17200
• Maximum Working Pressure (MPa): 17.2
• Maximum Working Pressure (psi): 2500

• Portable: Non-Portable

• Pump Ratio: 25:1

GG 237011

GLUTTON PUMP, (4:1 SST)

Graco 237011 Glutton 4:1 Bellows Pump, SST, Series A

The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1

• Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
• Designed to handle a broad range of applications, including abrasive materials
• Reversible outlet manifold simplifies plumbing installations

• Model: Glutton
• Series: Bellows

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: Sealed

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 5.6
• Maximum Flow Rate (L/min): 21.2

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Working Pressure (bar): 28
• Maximum Working Pressure (kPa): 2800
• Maximum Working Pressure (MPa): 2.8
• Maximum Working Pressure (psi): 400

• Portable: Non-Portable

• Pump Ratio: 4:1

GG 237013

GLUTTON PUMP, (25:1 SST)

Graco 237013 Glutton 25:1 Bellows Pump, SST, Series A

The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1

• Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
• Designed to handle a broad range of applications, including abrasive materials
• Reversible outlet manifold simplifies plumbing installations

• Model: Glutton
• Series: Bellows

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: Sealed

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.41

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Working Pressure (bar): 172
• Maximum Working Pressure (kPa): 17200
• Maximum Working Pressure (MPa): 17.2
• Maximum Working Pressure (psi): 2500

• Portable: Non-Portable

• Pump Ratio: 25:1
