GG L40T14
PRO XP GUN, ES, 40KV, GROUND POINT

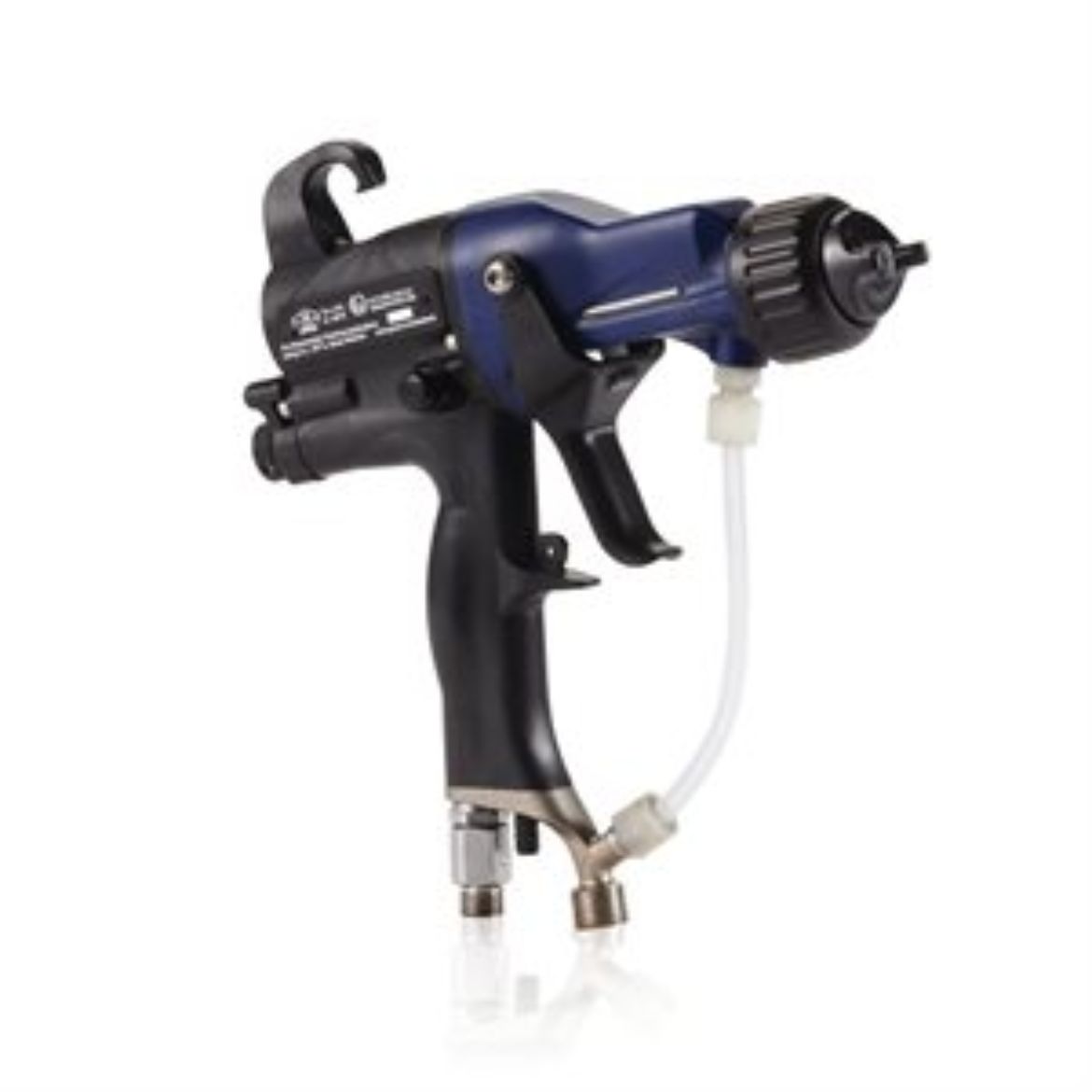

Graco L40T14 Pro Xp40 Air Spray Manual Electrostatic Gun, 40 kV Booster, 0.055 in (1.5 mm) nozzle, standard display
Get the transfer efficiency of a 60 kV electrostatic air spray gun in the compact size of a 40 kV gun. The smaller and lighter ergonomics make it ideal for operators who work in tight spaces.
- Easily adjust gun performance with large, simple-to-use, control knobs.
- Durable components are backed by a three-year warranty and A+ Service.
- Made in the USA
- Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Gracos requirements
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, Standard
- Applicator Type: Manual
- Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
- Fluid Inlet Size (in): 3/8
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Type: Electrostatic
- Gun Weight (g): 560
- Gun Weight (kg): 0.56
- Gun Weight (lb): 1.23
- Gun Weight (oz): 19.75
- Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm²): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm²): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): Infinity
- Minimum Paint Resistivity (megohm/cm): 25
- Nozzle Size (cm): 0.15
- Nozzle Size (in): 0.055
- Nozzle Size (mm): 1.5
- Overall Length (cm): 22.1
- Overall Length (in): 8.7
- Overall Length (mm): 221
