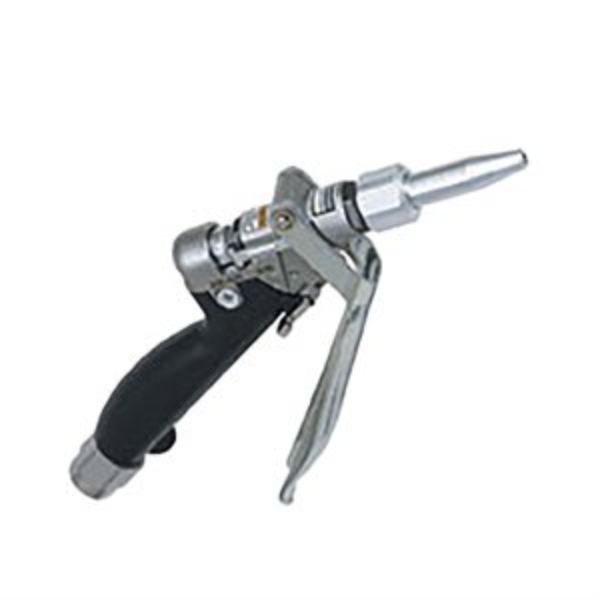

Ultra-Lite 6000 Gun, Flow

GG 235628

Ultra-Lite 6000 Gun, Flow

Ultra-Lite 6000 Flow Gun with Ball End Valve Needle

The operator-friendly Ultra-Lite 6000 combines ergonomic design with high-operating pressure for dispensing low-to-medium viscosity industrial and automotive sealants and adhesives.

For precise control of low-to-medium viscosity materials Operating pressures to 6000 psi (414 bar; 41.4 MPa). 150° head/handle angle is more comfortable for operator Changeable tips for a variety of dispensing needs Lightweight with convenient trigger pull Compatible with a variety of nozzles (1/4 in NPT (F) with nut for metal flanged nozzle). Order nozzle separately.

$1,325.00

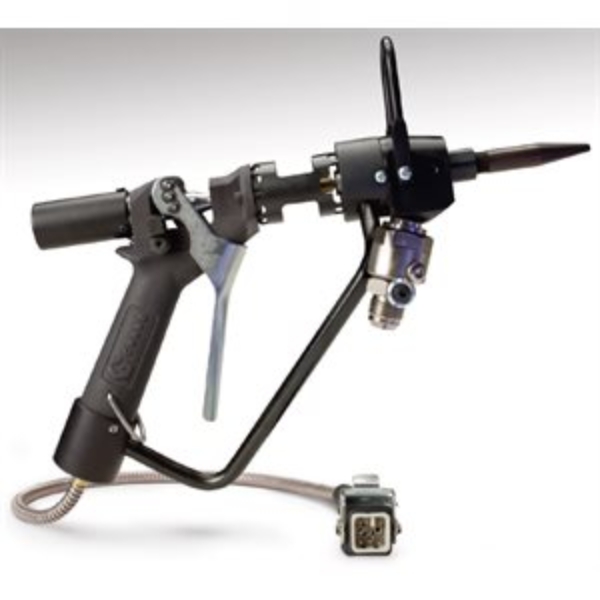

THERM-O-FLOW GUN, HOT MELT, BOTTOM FEED

GG 249514

THERM-O-FLOW GUN, HOT MELT, BOTTOM FEED

Graco 249514 Therm-O-Flo Bottom Feed Manual Gun, 240V

Hot melt dispense gun provides ergonomic, easy-trigger actuation for high pressure, high flow sealant and adhesive applications.

Application: For applying hot melt materials.

Provides accurate dispense control for Therm-O-Flow Systems
- Precise temperature control from PID control panel
- Piston-actuated ball and seat design for positive shut off
- Rugged all metal construction
For Use With: Therm-O-Flow
Maximum Fluid Pressure (bar): 245
Maximum Fluid Pressure (kPa): 2450
Maximum Fluid Pressure (MPa): 24.5
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Pressure (bar): 245
Maximum Fluid Pressure (kPa): 2450
Maximum Fluid Pressure (MPa): 24.5
Maximum Fluid Pressure (psi): 3500

$4,250.00

ULTRA-LITE 4000 GUN, FLOW

GG 235627

ULTRA-LITE 4000 GUN, FLOW

Ultra-Lite 4000 Flow Gun

The operator-friendly Ultra-Lite 4000 combines ergonomic design with high-operating pressure for dispensing low-to-medium viscosity industrial and automotive sealants and adhesives.

For precise control of low-to-medium viscosity materials

Operating pressures to 4000 psi (276 bar; 27.6 MPa).

150° head/handle angle is more comfortable for operator

Changeable tips for a variety of dispensing needs Lightweight with convenient trigger pull

$1,145.00

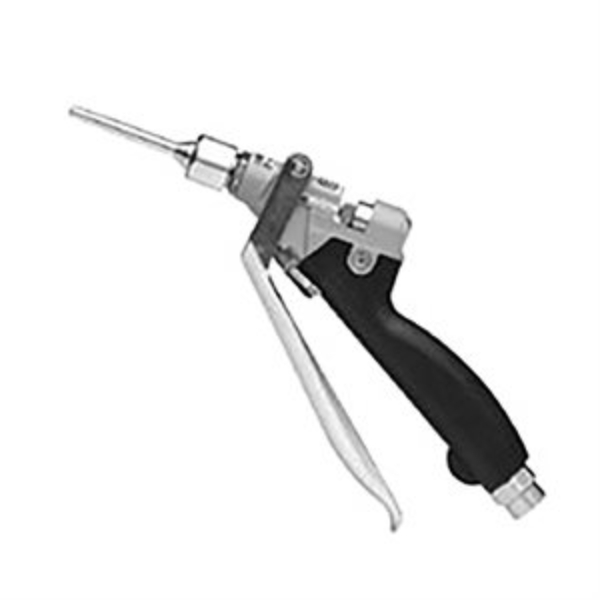

ULTRA-LITE 4000 GUN, FLOW, SEVERE DUTY

GG 237607

ULTRA-LITE 4000 GUN, FLOW, SEVERE DUTY

Graco 237607 Ultra-Lite 4000 Severe Duty Flow Gun

The operator-friendly Ultra-Lite 4000 combines ergonomic design with high-operating pressure for dispensing low-to-medium viscosity industrial and automotive sealants and adhesives.

Application: For precise control of low-to-medium viscosity materials

Operating pressures to 4000 psi (276 bar, 27.6 MPa).
150° head/handle angle is more comfortable for operator
Changeable tips for a variety of dispensing needs

Model: Ultra-Lite
Series: 4000

Application: Bonding, Sealing, Gasketing, Potting, Encapsulation
Connection Type: Threaded, Flange
Gun Activation: Manual
Inlet Size (in): 1/4
Inlet Thread Gender: Female
Inlet Thread Type: NPT
Maximum Working Pressure (bar): 280
Maximum Working Pressure (kg/cm²): 281
Maximum Working Pressure (kPa): 28000
Maximum Working Pressure (MPa): 28
Maximum Working Pressure (psi): 4000
Nozzle Size (cm): 0.508
Nozzle Size (in): 0.2
Nozzle Size (mm): 5.08
Number of Outputs: 1

$1,310.00

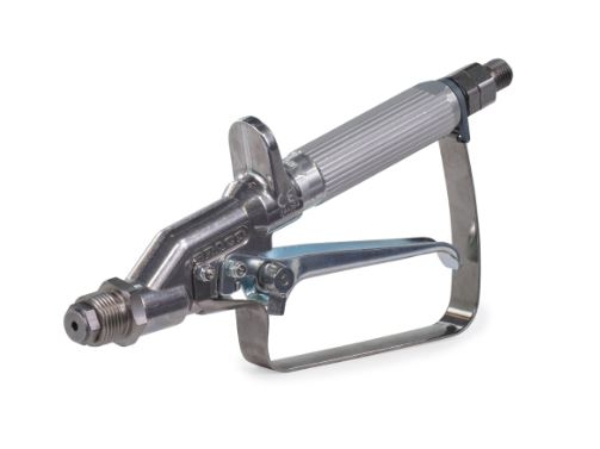

INLINE GUN

GG 244161

INLINE GUN

Contractor Gun In-Line Valve Genuine Graco Contractor In-Line Valve Gun. Refer to the parts manual for your sprayer to ensure part compatibility Graco’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come.

Can be used with other extended reach tools such as Heavy Duty Extensions and Telescoping Extensions for Pressure Rolling

Provides a straight connection to extensions for the most optimal rolling position

In-handle paint filter and built-in swivel connection for top spraying performance

Ability to rotate 180˚ allows spraying in any position

$326.00

Fusion Ap Gun, Grease, 3 Oz

GG 117792

Fusion Ap Gun, Grease, 3 Oz

$73.25

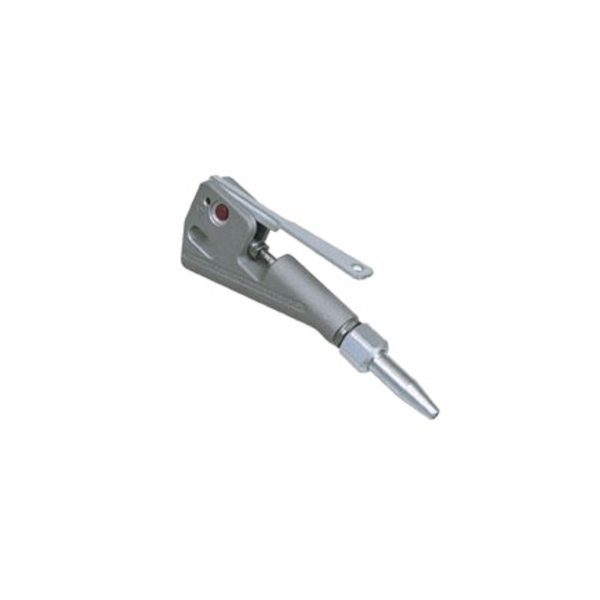

Gun, Extrusion

GG 204355

GUN, EXTRUSION

Palm Grip Extrusion Gun

For precise control of low-viscosity sealants and adhesives.

Handles:

PVC sealers with glass or plastic filler
Low to high abrasive fluids
Waterborne or solventborne materials
Most fluids up to 150,000 centipoise

Well-suited for dispensing onto horizontal surfaces Selectable trigger lock and hanger slot for operator convenience Accepts flanged or threaded tips for a variety of dispensing needs Rugged, lightweight design

$757.00

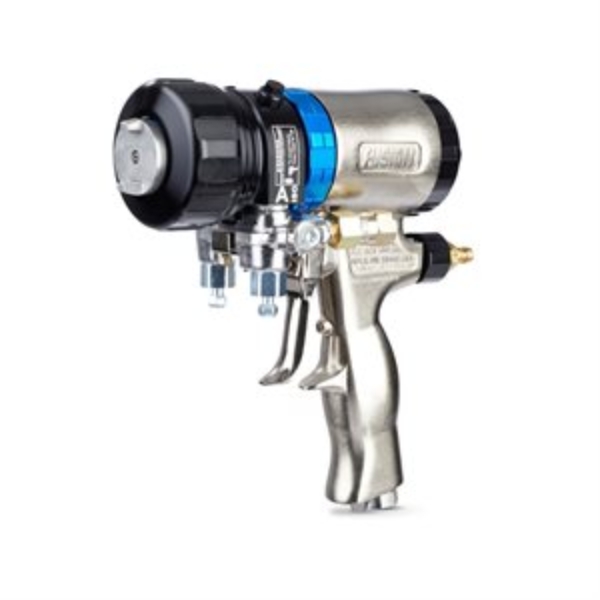

FUSION PC GUN, RND, 00

GG 25P587

FUSION PC GUN, RND, 00

Fusion ProConnect Gun with Round 00 Mix Chamber and 0.029 in (0.74 mm) Orifice Size A perfect rebuild in seconds is now possible with the revolutionary Fusion PC (ProConnect) gun, featuring an all-in-one cartridge head that replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consuming traditional rebuild, keeping you spraying and minimizing costly downtime. Unlike any other spray foam gun available A single cartridge replaces the entire fluid section in seconds Built on top of the time-tested Fusion Air Purge platform, the PC gun sprays exactly like a Fusion AP Integrated check valves for cross-over containment 13 parts are replaced by a single ProConnect cartridge Eliminates the need to purchase fluid section o-rings Spare ProConnect cartridges can replace your back-up guns Retrofit Kit available to convert existing Fusion AP guns

$3,870.00

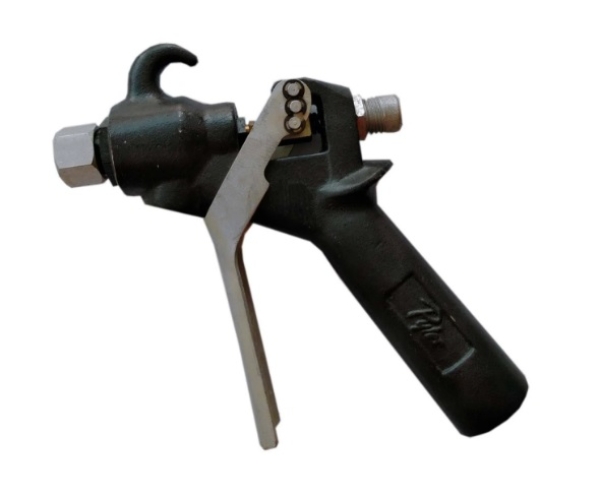

Gun, Flow, Pistol Grip

GG C27020

GUN, FLOW,PISTOL GRIP

Graco C27020 Pistol Grip Flow Gun

Rely on Graco pistol grip dispense guns for precise control of sealants and adhesive. No matter what the viscosity or material, Graco has a solution for you.

Application: For precise control of automotive and industrial adhesives and sealants

150 degree Pistol Grip Flow Guns (6000 psi/414 bar/41.4 mPa)
Precise control of highly viscous material
150 degree head/handle is comfortable for operator Changeable tips for a variety of dispensing needs
Lightweight with convenient trigger pull
Typical applications: Automotive or industrial sealant and adhesive applications, high flow rate requirements, abrasive fluid requirements
Handles rubber-based sealers, waterborne adhesives, silicone and solvent-borne materials
120 degree or 90 degree head/handle (3400 psi/235 bar/23.5 mPa)
Lightweight, low trigger pull
Typical applications: automotive and industrial adhesives and sealants, low to high flow rate requirements, in-line handle requirements
Handles rubber-based fluids, caulks, sealants, adhesives

Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill, Metering, Regulating

$1,000.00

FUSION PC GUN, RND, 01

GG 25P588

FUSION PC GUN, RND, 01

Fusion ProConnect Gun with Round 01 Mix Chamber and 0.042 in (1.06 mm) Orifice Size A perfect rebuild in seconds is now possible with the revolutionary Fusion PC (ProConnect) gun, featuring an all-in-one cartridge head that replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consuming traditional rebuild, keeping you spraying and minimizing costly downtime. Unlike any other spray foam gun available A single cartridge replaces the entire fluid section in seconds Built on top of the time-tested Fusion Air Purge platform, the PC gun sprays exactly like a Fusion AP Integrated check valves for cross-over containment 13 parts are replaced by a single ProConnect cartridge Eliminates the need to purchase fluid section o-rings Spare ProConnect cartridges can replace your back-up guns Retrofit Kit available to convert existing Fusion AP guns

$3,870.00

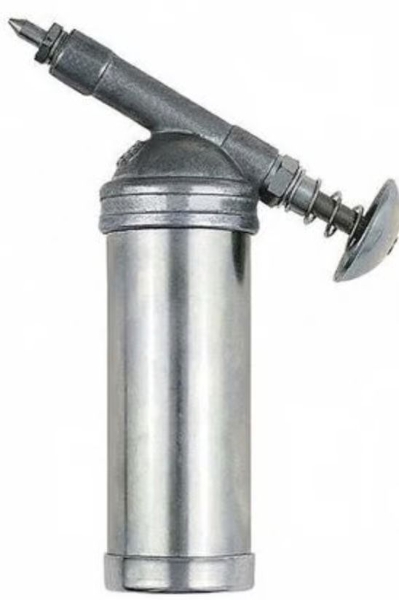

GREASE GUN

IR R000A2-228

GREASE GUN

$43.00

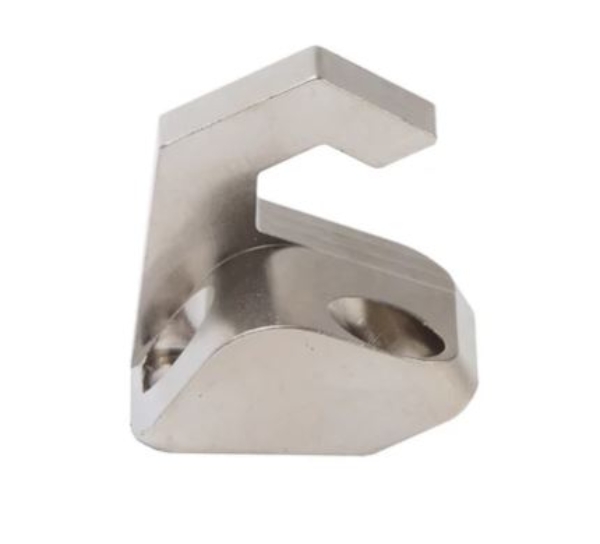

Body, Gel Gun Mount

GG 16C279

Body, Gel Gun Mount

$130.00

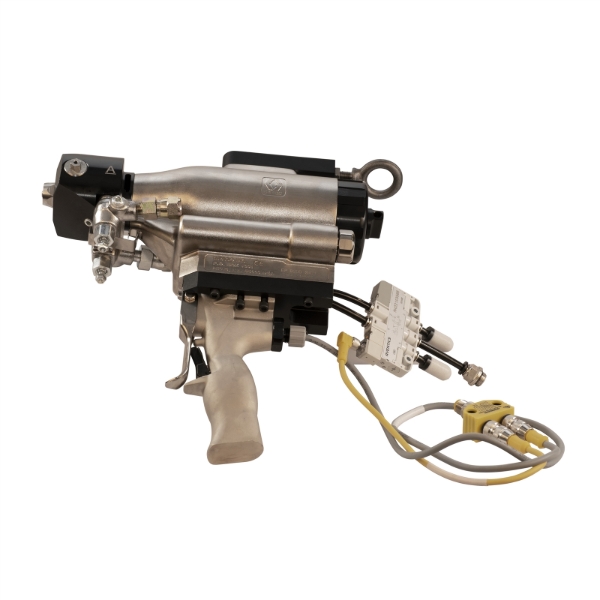

Ep Gun, 250, 031, Hand Held

GG 257999

EP GUN,250,031,HAND HELD

Graco 257999 EP250 Handheld Pour Gun with 0.25 in Purge Rod Diameter and 0.031 Orifice Size

The Graco EP Pour Gun is truly an innovative advancement for the polyurethane processing industry. Here's why. First of all, it's engineered with technology that allows for on-site rebuilds. Which means significantly less downtime and no more expensive backup mixheads. Second, it's affordable, with a low initial investment. Best of all, the Graco EP Pour Gun provides accurate on-ratio dispensing and handles a variety of materials.

Application: Polyurethane mixhead for open pour and closed-mold injection applications

Low initial investment
Easy do-it-yourself mixhead rebuilds
Delivers repeatable, accurate shots

Accurate, on-ratio dispensing
Lightweight
Responsive trigger delivers repeatable, accurate shots
Offers both manual and automated application modes
For open pour applications and closed-mold injection
Compatible with Graco HFR Metering System, Reactor IP-25 and Reactor IP-40

Application: Rigid Polyurethane, Flexible Polyurethane

$8,060.00

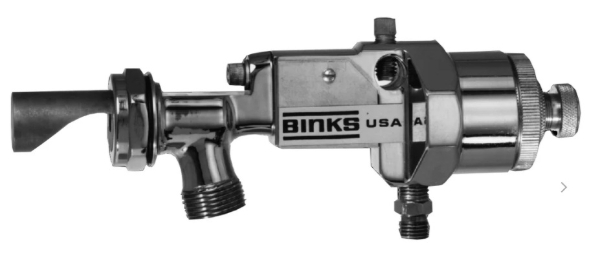

Model 30 Gun Glass Bead Dispensing

BB 6279-0000-1

Model 30 Gun Glass Bead Dispensing

$1,962.00

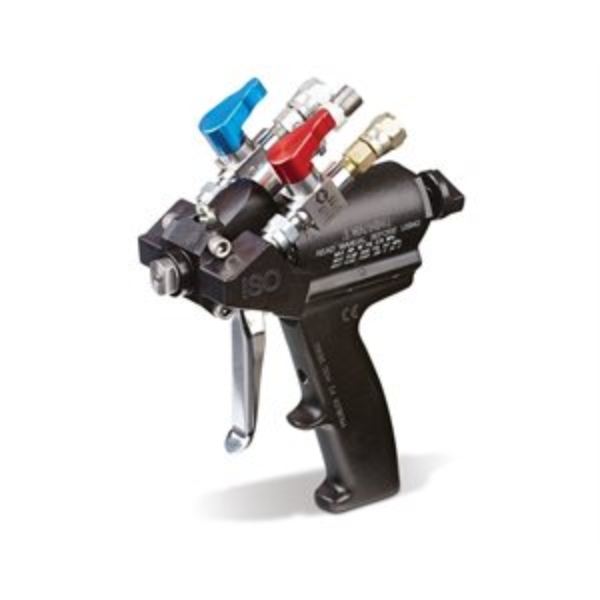

P2 GUN

GG GCP2R0

P2 GUN

Graco GCP2R0 Probler P2 Gun Assembly with 00 Mix Chamber Kit

The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.

Application: For high output spray polyurethane foam and polyurea applications.

Easy daily maintenance
Responsive trigger action
Easy-to-replace mix chamber insert
Ergonomic handle and balanced design

Model: P2
Series: Standard

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4-18
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Applicator Type: Manual
Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
Component A Inlet Size (cm): 1.27
Component A Inlet Size (in): 1/2-20
Component A Inlet Size (mm): 12.7
Component A Inlet Thread Type: UNF
Component B Inlet Size (cm): 1.11125
Component B Inlet Size (in): 7/16-18
Component B Inlet Size (mm): 11.1125
Component B Inlet Thread Type: UNF
Component Type: Plural-Component
Fluid Orifice Size (cm): 0.074
Fluid Orifice Size (in): 0.029
Fluid Orifice Size (mm): 0.74
For Use With: Reactor Plural Component Proportioner, Reactor Spray Foam and Coatings Equipment
Gun Activation: Manual
Gun Included: 1
Gun Series: Standard
Gun Type: Air-Purge
Gun Weight (g): 1770
Gun Weight (kg): 1.77
Gun Weight (lb): 3.9
Gun Weight (oz): 32.4
Maximum Air Inlet Pressure (bar): 7.6
Maximum Air Inlet Pressure (kPa): 760
Maximum Air Inlet Pressure (MPa): 0.76
Maximum Air Inlet Pressure (psi): 110
Maximum Air Pressure (bar): 7.6
Maximum Air Pressure (kPa): 760
Maximum Air Pressure (MPa): 0.76
Maximum Air Pressure (psi): 110
Maximum Flow Rate (kg/min): 18
Maximum Flow Rate (lb/min): 40
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature (°C): 93
Maximum Fluid Temperature (°F): 200
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature (°C): 93
Maximum Fluid Temperature (°F): 200
Maximum Fluid Working Pressure (bar): 241
Maximum Fluid Working Pressure (MPa): 24.1
Maximum Fluid Working Pressure (psi): 3500
Minimum Air Inlet Pressure (bar): 6.2
Minimum Air Inlet Pressure (kPa): 620
Minimum Air Inlet Pressure (MPa): 0.62
Minimum Air Inlet Pressure (psi): 90
Minimum Flow Rate (kg/min): 1.4
Minimum Flow Rate

$4,630.00

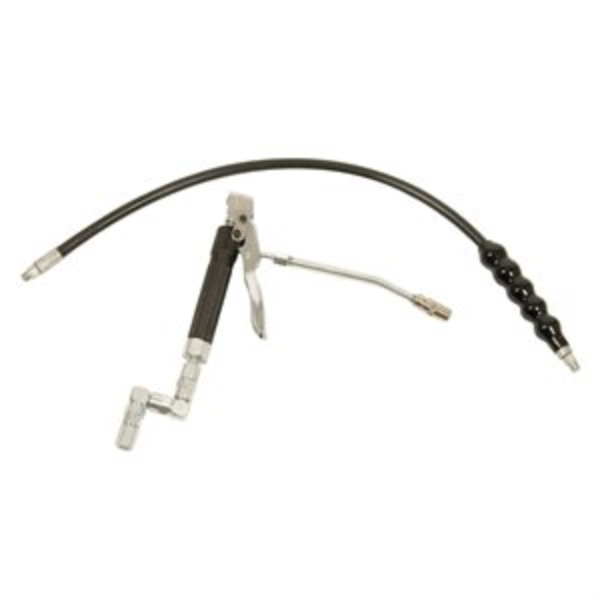

PRO-SHOT SYSTEM, DISPENSE

GG 224872

PRO-SHOT SYSTEM, DISPENSE

Pro-Shot™ Grease Dispense Valve - Includes 30 in (76.2 cm) Whip Hose, Z-Swivel and Grease Valve

For heavy-duty applications, this non-metered dispense valve is designed to perform in heavy equipment shops, fleet maintenance shops, and municipal garages.

Typical applications include Service shops, Heavy-duty dealerships, Fast lube centers, Automotive dealerships, In-plant, Lube trucks, and Mining. Pressure-assisted trigger for ease of operation Easy top adjustment with locking nut Rugged design to withstand harsh environments Inlet 1/4 in. BSPT Without coupler or extension

$552.00

ULTRA-LITE 4000 GUN, FLOW, SWIVEL INLET

GG 237649

ULTRA-LITE 4000 GUN, FLOW, SWIVEL INLET

Graco 237649 Ultra-Lite 4000 SD with Swivel

The operator-friendly Ultra-Lite 4000 combines ergonomic design with high-operating pressure for dispensing low-to-medium viscosity industrial and automotive sealants and adhesives.

Application: For precise control of low-to-medium viscosity materials

Operating pressures to 4000 psi (276 bar, 27.6 MPa).
150° head/handle angle is more comfortable for operator
Changeable tips for a variety of dispensing needs

Model: Ultra-Lite
Series: 4000

Maximum Working Pressure (bar): 280
Maximum Working Pressure (kg/cm²): 281
Maximum Working Pressure (kPa): 28000
Maximum Working Pressure (MPa): 28
Maximum Working Pressure (psi): 4000
Nozzle Size (cm): 0.508
Nozzle Size (in): 0.2
Nozzle Size (mm): 5.08

$1,315.00

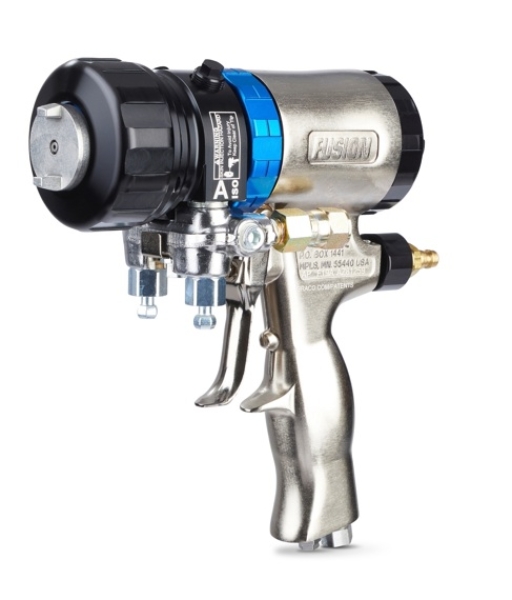

FUSION PC GUN, RND, 02

GG 25P589

FUSION PC GUN, RND, 02

Graco 25P589 Fusion ProConnect Gun with Round 02 Mix Chamber and 0.052 in (1.3 mm) Orifice Size

A perfect rebuild in seconds is now possible with the revolutionary Fusion PC (ProConnect) gun, featuring an all-in-one cartridge head that replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consuming traditional rebuild, keeping you spraying and minimizing costly downtime.

Application: Unlike any other spray foam gun available

A single cartridge replaces the entire fluid section in seconds
Built on top of the time-tested Fusion Air Purge platform, the PC gun sprays exactly like a Fusion AP
Integrated check valves for cross-over containment
Eliminates the need to purchase fluid section o-rings
Spare ProConnect cartridges can replace your back-up guns
Retrofit Kit available to convert existing Fusion AP guns

Model: Fusion PC
Series: Round

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPT
Applicator Type: Manual
Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
Component A Inlet Size (cm): 1.27
Component A Inlet Size (in): 1/2-20
Component A Inlet Size (mm): 12.7
Component A Inlet Thread Type: UNF
Component B Inlet Size (cm): 1.42875
Component B Inlet Size (in): 9/16-18
Component B Inlet Size (mm): 14.2875
Component B Inlet Thread Type: UNF
Component Type: Plural-Component
Fluid Orifice Size (cm): 0.107
Fluid Orifice Size (in): .052
Fluid Orifice Size (mm): 1.07
For Use With: Non-Flammable Foam and Polyurea
Gun Activation: Manual
Gun Included: 1
Gun Type: Air Purge Gun
Gun Weight (g): 1338
Gun Weight (kg): 1.3
Gun Weight (lb): 2.95
Gun Weight (oz): 47
Impingement Port Size (in): 0.052
Impingement Port Size (mm): 1.32
Includes: PC52RD Mix Chamber Tip
Maximum Air Inlet Pressure (bar): 9
Maximum Air Inlet Pressure (kPa): 900
Maximum Air Inlet Pressure (MPa): 0.9
Maximum Air Inlet Pressure (psi): 130
Maximum Air Pressure (bar): 9
Maximum Air Pressure (kPa): 900
Maximum Air Pressure (MPa): 0.9
Maximum Air Pressure (psi): 130
Maximum Flow Rate @ PSI (lb/min): 50
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature (°C): 93
Maximum Fluid Temperature (°F): 200
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature (°C): 93
Maximum Fluid Temperature (°F): 200
Maximum Fluid Working Pressure (bar): 245
Maximum Fluid Working Pressure (MPa): 24.5
<

$3,870.00

Ext Mix Cent Lel Gc Gun

BB 102-3610

Ext Mix Cent Lel Gc Gun

Call for pricing

Fusion ProConnect Gun with Route 03 Mix Chamber

GG 25R085

Fusion ProConnect Gun with Route 03 Mix Chamber

$3,870.00

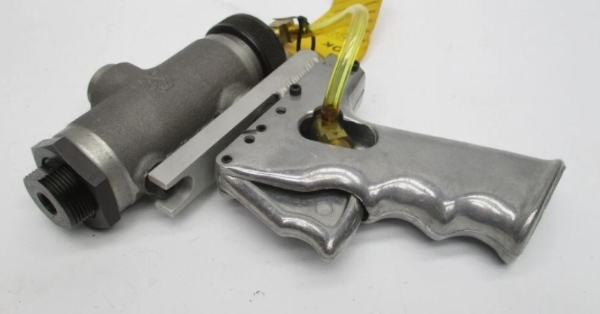

Gun, Pistol Grip Valve Mtr

GG C02026

GUN, PISTOL GRIP VALVE MTR

$1,960.00

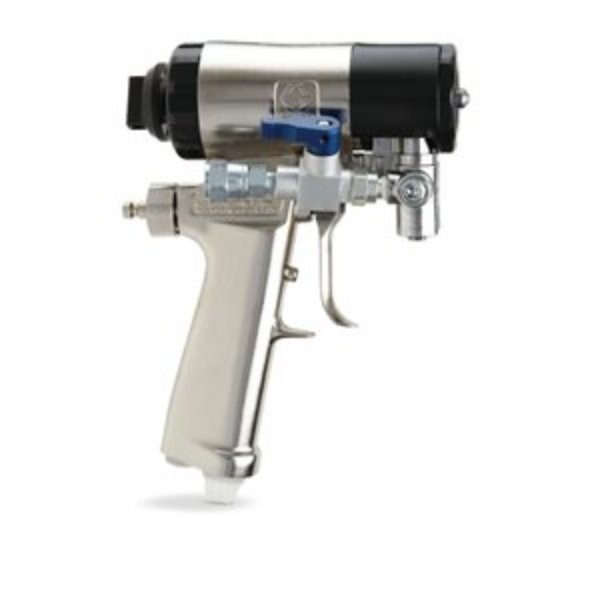

FUSION CS GUN, RD0000

GG CS00RD

FUSION CS GUN, RD0000

Graco CS00RD Fusion CS Gun, Round Spray Pattern, 0.029 in (0.74 mm) Mix Chamber

ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.

Application: For high output spray polyurethane foam and polyurea applications.

New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot Cartridge
Removes foam and keeps mix chamber clear
Saves almost an hour of maintenance time each spray day
Easy-to-insert cartridge fits into ergonomic handle
Variable flow - an industry first
- Quick-change front - simpler and cleaner
  Air Inlet Size (cm): 0.635
  Air Inlet Size (in): 1/4
  Air Inlet Size (mm): 6.35
  Air Inlet Thread Gender: Male
  Air Inlet Thread Type: NPT
  Compatible Material: Polyurethane, Polyurea, Spray Polyurethane Foam, No-Heat Foam
  Component A Inlet Size (cm): 1.27
  Component A Inlet Size (in): 1/2-20
  Component A Inlet Size (mm): 12.7
  Component A Inlet Thread Type: UNF
  Component B Inlet Size (cm): 1.42875
  Component B Inlet Size (in): 9/16-18
  Component B Inlet Size (mm): 14.2875
  Component B Inlet Thread Type: UNF
  Component Type: Plural-Component
  Fluid Orifice Size (cm): 0.074
  Fluid Orifice Size (in): 0.029
  Fluid Orifice Size (mm): 0.74
  For Use With: Non-Flammable Foam and Polyurea
  Gun Activation: Manual
  Gun Type: Liquid-Purge
  Gun Weight (g): 1180
  Gun Weight (kg): 1.18
  Gun Weight (lb): 2.6
  Gun Weight (oz): 41.6
  Impingement Port Size (in): 0.029
  Impingement Port Size (mm): 0.70
  Includes: Mix Chamber
  Maximum Air Inlet Pressure (bar): 9
  Maximum Air Inlet Pressure (kPa): 900
  Maximum Air Inlet Pressure (MPa): 0.9
  Maximum Air Inlet Pressure (psi): 130
  Maximum Air Pressure (bar): 9
  Maximum Air Pressure (kPa): 900
  Maximum Air Pressure (MPa): 0.9
  Maximum Air Pressure (psi): 130
  Maximum Flow Rate (kg/min): 11.3
  Maximum Flow Rate (lb/min): 25
  Maximum Flow Rate @ PSI (lb/min): 25
  Maximum Fluid Pressure (bar): 241
  Maximum Fluid Pressure (kPa): 24100
  Maximum Fluid Pressure (MPa): 24.1
  Maximum Fluid Pressure (psi): 3500
  Maximum F

$4,020.00

30A Gun 46Ss-390

BB 6277-3525-7

30A Gun 46Ss-390

$1,962.00

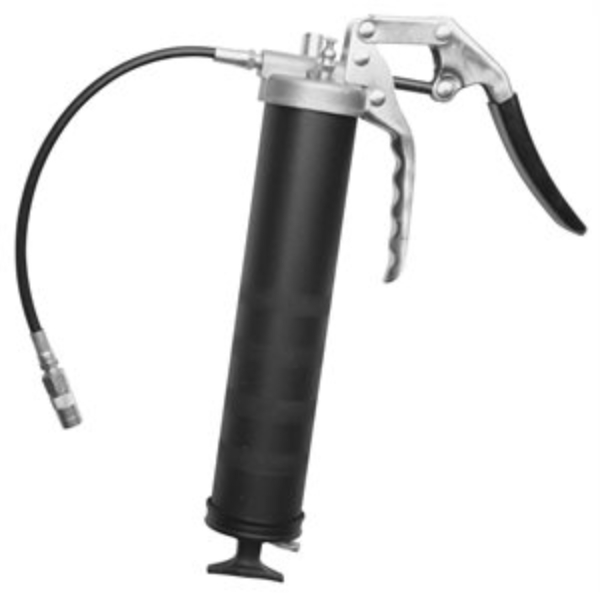

LUBRICATOR, PISTOL-MATIC

GG 110202

LUBRICATOR, PISTOL-MATIC

Graco 110202 Manually-Operated Heavy-Duty Grease Gun - Pistol-Style with Hose and Coupler

Durable design for years of trouble-free use in demanding environments. Two- or three-way loading capability makes it easy to keep on greasing reducing downtime.

Application: Typical applications include automotive dealerships, fast lube centers, service shops, heavy-duty dealerships, fleet services facilities, in-plant, lube trucks, and mining.

Comfortable Pistol-Style Grip - Allows for easy, one-handed operation.
Bulk Loader Valve - Allows loading from bulk container pumps.
Optional Pneumatic Operation - Works faster, reduces fatigue and is easier to use in cold conditions.

Compatible Material: Grease

Extension Type: Flexible
Fill Type: Cartridge Fill, Bulk Fill, Loader Fill
Grease Gun Type: Pistol Grip, Manual
Includes: Flexible Extension, Hydraulic Coupler, Air Bleeder Valve
Maximum Working Pressure (bar): 690
Maximum Working Pressure (kPa): 69000
Maximum Working Pressure (psi): 10000
Pump Material: Steel

$101.50

FUSION PC GUN, RND, 00-01

GG 25R084

FUSION PC GUN, RND, 00-01

Graco 25R084 Fusion ProConnect Gun with Round 00-01 Mix Chamber and 0.037 in (0.94 mm) Orifice Size

Application: Unlike any other spray foam gun available

A single cartridge replaces the entire fluid section in seconds
Built on top of the time-tested Fusion AP platform, the PC gun sprays exactly like a Fusion AP
Integrated check valves for cross-over containment
Eliminates the need to purchase fluid section o-rings
Spare ProConnect cartridges can replace your back-up guns
Retrofit Kit available to convert existing Fusion AP guns

Model: Fusion PC
Series: Round

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPT
Applicator Type: Manual
Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
Component A Inlet Size (cm): 1.27
Component A Inlet Size (in): 1/2-20
Component A Inlet Size (mm): 12.7
Component A Inlet Thread Type: UNF
Component B Inlet Size (cm): 1.42875
Component B Inlet Size (in): 9/16-18
Component B Inlet Size (mm): 14.2875
Component B Inlet Thread Type: UNF
Component Type: Plural-Component
Fluid Orifice Size (cm): 0.107
Fluid Orifice Size (in): .037
Fluid Orifice Size (mm): 1.07
For Use With: Non-Flammable Foam and Polyurea
Gun Activation: Manual
Gun Included: 1
Gun Type: Air Purge Gun
Gun Weight (g): 1338
Gun Weight (kg): 1.3
Gun Weight (lb): 2.95
Gun Weight (oz): 47
Impingement Port Size (in): 0.037
Impingement Port Size (mm): 0.94
Includes: PC37RD Mix Chamber Tip
Maximum Air Inlet Pressure (bar): 9
Maximum Air Inlet Pressure (kPa): 900
Maximum Air Inlet Pressure (MPa): 0.9
Maximum Air Inlet Pressure (psi): 130
Maximum Air Pressure (bar): 9
Maximum Air Pressure (kPa): 900
Maximum Air Pressure (MPa): 0.9
Maximum Air Pressure (psi): 130
Maximum Flow Rate @ PSI (lb/min): 50
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature (°C): 93
Maximum Fluid Temperature (°F): 200
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Temperature (°C): 93
Maximum Fluid Temperature (°F): 200
Maximum Fluid Working Pressure (bar): 245
Maximum Fluid Working Pressure (MPa): 24.5
<

$3,870.00

Refine
