Lube

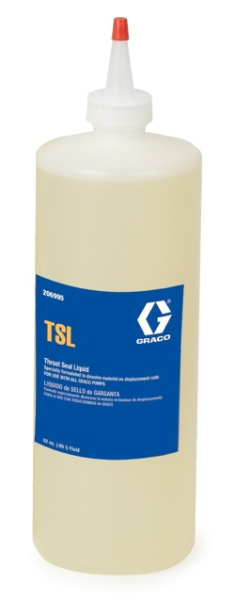

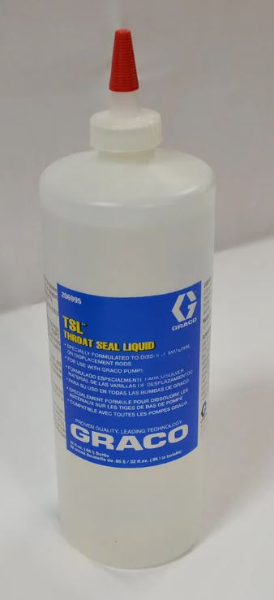

GG 206995

FLUID, TSL, 1 QT.

Graco 206995 TSL Throat Seal Liquid, 1 qt (0.95 l)

Throat Seal Liquid (TSL) prevents paint and coatings from drying onto the displacement rod and packings, extending the life of the pump.

• Model: TSL
• Series: Throat Seal Liquid

• For Use With: All Contractor Grade Sprayers

GG 239877

FIREBALL 300 PUMP, 50:1, 35 LB

Graco 239877 Fire-Ball 300 Series 50:1 35 or 70 lb (16 or 32 kg). Pail Grease Pump

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 3

• Application: Industrial

• Compatible Material: Grease

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease

• Maximum Air Consumption (SCFM): 22.8
• Maximum Air Inlet Pressure (bar): 9.65
• Maximum Air Inlet Pressure (kPa): 965
• Maximum Air Inlet Pressure (psi): 140

• Maximum Continuous Cycle Rate (CPM): 76

• Maximum Intermittent Cycle Rate (CPM): 76

• Maximum Working Pressure (bar): 580
• Maximum Working Pressure (kPa): 58000
• Maximum Working Pressure (MPa): 58
• Maximum Working Pressure (psi): 8400

• Power Type: Pneumatic

• Pump Ratio: 50:1

GG 203876

FIREBALL 300 PUMP, 5:1, UNIVERSAL

Graco 203876 Fire-Ball 300 Series 5:1 Universal Size Oil Pump

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 3

• Application: Industrial

• Compatible Material: Oil

• Cycles Per Gallon: 30

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)

• Maximum Air Consumption (SCFM): 25
• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 70

• Maximum Intermittent Cycle Rate (CPM): 70

• Maximum Working Pressure (bar): 62
• Maximum Working Pressure (kPa): 6200
• Maximum Working Pressure (MPa): 6.2
• Maximum Working Pressure (psi): 900

• Power Type: Pneumatic

• Pump Ratio: 5:1

GG 248097

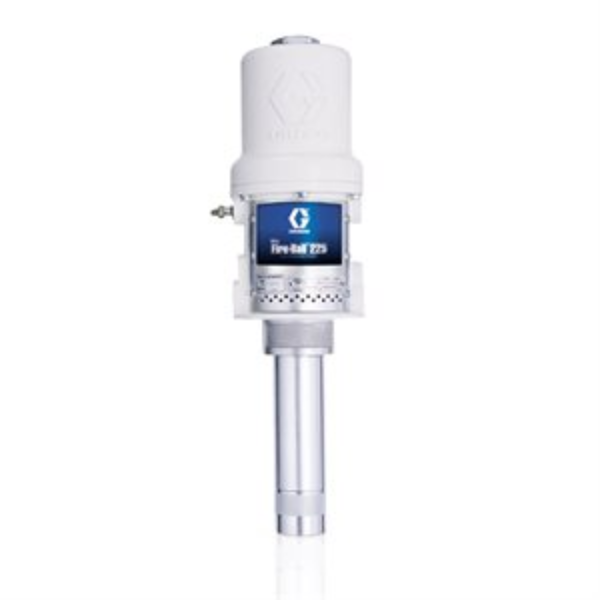

FIREBALL 225 PUMP, 3:1, MULTI-LENGTH

Graco 248097 Mini Fire-Ball 225 3:1 Universal Size Oil Pump with Suction Tube and Bung Adapter

You cant afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Mini Fire-Ball
• Series: 225

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 2.25

• Application: Industrial

• Compatible Material: Oil

• Cycles Per Gallon: 43.5

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)

• Includes: Hose Installation Kit, Drum Cover, Air Regulator

• Material: Aluminum, Buna-N, Polyurethane, Rulon, Steel

• Maximum Air Consumption (SCFM): 20
• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 100

• Maximum Working Pressure (bar): 37
• Maximum Working Pressure (kPa): 3700
• Maximum Working Pressure (MPa): 3.7
• Maximum Working Pressure (psi): 540

• Portable: Portable

• Power Type: Pneumatic

• Pump Ratio: 3:1

GG 239888

FIREBALL 300 PUMP, 50:1, 400 LB

Graco 239888 Fire-Ball 300 Series 50:1 400 lb (180 kg). Grease Pump

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 3

• Application: Industrial

• Compatible Material: Grease

• Cycles Per Gallon: 345

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease

• Maximum Air Consumption (SCFM): 22.8
• Maximum Air Inlet Pressure (bar): 9.65
• Maximum Air Inlet Pressure (kPa): 965
• Maximum Air Inlet Pressure (psi): 140

• Maximum Continuous Cycle Rate (CPM): 76

• Maximum Intermittent Cycle Rate (CPM): 76

• Maximum Working Pressure (bar): 580
• Maximum Working Pressure (kPa): 58000
• Maximum Working Pressure (MPa): 58
• Maximum Working Pressure (psi): 8400

• Power Type: Pneumatic

• Pump Ratio: 50:1

GG 239887

FIREBALL 300 PUMP, 50:1, 120 LB

Graco 239887 Fire-Ball 300 Series 50:1 120 lb (55 kg). Pail Grease Pump

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 3

• Application: Industrial

• Compatible Material: Grease

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease

• Maximum Air Consumption (SCFM): 22.8
• Maximum Air Inlet Pressure (bar): 9.65
• Maximum Air Inlet Pressure (kPa): 965
• Maximum Air Inlet Pressure (psi): 140

• Maximum Continuous Cycle Rate (CPM): 76

• Maximum Intermittent Cycle Rate (CPM): 76

• Maximum Working Pressure (bar): 580
• Maximum Working Pressure (kPa): 58000
• Maximum Working Pressure (MPa): 58
• Maximum Working Pressure (psi): 8400

• Power Type: Pneumatic

• Pump Ratio: 50:1

GG 204254

FIREBALL 300 PUMP , 5:1, 55 GL, BUNG MT

Graco 204254 Fire-Ball 300 Series 5:1 Oil Pump, 55 Gallon (200 Liter) Drum Size - For Bung Mount

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 3

• Application: Industrial

• Compatible Material: Oil

• Cycles Per Gallon: 30

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)

• Maximum Air Consumption (SCFM): 25
• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 70

• Maximum Intermittent Cycle Rate (CPM): 70

• Maximum Working Pressure (bar): 62
• Maximum Working Pressure (kPa): 6200
• Maximum Working Pressure (MPa): 6.2
• Maximum Working Pressure (psi): 900

• Power Type: Pneumatic

• Pump Ratio: 5:1

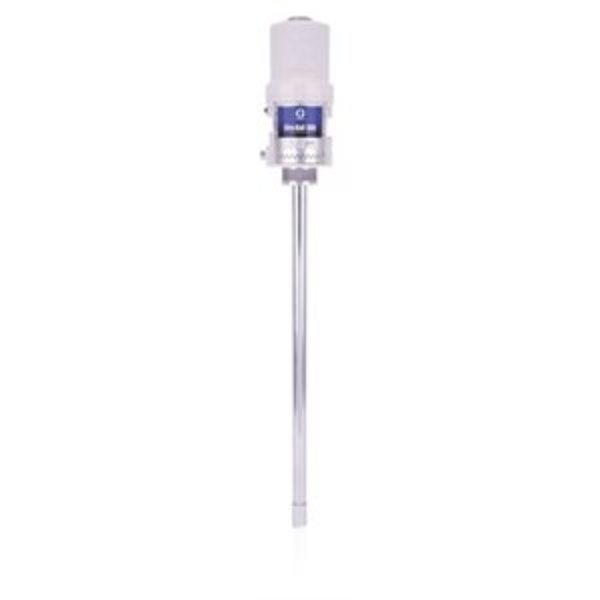

GG 206700

FIREBALL U-COAT PUMP, 300, 400 LB

Graco 206700 Fire-Ball 300 Series 15:1 400 lb (180 kg). Grease Pump

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 3

• Application: Industrial

• Compatible Material: Grease, Rustproofing, Undercoating

• Cycles Per Gallon: 90

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female

• For Use With: 180

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Working Pressure (bar): 186
• Maximum Working Pressure (kPa): 18600
• Maximum Working Pressure (MPa): 18.6
• Maximum Working Pressure (psi): 2700

• Power Type: Pneumatic

• Pump Ratio: 15:1

GG 246775

FIREBALL 225 PUMP, 3:1, (UNIVERSAL)

Graco 246775 Mini Fire-Ball 225 3:1 Universal Size Oil Pump

You cant afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Mini Fire-Ball
• Series: 225

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 2.25

• Application: Industrial

• Compatible Material: Oil

• Cycles Per Gallon: 43.5

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)

• Maximum Air Consumption (SCFM): 20
• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 100

• Maximum Working Pressure (bar): 37
• Maximum Working Pressure (kPa): 3700
• Maximum Working Pressure (MPa): 3.7
• Maximum Working Pressure (psi): 540

• Power Type: Pneumatic

• Pump Ratio: 3:1

GG 225016

FIREBALL 300 PUMP, SUPPLY, 50-1

Graco 225016 Fire-Ball 300 Series 50:1 400 lb. (181 kg) Grease Pump Package Stationary Supply Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): 400

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 50:1 300 Pump, Hose and Fitting Kit, Cover, Follow Plate

• Maximum Air Working Pressure (psi): 140

• Maximum Working Pressure (bar): 350
• Maximum Working Pressure (kPa): 35000
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Mount Location: Drum Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 22

GG 226269

FIREBALL SPRAYER, U-COAT 15-1

Graco 226269 Fire-Ball 300 Series 15:1 Undercoating 400 lb. (181 kg) Pump - Stationary Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Oil, Rustproofing, Undercoating

• Container Size (lb): 400

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: UCoat Installation Kit, Drum Cover

• Maximum Air Working Pressure: 180

• Maximum Flow Rate (GPM): 0.7

• Maximum Fluid Working Pressure (psi): 2700

• Maximum Working Pressure (bar): 186
• Maximum Working Pressure (kPa): 18600
• Maximum Working Pressure (MPa): 18.6
• Maximum Working Pressure (psi): 2700

• Motor Type: Pneumatic

• Power Type: Pneumatic

• Pump Ratio: 15:1
• Pump Weight (lb): 22

GG 24E245

GL-43 INJECTOR, REPL, CS, 1/8" OD TUBE

Graco 24E245 GL-43 Carbon Steel Oil Replacement Injector, 1/8 in. Outlet

With its one piece design, Gracos GL-43 oil injector systems are easy to design, fast to set up and allow you to add or subtract lube points without having to redesign your lubrication system. Handles low viscosity lubricants.

• Longer lasting seal design for trouble-free performance
• Precision-honed components for reliable operation in challenging environments
• Adjustable output volume from .001 - .008 in cu (0.02 - 0.13 cm cu ) to custom fit the system to meet the needs of each lube point
• Operating pressures from 750-1000 psi (52-69 bar) for optimal performance with low viscosity lubricants (#10 weight minimum)
• Offered both as a stand-alone injector and replacement injector for manifold systems, allowing you to custom fit the injectors to your applications

• Model: GL-43

GG 288166

GG 206699

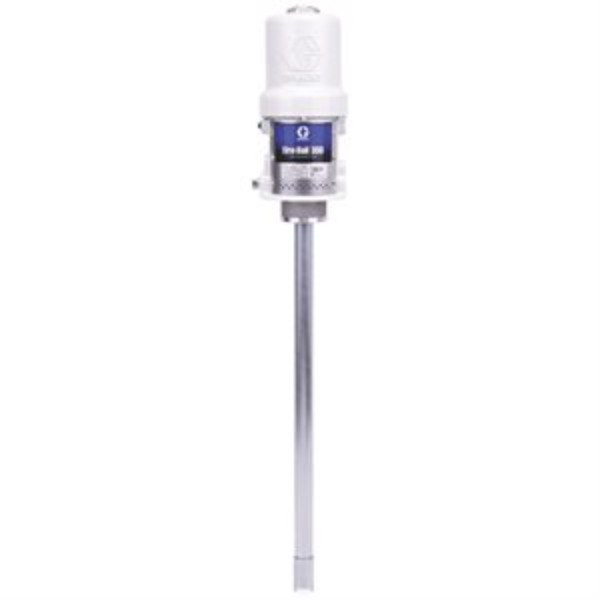

FIREBALL U-COAT PUMP, 300, 120 LB

Graco 206699 Fire-Ball 300 Series 15:1 120 lb (55 kg). Grease Pump

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 3

• Application: Industrial

• Compatible Material: Grease, Rustproofing, Undercoating

• Cycles Per Gallon: 90

• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease

• Material: Aluminum, Carbon Steel, Leather, PTFE, Rubber

• Maximum Air Consumption (SCFM): 14
• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 66

• Maximum Flow Rate (GPM): 0.7
• Maximum Flow Rate (L/min): 2.65

• Maximum Working Pressure (bar): 186
• Maximum Working Pressure (kPa): 18600
• Maximum Working Pressure (MPa): 18.6
• Maximum Working Pressure (psi): 2700

• Power Type: Pneumatic

• Pump Ratio: 15:1

GG 222087

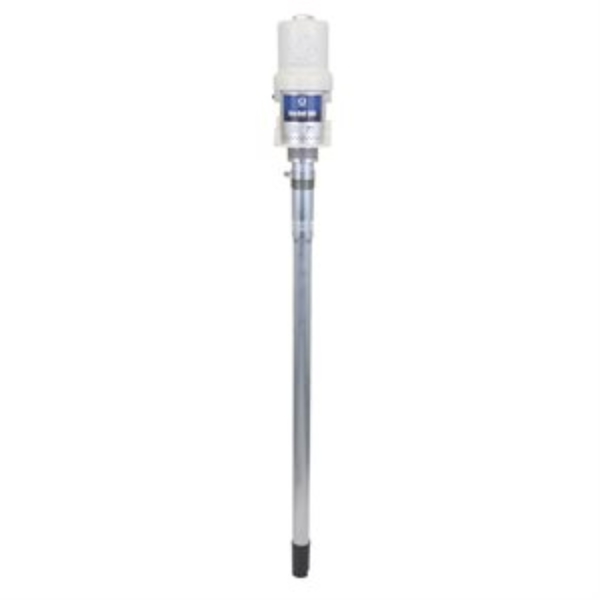

FIREBALL 300 PUMP, 5:1, 275 GL, BUNG MT

Graco 222087 Fire-Ball 300 Series 5:1 275 Gallon (1040 Liter) Drum Size Oil Pump - Bung Mount

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 3

• Application: Industrial

• Compatible Material: Oil

• Cycles Per Gallon: 30

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)

• Maximum Air Consumption (SCFM): 25
• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 70

• Maximum Intermittent Cycle Rate (CPM): 70

• Maximum Working Pressure (bar): 62
• Maximum Working Pressure (kPa): 6200
• Maximum Working Pressure (MPa): 6.2
• Maximum Working Pressure (psi): 900

• Power Type: Pneumatic

• Pump Ratio: 5:1

BB 0114-009433

BB 0114-016099

GG 225014

FIREBALL 300 PUMP, SUPPLY, 50-1

Graco 225014 Fire-Ball 300 Series 50:1 120 lb. (54 kg) Grease Pump Stationary Supply Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 3/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): 120

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 50:1 300 Pump, Hose and Fitting Kit, Cover, Follow Plate

• Maximum Air Working Pressure (psi): 140

• Maximum Working Pressure (bar): 350
• Maximum Working Pressure (kg/cm 2): 590.6
• Maximum Working Pressure (kPa): 35000
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Mount Location: Drum Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 22

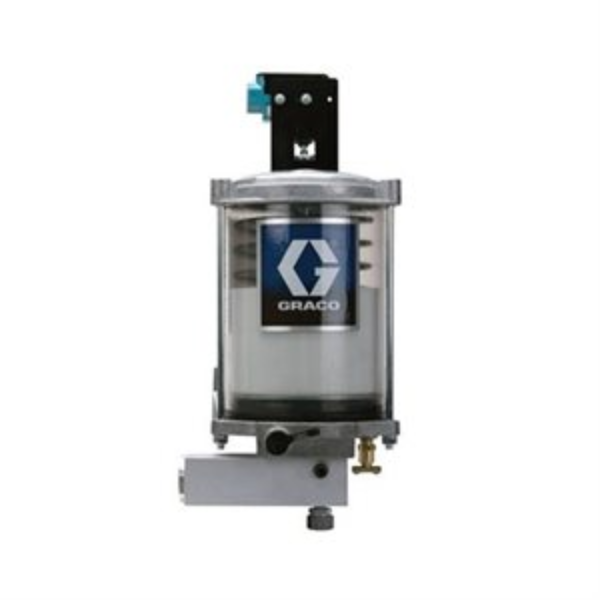

GG 563364

E-SERIES PUMP, RESV ASSY GRS LL

Graco 563364 E-Series Pump with 6 lb. (2.72 kg) Plastic Cylindrical Grease Reservoir, Low Level Switch with 2350 psi (162 bar) Rupture Disc

The E-Series pump is a great, minimum cost, entry level alternative to standard pneumatic pump products. This all-in-one pump package comes complete with no assembly required and is easy to install. All pump packages include high-pressure rupture disc assembly and lube outlet check valve. Great for any application where price is a concern and installation time is at a premium.

• Easy field installation of accessories without disturbing existing plumbing
• Smart pump design with few moving parts ensures long-lasting dependability
• Lubriquip part number 521-300-670

• Model: E-Series

• Application: In-Plant Machinery

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive

• Fluid Outlet Size (in): 0.5
• Fluid Outlet Size (mm): 12.7000
• Fluid Outlet Thread Type: NPSF

• Includes: E-Series Pump, Plastic Cylindrical Grease Reservoir, Low Level Switch, Rupture Disc

• Material: Aluminum, Plastic

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum cST Grade (cST): 30000
• Maximum Cycle Rate (CPM): 10

• Maximum Fluid Output Pressure (bar): 138
• Maximum Fluid Output Pressure (psi): 2000

• Maximum Fluid Output Pressure (bar): 138
• Maximum Fluid Output Pressure (psi): 2000

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 137.9
• Maximum Working Pressure (kPa): 13790
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Minimum Air Inlet Pressure (psi): 40

• Overall Depth (cm): 22.4
• Overall Depth (in): 8.81
• Overall Depth (mm): 224

• Overall Height (cm): 26.7
• Overall Height (in): 10.5
• Overall Height (mm): 267
• Overall Width (cm): 18.4
• Overall Width (in): 7.25
• Overall Width (mm): 184

• Power Type: Pneumatic

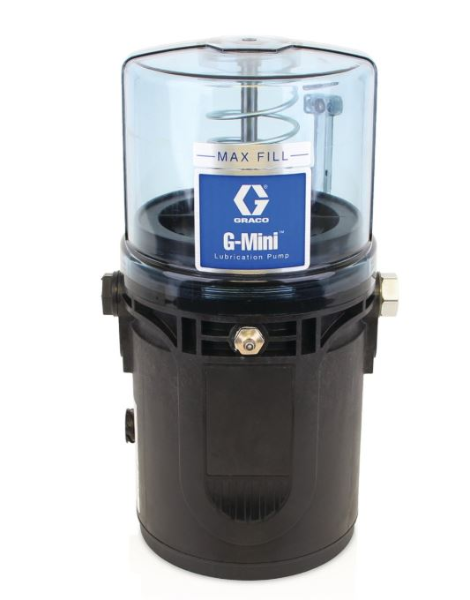

GG 2000639

PUMP, G-MINI, OIL, 2L, AC, NC

Graco 2000639 G-Mini Oil Lubrication Pump, AC, 2 Liter

Make the most of your space, budget and machines. The new full-featured G-Mini offers reliable lubrication in a small footprint to fit more types of machines. Use it to simplify everyday maintenance, extend lifecycles and optimize uptime. It's rugged and tough, perfect for handling the daily, 24/7 rigors of any job, both big and small. Best of all, it comes with a modest price tag - boosting your productivity and profitability.

• DIN Form-A power connection (cable sold separately)

• 2 liter reservoir option

• One Pump Element - 0.18 in3/min (3 cm3/min), 4,100 psi (280 bar)

• Rugged Construction - Designed to withstand the harshest of environments, IP69K rated

• Model: G-Mini

• Application: Industrial, Off-Road Equipment, On-Road Vehicles, Wind Energy
• Approvals: CE, EAC

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive

• Control Options: Internal Controller

• Fluid Inlet Type: Zerk Fitting to Fill Reservoir

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPSF

• For Use With: Series Progressive

• Input Voltage (V ac): 100 - 240

• IP Rating: IP69K

• Maximum Flow Rate (ci/min): 3

• Maximum Operating Temperature ( degree C): 70
• Maximum Operating Temperature ( degree F): 158

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (psi): 4061

• Minimum Operating Temperature ( degree C): -15
• Minimum Operating Temperature ( degree F): 5

• Number of Pump Elements: Up to 2

• Number of Sensor Inputs: 1

• Overall Depth (in): 6.57

• Overall Height (in): 12.2
• Overall Width (in): 6.97

• Power Connection Type: DIN

GG 226013

FIREBALL 300 PUMP

Graco 226013 Fire-Ball 300 Series 50:1 400 lb. (181 kg) Grease Pump - Stationary Supply Topper-Inductor Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 3/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): 400

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 50:1 300 Pump, Elevator, Inductor Plate Assembly

• Maximum Air Working Pressure (psi): 140

• Maximum Working Pressure (bar): 350
• Maximum Working Pressure (kg/cm 2): 590.6
• Maximum Working Pressure (kPa): 35000
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Mount Location: Drum Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 22

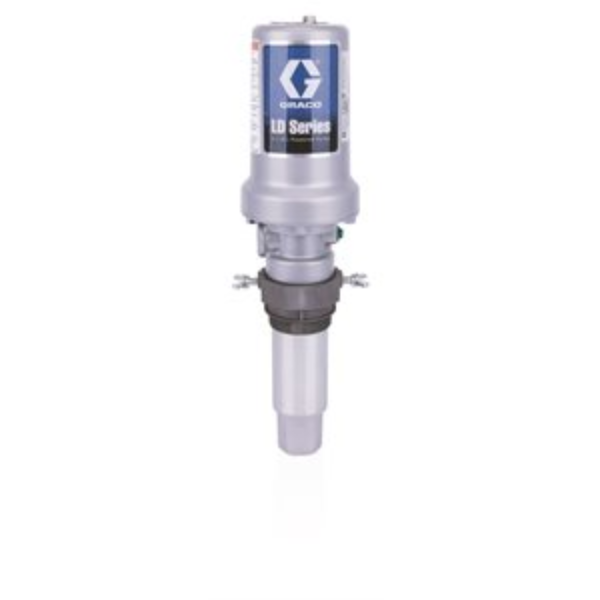

GG 24G576

LD SERIES OIL PUMP, 3:1, UNIVERSAL, NPT

Graco 24G576 LD Series 3:1 Universal Oil Pump with Bung Adapter - NPT

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.

• Three Inch Air Motor - Provides more power to create better flow.
• Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
• Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
• Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
• Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.

• Model: LD

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Application: Oil

• Compatible Material: Oil

• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Working Pressure (bar): 51.7
• Maximum Working Pressure (kPa): 5170
• Maximum Working Pressure (MPa): 5.2
• Maximum Working Pressure (psi): 750

• Power Type: Pneumatic

• Pump Ratio: 3:1

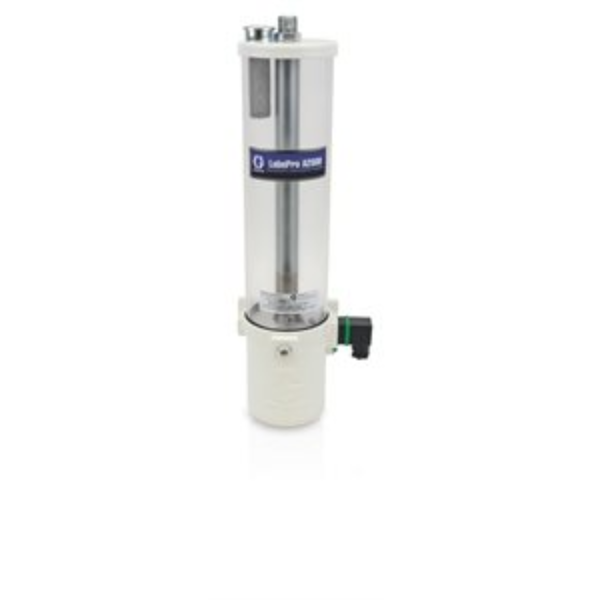

GG 24Z028

LUBEPRO A2800 PUMP, OIL, 2.0L, N.C, LL

Graco 24Z028 LubePro A2800 Vertical Oil Pumps, 2 liter Reservoir, Normally Closed, Low Level - NPT

Without proper lubrication your factorys machines can suffer from downtime and reduced life, which impacts your companys bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Gracos Fire-Ball pump - the leader in durability and quality for over 50 years.

• LubePro A2800 is compatible with GL-1, GL-32 and GL-33 injectors
• Pressure Ratio of 28:1
• A2800 delivers a greater output than competitive models at 0.56 in cu (9.18 cm cu ) per stroke
• Factory installed Low Level Detection available
• Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required
• Built with high-quality seals tested to outperform the competition
• High-strength, shatter resistant, 2 liter reservoir
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point
• Provides higher lube output and faster lubrication cycle

• Model: LubePro
• Series: A2800

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Type: NPT

• Includes: Low Level

• Maximum Air Inlet Pressure (bar): 12.07
• Maximum Air Inlet Pressure (kPa): 1207
• Maximum Air Inlet Pressure (psi): 175

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum cST Grade (cST): 40

• Overall Depth (cm): 13
• Overall Depth (in): 5.1
• Overall Depth (mm): 130

• Overall Height (cm): 50.4
• Overall Height (in): 19.83
• Overall Height (mm): 504
• Overall Width (cm): 17.3
• Overall Width (in): 6.8
• Overall Width (mm): 173

• Power Type: Pneumatic

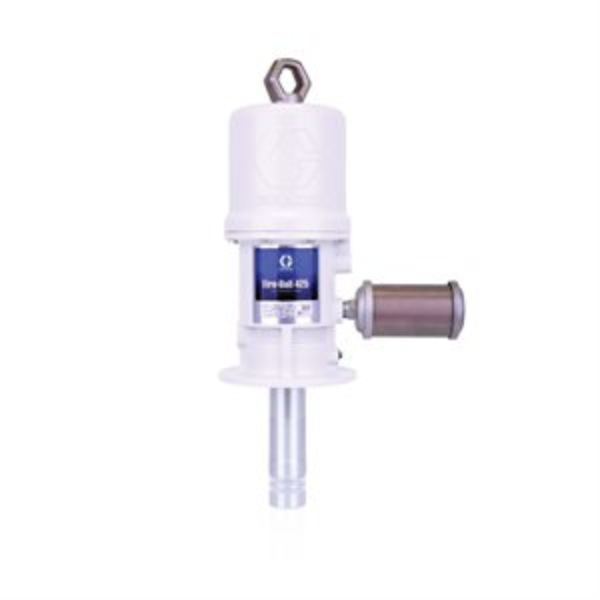

GG 205626

FIREBALL 425 PUMP, 10:1, UNIVERSAL

Graco 205626 Fire-Ball 425 Series 10:1 Universal Size Oil Pump

With a large 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher volume dispensing, the Fire-Ball 425 delivers field-proven durability for multiple fluid types and exceptional cost savings that are hard to beat!

• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 4.25

• Application: Industrial

• Compatible Material: Oil

• Cycles Per Gallon: 19.6

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 66

• Maximum Intermittent Cycle Rate (CPM): 66

• Maximum Working Pressure (bar): 124
• Maximum Working Pressure (kPa): 12400
• Maximum Working Pressure (MPa): 12.4
• Maximum Working Pressure (psi): 1800

• Power Type: Pneumatic

• Pump Ratio: 10:1

GG 222073

FIREBALL 300 PUMP, TOPPER, 50:1

Graco 222073 Fire-Ball 300 Series 50:1 120 lb. (54 kg) Grease Pump - Stationary Supply Topper-Inductor Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): 120

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 50:1 300 Pump, Topper Unit

• Maximum Air Working Pressure: 180

• Maximum Working Pressure (bar): 579
• Maximum Working Pressure (kPa): 57876
• Maximum Working Pressure (MPa): 57.9
• Maximum Working Pressure (psi): 8400

• Motor Type: Pneumatic

• Mount Location: Drum Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 22
