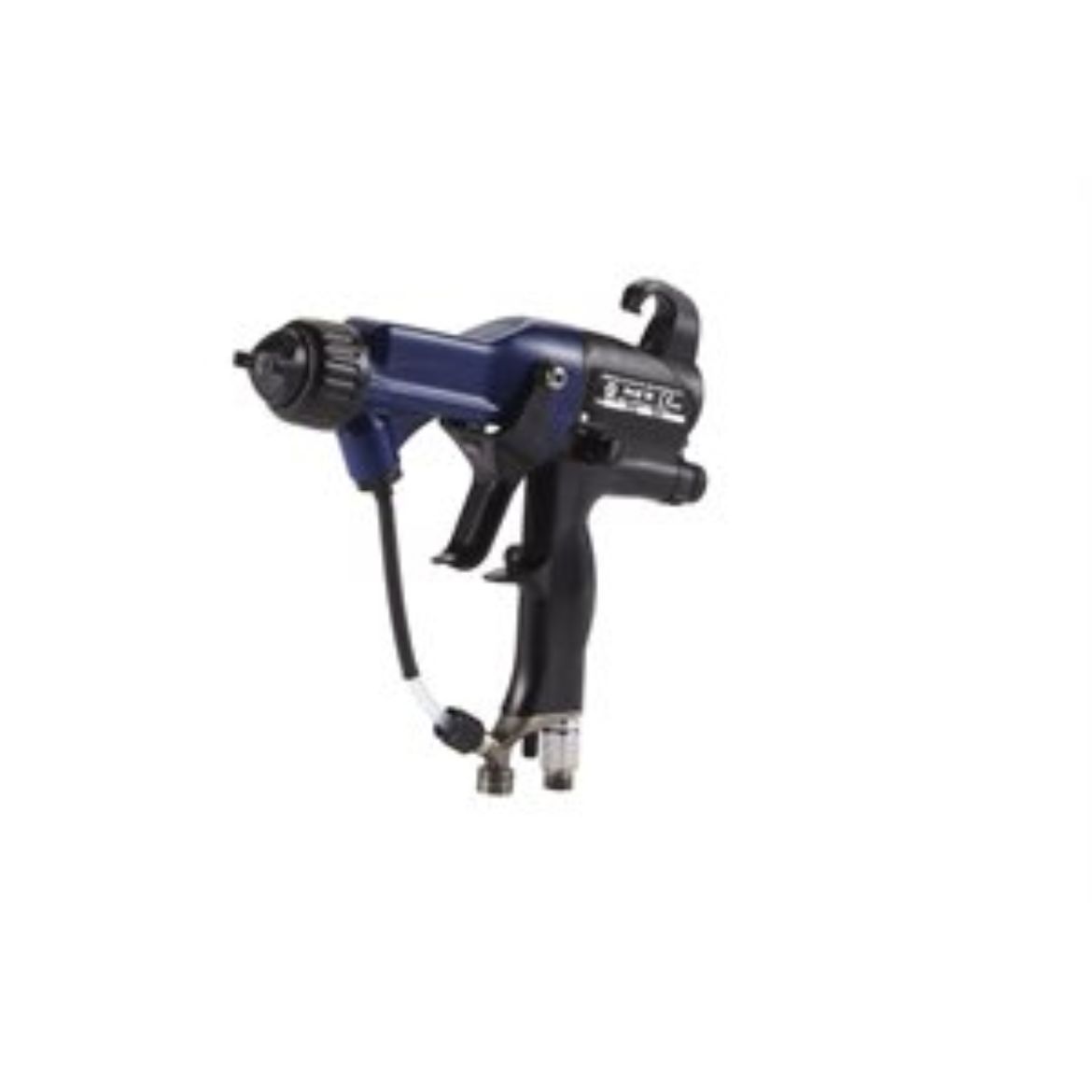

Gun, Pro Xp Electrostatic, 60kv Std.

GG L60T12

PRO XP GUN, ES, 60KV, 1.2 NOZZLE

Graco L60T12 Pro Xp60 Air Spray Manual Electrostatic General Gun Model, 60 kV, 0.047 in (1.2 mm) nozzle, standard display, standard coatings

The 60 kV electrostatic air spray gun is the smallest profile gun with an internal power supply on the market. The 1.2 mm nozzle is for lower fluid flow.

• Internal power supply reduces operator fatigue with no heavy cords to slow painters down.
• Each electrostatic gun meets strict requirements for spray pattern, mechanical and electrical performance.
• Built-in durability means the paint spray gun is designed to last – and made in the USA.

• Model: Pro Xp
• Series: 60

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, Standard
• Applicator Type: Manual

• Coating Type: Standard, Specialty

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes

• Display Type: Standard

• Fluid Inlet Size (in): 3/8
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Type: Electrostatic
• Gun Weight (g): 600
• Gun Weight (kg): 0.6
• Gun Weight (lb): 1.32
• Gun Weight (oz): 21.16

• Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm²): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm²): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Paint Resistivity (megohm/cm): Infinity

• Minimum Paint Resistivity (megohm/cm): 25

• Nozzle Size (cm): 0.12
• Nozzle Size (in): 0.047
• Nozzle Size (mm): 1.2

• Overall Length (cm): 24.13
• Overall Length (in): 9.5
• Overall Length (mm): 241.3
