Gun, ES, 40KV, WBX

GG L40T28

PRO XP GUN, ES, 40KV, WBX

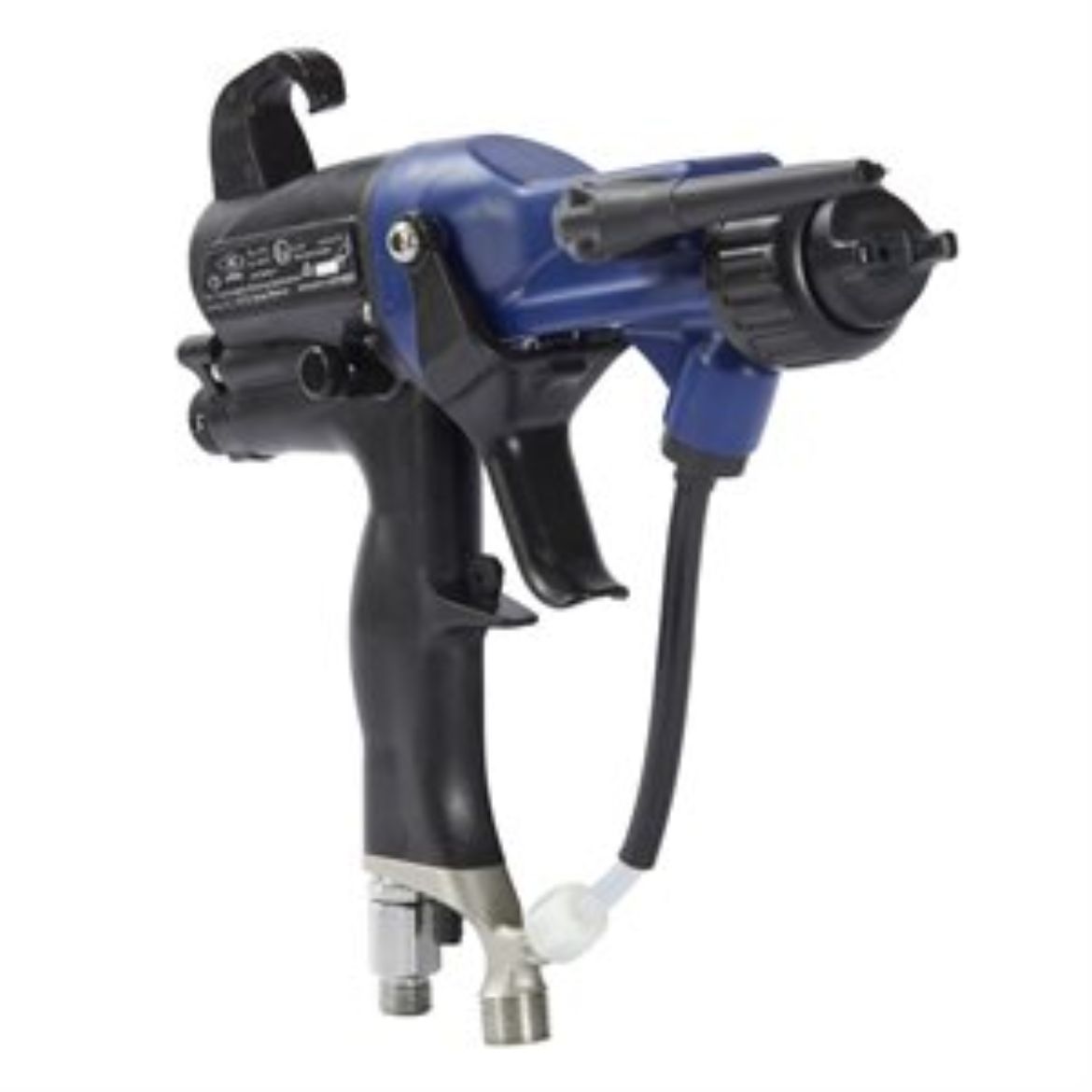

Graco L40T28 Pro Xp WBx Air Spray Manual Waterborne External Charge Electrostatic Gun, 40 kV, standard display

Externally charged waterborne air spray gun reduces material and environmental costs without the expense and limitations of an electrostatic isolation system.

• Waterborne material stays grounded in the gun and is charged at the tip of the electrostatic spray gun with the assistance of a probe.
• Two probe options meet different needs. The long probe provides the best transfer efficiency and wrap. The shorter probe is for low profile electrostatic charging.

• Model: Pro Xp
• Series: 40
• Product Series: A

• Air Inlet Size (cm): 0.636
• Air Inlet Size (in): 1/5
• Air Inlet Size (mm): 6.36
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, Waterborne
• Applicator Type: Manual

• Coating Type: Waterborne

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Waterborne, Urethanes

• Display Type: Standard

• Fluid Inlet Size (in): 3/8
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Type: Electrostatic
• Gun Weight (g): 631
• Gun Weight (kg): 0.631
• Gun Weight (lb): 1.39
• Gun Weight (oz): 22.24

• Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm²): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm²): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Paint Resistivity (megohm/cm): 1

• Minimum Paint Resistivity (megohm/cm): 0

• Nozzle Size (cm): 0.12
• Nozzle Size (in): 0.047
• Nozzle Size (mm): 1.2

• Overall Length (cm): 22.1
• Overall Length (in): 8.7
• Overall Length (mm): 221
