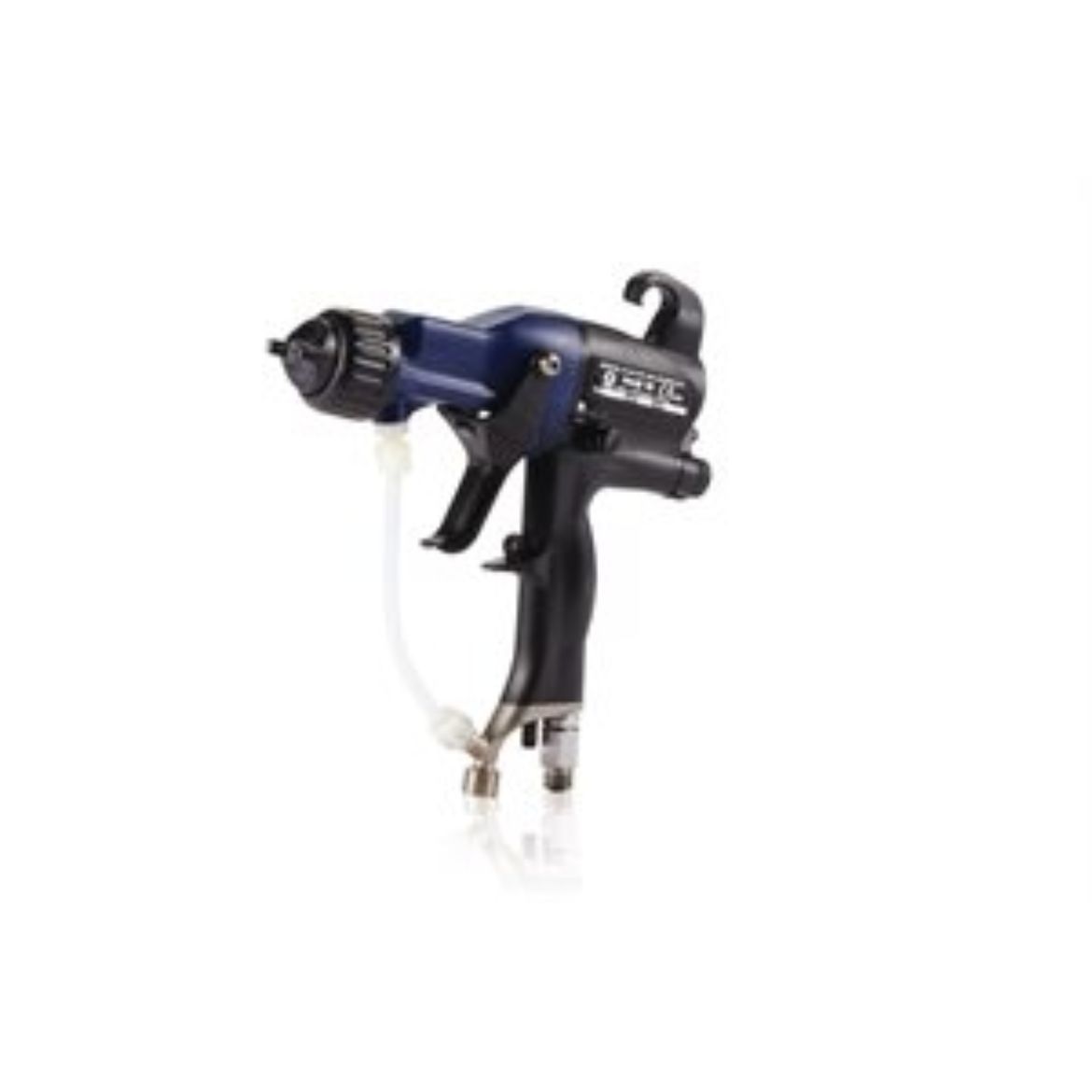

Gun, Pro Xp Electrostatic, 40kv Std

GG L40T10

PRO XP GUN, ES, 40KV

Graco L40T10 Pro Xp40 Air Spray Manual Electrostatic General Gun Model, 40 kV, 0.055 in (1.5 mm) nozzle, standard display, standard coatings

This 40 kV electrostatic air spray gun comes in a compact, lightweight package.

• Each paint spray gun meets strict requirements for spray pattern, mechanical and electrical performance.
• Durable, easy-to-repair components are backed by a three-year warranty and A+ Service.
• Painters experience less muscle strain and fatigue when using ergonomic, lightweight gun.
• Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Gracos requirements

• Model: Pro Xp
• Series: 40

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, Standard
• Applicator Type: Manual

• Coating Type: Standard, Specialty

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes

• Display Type: Standard

• Fluid Inlet Size (in): 3/8
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Type: Electrostatic
• Gun Weight (g): 560
• Gun Weight (kg): 0.56
• Gun Weight (lb): 1.23
• Gun Weight (oz): 19.75

• Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm²): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm²): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Paint Resistivity (megohm/cm): Infinity

• Minimum Paint Resistivity (megohm/cm): 25

• Nozzle Size (cm): 0.15
• Nozzle Size (in): 0.055
• Nozzle Size (mm): 1.5

• Overall Length (cm): 22.1
• Overall Length (in): 8.7
• Overall Length (mm): 221
