Plural Component

GG FX9011

GUN, POLYUREA, FUSION FX

Fusion FX Polyurea Gun with Round Mix Chamber Sizes 0.029, 0.034, & 0.037Introducing the Fusion FX, the industry's smallest, lightest, best balanced gun ever built. Featuring all new spray technology that will change the way you spray.Graco’s new Fusion FX gun is designed from the ground up. Every feature thought out to make it the easiest to maintain and most comfortable gun on the market. Built for spray foam and polyurea applications.Smallest, Lightest, & Most Balanced Gun On The Market

• 30% lighter compared to Fusion PC
• 9X better balanced compared to Fusion PC
• Narrow gun design allows for easy spraying to small areas

Fast and Simple Rebuilds with FX Cartridges

• Fusion FX Cartridges utilize ProConnect technology for a perfect rebuild in seconds
• DuoFlo Valving technology eliminates the need for side seals and provided precision control and mixing
• No side seals means no wear on the mix chamber which provides longer mix chamber life

RapidSwap Mix Chamber for Quick Access

• Mix chamber can be accessed in seconds by just removing the air cap
• Easily swap your mix chamber size to best match your spray application
• Keep a perfect spray pattern by being able to maintain your impingement ports
• Maximize your productivity with the additional output you get through the FX mix chambers due to less pressure drop through the gun

QuickFlex Spray Technology for Easy Conversion

• Users can quickly change between spraying as a ClearShot or Air Purge gun by simply swapping the air piston
• Handle is designed for both Clear Shot or Air Purge use
• Utilizes existing CS Fluid Tubes

Improved Trigger Responsiveness

• Over 30% shorter trigger pull compared to Fusion AP and Fusion PC guns for improved responsiveness and less fatigue

Tool-Less Manual Valves

• Wing nut design allows valves to be open and closed by hand or with a standard nut driver

Hand Straps For an Easier Hold

• Designed to reduce sprayer fatigue from required grip strength when holding the gun
• Easily adjusted or removed by the sprayer

Lightweight Hose Manifold and Easy Access Gun Filters

• Easy access to gun filters without removing hose manifold from the gun
• Lightweight aluminum hose manifold
• Ball checks included to prevent chemical leakage from manifold

Ergonomic Handle for Sprayer's Comfort

• Temperature stable, great strength and heat resistant
• Larger, ergomomic design for improved comfort and reduced fatigue
• Easily removable from the gun body with one screw for simple repair and replacement

GG 246101

FUSION AP GUN, ROUND 01

Round Fusion Air-Purge Gun with 01 Mix Chamber and 0.042 in (1.6 mm) Orifice Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

For high output spray polyurethane foam and polyurea applications.Easy air-blast tip cleaning reduces build-up and tip clogging.Long-lasting side seals means less downtime for maintenanceQuick-release fluid housing - lets you easily change the mix chambers without toolsHand-tightened front cap - no tools needed to clean and maintain seals and mix chamberErgonomic handle

GG 246100

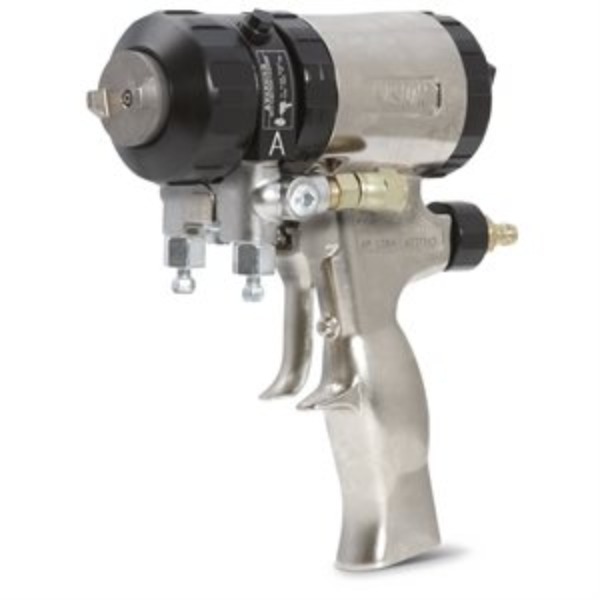

FUSION AP GUN, ROUND 00

Round Fusion Air-Purge Gun with 00 Mix Chamber and 0.029 in (0.74 mm) Orifice Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

For high output spray polyurethane foam and polyurea applications.Easy air-blast tip cleaning reduces build-up and tip clogging.Long-lasting side seals means less downtime for maintenanceQuick-release fluid housing - lets you easily change the mix chambers without toolsHand-tightened front cap - no tools needed to clean and maintain seals and mix chamberErgonomic handle

GG 16R003

FRP RS CHOP SYSTEM, XC, 13:1, CMB, 25

13:1 Ratio External Mix Chop System with 25 ft (7.6 m) Hose, Cart, Mast, and Boom

To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.

Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.

Optimized ratio stability

• Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
• Precision engineered linkage offers you superior ratio control and consistent cure

Lower cost of ownership

• Easy maintenance - fewer repair parts
• Long lasting seals mean less downtime
• Pumps last longer between planned maintenances
• No surge bottle necessary, less parts, solvent and resin needed to prime the pump

Optional DataTrakâ„¢ Control

• Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
• Tracks cycles for preventive maintenance schedule
• Displays real time flow rate - eliminates material waste due to worn spray tips

Roving Management System

• Better guides—less tangling, more uptime

Gravity Fed Catalyst System

• Keeps the catalyst pump primed for consistent delivery

New Linkage and Catalyst Pump

• Truly engineered linkage for superior ratio control
• Allows for infinite adjustment of catalyst percentage — no tools required
• Ensures proper catalyst percentage and optimum results
• Variance of 1% or less

Balanced Graco NXT® Air Motor

• Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
• Shortened stroke on pump for better spray pattern

Control Panel

• Easy user interface with all gauges in one location

Stable, Lightweight Cart

• Easy to maneuver
• Strong, durable casters

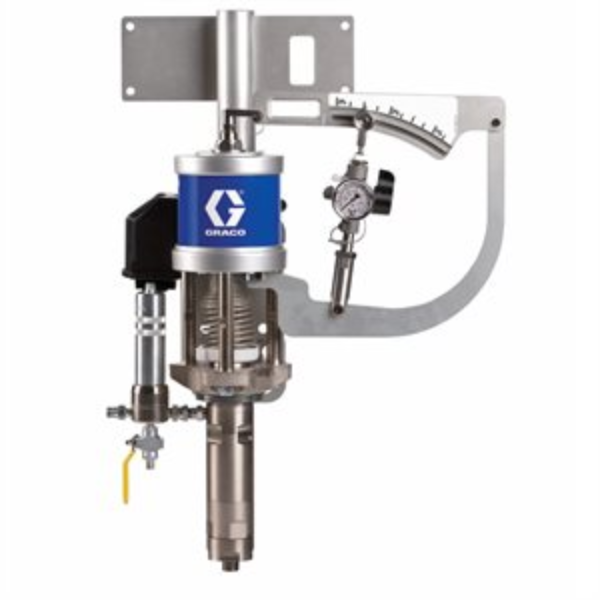

GG 16R091

FRP RS CHOP SYSTEM, XC, 13:1, CMB, 35

13:1 Ratio External Mix Chop System with 35 ft (10.7 m) Hose, Cart, Mast, and Boom

To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.

Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.

Optimized ratio stability

• Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
• Precision engineered linkage offers you superior ratio control and consistent cure

Lower cost of ownership

• Easy maintenance - fewer repair parts
• Long lasting seals mean less downtime
• Pumps last longer between planned maintenances
• No surge bottle necessary, less parts, solvent and resin needed to prime the pump

Optional DataTrakâ„¢ Control

• Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
• Tracks cycles for preventive maintenance schedule
• Displays real time flow rate - eliminates material waste due to worn spray tips

Roving Management System

• Better guides—less tangling, more uptime

Gravity Fed Catalyst System

• Keeps the catalyst pump primed for consistent delivery

New Linkage and Catalyst Pump

• Truly engineered linkage for superior ratio control
• Allows for infinite adjustment of catalyst percentage — no tools required
• Ensures proper catalyst percentage and optimum results
• Variance of 1% or less

Balanced Graco NXT® Air Motor

• Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
• Shortened stroke on pump for better spray pattern

Control Panel

• Easy user interface with all gauges in one location

Stable, Lightweight Cart

• Easy to maneuver
• Strong, durable casters

GG 247112

FUSION AP GUN, AF2929, FT0438

Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.029 in (0.74 mm) Impingement Port and 8-10 in (203-254 mm) Pattern Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

For high output spray polyurethane foam and polyurea applications.Easy air-blast tip cleaning reduces build-up and tip clogging.Long-lasting side seals means less downtime for maintenanceQuick-release fluid housing - lets you easily change the mix chambers without toolsHand-tightened front cap - no tools needed to clean and maintain seals and mix chamberErgonomic handle

GG AP2614

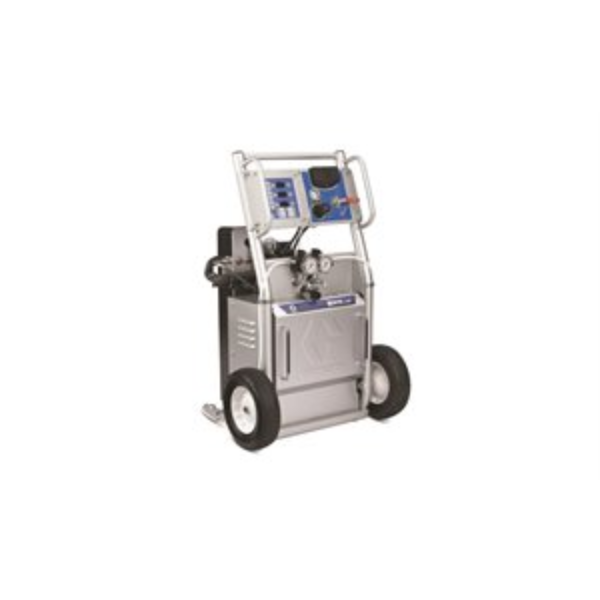

REACTOR A-25 SYSTEM, FUSION AP

Graco AP2614 Reactor A25 Proportioner Package, Fusion AP Gun, Wheels, DataTrak, 230/400 V

The Reactor A-25 is a Graco-engineered spray foam proportioner that gives you the reliability you expect on the jobsite. It maintains consistent temperature control, even when youre spraying at maximum flow rates - resulting in better quality foam.

Application: For spraying foam insulation - applies up to 25 lb (11.4 kg) per minute.

• Maintains temperature setpoints for better yield
• Maintains consistent output pressure for uniform spray pattern
• Easy to operate and maintain
• DataTrak Control

  Resettable counter tracks material usage

• Three Heat Zones

  Three independent heat zones - ISO, resin and hose heat

  Provide accurate heat control for reliable spraying to handle different chemical viscosities

  Digital temperature controls

• Recirculation Manifold

  A quick, easy way to balance system pressures

• NXT Air Motor

  Low air consumption for increased efficiency

  Muffler provides low operating noise levels

  Air valve provides smooth and rapid changeover

• Quick Knockdown Lower Pumps

  For easy disassembly and maintenance

• ISO Pump Lube System

  Prevents isocyanate crystallization on the pump seal and shaft

• ISO Pump Lube System

  Prevents isocyanate crystallization on the pump seal and shaft

• Model: Reactor
• Series: A-25

• Air Inlet Size (cm): 1.27
• Air Inlet Size (in): 1/2
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 18.5 @ 380 V ac (3-Phase WYE), 32 @ 230 V ac (3-Phase Delta), 40 @ 230 V ac (1-Phase)
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component A Inlet Size (in): 3/4
• Component A Inlet Size (mm): 19.05
• Component A Thread Gender: Female
• Component A Thread Type: NPT
• Component B Inlet Size (in): 3/4
• Component B Inlet Size (mm): 19.05
• Component B Thread Gender: Female
• Component B Thread Type: NPT
• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: Fusion AP

• Hose Length (ft): 50, 10
• Hose Length (m): 15, 3

• Includes: Proportioner, Fusion AP Gun, Heated Hose, Wheels, DataTrak

• Material Application: Polyurethane Foam

• Maximum Air Consumption (SCFM): 28 scfm at 1500 psi
• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (kg/min): 11.4
• Maximum Flow Rate (lb/min): 25

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190
• Maximum Fluid Viscosity (cP): 1500

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190
• Maximum Fluid Viscosity (cP): 1500

• Maximum Mix Ratio: 1:1

• Minimum Fluid Viscosity (cP): 250

• Overall Depth (cm): 76.2
• Overall Depth (in): 30
• Overall

GG 247377

Kit, Proportioner Pump, 120

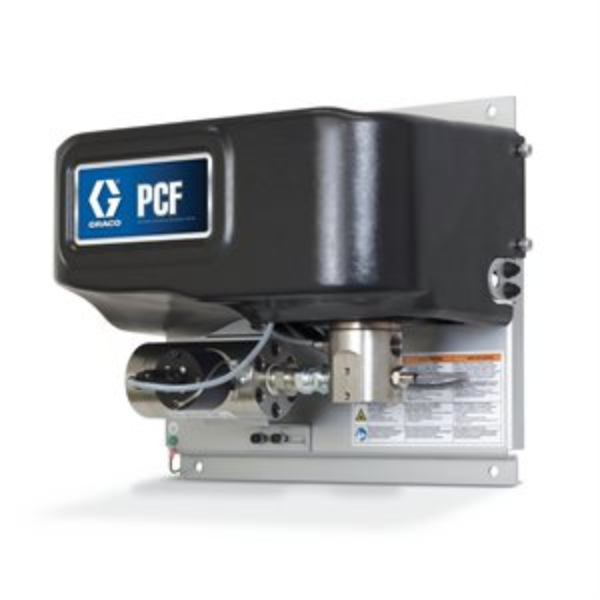

GG PF2320

PCF SYSTEM, 016, CART, HR METER, EP

16 Styles 100-240 VAC Precision Flow System with Cartridge Regulator, High Resolution Meter and EtherNet/IP User Interface

Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds – providing your operation with a highly precise, continuous dispense.

Handles a range of materials, including ambient, warm melt and hot melt materials to 400°F (204°C) and low to high viscosity materials with unlimited volume.

The next generation of precision metering

• Closed-loop "real-time" control ensures a precise, continuous dispense – improves part quality and reduces material waste
• Intuitive user interface simplifies setup, reduces training time
• Integrated USB interface for easy data downloads - allows for further analysis of process data
• Multiple gun capabilities for additional productivity - lets you program up to four guns
• Compact modular design - easy to install, integrate and maintain
• Low cost of ownership - fewer wear parts compared to shot meters

GG 246102

FUSION AP GUN, ROUND 02

Round Fusion Air-Purge Gun with 02 Mix Chamber and 0.052 in (1.3 mm) Orifice Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

For high output spray polyurethane foam and polyurea applications.Easy air-blast tip cleaning reduces build-up and tip clogging.Long-lasting side seals means less downtime for maintenanceQuick-release fluid housing - lets you easily change the mix chambers without toolsHand-tightened front cap - no tools needed to clean and maintain seals and mix chamberErgonomic handle

GG 16R082

FRP RS CHOP SYSTEM, XC, 13:1, CART, 50

Graco 16R082 13:1 Ratio External Mix Chop System with 50 ft (15.2 m) Hose and Cart

To keep material costs low, the system has been designed so that it doesn't need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.

Application: Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.

• Optimized ratio stability

  Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.

  Precision engineered linkage offers you superior ratio control and consistent cure

  • Lower cost of ownership

    Easy maintenance - fewer repair parts

    Long lasting seals mean less downtime

    Pumps last longer between planned maintenances

    No surge bottle necessary, less parts, solvent and resin needed to prime the pump

    • Optional DataTrak Control

      Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day

      Tracks cycles for preventive maintenance schedule

      Displays real time flow rate - eliminates material waste due to worn spray tips

      • Gravity Fed Catalyst System

        Keeps the catalyst pump primed for consistent delivery

        • New Linkage and Catalyst Pump

          Truly engineered linkage for superior ratio control

          Allows for infinite adjustment of catalyst percentage - no tools required

          Ensures proper catalyst percentage and optimum results

          Variance of 1% or less

          • Balanced Graco NXT Air Motor

            Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern

            Shortened stroke on pump for better spray pattern

            • Control Panel

              Easy user interface with all gauges in one location

              • Stable, Lightweight Cart

                Easy to maneuver

                Strong, durable casters




                • Model: FRP
                • Series: XC
                • Air Inlet Size (cm): 0.635
                • Air Inlet Size (in): 1/4
                • Air Inlet Size (mm): 6.35
                • Air Inlet Thread Gender: Female
                • Air Inlet Thread Type: NPT
                • Component A Inlet Size (in): 3/8
                • Component A Inlet Size (mm): 9.525
                • Component B Inlet Size (in): 1-5/16
                • Component B Inlet Size (mm): 33.34
                • Component B Thread Gender: Male
                • Component B Thread Type: UN-2A
                • Fluid Inlet Size (cm): 1.905
                • Fluid Inlet Size (in): 3/4
                • Fluid Inlet Size (mm): 19.05
                • Fluid Inlet Thread Gender: Male
                • Fluid Inlet Thread Type: NPT
                • Fluid Outlet Size (in): 3/4
                • Fluid Outlet Thread Gender: Female
                • Fluid Outlet Thread Type: NPT
                • Hose Length (ft): 50
                • Hose Length (m): 15.2
                • Includes: Hose, Cart
                • Maximum Air Inlet Pressure (bar): 6.9
                • Maximum Air Inlet Pressure (kPa): 690
                • Maximum Air Inlet Pressure (psi): 100
                <

GG 16R094

FRP RS CHOP SYSTEM, XC, 13:1, CMB, 50

13:1 Ratio External Mix Chop System with 50 ft (15.2 m) Hose, Cart, Mast, and Boom

To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.

Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.

Optimized ratio stability

• Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
• Precision engineered linkage offers you superior ratio control and consistent cure

Lower cost of ownership

• Easy maintenance - fewer repair parts
• Long lasting seals mean less downtime
• Pumps last longer between planned maintenances
• No surge bottle necessary, less parts, solvent and resin needed to prime the pump

Optional DataTrakâ„¢ Control

• Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
• Tracks cycles for preventive maintenance schedule
• Displays real time flow rate - eliminates material waste due to worn spray tips

Roving Management System

• Better guides—less tangling, more uptime

Gravity Fed Catalyst System

• Keeps the catalyst pump primed for consistent delivery

New Linkage and Catalyst Pump

• Truly engineered linkage for superior ratio control
• Allows for infinite adjustment of catalyst percentage — no tools required
• Ensures proper catalyst percentage and optimum results
• Variance of 1% or less

Balanced Graco NXT® Air Motor

• Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
• Shortened stroke on pump for better spray pattern

Control Panel

• Easy user interface with all gauges in one location

Stable, Lightweight Cart

• Easy to maneuver
• Strong, durable casters

GG 16R106

FRP RS CHOP SYSTEM, XC, 13:1, NO, 50

13:1 Ratio External Mix Chop System with 50 ft (15.2 m) Hose

To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.

Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.

Optimized ratio stability

• Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
• Precision engineered linkage offers you superior ratio control and consistent cure

Lower cost of ownership

• Easy maintenance - fewer repair parts
• Long lasting seals mean less downtime
• Pumps last longer between planned maintenances
• No surge bottle necessary, less parts, solvent and resin needed to prime the pump

Optional DataTrakâ„¢ Control

• Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
• Tracks cycles for preventive maintenance schedule
• Displays real time flow rate - eliminates material waste due to worn spray tips

Roving Management System

• Better guides—less tangling, more uptime

Gravity Fed Catalyst System

• Keeps the catalyst pump primed for consistent delivery

New Linkage and Catalyst Pump

• Truly engineered linkage for superior ratio control
• Allows for infinite adjustment of catalyst percentage — no tools required
• Ensures proper catalyst percentage and optimum results
• Variance of 1% or less

Balanced Graco NXT® Air Motor

• Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
• Shortened stroke on pump for better spray pattern

Control Panel

• Easy user interface with all gauges in one location

GG 16R149

FRP RS GEL SYSTEM, XG, 17:1, CART, 35

Graco 16R149 17:1 Ratio External Mix Gel System with 35 ft (10.7 m) Hose and Cart

To keep material costs low, the system has been designed so that it doesn't need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.

Application: Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.

• Optimized ratio stability

  Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.

  Precision engineered linkage offers you superior ratio control and consistent cure

  • Lower cost of ownership

    Easy maintenance - fewer repair parts

    Long lasting seals mean less downtime

    Pumps last longer between planned maintenances

    No surge bottle necessary, less parts, solvent and resin needed to prime the pump

    • Optional DataTrak Control

      Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day

      Tracks cycles for preventive maintenance schedule

      Displays real time flow rate - eliminates material waste due to worn spray tips

      • Gravity Fed Catalyst System

        Keeps the catalyst pump primed for consistent delivery

        • New Linkage and Catalyst Pump

          Truly engineered linkage for superior ratio control

          Allows for infinite adjustment of catalyst percentage - no tools required

          Ensures proper catalyst percentage and optimum results

          Variance of 1% or less

          • Balanced Graco NXT Air Motor

            Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern

            Shortened stroke on pump for better spray pattern

            • Control Panel

              Easy user interface with all gauges in one location

              • Stable, Lightweight Cart

                Easy to maneuver

                Strong, durable casters




                • Model: FRP
                • Series: XG
                • Air Inlet Size (in): 1/4
                • Air Inlet Thread Gender: Female
                • Air Inlet Thread Type: NPT
                • Component A Inlet Size (in): 3/8
                • Component B Inlet Size (in): 1-5/16
                • Component B Thread Gender: Male
                • Component B Thread Type: UN-2A
                • Fluid Inlet Size (in): 3/4
                • Fluid Inlet Thread Gender: Male
                • Fluid Inlet Thread Type: NPT
                • Fluid Outlet Size (in): 3/4
                • Fluid Outlet Thread Gender: Female
                • Fluid Outlet Thread Type: NPT
                • Hose Length (ft): 35
                • Hose Length (m): 10.7
                • Includes: Hose, Cart
                • Maximum Air Inlet Pressure (bar): 6.9
                • Maximum Air Inlet Pressure (kPa): 690
                • Maximum Air Inlet Pressure (psi): 100
                • Maximum Flow Rate (cc/min): 4160
                • Maximum Flow Rate (GPM): 1.1
                • Maximum Flow Rate (L/min): 4.16
                • Maximum Working Pressure (bar): 119
                • Maximum Working Pressure (kPa): 11900
                • Maximu

GG AP2012

REACTOR 2 E-XP2 SYSTEM, AP

Graco AP2012 Reactor 2 E-XP2 Proportioner, Fusion AP Gun, Heated Hose with Xtreme-Wrap, 230/400 V

Count on the Reactor 2 E-XP2 proportioner for advanced technology in applying fast-curing polyurea coatings. Because its a Reactor 2 series proportioner, it offers software and hardware enhancements for better spray performance, plus technologies that add to your bottom line. The Reactor 2 E-XP2 is engineered to process and spray polyurea and other coatings that require high pressures. The hybrid heater and heated hose condition the materials to the right viscosity prior to mixing. Quick knockdown lower pump for easy maintenance, easy-to-use controls, and rugged design make the Reactor the preferred choice for coatings applications.

Application: Next generation technology for polyurea coatings.

• Reactor 2 E-XP2 gives you:

  Compact footprint - more room in your spray rig

  Ergonomic design - easier to service

  Advanced control modules

  Better spraying performance compared to traditional electric Reactor systems

  Troubleshooting made quick and easy with QR codes

• Reactor Connect : Communication and Control at your Fingertips

  Control your Reactor using your phone

  Improve productivity and yield by optimizing spray parameters and never having to go back to your rig

  Monitor your rigs/crews using the multi-system dashboard

  Troubleshoot an issue quickly using real-time data

  Provide documentation to a customer

  Use reports to better manage your business

  Saves all your spray data to the cloud

  Utilize account management to better manage your equipment and crews

  Reactor Connect comes standard with all Reactor 2 models

• Advanced control technology

  Tracks, monitors and saves project data

  Data can be saved and downloaded onto a USB drive

  Stores up to 24 chemical recipes

  Drum level indicators

• Advanced control modules

  Handles power fluctuations

• Sacrificial surge protector

  Protects your electronics against excessive power spikes

• Smooth, consistent spray performance - similar to hydraulic systems
• Three-year warranty

  Covers user display module, control modules and electric motor

  One of the best in the industry

• Model: Reactor 2
• Series: E-XP2
• Product Series: Non-Elite

• Amperage (A): 35 @ 350 to 415 V ac (3-Phase WYE), 62 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)
• Application: Protective Coatings
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component A Inlet Size (in): 1/2
• Component A Inlet Size (mm): 12.7
• Component A Thread Type: JIC
• Component B Inlet Size (mm): #10
• Component B Outlet Size (in): 5/8
• Component B Outlet Size (mm): 15.875
• Component B Thread Type: JIC
• Component Type: Two Component

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: Fusion AP

• Hose Length (ft): 50, 10
• Hose Length (m): 15, 3

• Hose Package: Heated Hose
• Includes: Proportioner, Fusion AP Gun, Heated Hose with Scuff Guard, Heated Whip Hose

• Material Application: P

GG MD1001

PROMIX 2KS PROPORTIONER, MANUAL SYSTEM

ProMix 2KS Manual Wall Panel, EasyKey with LCD display, G3000 A & B Meter, 1 color, 1 catalyst, and 1 Air Flow SwitchEasy to use electronic proportioner for a broad range of solventborne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth.Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushingIntrinsically safe fluid panels easily integrate into hazardous areasAccurate ratio assurance for superior finish qualityAdvanced web interface provides consolidated system management and reporting

GG SSP-115

Arm, Drive, Pump, Slave

GG 01/0993/87

Nozzle Ratio

GG 16R004

FRP RS CHOP SYSTEM, IC, 13:1, CMB, 25

13:1 Ratio Internal Mix Chop System with 25 ft (7.6 m) Hose, Cart, Mast, and Boom

To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.

Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.

Optimized Ratio Stability

• Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
• Precision engineered linkage offers you superior ratio control and consistent cure

Lower Cost of Ownership

• Easy maintenance - fewer repair parts
• Long lasting seals mean less downtime
• Pumps last longer between planned maintenances
• No surge bottle necessary, less parts, solvent and resin needed to prime the pump

Optional DataTrakâ„¢ Control

• Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
• Tracks cycles for preventive maintenance schedule
• Displays real time flow rate - eliminates material waste due to worn spray tips

Roving Management System

• Better guides—less tangling, more uptime

Gravity Fed Catalyst System

• Keeps the catalyst pump primed for consistent delivery

New Linkage and Catalyst Pump

• Truly engineered linkage for superior ratio control
• Allows for infinite adjustment of catalyst percentage — no tools required
• Ensures proper catalyst percentage and optimum results
• Variance of 1% or less

Balanced Graco NXT® Air Motor

• Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
• Shortened stroke on pump for better spray pattern

Control Panel

• Easy user interface with all gauges in one location

Stable, Lightweight Cart

• Easy to maneuver
• Strong, durable casters

GG 16R088

FRP RS CHOP SYSTEM, XC, 13:1, CART, 25

13:1 Ratio External Mix Chop System with 25 ft (7.6 m) Hose and Cart

To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.

Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.

Optimized ratio stability

• Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
• Precision engineered linkage offers you superior ratio control and consistent cure

Lower cost of ownership

• Easy maintenance - fewer repair parts
• Long lasting seals mean less downtime
• Pumps last longer between planned maintenances
• No surge bottle necessary, less parts, solvent and resin needed to prime the pump

Optional DataTrakâ„¢ Control

• Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
• Tracks cycles for preventive maintenance schedule
• Displays real time flow rate - eliminates material waste due to worn spray tips

Roving Management System

• Better guides—less tangling, more uptime

Gravity Fed Catalyst System

• Keeps the catalyst pump primed for consistent delivery

New Linkage and Catalyst Pump

• Truly engineered linkage for superior ratio control
• Allows for infinite adjustment of catalyst percentage — no tools required
• Ensures proper catalyst percentage and optimum results
• Variance of 1% or less

Balanced Graco NXT® Air Motor

• Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
• Shortened stroke on pump for better spray pattern

Control Panel

• Easy user interface with all gauges in one location

Stable, Lightweight Cart

• Easy to maneuver
• Strong, durable casters

GG 16R100

FRP RS CHOP SYSTEM, XC, 13:1, NO, 25

13:1 Ratio External Mix Chop System with 25 ft (7.6 m) Hose

To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.

Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.

Optimized ratio stability

• Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
• Precision engineered linkage offers you superior ratio control and consistent cure

Lower cost of ownership

• Easy maintenance - fewer repair parts
• Long lasting seals mean less downtime
• Pumps last longer between planned maintenances
• No surge bottle necessary, less parts, solvent and resin needed to prime the pump

Optional DataTrakâ„¢ Control

• Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
• Tracks cycles for preventive maintenance schedule
• Displays real time flow rate - eliminates material waste due to worn spray tips

Roving Management System

• Better guides—less tangling, more uptime

Gravity Fed Catalyst System

• Keeps the catalyst pump primed for consistent delivery

New Linkage and Catalyst Pump

• Truly engineered linkage for superior ratio control
• Allows for infinite adjustment of catalyst percentage — no tools required
• Ensures proper catalyst percentage and optimum results
• Variance of 1% or less

Balanced Graco NXT® Air Motor

• Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
• Shortened stroke on pump for better spray pattern

Control Panel

• Easy user interface with all gauges in one location

GG 16R152

FRP RS GEL SYSTEM, XG, 17:1, CART, 50

17:1 Ratio External Mix Gel System with 50 ft (15.2 m) Hose and Cart

To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.

Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.

Optimized ratio stability

• Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.
• Precision engineered linkage offers you superior ratio control and consistent cure

Lower cost of ownership

• Easy maintenance - fewer repair parts
• Long lasting seals mean less downtime
• Pumps last longer between planned maintenances
• No surge bottle necessary, less parts, solvent and resin needed to prime the pump

Optional DataTrakâ„¢ Control

• Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day
• Tracks cycles for preventive maintenance schedule
• Displays real time flow rate - eliminates material waste due to worn spray tips

Roving Management System

• Better guides—less tangling, more uptime

Gravity Fed Catalyst System

• Keeps the catalyst pump primed for consistent delivery

New Linkage and Catalyst Pump

• Truly engineered linkage for superior ratio control
• Allows for infinite adjustment of catalyst percentage — no tools required
• Ensures proper catalyst percentage and optimum results
• Variance of 1% or less

Balanced Graco NXT® Air Motor

• Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern
• Shortened stroke on pump for better spray pattern

Control Panel

• Easy user interface with all gauges in one location

Stable, Lightweight Cart

• Easy to maneuver
• Strong, durable casters

GG 16R161

FRP RS GEL SYSTEM, XG, 17:1, CMB, 35

Graco 16R161 17:1 Ratio External Mix Gel System with 35 ft (10.7 m) Hose, Cart, Mast, and Boom

To keep material costs low, the system has been designed so that it doesn't need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.

Application: Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.

• Optimized ratio stability

  Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.

  Precision engineered linkage offers you superior ratio control and consistent cure

  • Lower cost of ownership

    Easy maintenance - fewer repair parts

    Long lasting seals mean less downtime

    Pumps last longer between planned maintenances

    No surge bottle necessary, less parts, solvent and resin needed to prime the pump

    • Optional DataTrak Control

      Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day

      Tracks cycles for preventive maintenance schedule

      Displays real time flow rate - eliminates material waste due to worn spray tips

      • Gravity Fed Catalyst System

        Keeps the catalyst pump primed for consistent delivery

        • New Linkage and Catalyst Pump

          Truly engineered linkage for superior ratio control

          Allows for infinite adjustment of catalyst percentage - no tools required

          Ensures proper catalyst percentage and optimum results

          Variance of 1% or less

          • Balanced Graco NXT Air Motor

            Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern

            Shortened stroke on pump for better spray pattern

            • Control Panel

              Easy user interface with all gauges in one location

              • Stable, Lightweight Cart

                Easy to maneuver

                Strong, durable casters




                • Model: FRP
                • Series: XG
                • Air Inlet Size (cm): 0.635
                • Air Inlet Size (in): 1/4
                • Air Inlet Size (mm): 6.35
                • Air Inlet Thread Gender: Female
                • Air Inlet Thread Type: NPT
                • Component A Inlet Size (in): 3/8
                • Component A Inlet Size (mm): 9.525
                • Component B Inlet Size (in): 1-5/16
                • Component B Inlet Size (mm): 33.34
                • Component B Thread Gender: Male
                • Component B Thread Type: UN-2A
                • Fluid Inlet Size (cm): 1.905
                • Fluid Inlet Size (in): 3/4
                • Fluid Inlet Size (mm): 19.05
                • Fluid Inlet Thread Gender: Male
                • Fluid Inlet Thread Type: NPT
                • Fluid Outlet Size (in): 3/4
                • Fluid Outlet Thread Gender: Female
                • Fluid Outlet Thread Type: NPT
                • Hose Length (ft): 35
                • Hose Length (m): 10.7
                • Includes: Hose, Cart, Mast, Boom
                • Maximum Air Inlet Pressure (bar): 6.9
                • Maximum Air Inlet Pressure (kPa): 690
                • Maximum Air Inlet Pressure (psi):

GG 17H143

REACTOR 2 H-40 PROPORTIONER, 230V, 15KW, ELITE

Graco 17H143 Reactor 2 H-40 Elite Proportioner, 15 kW, 230 V

Gracos hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEMs or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects - applies up to 52 lb (23.6 kg) per minute.

• What a hydraulic system can do for you:


  Dependability - robust, durable, longest life spray system

  Reduce downtime - allows for longer time in between required maintenance

  Increase daily productivity - capable of extremely high duty cycle

• Reactor Connect : Communication and Control at your Fingertips


  Control your Reactor using your phone

  Improve productivity and yield by optimizing spray parameters and never having to go back to your rig

  Monitor your rigs/crews using the multi-system dashboard

  Troubleshoot an issue quickly using real-time data

  Provide documentation to a customer

  Use reports to better manage your business

  Saves all your spray data to the cloud

  Utilize account management to better manage your equipment and crews

  Reactor Connect comes standard with all Reactor 2 model

• Advanced control technology


  Tracks, monitors and saves project data

  Data can be saved and downloaded onto a USB drive

  Stores up to 24 chemical recipes

  Drum level indicators

• Sacrificial surge protector


  Protects your electronics against excessive power spikes

• Three-year warranty


  Covers user display and control modules

  One of the best in the industry

• Model: Reactor 2
• Series: H-40
• Product Series: Elite

• Amperage (A): 71
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: No Gun

• Hose Package: No Hose
• Includes: Elite Kit

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 20.41
• Maximum Flow Rate (lb/min): 45

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Hose Length (ft): 410
• Maximum Hose Length (m): 125

• Maximum Mix Ratio: 1:1

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Power Rating (HP): 20.11
• Power Rating (kW): 15
• Power Rating (W): 15000
• Power Source: Hydraulic

• Pressure Type: High Pressure
• Product Type: Plural Component

GG 246099

FUSION AP GUN, ROUND 000

Graco 246099 Round Fusion Air-Purge Gun with 000 Mix Chamber and 0.020 in (0.51 mm) Orifice Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Round

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.051
• Fluid Orifice Size (in): 0.020
• Fluid Orifice Size (mm): 0.51

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.020
• Impingement Port Size (mm): 0.50

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 000 (.020)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 5 in @ 24 in from target
