Ratchets

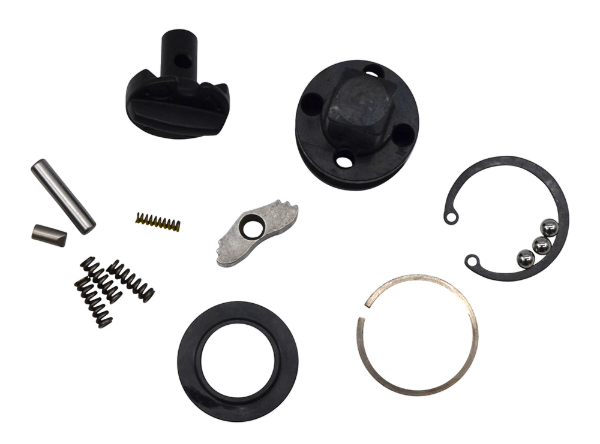

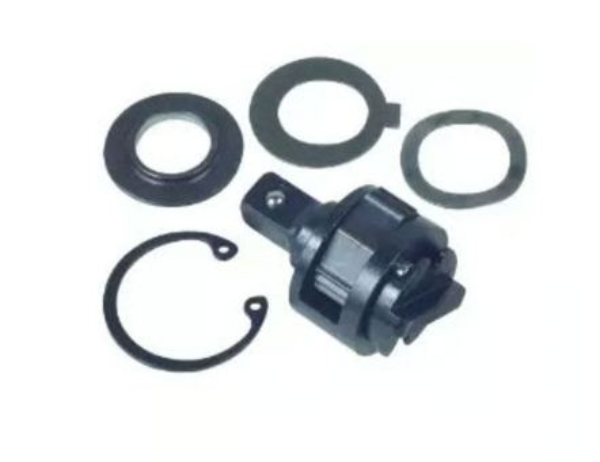

IR 1099XPA-TRK1

Ratchet Head Repair Kit for Ingersoll Rand 1099XPA 1/2" Drive Ratchet Wrench

Product Application and Uses: For use with 1099XPA 1/2" Air Ratchet Wrench

For Use With

• 1099XPA

IR 107XPA

3/8" Air Ratchet Wrench, 54 ft-lb Torque, 160 RPM

The advanced head design of the 107XPA ⅜” ratchet wrench provides increased durability to one of the industry’s most popular ratchets.

Features And Benefits

• 360-Degree Exhaust: The 360-degree exhaust capabilities of the 107XPA standard ratchet wrenches direct exhaust away from the operator, ensuring a better workspace.
• Increased Control: The power regulator you’ll find on this ratchet wrench provides increased control on every job.
• Access Hard to Reach Spaces: With greater access and reach, you can more easily work in deep, hard to reach areas.
• Ideal choice: Ideal choice for work in close quarters. Provides 54 ft.-lbs. of max torque and 160 rpms. Variable speed lever style throttle.

Includes: Bare Tool
Product Application and Uses: To remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption (cfm): 19
Air Consumption (l/min): 530
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Color: Silver
Configuration/Handle Type: Straight
Drive Size (in): 3/8
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Handle Material: Aluminum
Housing Material: Aluminum
Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 7/16
Max Free Speed (rpm): 160
Max Pressure (bar): 6.2
Max Torque (ft-lb): 54
Max Torque (in-lb): 646
Max Torque (nm): 73
Min Hose Size (in): 3/8
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 11
Product Width (in): 1.91
Product Height (in): 1.72
Product Weight (lb): 2.75
Recommended Forward Torque Range (ft-lb): 10-45
Recommended Forward Torque Range (in-lb): 124-540
Recommended Forward Torque Range (nm): 14-61
Retainer Type: Ball
Reversible: Reversible
Side to Center Distance (in): 0.96
Side to Center Distance (mm): 24
Sound Pressure/Power Db(A): 94.4 / 105.4
Speed Setting: Variable Speed
Standards/Certifications: All Gov Regulations And Fda Certified
Vibration Level (m/s2): 2.4
Warranty: 1-year

Similar IR

• 1077XPA
• 1207MAX-D3
• 109XPA

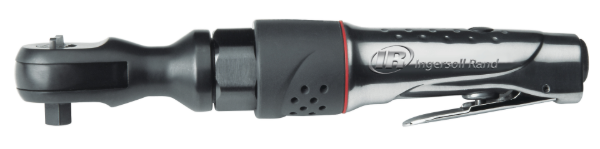

IR 1077XPA

1/2" Air Ratchet Wrench, 54 ft-lb Torque, 160 RPM

The advanced head design of the 1077XPA ½” ratchet wrench provides increased durability to one of the industry’s most popular ratchets.

Features And Benefits

• 360-Degree Exhaust: Adjustable 360-degree exhaust capabilities of the 1077XPA standard ratchet wrenches direct exhaust away from the operator, ensuring a better workspace.
• Increased Control: The power regulator you’ll find on this ratchet wrench provides increased control on every job.
• Access Hard to Reach Spaces: With greater access and reach, you can more easily work in deep, hard to reach areas.
• Ideal Choice: Ideal choice for work in close quarters. Provides 54 ft.-lbs. of max torque and 160 rpms. Variable speed lever style throttle.

Includes: Bare Tool
Product Application and Uses: To remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption (cfm): 19
Air Consumption (l/min): 530
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Color: Silver
Configuration/Handle Type: Straight
Drive Size (in): 1/2
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Handle Material: Aluminum
Housing Material: Aluminum
Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 7/16
Max Free Speed (rpm): 160
Max Pressure (bar): 6.2
Max Torque (ft-lb): 54
Max Torque (in-lb): 646
Max Torque (nm): 73
Min Hose Size (in): 3/8
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 11
Product Width (in): 1.91
Product Height (in): 1.9
Product Weight (lb): 2.75
Recommended Forward Torque Range (ft-lb): 10-45
Recommended Forward Torque Range (in-lb): 124-540
Recommended Forward Torque Range (nm): 14-61
Retainer Type: Ball
Reversible: Reversible
Side to Center Distance (in): 0.96
Side to Center Distance (mm): 24
Sound Pressure/Power Db(A): 94.4 / 105.4
Speed Setting: Variable Speed
Standards/Certifications: All Gov Regulations And Fda Certified
Vibration Level (m/s2): 2.4
Warranty: 1-year

Similar IR

• 107XPA
• 1207MAX-D4
• 1099XPA

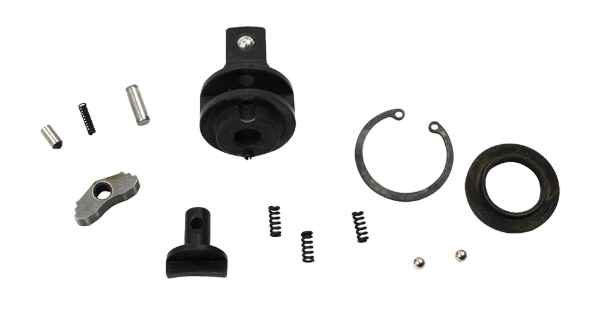

IR 1077XPA-TRK1

Ratchet Head Kit for Ingersoll Rand 1077XPA 1/2" Drive Ratchet Wrench

Product Application and Uses: For use with 1077XPA 1/2" Air Ratchet Wrench

For Use With

• 1077XPA

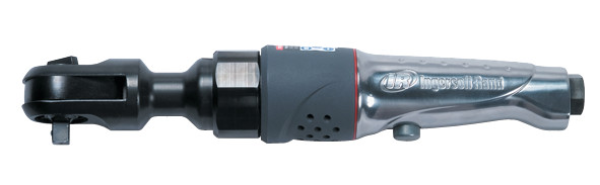

IR 1099XPA

1/2" Air Ratchet Wrench, 76 ft-lb Torque, 220 RPM

The 1099XPA ratchet wrenches provide an optimized gear ratio and airflow for exceptional performance and durability with 76 ft-lb maximum torque. The 109 model offers a ½” drive, while the 1099 model sports a ⅜” version.

Features And Benefits

• 360-Degree Exhaust: The adjustable exhaust on the 1099XPA high torque ratchet wrenches directs air flow away from you and your workspace.
• Low Profile Forward/Reverse Control: The 1099XPA forward/reverse control has a wide diameter for increased ease of use in confined spaces.
• Increased Reach: Enjoy easier access to deep, hard to reach spaces with these high torque ratchet wrenches.

Includes: Bare Tool
Product Application and Uses: To remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Button
Air Consumption (cfm): 24
Air Consumption (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Color: Silver
Configuration/Handle Type: Straight
Drive Size (in): 1/2
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Handle Material: Aluminum
Housing Material: Aluminum
Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 1/2
Max Free Speed (rpm): 220
Max Pressure (bar): 6.2
Max Torque (ft-lb): 76
Max Torque (in-lb): 912
Max Torque (nm): 103
Min Hose Size (in): 3/8
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 12
Product Width (in): 2.16
Product Height (in): 2.03
Product Weight (lb): 3.3
Recommended Forward Torque Range (ft-lb): 10-60
Recommended Forward Torque Range (in-lb): 124-717
Recommended Forward Torque Range (nm): 14-81
Retainer Type: Ball
Reversible: Reversible
Side to Center Distance (in): 1.08
Side to Center Distance (mm): 27
Sound Pressure/Power Db(A): 92.4 / 103.4
Speed Setting: Variable Speed
Standards/Certifications: All Gov Regulations And Fda Certified
Vibration Level (m/s2): 2.5
Warranty: 1-year

Similar IR

• 109XPA
• 1207MAX-D4
• 1077XPA

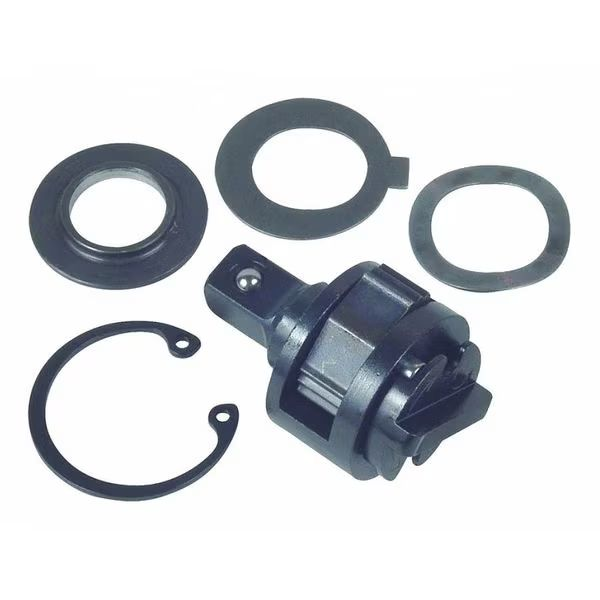

IR 107XPA-TRK1

Ratchet Head Repair Kit for Ingersoll Rand R3130 and 107XPA 3/8" Drive Ratchet Wrench

Product Application and Uses: For use with R3130 and 107XPA 3/8" Air Ratchet Wrenches

For Use With

• 107XPA
• R3130

IR 109XPA

3/8" Air Ratchet Wrench, 76 ft-lb Torque, 220 RPM

The 109XPA ratchet wrenches provide an optimized gear ratio and airflow for exceptional performance and durability with 76 ft-lb maximum torque. The 109 model offers a ½” drive, while the 1099 model sports a ⅜” version.

Features And Benefits

• Maximum Torque: 76 ft.-lbs. maximum torque at 300 rpm free speed.
• 360-Degree Exhaust: The adjustable exhaust on the 109XPA high torque ratchet wrenches directs air flow away from you and your workspace.
• Low Profile Forward/Reverse Control: The 109XPA forward/reverse control has a wide diameter for increased ease of use in confined spaces.
• Increased Reach: Enjoy easier access to deep, hard to reach spaces with these high torque ratchet wrenches.
• Exceptional Durability: Exclusive IR Twin Pawl Plus head design for exceptional durability.

Includes: Bare Tool
Product Application and Uses: To remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Button
Air Consumption (cfm): 24
Air Consumption (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Color: Silver
Configuration/Handle Type: Right Angle
Drive Size (in): 3/8
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Handle Material: Aluminum
Housing Material: Aluminum
Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 1/2
Max Free Speed (rpm): 220
Max Pressure (bar): 6.2
Max Torque (ft-lb): 76
Max Torque (in-lb): 912
Max Torque (nm): 103
Min Hose Size (in): 3/8
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 12
Product Width (in): 2.16
Product Height (in): 1.84
Product Weight (lb): 3.3
Recommended Forward Torque Range (ft-lb): 10-60
Recommended Forward Torque Range (in-lb): 124-717
Recommended Forward Torque Range (nm): 14-81
Retainer Type: Ball
Reversible: Reversible
Side to Center Distance (in): 1.08
Side to Center Distance (mm): 27
Sound Pressure/Power Db(A): 92.4 / 103.4
Speed Setting: Variable Speed
Standards/Certifications: All Gov Regulations And Fda Certified
Vibration Level (m/s2): 2.5
Warranty: 1-year

Similar IR

• 1099XPA
• 1207MAX-D3
• 107XPA
• 1077XPA

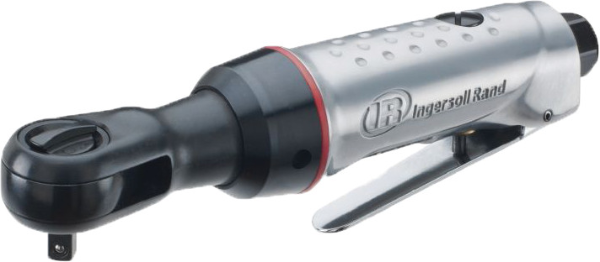

IR 105-D2

1/4" Air Ratchet Wrench, 25 ft-lb Torque, 250 RPM

The 105 Series of air ratchet wrenches are small, durable, and easy to handle for vehicle repair technicians. The low profile forward/reverse control has a wide diameter for easy gripping and increased control in confined spaces.

Features And Benefits

• Power & Speed: With 25 ft-lb max torque and 250 rpm free speed, you can count on the 105 Series to deliver impressive power.
• Greater Access & Reach: The 105 Series mini ratchet wrenches are small and nimble enough to tackle jobs in both tight and hard to reach places.
• Durable: With an aluminum housing and steel head construction, the 105 Series has improved durability and consistent performance.
• Increased Safety: The ball dent anvil found on each member of the 105 Series provides a more secure link to the socket, increasing operator safety.

Includes: Bare Tool
Product Application and Uses: To remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption (cfm): 18
Air Consumption (l/min): 510
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 3
Average Air Consumption (l/min): 85
Color: Silver
Configuration/Handle Type: Straight
Drive Size (in): 1/4
Duty Rating: Industrial Duty
Exhaust Location: Rear
Handle Material: Aluminum
Housing Material: Aluminum
Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 3/8
Max Free Speed (rpm): 280
Max Pressure (bar): 6.2
Max Torque (ft-lb): 25
Max Torque (in-lb): 301
Max Torque (nm): 34
Min Hose Size (in): 3/8
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 7.29
Product Width (in): 1.54
Product Height (in): 1.35
Product Weight (lb): 1.4
Recommended Forward Torque Range (ft-lb): 5.2-20
Recommended Forward Torque Range (in-lb): 62-239
Recommended Forward Torque Range (nm): 7-27
Retainer Type: Ball
Reversible: Reversible
Side to Center Distance (in): 0.77
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 81.8 / 92.8
Speed Setting: Variable Speed
Standards/Certifications: All Gov Regulations And Fda Certified
Vibration Level (m/s2): 5.1
Warranty: 1-year

Similar IR

• 105-D3
• 1105MAX-D2
• 107XPA
• 105-L2

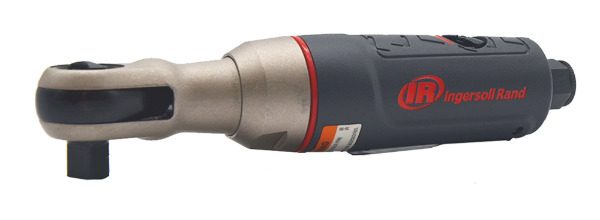

IR 1105MAX-D3

3/8" Air Ratchet Wrench, 30 ft-lb Torque, 300 RPM

The 1105MAX Series is our top-of-the-line, premium mini impact wrenches. These air ratchets offer best-in-class power and speed with features like enhanced corrosion resistance and an ultra-comfortable housing.

Features And Benefits

• Increased Access & Reach: These mini ratchet wrenches let you get into deep, tight, and hard-to-reach places.
• Long-Lasting Comfort: The composite housing and handle insulates from the cold and ensures operator comfort even during extended use.
• Trusted Durability: The 1105MAX Series can withstand harsh environments and repeated drops.

Includes: Bare Tool
Product Application and Uses: To remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption (cfm): 20
Air Consumption (l/min): 566
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 3.5
Average Air Consumption (l/min): 99
Color: Black
Configuration/Handle Type: Straight
Drive Size (in): 3/8
Duty Rating: Industrial Duty
Exhaust Location: Rear
Housing Material: Aluminum core with composite sleeve
Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 3/8
Max Free Speed (rpm): 300
Max Pressure (bar): 6.2
Max Torque (ft-lb): 30
Max Torque (in-lb): 363
Max Torque (nm): 41
Min Hose Size (in): 3/8
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 7.36
Product Width (in): 1.6
Product Height (in): 1.46
Product Weight (lb): 1.43
Recommended Forward Torque Range (ft-lb): 5.2-25
Recommended Forward Torque Range (in-lb): 62-301
Recommended Forward Torque Range (nm): 7-34
Retainer Type: Ball
Reversible: Reversible
Side to Center Distance (in): 0.8
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 88.9 / 99.9
Speed Setting: Variable Speed
Standards/Certifications: All Gov Regulations And Fda Certified
Vibration Level (m/s2): 5.7
Warranty: 1-year

Similar IR

• 1105MAX-D2
• 105-D3
• 1207MAX-D3

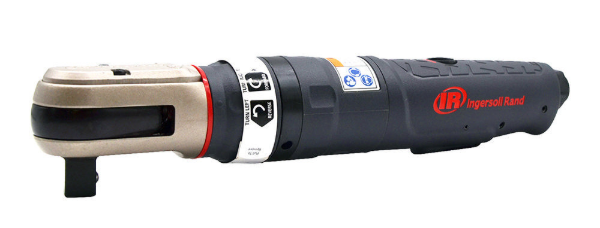

IR 1207MAX-D4

1/2" Air Ratchet Wrench, 65 ft-lb Torque, 220 RPM

The Ingersoll Rand MAX line — including the 1207MAX Series of air ratchet wrenches — delivers best-in-class performance with a number of premium features. You can choose between a ½” or ⅜” drive, but you’ll never have to sacrifice comfort or power with this line.

Features And Benefits

• Our MAX line of tools is known for having a high torque output you can rely on. The 1207MAX Series features 65 ft-lb of maximum torque for all your toughest jobs.
• Patent-pending forward/reverse collar provides unrestricted access to easily change the direction of the tool, which is critical in tight spaces where traditional tools get jammed.
• Nickel-plated housing provides enhanced corrosion resistance.
• Innovative variable-speed power regulator, and adjustable exhaust offers unprecedented control.

Includes: Bare Tool
Product Application and Uses: To remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption (l/min): 651
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Color: Black
Configuration/Handle Type: Straight
Drive Size (in): 1/2
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum core with composite sleeve
Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 7/16
Max Free Speed (rpm): 220
Max Pressure (bar): 6.2
Max Torque (ft-lb): 65
Max Torque (in-lb): 779
Max Torque (nm): 88
Min Hose Size (in): 3/8
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 10.85
Product Width (in): 1.89
Product Height (in): 2.1
Product Weight (lb): 3.19
Recommended Forward Torque Range (ft-lb): 10-60
Recommended Forward Torque Range (in-lb): 124-717
Recommended Forward Torque Range (nm): 14-81
Retainer Type: Ball
Reversible: Reversible
Side to Center Distance (in): 0.95
Side to Center Distance (mm): 24
Sound Pressure/Power Db(A): 85.0 / 96.0
Speed Setting: Variable Speed
Standards/Certifications: All Gov Regulations And Fda Certified
Vibration Level (m/s2): 3.2
Warranty: 1-year

Similar IR

• 1207MAX-D3
• 1077XPA
• 1099XPA

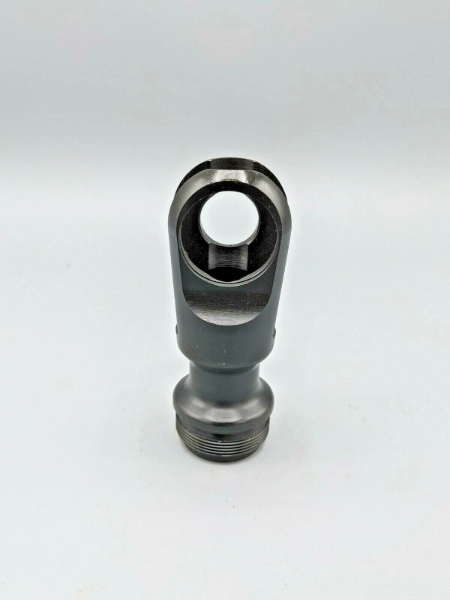

IR 107XPA-A322

RATCHET HOUSING ASSEMBLY

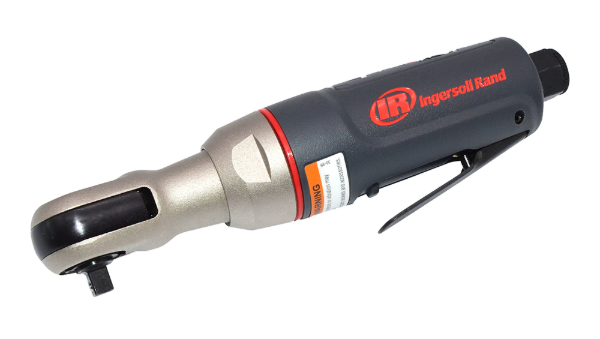

IR 1105MAX-D2

1/4" Air Ratchet Wrench, 30 ft-lb Torque, 300 RPM

The 1105MAX Series is our top-of-the-line, premium mini impact wrenches. These air ratchets offer best-in-class power and speed with features like enhanced corrosion resistance and an ultra-comfortable housing.

Features And Benefits

• Increased Access & Reach: With this small body design, these mini ratchet wrenches let you get into deep, tight, and hard-to-reach places.
• Long-Lasting Comfort: The composite housing and handle insulates from the cold and ensures operator comfort even during extended use.
• Trusted Durability: The 1105MAX Series can withstand harsh environments and repeated drops.

Includes: Bare Tool
Product Application and Uses: To remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption (cfm): 20
Air Consumption (l/min): 566
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 3.5
Average Air Consumption (l/min): 99
Color: Black
Configuration/Handle Type: Straight
Drive Size (in): 1/4
Duty Rating: Industrial Duty
Exhaust Location: Rear
Housing Material: Aluminum core with composite sleeve
Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 3/8
Max Free Speed (rpm): 300
Max Pressure (bar): 6.2
Max Torque (ft-lb): 30
Max Torque (in-lb): 363
Max Torque (nm): 41
Min Hose Size (in): 3/8
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 7.36
Product Width (in): 1.6
Product Height (in): 1.35
Product Weight (lb): 1.43
Recommended Forward Torque Range (ft-lb): 5.2-25
Recommended Forward Torque Range (in-lb): 62-301
Recommended Forward Torque Range (nm): 7-34
Retainer Type: Ball
Reversible: Reversible
Side to Center Distance (in): 0.8
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 88.9 / 99.9
Speed Setting: Variable Speed
Standards/Certifications: All Gov Regulations And Fda Certified
Vibration Level (m/s2): 5.7
Warranty: 1-year

Similar IR

• 1105MAX-D3
• 105-D2
• 1207MAX-D3

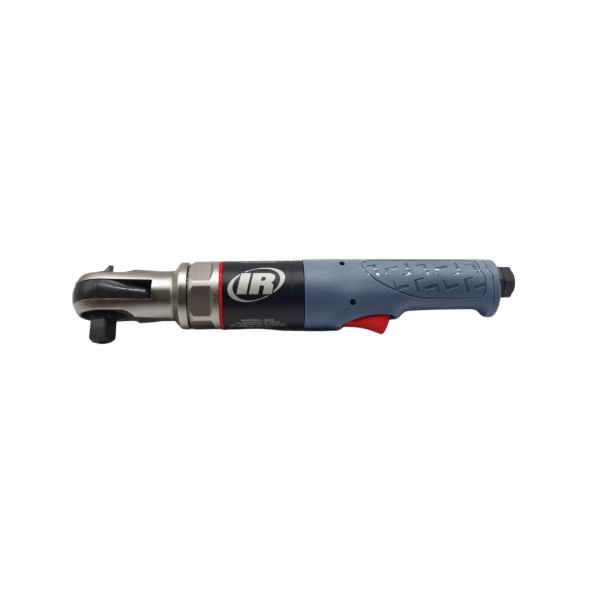

IR 1211MAX-D4

1/2" Air Ratchet Wrench, 80 ft-lb Torque, 625 RPM

The Ingersoll Rand MAX line- including the 1211MAX Series of air ratchet wrenches- delivers best-in-class performance with a number of premium features. You can choose between a 1/2” or 3/8” drive, but you’ll never have to sacrifice comfort or power with this line.

Features And Benefits

• Our MAX line of tools is known for having a high torque output you can rely on. The 1211MAX Series features 80 ft-lb of nut busting torque from a reactionless impact mechanism.
• High Speed 625 RPM Free Speed lets you get more done, faster.
• Nickel-plated housing provides enhanced corrosion resistance.
• True ratchet mechanism delivers powerful manual break loose ability and final tighten capabilities.

Includes: Bare Tool
Product Application and Uses: To remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption (cfm): 13.7
Air Consumption (l/min): 388
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Color: Grey
Configuration/Handle Type: Straight
Drive Size (in): 1/2
Duty Rating: Industrial Duty
Exhaust Location: Front
Free Speed Sound Pressure/Power Db(A): 92.1 / 103.1
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impacting Sound Pressure/Power Db(A): 90.3
Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 1/2
Max Free Speed (rpm): 625
Max Pressure (bar): 6.2
Max Torque (ft-lb): 66
Max Torque (in-lb): 788
Max Torque (nm): 89
Min Hose Size (in): 3/8
Number of Power Settings: Continuous
Nut-busting/Breakaway Torque (ft-lb): 80
Nut-busting/Breakaway Torque (in-lb): 956
Nut-busting/Breakaway Torque (nm): 108
Power Source: Air Powered
Product Length (in): 11.89
Product Width (in): 1.38
Product Height (in): 2.2
Product Weight (lb): 3.03
Recommended Forward Torque Range (ft-lb): 10-60
Recommended Forward Torque Range (in-lb): 124-717
Recommended Forward Torque Range (nm): 14-81
Retainer Type: Ball
Reversible: Reversible
Side to Center Distance (in): 0.92
Side to Center Distance (mm): 23
Speed Setting: Variable Speed
Standards/Certifications: All Gov Regulations And Fda Certified
Vibration Level (m/s2): 12.7
Warranty: 1-year

Similar IR

• 1211MAX-D3
• 1207MAX-D4
• 1077XPA
• 1099XPA

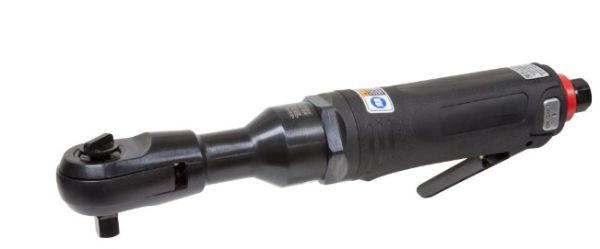

MPT MP-7131-ST

Ratchet, 3/8in Dr. Reactionless

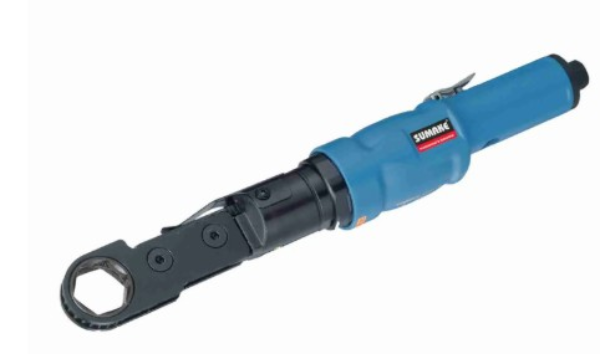

SUM ST-RW711-29

Industrial Air Ratchet Wrench

IR 107XPA-49

LOCK PIN

IR 109XPA-TRK1

Ratchet Head Repair Kit for Ingersoll Rand 109XPA 3/8" Drive Ratchet Wrench

Product Application and Uses: For use with 109XPA 3/8" Air Ratchet Wrenches

For Use With

• 109XPA

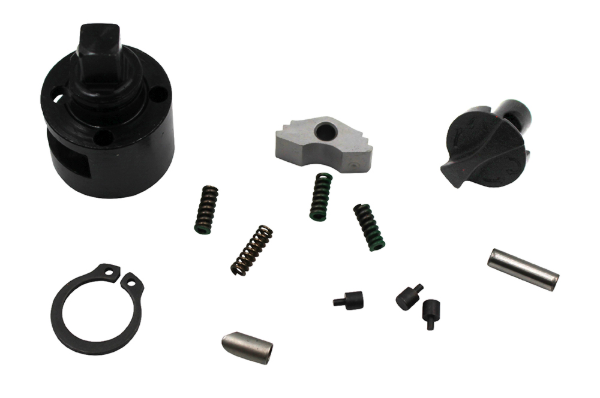

IR 1105-D2-TRK1

Ratchet Head Kit for Ingersoll Rand 105-D2 and 1105-D2 1/4" Drive Air Ratchet Wrenches

Product Application and Uses: For use with 1105-D2 and 105-D2 Air Ratchet Wrenches

For Use With

• 105-D2
• 105-L2
• 1105MAX-D2

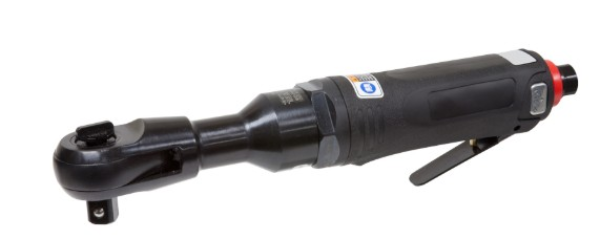

MPT MP-7132-ST

Ratchet, 1/2in Dr Impact

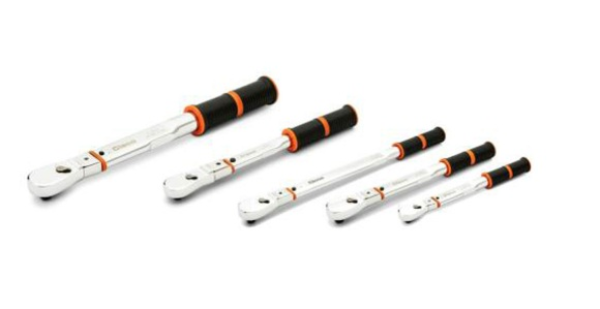

CL PTW50IC

3/8 Preset Interchnge Totque Wrench, 10-50

IR 105-D3

3/8" Air Mini Ratchet Wrench, 25 ft-lb Torque, 250 RPM

The 105 Series of air ratchet wrenches are small, durable, and easy to handle for vehicle repair technicians. The low profile forward/reverse control has a wide diameter for easy gripping and increased control in confined spaces.

Features And Benefits

• Power & Speed: With 25 ft-lb max torque and 250 rpm free speed, you can count on the 105 Series to deliver impressive power.
• Greater Access & Reach: The 105 Series mini ratchet wrenches are small and nimble enough to tackle jobs in both tight and hard to reach places.
• Durable: With an aluminum housing and steel head construction, the 105 Series has improved durability and consistent performance.
• Increased Safety: The ball dent anvil found on each member of the 105 Series provides a more secure link to the socket, increasing operator safety.

Includes: Bare Tool
Product Application and Uses: To remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption (cfm): 18
Air Consumption (l/min): 510
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 3
Average Air Consumption (l/min): 85
Color: Silver
Configuration/Handle Type: Straight
Drive Size (in): 3/8
Duty Rating: Industrial Duty
Exhaust Location: Rear
Handle Material: Aluminum
Housing Material: Aluminum
Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 3/8
Max Free Speed (rpm): 280
Max Pressure (bar): 6.2
Max Torque (ft-lb): 25
Max Torque (in-lb): 301
Max Torque (nm): 34
Min Hose Size (in): 3/8
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 7.29
Product Width (in): 1.54
Product Height (in): 1.46
Product Weight (lb): 1.4
Recommended Forward Torque Range (ft-lb): 5.2-20
Recommended Forward Torque Range (in-lb): 62-239
Recommended Forward Torque Range (nm): 7-27
Retainer Type: Ball
Reversible: Reversible
Side to Center Distance (in): 0.77
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 81.8 / 92.8
Speed Setting: Variable Speed
Standards/Certifications: All Gov Regulations And Fda Certified
Vibration Level (m/s2): 5.1
Warranty: 1-year

Similar IR

• 105-D2
• 1105MAX-D3
• 107XPA

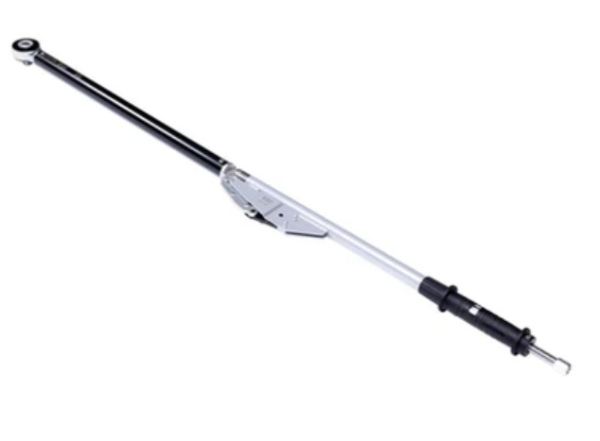

NTT 120115.01

Industrial 5R-N, 1", Ratchet Adjustable (Dual Scale)

NTT 181441

3/4 Sq Dr 1000NM Multiplier, 3/8 Input

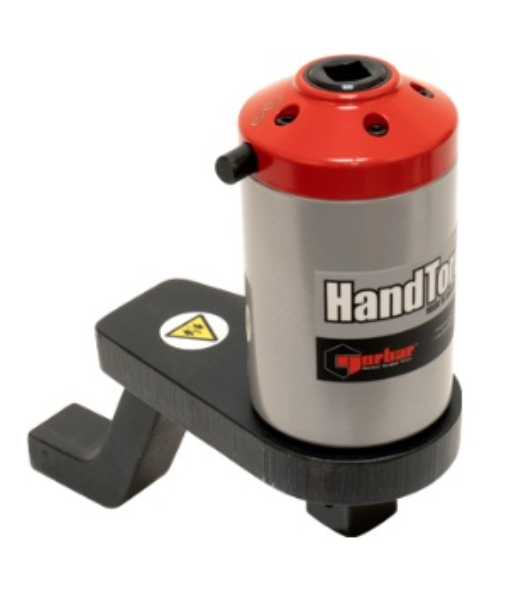

NTT 181451

Ht-72/27, 2000Nm, 1/2In In, 1In Out, Awur

IR 107XPA-LK

LEVER KIT
