Torque Management

IR QCD11-FM

INSIGHTqc™ Controller, 120V AC, Display, Standard Hardware

The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
• CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus options.

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 120
Warranty: 1-year

IR QCXD11-FM

INSIGHTqcx Cordless Controller, Standard Hardware, Display

When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn’t have to be complicated. Ingersoll Rand® INSIGHTqcx™ is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.

Features And Benefits

• SIMPLE: Expertise not required: Save on selection, training & installation costs; Reduce errors and downtime; Remove user dependencies; Intuitive, visual programming interface; Plug and play accessories and protocols; Integrated backup and recovery; Bundled controller options; Easy Wireless Pairing (up to 6 tools with MTC options)
• FLEXIBLE: Easily implement change: Reduce line re-balancing costs; Easy line integration; Remove device dependency; Web-based programming, use any operating system via any browser; Meets current industry communication needs; Integrated logic controls; Easy hardware and software upgrades; Onboard wireless energy scan
• CAPABLE Meet your requirements: Get the job done right, every time; Assurance via traceability; Optimize your productivity; Touch screen interface; Industry-leading cycle data storage (500,000 with MTC options); Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: These cordless tool controllers are designed to communicate process data and signals between specific Ingersoll Rand equipment and compatible user equipment such as PLCs , bar code scanners and printers.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 24
Warranty: 1-year

IR MTC-SW-OPT4-NA

Multi Tool Controller Software Option 4:1 NA Only

STR 10600

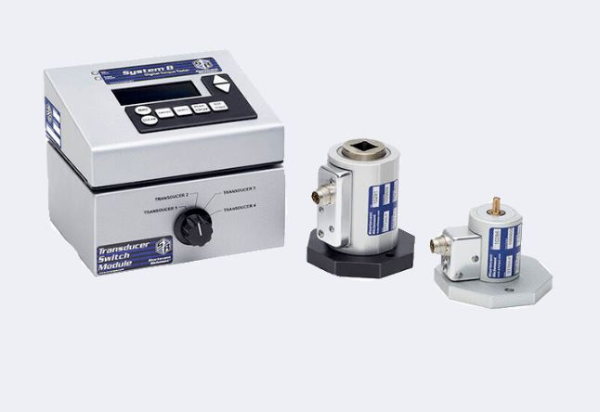

Torque Testers: System 8 Digital Torque Tester

Model

:

System 8 (Clockwise 0.25%)

Product Description

AIM ATC-100

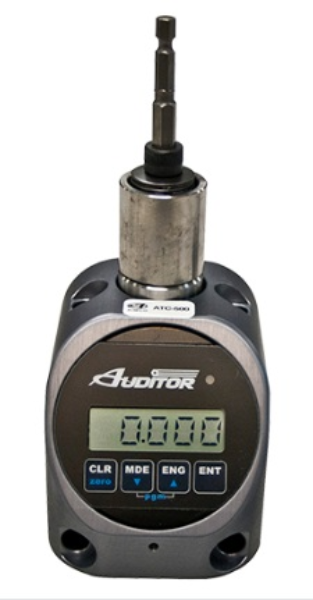

Torque Cube, Auditor 1.13-11.3 NM, 1/4" Drive

STR 10599

Calibration and Certification Software: Torque Tool Manager 4.0

Model

:

Torque Tool Manager 4.0

Product Description

• Calibration and certification software directly engineered to work with Torq-Tronics 2 and System 8
• Backward compatible so it also works with Torq-Tronics, System 4/5, and System 6
• Fulfills your TS 16949 and ISO 17025 requirements
• Gives you a robust database about your torque tools and it also allows you to print Calibration Certificates
• Track past and future calibration dates
• Keeps records for each tool, including calibration date, serial number, tester and transducer serial numbers, and operator identification
• Tracks "As Found" and "As Left" test results
• NIST traceability numbers and all other data requirements for ISO and QS compliance are covered
• Error-proofs calibration procedures and virtually eliminates retesting due to operator error
• Downloads the proper test protocol to your SR tester and sets up the tester for the tool
• Only accepts results that are in line with the test protocol. Errors resulting from failure to follow the programmed test procedure are automatically rejected
• Has a send request radio button - 30 day free trial available by request

IR QXX2A52T0594PS12

3/4" 20V Cordless Angle Torque Wrench, Bare Tool, 5257 in-lb, Bluetooth/802.15.4

The innovative QX Series™ Cordless Angle Torque Multiplier will reduce your bolting time and cost, while ensuring repeatable accuracy for all torque-critical joints. Designed with a premium Norbar™ gearbox and an efficient, time-tested closed-loop transducer, the Torque Multiplier is world-class in quality, control and programmable configurations to maximize your productivity. Offer option for Insight Connect Android APP Link

Features And Benefits

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback – displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 14
Max Torque (ft-lb): 438
Max Torque (in-lb): 5257
Max Torque (nm): 594
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 88-438
Recommended Forward Torque Range (in-lb): 1053-5257
Recommended Forward Torque Range (nm): 119-594
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QCD21-FM

INSIGHTqc™ Controller, 230V AC, Display, Standard Hardware

The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
• CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus options.

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 230
Warranty: 1-year

IR QCXM11-FM

INSIGHTqcx Cordless Controller, Standard Hardware, No Display

When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn’t have to be complicated. Ingersoll Rand® INSIGHTqcx™ is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.

Features And Benefits

• SIMPLE: Expertise not required: Save on selection, training & installation costs; Reduce errors and downtime; Remove user dependencies; Intuitive, visual programming interface; Plug and play accessories and protocols; Integrated backup and recovery; Bundled controller options; Easy Wireless Pairing (up to 6 tools with MTC options)
• FLEXIBLE: Easily implement change: Reduce line re-balancing costs; Easy line integration; Remove device dependency; Web-based programming, use any operating system via any browser; Meets current industry communication needs; Integrated logic controls; Easy hardware and software upgrades; Onboard wireless energy scan
• CAPABLE Meet your requirements: Get the job done right, every time; Assurance via traceability; Optimize your productivity; Touch screen interface; Industry-leading cycle data storage (500,000 with MTC options); Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls

Includes: Bare tool only; batteries and charger sold separately.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: No Display
Warranty: 1-year

IR QXX5A72T1620PS16

1" 40V Cordless Angle Torque Wrench, 14338 in-lb, Bare Tool, Bluetooth/802.15.4

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback – displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
• Offer option for Insight Connect Android APP

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 13
Max Torque (ft-lb): 1195
Max Torque (in-lb): 14338
Max Torque (nm): 1620
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 239-1195
Recommended Forward Torque Range (in-lb): 2868-14338
Recommended Forward Torque Range (nm): 324-1620
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXX5A52T0880PS12

3/4" 40V Cordless Angle Torque Wrench, 7789 in-lb, Bare Tool, Bluetooth/802.15.4

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback – displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
• Offer option for Insight Connect Android APP

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 23
Max Torque (ft-lb): 649
Max Torque (in-lb): 7789
Max Torque (nm): 880
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 133-649
Recommended Forward Torque Range (in-lb): 1593-7789
Recommended Forward Torque Range (nm): 180-880
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXX5A45T0180PS12

3/4" 40V Cordless Angle Torque Wrench, 1593 in-lb, Bare Tool, Bluetooth/802.15.4

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback – displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
• Offer option for Insight Connect Android APP

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 110
Max Torque (ft-lb): 133
Max Torque (in-lb): 1593
Max Torque (nm): 180
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 12-133
Recommended Forward Torque Range (in-lb): 142-1593
Recommended Forward Torque Range (nm): 16-180
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR IQCTA

TORQUE ANALYZER, PORTABLE, USE WITH EXTERNAL TRANSDUCERS

IR QCD21

INSIGHTqc™ Controller, 230V AC, Display, Standard Hardware

The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
• CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES option.

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 230
Warranty: 1-year

STR 10009

Torque Transducers: TT and STT Series

Model	:		TT 25IO
Torque Range (cNm)	:		1.77 - 17.7 cNM
Torque Range (in-oz)	:		2.5 - 25 ozf.in
Torque Range (kgf-cm)	:		0.18-1.8 kgf cm
Male Hex	:		0.25 in

Product Description

• Traditional SR hex flange style
• Can be mounted to ML 250 and ML 600 Mechanical Loaders
• Can be Mounted to Quad Plate for multiple mounting on ML 250
• Detachable cable (Part No: 10293) is required for all transducers
• TT25IO, TT1000 and TT2000 include detachable cable (Part No: 10293)
• Larger sizes (500 ft. lbs. and above) can be mounted on UMB L-bracket
• Smaller sizes (up to 400 in. oz. capacity) can be mounted to SSMB, STMB, or UMB brackets

AIM ATC-500

Torque Cube, Auditor

IR QCD11-F

INSIGHTqc™ Controller, 120V AC, Display, Standard Hardware

The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
• CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus options.

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 120
Warranty: 1-year

IR QCXD11

INSIGHTqcx Cordless Controller, Standard Hardware, Display

When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn’t have to be complicated. Ingersoll Rand® INSIGHTqcx™ is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.

Features And Benefits

• SIMPLE: Expertise not required: Save on selection, training & installation costs; Reduce errors and downtime; Remove user dependencies; Intuitive, visual programming interface; Plug and play accessories and protocols; Integrated backup and recovery; Bundled controller options; Easy Wireless Pairing (up to 6 tools with MTC options)
• FLEXIBLE: Easily implement change: Reduce line re-balancing costs; Easy line integration; Remove device dependency; Web-based programming, use any operating system via any browser; Meets current industry communication needs; Integrated logic controls; Easy hardware and software upgrades; Onboard wireless energy scan
• CAPABLE Meet your requirements: Get the job done right, every time; Assurance via traceability; Optimize your productivity; Touch screen interface; Industry-leading cycle data storage (500,000 with MTC options); Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: These cordless tool controllers are designed to communicate process data and signals between specific Ingersoll Rand equipment and compatible user equipment such as PLCs , bar code scanners and printers.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 24
Warranty: 1-year

IR QXX2A52T0396PS12

3/4" 20V Cordless Angle Torque Wrench, 3496 in-lb, Bare Tool, Bluetooth/802.15.4

The innovative QX Series™ Cordless Angle Torque Multiplier will reduce your bolting time and cost, while ensuring repeatable accuracy for all torque-critical joints. Designed with a premium Norbar™ gearbox and an efficient, time-tested closed-loop transducer, the Torque Multiplier is world-class in quality, control and programmable configurations to maximize your productivity. Offer option for Insight Connect Android APP Link

Features And Benefits

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback – displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 21
Max Torque (ft-lb): 291
Max Torque (in-lb): 3496
Max Torque (nm): 395
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 58-291
Recommended Forward Torque Range (in-lb): 699-3496
Recommended Forward Torque Range (nm): 79-395
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR IQI11-FM

IQI Series Controller with Fieldbus and MES

Ingersoll Rand® IQi Series, is an inline low torque electric screwdriver offering available in transducerized and current control configurations. Customers will experience increased efficiency with faster set up, automated workflows and remote system access, while improving quality through advanced fastening strategies, real-time data traceability and the industry’s first tilt angle control. From high-volume assembly to quality-critical manufacturing, IQi Series delivers unmatched efficiency, precision and reliability at a reduced total cost of ownership.

Features And Benefits

• Increase Efficiency: Reduce setup time up to 50% by reducing costly workflow interruptions with an intuitive web-based interface that eliminates the need for manual controller adjustments. Rapid deployment ensures seamless operational readiness. Seamless MES and Fieldbus integration automates tool and job selection, reducing manual errors and improving uptime. Operators can focus on high-value tasks for increased efficiency.
• Maximize Productivity: With real-time traceability, live access to production data enhances continuous quality control, enabling quick issue identification and resolution to improve productivity and compliance. Program, troubleshoot, and monitor systems remotely. Real-time adjustments from anywhere reduce the on-site presence and operational costs while enhancing scalability for production teams.
• Improve Quality: Achieve fastening precision with ±3.5% accuracy on transducerized models to minimize assembly errors and significantly lower rework costs with precise torque and angle control, ensuring consistent, high-quality results. Improve assembly quality with the industry-leading tilt angle control that ensures precise tool alignment, prevents cross-threading, and maintains optimal joint integrity.
• Reduce Total Cost: Designed to withstand over 1 million maintenance-free cycles, reducing maintenance frequency and downtime for long-term operational efficiency. The robust design and durable brushless motors extend tool lifespan, minimizing replacement needs and lowering total cost of ownership.

Includes: Controller with power cable
Product Application and Uses: For use with all Ingersoll Rand IQI Series Screwdrivers.
Anvil Length: Standard
Color: Black
Power Source: Electric
Product Length (in): 7.68
Product Weight (lb): 2.97
Warranty: 1-year
Wireless Tool Tracking: No Wireless Functionality

For Use With

• IQI2LC0017PM4
• IQI2LC0017PQ4
• IQI2LC0017TM4
• IQI2LC0017TQ4
• IQI2LC0050PQ4
• IQI2LC0050TQ4
• IQI2LC0100PQ4
• IQI2LC0100TQ4
• IQI2LC0200PQ4
• IQI2LC0200TQ4
• IQI2LC0250PQ4
• IQI2LC0250TQ4
• IQI2LT0017PM4
• IQI2LT0017PQ4
• IQI2LT0017TM4
• IQI2LT0017TQ4
• IQI2LT0050PQ4
• IQI2LT0050TQ4
• IQI2LT0100PQ4
• IQI2LT0100TQ4
• IQI2LT0200PQ4
• IQI2LT0200TQ4
• IQI2LT0250PQ4
• IQI2LT0250TQ4
• IQI4LC0500PQ4
• IQI4LC0500TQ4
• IQI4LC1000PQ4
• IQI4LC1000TQ4
• IQI4LC1500PQ4
• IQI4LC1500TQ4
• IQI4LT0500PQ4
• IQI4LT0500TQ4
• IQI4LT1000PQ4
• IQI4LT1000TQ4
• IQI4LT1500PQ4
• IQI4LT1500TQ4

STR 10692

Torque Testers: Torq-Tronics 2 Digital Torque Testers, in-lb

Model	:		TORQ-TRONICS 2 6NM-50I
Hexagon Size	:		1/4 in
Torque Range (nm)	:		0.6-6 Nm

Product Description

• Accuracy of +/- .5% of Indicated Value in clockwise and counterclockwise directions from 10% to 100% of rated capacity
• Meets or exceeds requirements of ASME B107.300-2010
• Tests in both clockwise and counterclockwise directions
• Four modes of operation providing excellent versatility: Track, Peak, Initial Peak, and Power Tool
• Units of measure include English, Standard International, and metric
• Units of 300 inch-pound (34 Nm) capacity and below are optimized for bench mounting; larger units may be mounted vertically or horizontally, providing better safety and efficiency
• Simple to operate, memory stores up to 999 records that can be downloaded to Hyper-Terminal or terminal type program to create testing reports and data storage
• Four-line vacuum fluorescent display (VFD) is easy to read.- Red/Green LED indicates whether a measurement is within the target torque value
• Includes FREE calibration certificate from our ISO/IEC 17025 Accredited Calibration Laboratory
• Includes 110-220 VAC to 6 VDC screw-on power supply for security during power tool testing
• Runs on four AA NiMH rechargeable batteries
• Batteries are sold separately
• Industrial assembly tools use rechargeable batteries like thisA quick charge unit for batteries is available
• Includes a free blow-molded plastic box for storage and transit
• Power Tool mode has ten filters and will accurately test all clutch types and pulse tools
• An anti-Static strap included with your TorqTronics 2 or System 8 is there to ensure limited electronic interference
• One end of the strap is screwed into the power outlet where your test instrument is plugged in
• Other end of the strap attaches to the base of your test instrument
• Anti-static strap is an integral part of your calibration instrument operation and is required for operation
• 10695, 10696: Comes with .375" or 3/8 inch adapter at no additional charge - Part number 870777
• 10697, 10698: Comes with .5" or 1/2 inch adapter at no additional charge - Part number 870779

AIM ATC-25

Torque Tester

AIM ATC-10

Torque Cube Auditor, .1-1.13 Nm, 1/4 Drive

AIM SPC-2PGM

Signature G2 Programmer

CL 520003

Torque Arm Sba-12-Ah
