GG L60M18
PRO XP GUN, ES, 60KV, SMART, WB

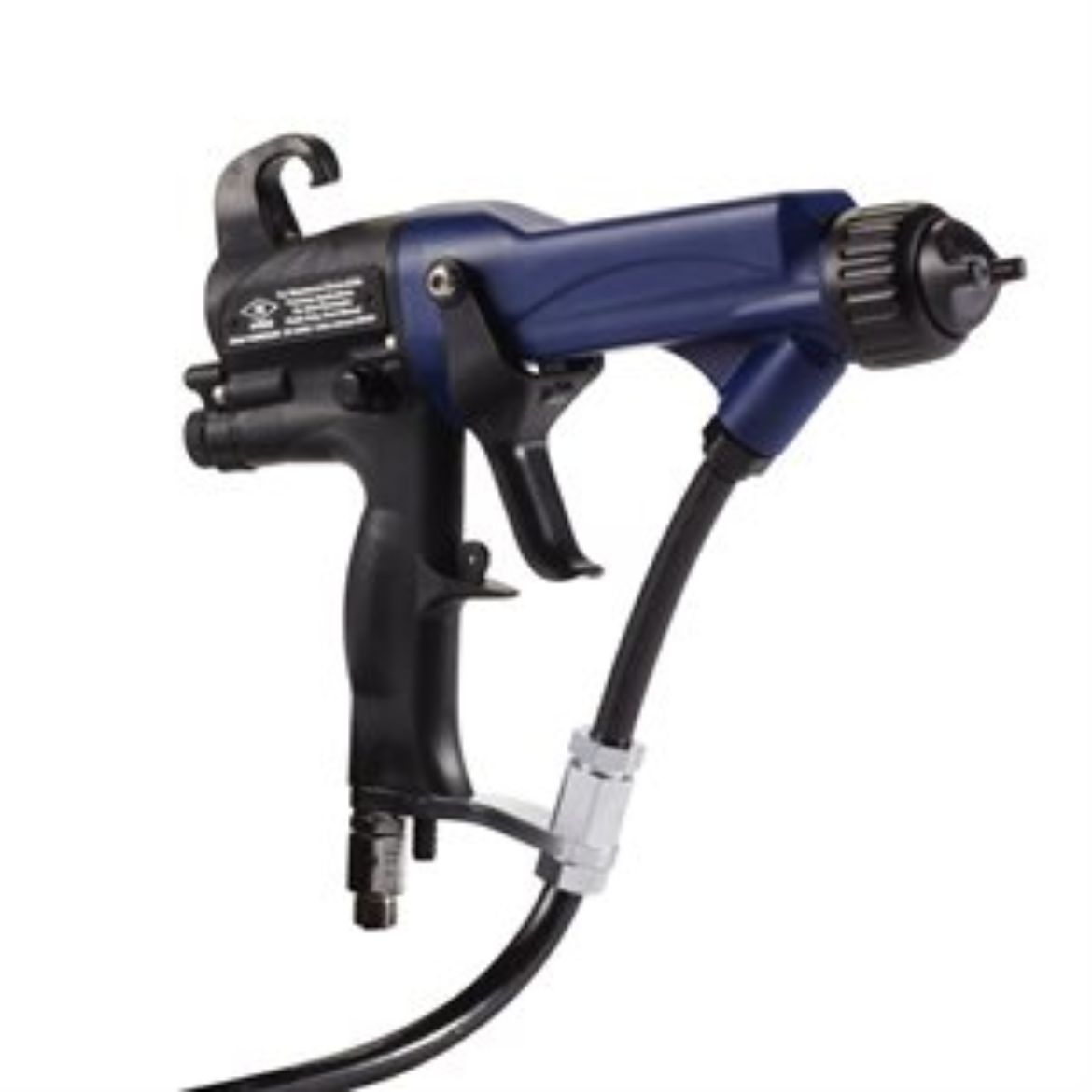

Graco L60M18 Pro Xp60 WB Air Spray Manual Electrostatic Gun, 60 kV, 0.055 in (1.5 mm) nozzle, smart display, for waterborne coatings
Superior quality air spray consistently achieves high quality, Class A or decorative finishes with waterborne material.
Application: For spraying conductive, waterborne fluids with an isolation system
- Available in 60 kV, it's the smallest profile gun with an internal power supply on the market.
- Painters experience less muscle strain and fatigue when spraying with the ergonomic, lightweight applicator.
- Smart controls help you analyze performance, adapt voltage needs and troubleshoot easily.
- Made in the USA
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, Waterborne
- Applicator Type: Manual
- Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Waterborne, Urethanes
- Fluid Inlet Size (in): 3/8
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Type: Electrostatic
- Gun Weight (g): 670
- Gun Weight (kg): 0.67
- Gun Weight (lb): 1.48
- Gun Weight (oz): 23.63
- Includes: Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm²): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm²): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): 1
- Minimum Paint Resistivity (megohm/cm): 0
- Nozzle Size (cm): 0.15
- Nozzle Size (in): 0.055
- Nozzle Size (mm): 1.5
- Overall Length (cm): 24.13
- Overall Length (in): 9.5
- Overall Length (mm): 241.3
