Gun, Pro Xp Electrostatic, 40kv Booster

GG L40T15

PRO XP GUN, ES, 40KV, GROUND POINT, HC

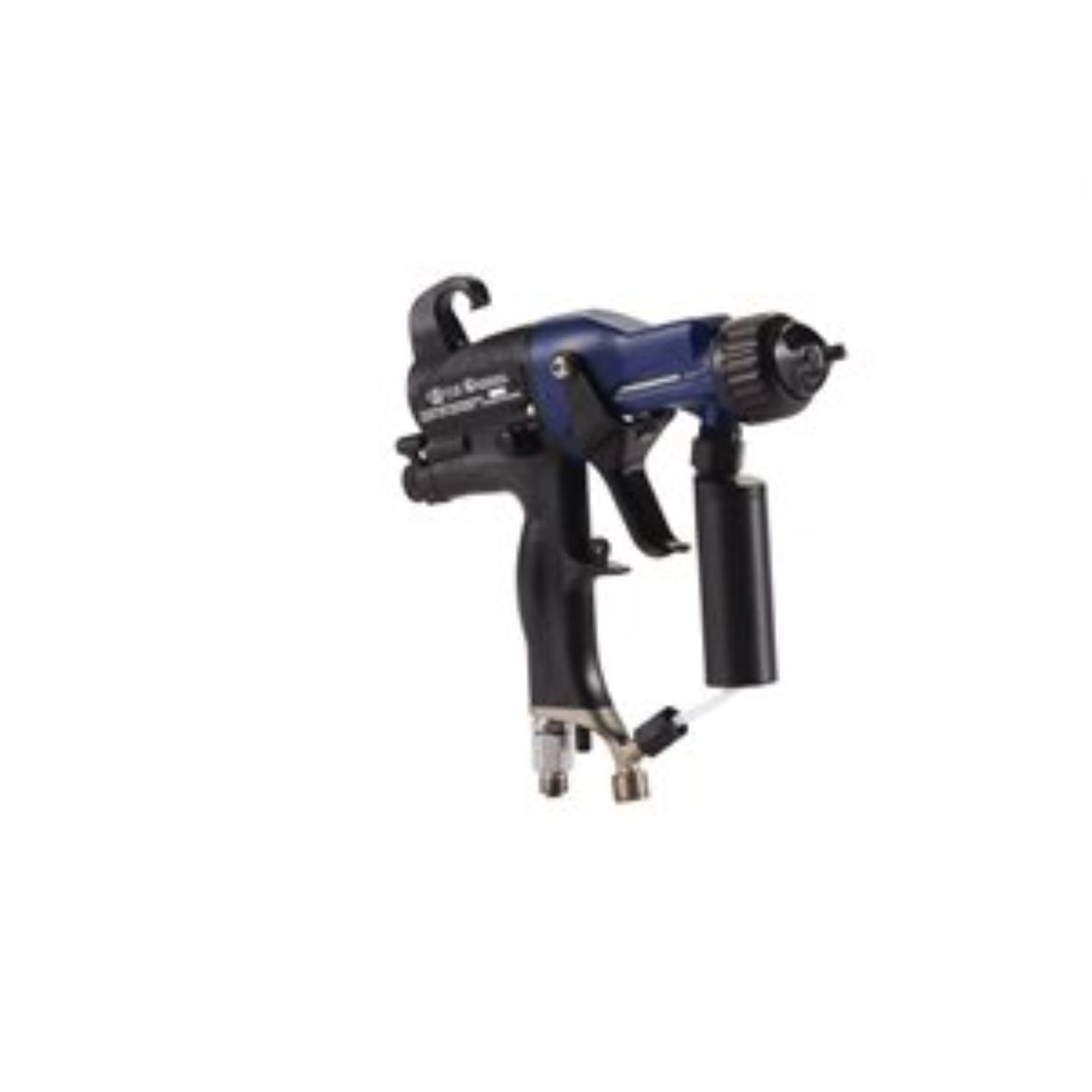

Graco L40T15 Pro Xp40 Air Spray Manual Electrostatic Gun, 40 kV Booster, standard display, 0.055 in (1.5 mm) high wear nozzle, high conductivity tube

Gain the transfer efficiency of a 60 kV electrostatic gun in the compact size of a 40 kV air spray gun. The longer high conductivity fluid tube lets you spray lower resistivity material.

• Smaller and lighter ergonomics make the manual electrostatic spray gun ideal for painters who work in tight spaces.
• Metal tip precision high-wear nozzle, high-wear electrode, and more durable fluid tube improve longevity.
• Durable components are backed by a three-year warranty and A+ Service.
• Smooth, curved ergonomic handle fits nicely in your hand for more comfortable spraying
• Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Gracos requirements

• Model: Pro Xp
• Series: 40

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, High Conductivity, High Wear
• Applicator Type: Manual

• Coating Type: High Conductivity, High Wear

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes

• Display Type: Standard

• Fluid Inlet Size (in): 3/8
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Type: Electrostatic
• Gun Weight (g): 560
• Gun Weight (kg): 0.56
• Gun Weight (lb): 1.23
• Gun Weight (oz): 19.75

• Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm²): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm²): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Paint Resistivity (megohm/cm): 25

• Minimum Paint Resistivity (megohm/cm): 1

• Nozzle Size (cm): 0.15
• Nozzle Size (in): 0.055
• Nozzle Size (mm): 1.5

• Overall Length (cm): 22.1
• Overall Length (in): 8.7
• Overall Length (mm): 221
