Sanitary

GG 120351

Gasket, Sanitary, 1 1/2 Inch

GG 17K780

Adapter, 1" Sanitary Connection

GG 166117

Gasket, Sanitary Fitting

GG 24G740

SANIFORCE PISTON PUMP, 6:1 DB DLF

6:1 Ratio SaniForce Drum Length RAM Double Ball Piston Pump

Graco's SaniForce 6:1 quick knockdown piston pumps are constructed of 300 series stainless steel. The air motor improves serviceability, increases efficiency and offers a lower cost of ownership. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.

Quick Knockdown Sanitary Piston Pumps for Food and Personal Care ApplicationsMost advanced air motor on the marketAvailable in double-ball and priming piston designsFluid transfer and supply of low to medium viscosity fluidsSuitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies

FDA-Compliant Shroud:

• Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
• Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability

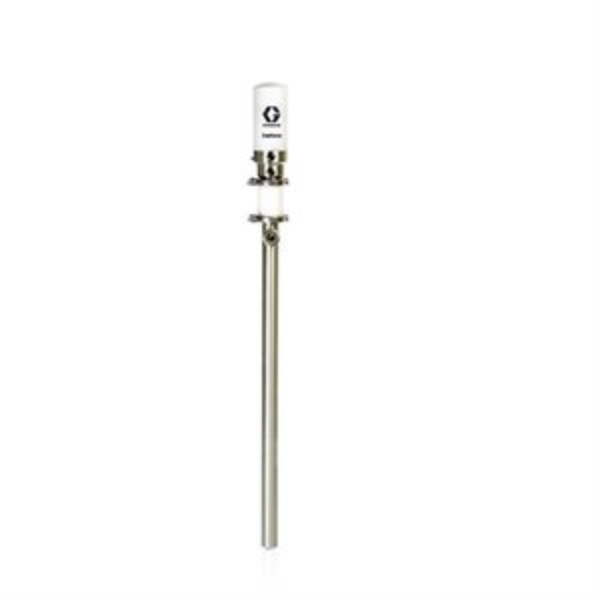

GG 24R047

SANIFORCE PISTON PUMP, 2:1, STD LGTH, PTFE

2:1 Ratio SaniForce Standard Drum Length Double Ball Piston Pump with PTFE & FKM Packings

Easily transfer low to medium viscosity food and personal care materials up to 50,000 cps out of drums and totes. Graco's SaniForce 2:1 piston pump utilizes proven Graco air motor technology and smart sanitary design. The pump is extremely portable, weighing between 24 lb (10.8 kg) for the standard drum length and 26 lb (11.7 kg) for the long length. Plus, it fits through a standard bung hole.

Quick Knockdown Sanitary Piston Pump for Food and Personal Care Applications

SaniForce 2:1 Sanitary Piston Pump:

• Flow rates range from 1.5 gpm (5.7 lpm) at 60 cpm, up to 2.5 gpm (9.5 lpm) at 100 cpm
• Quick disconnect clamps for easy disassembly
• Fluid transfer and supply of materials up to 50,000 cps
• Suitable to pump products such as: fruit juice concentrates, creamy candy fillings, ice cream variegates, and cosmetics

Easy Mounting:

• SaniForce 2:1 pump fits through standard bung hole
• FDA-compliant bung adapter accessory available for easy mounting

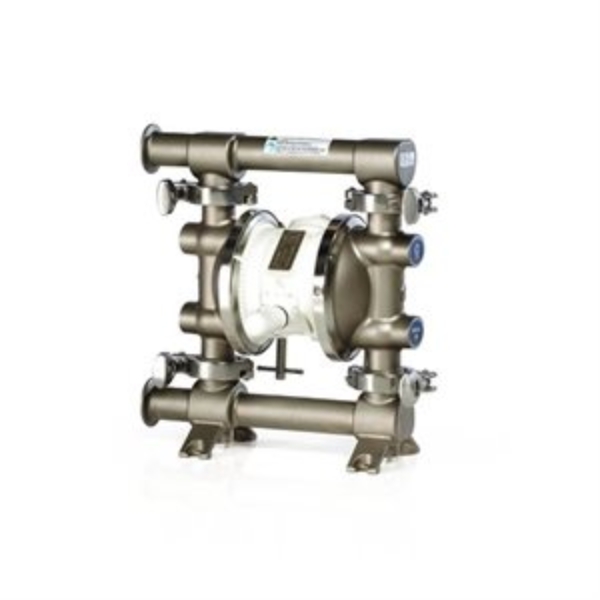

GG FD5113

SANIFORCE AODD PUMP, 515FG-PP01AS13SSPTPOPT21

SaniForce 515, 1/2" FG SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, PT Balls, PO DiaphragmsGraco's SaniForce 515 1/2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing a pump with lower flow rates up to 16 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials up to 5,000 cps.1/2 inch Sanitary pump with flow rates up to 16 gpm (61 lpm) and pressures up to 100 psi (6.9 bar)Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditionsGraco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valvesExternally serviceable air valves deliver leading efficiency and reduce downtime.Quickly unload drums with the drum-mount suction kit: Graco part number #262828Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance processPTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid sidePass solids up to 0.093 in. (2.4 mm)

GG 15J422

Fitting, 1-1/2" San, 1-1/2" Npt

GG 16D169

Gasket, Sanitary 1.5

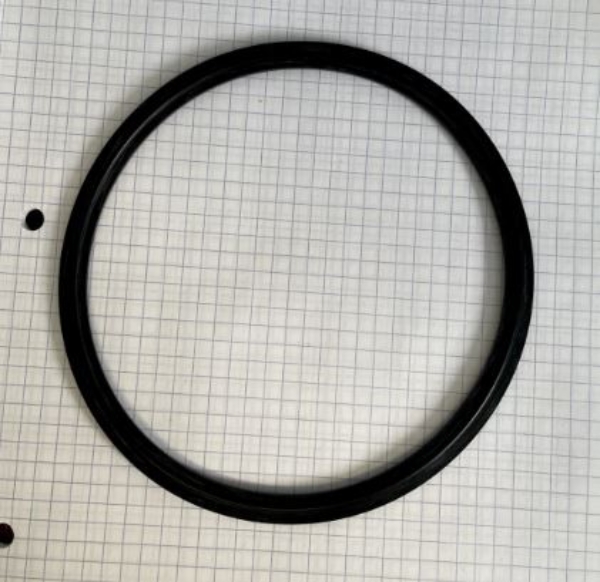

GG 16D246

Gasket, 6" Sanitary

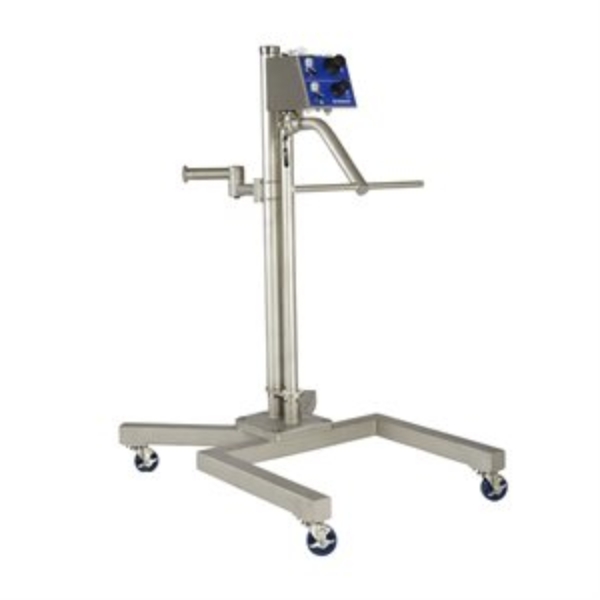

GG 24V312

ELEVATOR, SANITARY, MOBILE, 6:1

6:1 Ratio SaniForce Elevator with Cart & Handle

Still using hoists and chains to unload your drums or bins? Graco's SaniForce Elevator is ideal for small to medium size food and personal care companies who currently unload less than 2 containers per hour. Use with Graco's SaniForce 2:1, 5:1 or 6:1 Piston Pumps to transfer small batches of low to medium viscosity fluids.

Ideal for small to medium size companies who currently unload containers by scooping or using chains/hoistsFDA-compliantUse in sanitary applications to transfer low to medium viscosity fluidsDesigned to lower pumps into and lift pumps out of drums, bins and totesArticulating arm allows for multiple containers to be unloaded from the same locationMobile and stationary options available

GG FD1113

SANIFORCE AODD PUMP, 1040FG-PS01AS13SSPTPOPT21

SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PO DiaphragmsGraco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar)Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditionsGraco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valvesExternally serviceable air valves deliver leading efficiency and reduce downtime.Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance processPTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side316 stainless steel wetted sectionAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Pass solids up to 0.125 in. (3.2 mm)

GG 24R046

SANIFORCE PISTON PUMP, 2:1, STD LGTH, UHMW

2:1 Ratio SaniForce Standard Drum Length Double Ball Piston Pump with UHMWPE & FKM Packings

Easily transfer low to medium viscosity food and personal care materials up to 50,000 cps out of drums and totes. Graco's SaniForce 2:1 piston pump utilizes proven Graco air motor technology and smart sanitary design. The pump is extremely portable, weighing between 24 lb (10.8 kg) for the standard drum length and 26 lb (11.7 kg) for the long length. Plus, it fits through a standard bung hole.

Quick Knockdown Sanitary Piston Pump for Food and Personal Care Applications

SaniForce 2:1 Sanitary Piston Pump:

• Flow rates range from 1.5 gpm (5.7 lpm) at 60 cpm, up to 2.5 gpm (9.5 lpm) at 100 cpm
• Quick disconnect clamps for easy disassembly
• Fluid transfer and supply of materials up to 50,000 cps
• Suitable to pump products such as: fruit juice concentrates, creamy candy fillings, ice cream variegates, and cosmetics

SaniForce 2:1 Air Motor:

• Removable, wash down safe, FDA-compliant shroud lets you easily access the air valve
• Simple knuckle joint design for easy removal of air motor from lower

Easy Mounting:

• SaniForce 2:1 pump fits through standard bung hole
• FDA-compliant bung adapter accessory available for easy mounting

GG 25C418

SANIFORCE DRUM PUMP, 3A, 47", 115V

115 VAC Variable Speed Centrifugal Drum Pump System with North American Plug Style and 47 inch Lower

Reduce maintenance and sanitization time at your facility with the SaniForce Drum Pump, designed for easy cleaning with quick tri-clamp connections, no moving parts and easy transferability.

Easy Cleaning and Product Changeover

• With this simple knock down design, cleaning between drums or product changeovers has never been easier!

Operational Flexibility Throughout Your Facility

• With the electric pump operation, you simply plug it in to be ready for transfer in minutes!

Easy Mobility

• The light weight design allows all operators to move pumps between drums to increase facility output.

Powered by variable speed electric motorSimple design to facilitate easy cleaning and reduce maintenance and downtimeFlow rates up to 35 GPM (132 LPM) with a smooth output of materialEasily transferable from container to container and adaptable to drums, totes and kettles

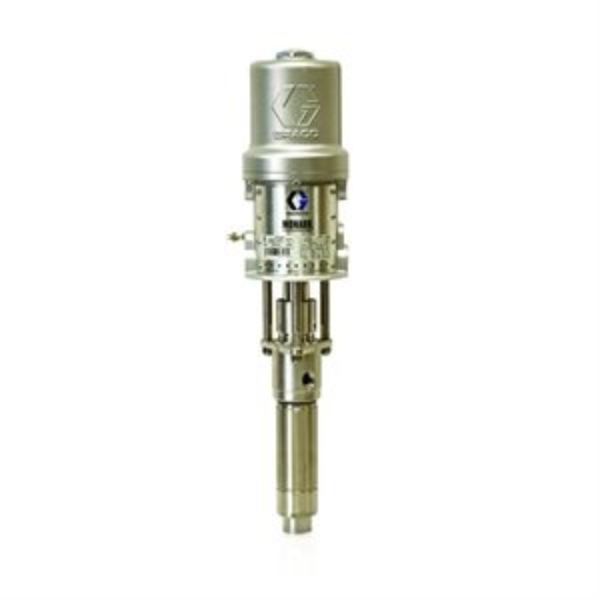

GG 965520

SANIFORCE PISTON PUMP, TARY 5:1

5:1 Ratio Stubby Double Ball Sanitary Pump

Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor.

Drum and stubby length models available for mounting and application flexibilityPositive displacement, 2-ball piston design provides uniform and easily controlled deliveryStainless steel or carbon steel models available to handle various fluidsFluid return stanchion for circulation back to the pumpUltra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids

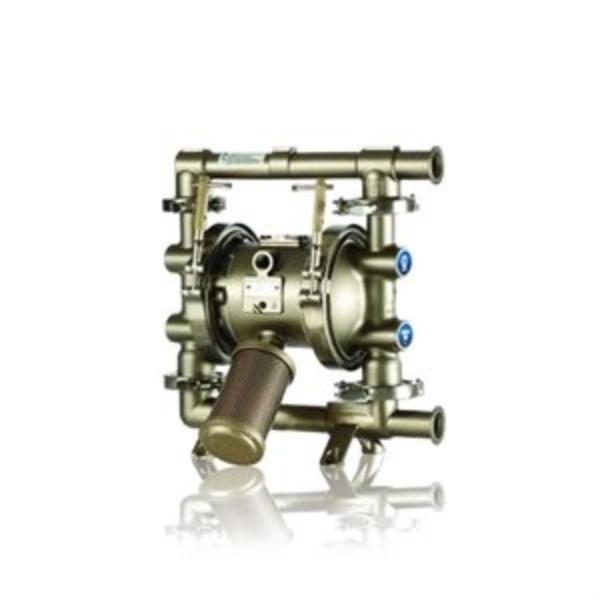

GG FD1133

SANIFORCE AODD PUMP, 1040FG-PS01AS13SSCWPOPT21

SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, CW Balls, PO DiaphragmsGraco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar)Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditionsGraco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valvesExternally serviceable air valves deliver leading efficiency and reduce downtime.Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance processPTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side316 stainless steel wetted sectionAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Pass solids up to 0.125 in. (3.2 mm)

GG FD2213

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSPTPOEP21

SaniForce 1590, 1.5" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PO DiaphragmsGraco's SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 100 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.1.5 inch sanitary pump with flow rates up to 100 gpm (379 lpm) and pressures up to 120 psi (8 bar)Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditionsGraco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valvesExternally serviceable air valves deliver leading efficiency and reduce downtime.Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance processPTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side316 stainless steel wetted sectionAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Pass solids up to 0.1875 in. (4.8 mm)

GG FD5111

SANIFORCE AODD PUMP, 515FG-PP01AS13SSPTPTPT21

SaniForce 515, 1/2" FG SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, PT Balls, PT DiaphragmsGraco's SaniForce 515 1/2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing a pump with lower flow rates up to 16 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials up to 5,000 cps.1/2 inch Sanitary pump with flow rates up to 16 gpm (61 lpm) and pressures up to 100 psi (6.9 bar)Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditionsGraco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valvesExternally serviceable air valves deliver leading efficiency and reduce downtime.Quickly unload drums with the drum-mount suction kit: Graco part number #262828Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance processPass solids up to 0.093 in. (2.4 mm)

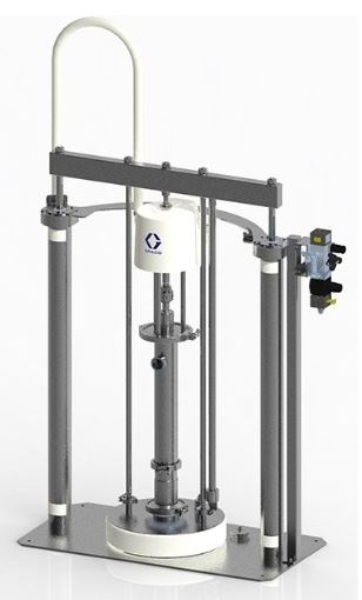

GG SDU.B01AAA6AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

SaniForce Ram Unit, Carbon Steel Frame, 5:1 DB, Inflatable Seel, Exposed Pneumatic ControlsSaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cpsReduce material waste with up to 99% material evacuationImprove worker ergonomics by eliminating hazards associated with scooping and dumping optionsImprove food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminatesSelf-priming and run dry pump capabilities ideal for container unloading applications

GG 15D346

Gasket, Sanitary, Ball Stop

GG 16D266

Hose, Assembly, SS Brd, 3/8X120, SS

GG 17D233

Manifold, 1.5" Sanitary, Transducer

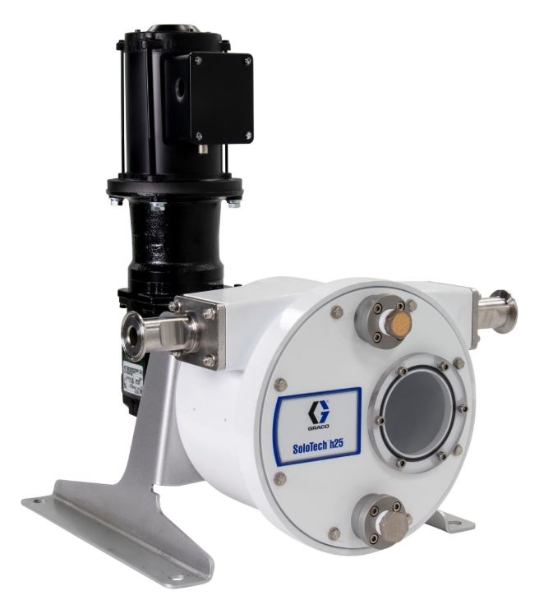

GG 19C726

SOLOTECH ST25 PUMP, H25-MPM-FG-SS-A1-A1-0

SoloTechâ„¢ h25 Peristaltic Pump, 1 hp BLDC motor with gear reducer, .142-5.22 gpm, FDA Nitrile Hose, SST Sanitary Clamp BarbWith only the hose in contact with the fluid being pumped and no check valves in line, Graco's SoloTech peristaltic pumps are ideal for materials other pumps can't handle.For metering and dosing flavorants, colorants, solids, abrasives, and slurries for food, beverage, and personal care products.Single Roller Design

• The single roller compresses an engineered hose through a full 360 degrees of rotation. This reduces compressions, temperature, and friction; improving hose life.

Hose Design

• SoloTech customers routinely experience fewer failures and perform much less maintenance compared to other pump technology.

Hose Barb Assembly

• Easy to install or remove – no special tools needed
• 316 SST sanitary clamp design for easy cleaning

Removable Cover

• Powder-coated aluminum cover with large sight window makes it easy to access and see internal parts
• Optional leak detector kit mounts on cover

Pump Construction

• Powder-coated aluminum housing reduces pump weight
• Improved mounting flexibility with adjustable feet

Pumps are reversible and can be used to empty lines or clear blockages

GG 19D021

SOLOTECH ST32 PUMP, I32-HAC-EP-SS-A1-A1-0

GG 234534

Fitting, Tee, Sanitary, 3 X 2

GG 24E837

SANIFORCE PISTON PUMP, 6:1 DB ST

6:1 Ratio SaniForce Stubby Double Ball Piston Pump with PTFE Packings

Graco's SaniForce 6:1 quick knockdown piston pumps are constructed of 300 series stainless steel. The air motor improves serviceability, increases efficiency and offers a lower cost of ownership. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.

Quick Knockdown Sanitary Piston Pumps for Food and Personal Care ApplicationsMost advanced air motor on the marketAvailable in double-ball and priming piston designsFluid transfer and supply of low to medium viscosity fluidsSuitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies

FDA-Compliant Shroud:

• Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
• Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability
