GG L60M19
PRO XP GUN, ES, 60KV, MOLD RELEASE

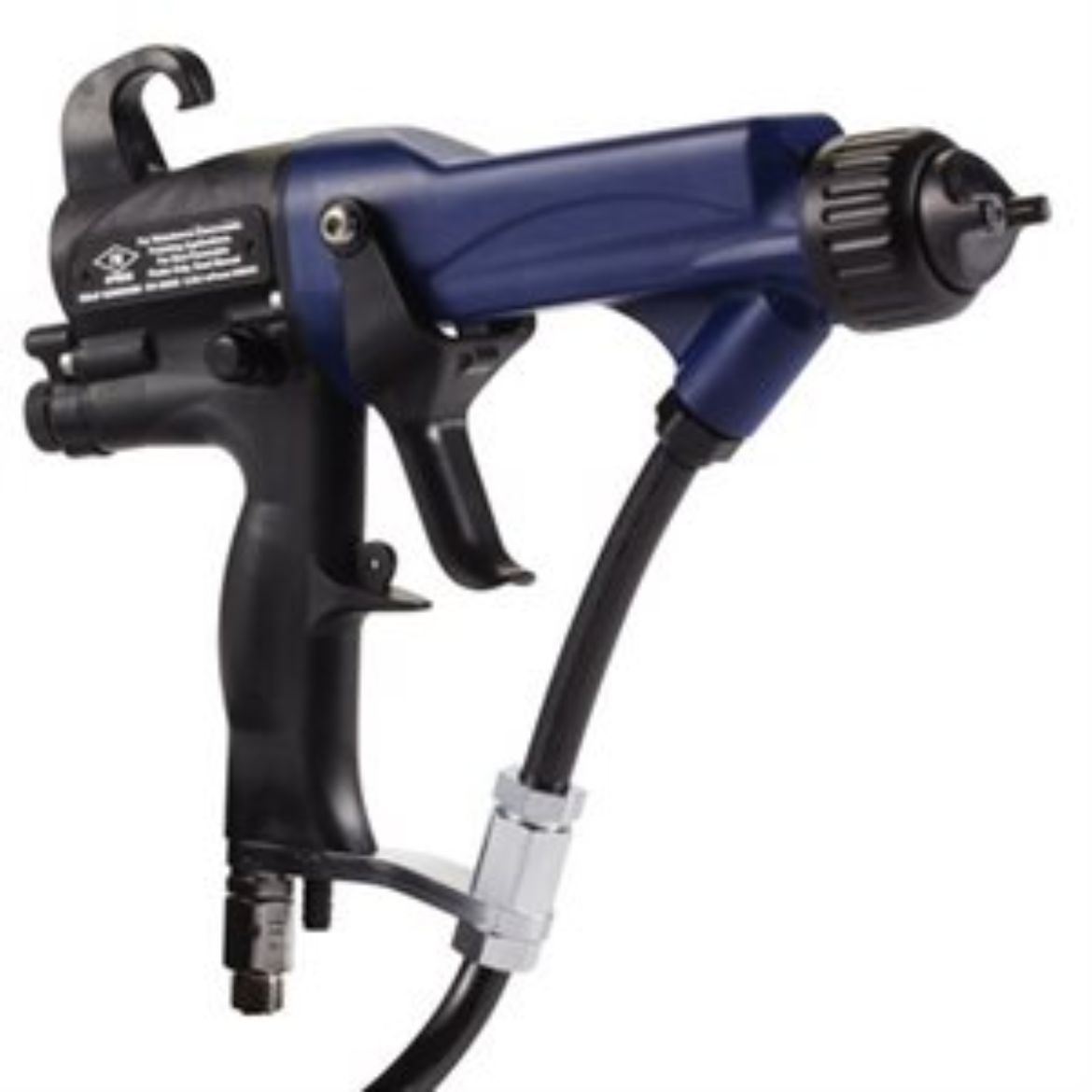

Graco L60M19 Pro Xp60 WB Air Spray Manual Electrostatic Gun, 60 kV, smart display, for mold release applications
Superior quality air spray consistently achieves high quality, Class A or decorative finishes with waterborne material.
Application: For spraying waterborne mold release materials with an isolation system
- Model for spraying mold release materials delivers fine atomized particles in a low-pressure spray with a fine finish tip.
- Available in 60 kV, it's the smallest profile gun with an internal power supply on the market.
- Painters experience less muscle strain and fatigue when spraying with the ergonomic, lightweight applicator.
- Made in the USA
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, Waterborne, Mold Release
- Applicator Type: Manual
- Coating Type: Waterborne, Mold Release
- Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
- Fluid Inlet Size (in): 3/8
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Type: Electrostatic
- Gun Weight (g): 670
- Gun Weight (kg): 0.67
- Gun Weight (lb): 1.48
- Gun Weight (oz): 23.63
- Includes: Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm²): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm²): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): 1
- Minimum Paint Resistivity (megohm/cm): 0
- Overall Length (cm): 24.13
- Overall Length (in): 9.5
- Overall Length (mm): 241.3
