Pumps

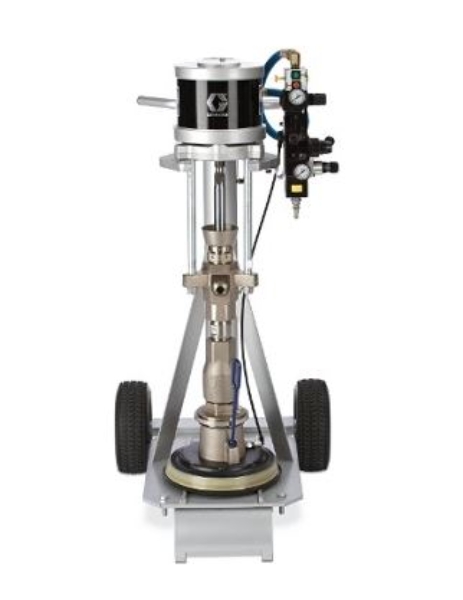

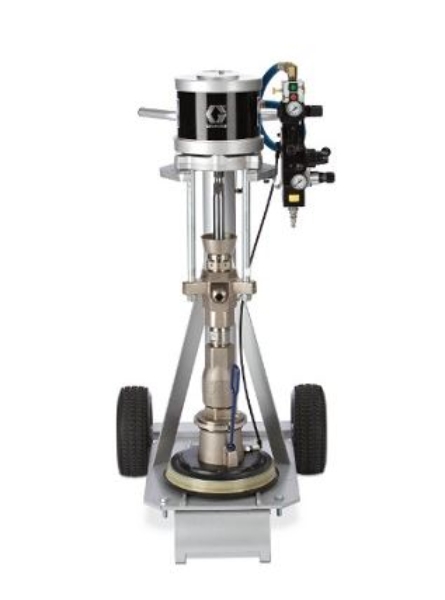

GG CM8F2F

Check-Mate Supply Unit, 38:1, S20, 20L, Cart-Mt

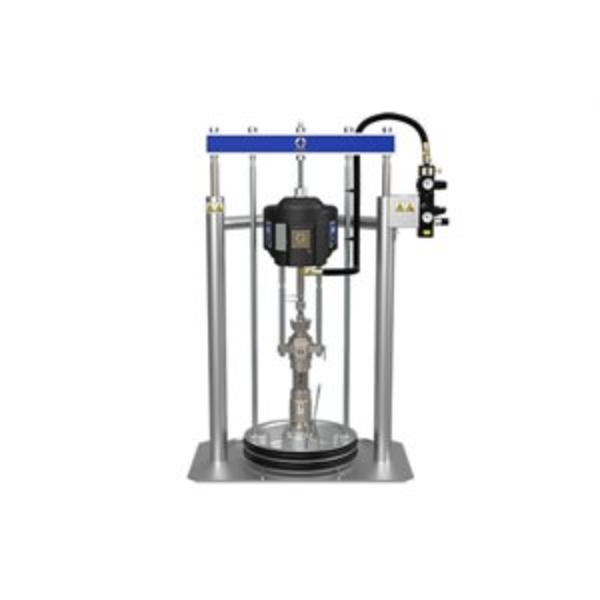

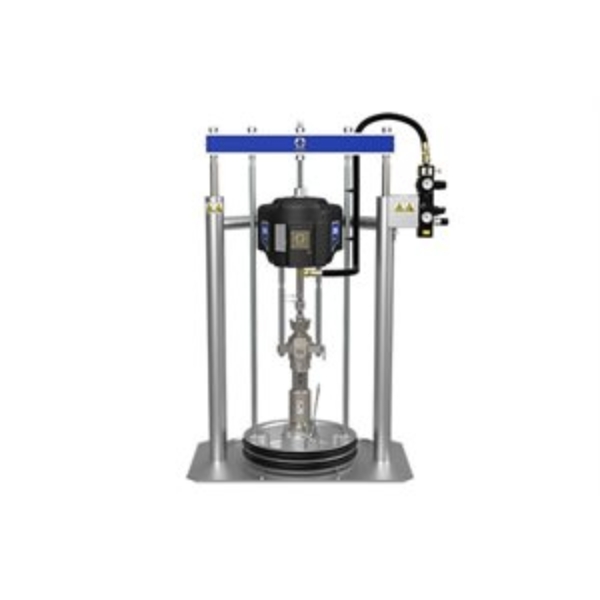

GG CM3959

CHECK-MATE SUPPLY UNIT, 55:1, 3.0 RAM, 200L

55:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials. For large drums up to 200 liter (55 gal) Graco D200 - For high-volume in-plant applications Industry-first controls give you immediate and important information at the touch of a button Quick placement of drum Platen wipers can be replaced in seconds Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram High-quality, durable parts reduce maintenance time, maximize uptime

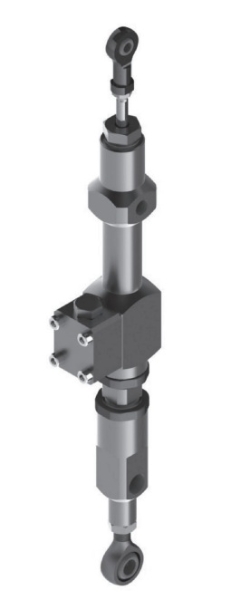

BB 101-9450

Catalyst Pump Assembly

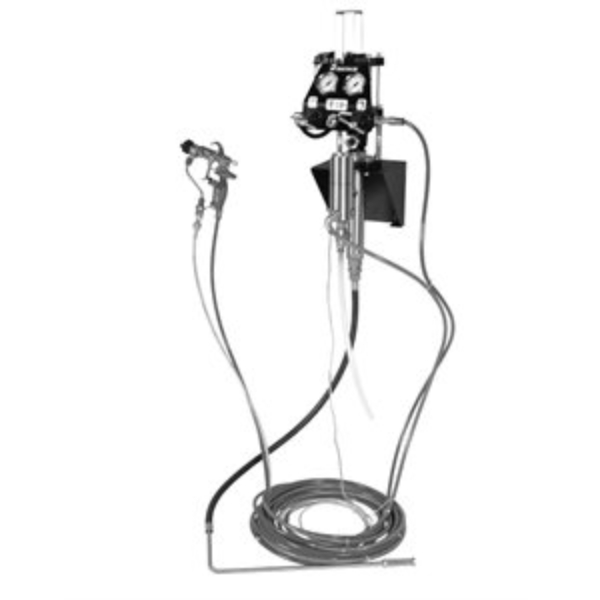

BB MX412UC-QLW0S25

Mx412 Pump Systems

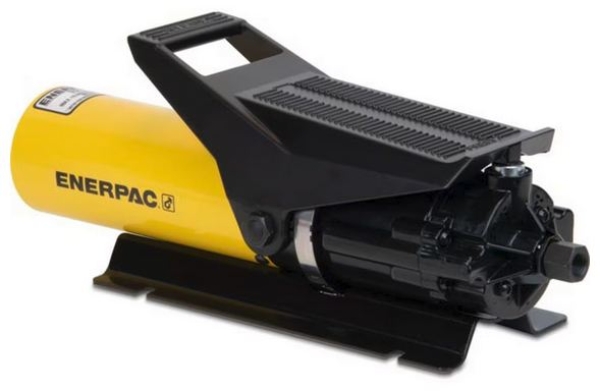

EP PA133

Air Hydraulic Pump, 36 in3 Usable Oil, 8 in3/min Oil Flow at 10,000 psi

Enerpac PA Series Air Over Hydraulic Pumps are robust, simple to use, and easy to service. The series includes several models with varying reservoir capacities, air consumption, and maximum operating pressures.

All models can be used either by foot or hand to advance and retract your single-acting hydraulic tool. The PA133 and PA1150 models also provide a hold capability.

The swivel coupling enables simple connection and hassle-free operation. The PA133, PA135, and PA136 models include base mounting slots.

The maximum operating pressure depends upon the model, and ranges from 3,000-10,000 psi (207-700 bar). Maximum flow rates at rated pressures range from 8 in3/min up to 120 in3/min (0.13L – 1.97L).

PA-Series at a Glance:

• PA133 : Advance / Hold / Retract. Max 10,000 psi. Max flow 8 in3/min (0.13 l/min).
• PA1150 : Advance / Hold / Retract. Max 10,000 psi. Max flow 8 in3/min (0.13 l/min). Extra oil capacity.
• PA135 : Advance / Retract. Max 5,000 psi. Max flow 60 in3/min. (0.98 l/min).
• PA136 : Advance / Retract. Max 3,000 psi. Max flow 120 in3/min (1.97 l/min).

• Type: Hydraulic Pump
• Max Bar: 700
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: PA
• SubTypes: Air Pump

• Rugged construction - built for long life and easy service
• Swivel coupling simplifies hydraulic connection and pump operation
• Three-position treadle provides cylinder advance, hold and retract operation

• Spare Part(s): DA5816900SR, PA133K3, CF180900SR

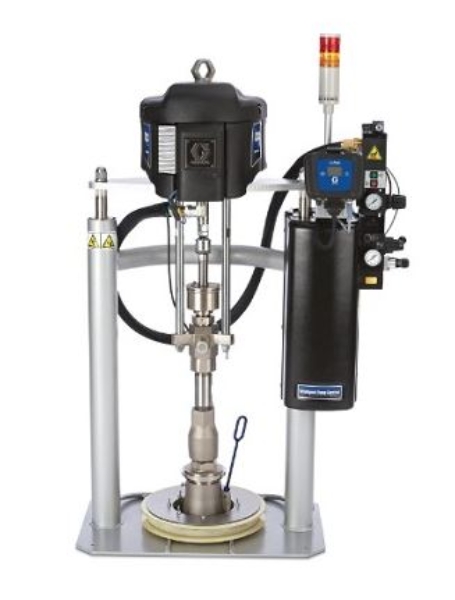

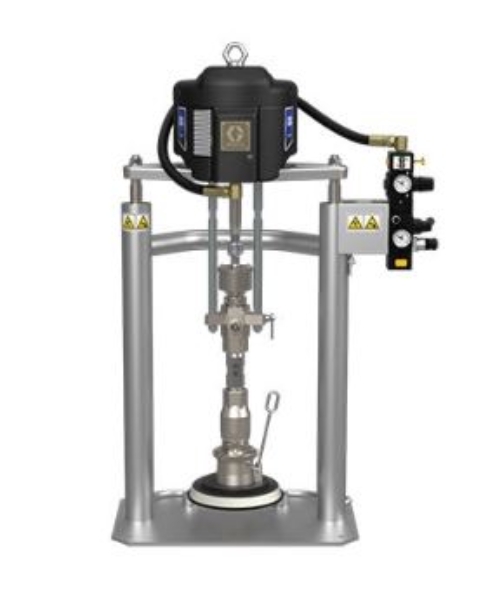

GG CM154B

CHECK-MATE SUPPLY UNIT, 63:1, 0 VOLT, D60, 20L

63:1 Ratio 20 L D60 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials. 60 liter (16-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors Graco D60 - Provides higher down-force and 60-liter pail capacity Industry-first controls give you immediate and important information at the touch of a button Quick placement of pail Platen wipers can be replaced in seconds Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram High-quality, durable parts reduce maintenance time, maximize uptime

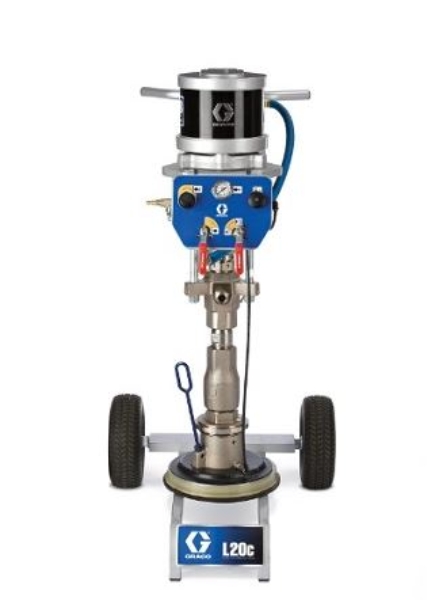

GG CM7A1B

CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, L20C, 20L

Graco CM7A1B 20:1 Ratio 20 L L20C Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

• 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco L20c - A lightweight, elevator ram on a cart
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: L20c

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kg/cm²): 7.03
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.4

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Height (cm): 175.26
• Maximum Height (ft): 5.75
• Maximum Height (in): 69
• Maximum Height (m): 1.75
• Maximum Height (mm): 1752.6

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Minimum Height (cm): 111.76
• Minimum Height (ft): 3.67
• Minimum Height (in): 44
• Minimum Height (m): 1.12
• Minimum Height (mm): 1117.6

• Overall Depth (cm): 53.34
• Overall Depth (in): 21
• Overall Depth (mm): 533.4

• Overall Width (cm): 55.88
• Overall Width (in): 22
• Overall Width (mm): 558.8

• Power Type: Pneumatic

• Pump Ratio: 20:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel
