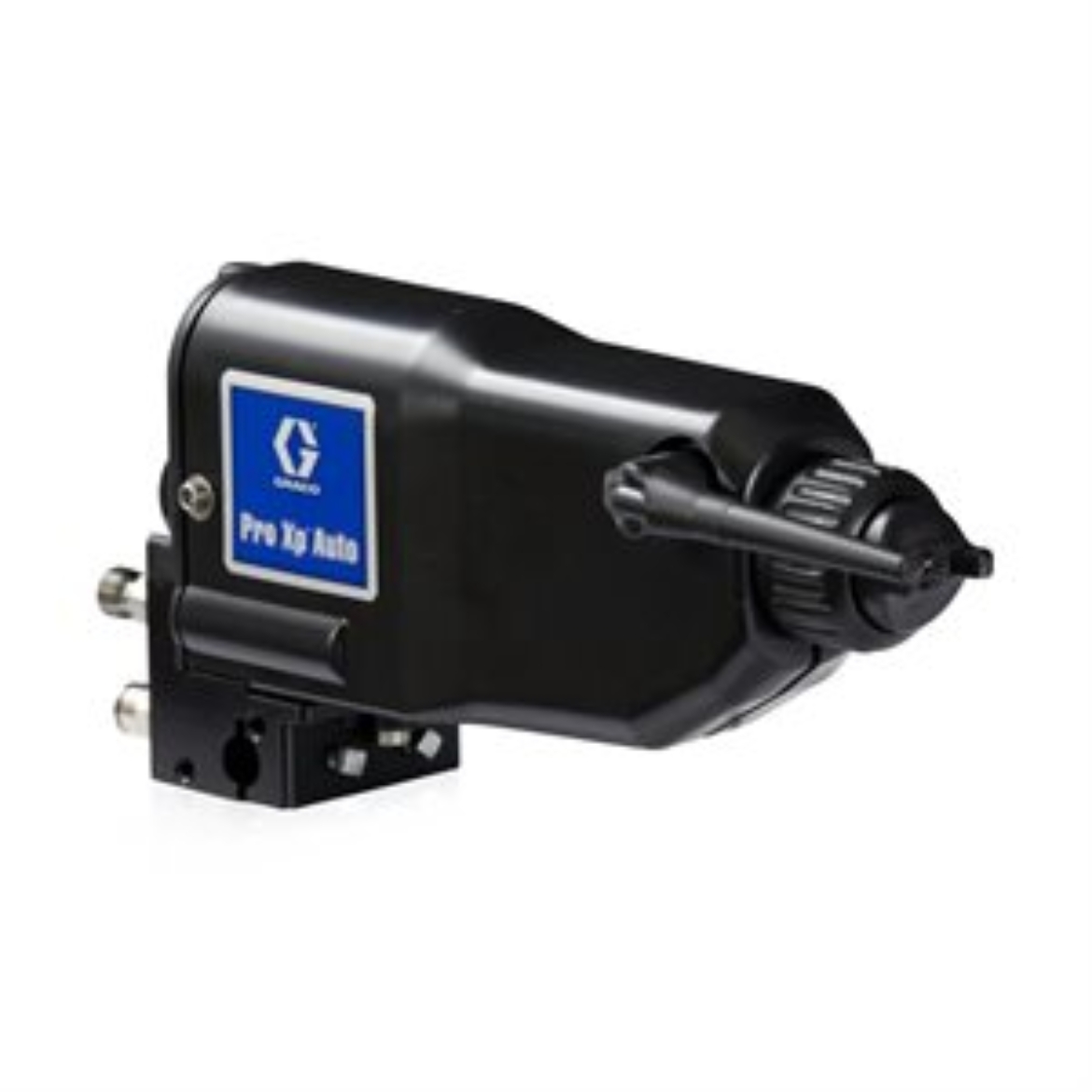

Pro XP Auto WB Air Spray Electrostatic Gun, 60 KV, Smart, Rear Manifold, 1.2 Nozzle

GG LA1M28

PRO XP GUN, ES, AUTO REAR, SMART, WBX

Graco LA1M28 Pro Xp Auto Waterborne Air Spray Electrostatic Spray Gun, external charging, smart model, with rear manifold, 60 kV

Pro Xp Auto waterborne air spray guns are ideal for low pressure spraying without an isolation system. 60 kV power supply and internal power so there's no electrical cord to damage or replace.

• Versatile product line gives you more models to choose from and greater spraying flexibility with air spray and waterborne guns
• Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
• 60 kV power supply and internal power so there's no electrical cord to worry about damaging or replacing
• Durable components reduce cost of ownership, supported by a three year warranty

• Model: Pro Xp
• Series: Auto

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, Waterborne
• Applicator Type: Automatic

• Coating Type: Waterborne

• Compatible Paint Type: Waterborne

• Display Type: Smart

• Fluid Inlet Size (in): 1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• For Use With: Pro Xp Auto Control Module

• Gun Activation: Automatic
• Gun Type: Electrostatic
• Gun Weight (g): 1197
• Gun Weight (kg): 1.2
• Gun Weight (lb): 2.64
• Gun Weight (oz): 42.24

• Manifold Type: Rear

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Paint Resistivity (megohm/cm): 1

• Minimum Paint Resistivity (megohm/cm): 3

• Nozzle Size (cm): 0.15
• Nozzle Size (in): 0.055
• Nozzle Size (mm): 1.5

• Overall Length (cm): 25.91
• Overall Length (in): 10.2
• Overall Length (mm): 259.1
