Impacts

U UT8080Q

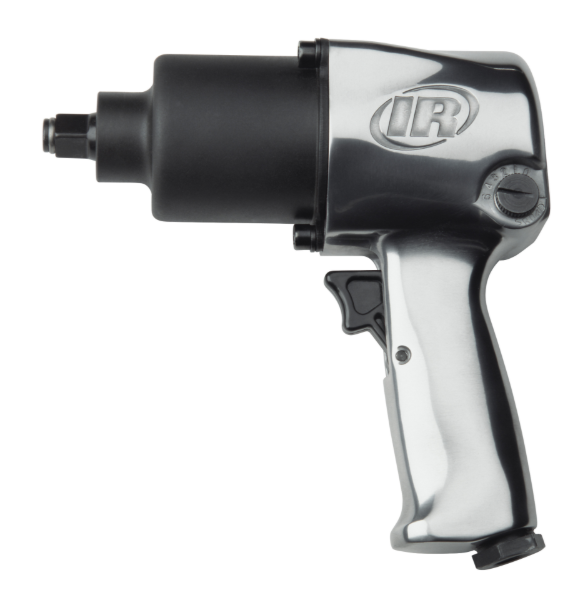

IR 231C

1/2" Air Impact Wrench, Super Duty, 600 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The heavy duty 231C impact wrench has the reliability and durability you've come to expect from the Ingersoll Rand name. The powerful tool provides an even impact and is durable enough to last through the toughest work environments.

Features And Benefits:

• Performance: Delivers a max. torque of 600 ft.-lbs. and offers enough power to install and remove stubborn bolts, lug nuts, and other hardy fasteners.
• Reliable Choice: Lightweight and easy to maintain, this impact wrench is a reliable choice for auto hobbyists and professional mechanics alike. Built to withstand harsh environments and repeated drops, this impact wrench won't let you down.
• Adjustable Power: Its adjustable power regulator lets you easily adjust power output needed for your task at hand, The twin hammer mechanism helps ensure efficient performance with impressive rotational speeds of up to 8,000 rpm.
• Comfort and Control: At 7.3 inches in length and weighing only 5.8 lbs, it's compact, ergonomic design minimizes stress on your wrists and hands, The contoured handle makes it easy to carry and control.
• Ready to Use: For added convenience, this impact wrench arrives fully lubricated, so it's ready to use out of the box. Exclusive impact mechanism Pressure-feed lubrication.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 22
• Air Consumption @ Load (l/min): 623
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4.2
• Average Air Consumption (l/min): 119

• Blows per Min: 1200

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Steel
• Exhaust Location: Front
• Free Speed Sound Pressure/Power Db(A): 99.0 / 110.0

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 8000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 600
• Max Torque (in-lb): 7196
• Max Torque (nm): 813
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 6
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 103.4
• Product Length (in): 7.3

• Product Width (in): 2.81
• Product Height (in): 7.7
• Product Weight (lb): 5.8
• Recommended Forward Torque Range (ft-lb): 25-300
• Recommended Forward Torque Range (in-lb): 301-3602
• Recommended Forward Torque Range (nm): 34-407
• Recommended Reverse Torque (ft-lb): 25-350
• Recommended Reverse Torque (nm): 34-475
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.4
• Side to Center Distance (mm): 36

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 6.5
• Warranty: 1-year

• Accessories: 231-BOOT
• Accessories: S64H1316L-PS1
• Accesso

IR 216B

3/8" Air Impact Wrench, 200 ft-lb Torque, Friction Ring Retainer, Inline

Description: Full of power with an easy to access design, the 216B Straight Impact Wrench ensures every job is a job well done.

Features And Benefits:

• Durable: Combining an aluminum hammer case with metal housing ensures this wrench is both durable and lightweight.
• Power: The ball and cam mechanism delivers a high output of power without ever risking your tool stalling out.
• Access: Thanks to its straight grip and overall design, this impact wrench is great for use in hard-to-reach spaces.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Butteryfly Trigger
• Air Consumption @ Load (cfm): 19
• Air Consumption @ Load (l/min): 538
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 3
• Average Air Consumption (l/min): 85

• Blows per Min: 1600

• Color: Silver
• Configuration/Handle Type: Straight
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: General Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 94.8 / 105.8

• Hammer Case: Aluminum
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Pin Clutch
• Impacting Sound Pressure/Power Db(A): 90.0 / 101.0

• Max Bolt Diameter (in): 7/16
• Max Free Speed (rpm): 8500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 200
• Max Torque (in-lb): 2400
• Max Torque (nm): 271
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Power Source: Air Powered
• Product Length (in): 7.7

• Product Width (in): 2.3
• Product Height (in): 1.9
• Product Weight (lb): 2.8
• Recommended Forward Torque Range (ft-lb): 15-160
• Recommended Forward Torque Range (in-lb): 177-1921
• Recommended Forward Torque Range (nm): 20-217
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.2
• Side to Center Distance (mm): 30

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 5.2
• Warranty: 1-year

• Accessories: SK3H8N
• Accessories: SK3M8N

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 216B-A626

IR 2145QIMAX

SX IW500MP-4R

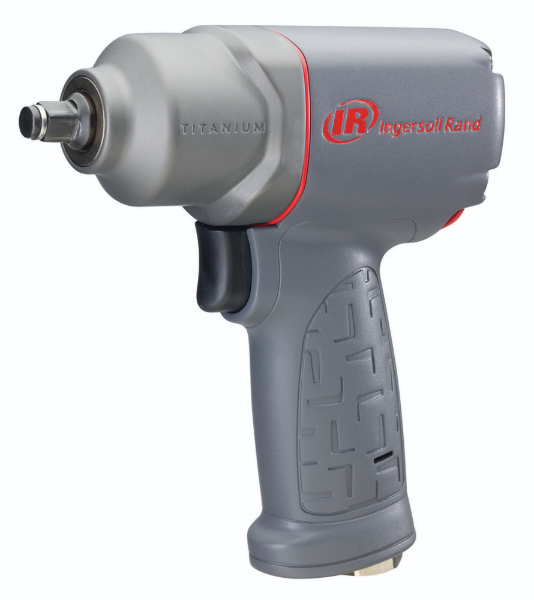

IR 2115TIMAX

3/8" Air Impact Wrench, 300 ft-lb Torque, Titanium Hammercase, Friction Ring Retainer, Pistol

Description: The 2115TiMAX delivers best in class performance for a tool less than six inches long and weighing less than two and a half pounds. The minimal size of this tool will allow greater access to tight spaces, while the minimal weight will reduce operator fatigue...all while still delivering MAX performance.

Features And Benefits:

• Durable: With a titanium hammer case and composite housing, this wrench can withstand anything, including repeated drops and harsh environments. In fact, we provide a 2-year warranty to prove it.
• Versatile: This tool is so versatile, it can be used in just about any market.
• Reliable This wrench has been tested and is guaranteed to last. It'll deliver the same level of power every time.
• Easier access to grease fitting – for quicker maintenance and less downtime.
• Enhanced socket retention.
• 7-vane Motor delivers added power with less weight.
• Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency.
• Feather-touch trigger provides maximum control of this air impact wrench.
• Anodized end plate for enhanced durability.
• Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction.
• Patented one-hand forward/reverse control for easy operation.
• Optimized air flow for maximized performance when using this pneumatic impact wrench.

Product Application and Uses:

Automotive Repair

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 17
• Air Consumption @ Load (l/min): 481
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4
• Average Air Consumption (l/min): 113

• Blows per Min: 1500

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 106.3 / 117.3

• Hammer Case: Titanium
• Handle Material: Composite
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 96.6 / 107.6

• Max Bolt Diameter (in): 7/16
• Max Free Speed (rpm): 15000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 300
• Max Torque (in-lb): 3602
• Max Torque (nm): 407
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 4
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 120.9
• Product Length (in): 6

• Product Width (in): 2.2
• Product Height (in): 6.7
• Product Weight (lb): 2.48
• Recommended Forward Torque Range (ft-lb): 250
• Recommended Forward Torque Range (in-lb): 3000
• Recommended Forward Torque Range (nm): 339
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.1
• Side to Center Distance (mm): 28

• Special Features: Titanium hammercase, 2-year Max warranty
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 7

IR W5111

Description

Product Overview

Designed specifically for industrial manufacturing. From white goods to truck and bus assembly, these cordless Impactols are optimal for continued use in a wide range of non-precision/non-safety joints. ** Battery not Included **

Product Features

• Productivity - Rare earth magnet motor & optimized impact mechanism deliver fast application speeds that increase productivity and replaceable brushes to increase tool uptime
• Durability - Strong, yet lightweight steel-lined aluminum hammer case protects internal components, while patented metal reinforced housing withstands repeated drops
• Performance – Ergonomic design, rubber over molded grip provides user comfort during continued use, this cordless Impactool is built for high cycle industrial applications

Specifications

Free Speed                     1,900 rpm

Torque                            160 ft-lb (215 Nm)

Recommended Range     25-120 ft-lb  (35-160 Nm)

Chuck                             1/4 Hex Drive, QC

Blows per Minute           2,800

Weight                           2.6 lbs without Battery

Length                            6 Inches





IR W7152

1/2" 20V Cordless Impact Wrench, 1500 ft-lb Torque, Friction Ring Retainer, Pistol, Bare Tool

Description: The W7152 is the most powerful ½" cordless impact wrench in its class. Delivering 1500 ft-lbs of nut-busting torque and utilizing the IQV Intelligent Control System, the W7152 can go from MAX torque to "hand tight" in no time.

Features And Benefits:

• Power: Powerful brushless motor and impact mechanism are finely tuned for best in class power-to-weight ratio. 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque.
• Control: Includes the IQV Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight. From axle nuts to oil pans, flange bolts to pre-torque joints there's no need to switch tools.
• Durable: Patented steel reinforced frame and impact-and-chemical resistant housing protects the W7152 from every day abuse. The IQV brushless motor delivers more power and efficiency than a brushed motor, providing longer tool life.
• Access: 8.1" short tip-to-tail design and 360⁰ shadowless task light with 4 dimmable settings provides increased visibility and access.
• Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency.
• Variable-speed switch (half and full power only) with electronic brake provides maximum control of the tool and increases safety—release trigger, drive stops spinning.
• Ideally used for removing or fastening cradle bolts, tire changing, fleet truck maintenance and in industrial and MRO settings.
• Weighs only 7.6 lbs (with BL2022 battery).
• 3-year warranty.

Product Application and Uses:

Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include tire changing, cradle bolts, fleet truck maintenance, industrial and MRO.

• Includes: Bare tool only, batteries and charger sold separately or with other kits.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Blows per Min: 2450 (BL2022)
• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: General Duty

• Forward Torque setting 1 (ft-lb): 3.7-10
• Forward Torque setting 1 (in-lb): 44-124
• Forward Torque setting 1 (nm): 5-14
• Forward Torque setting 2 (ft-lb): 37-111
• Forward Torque setting 2 (in-lb): 443-1328
• Forward Torque setting 2 (nm): 50-150
• Forward Torque setting 3 (ft-lb): 531
• Forward Torque setting 3 (in-lb): 6373
• Forward Torque setting 3 (nm): 720
• Forward Torque setting 4 (ft-lb): 1003
• Forward Torque setting 4 (in-lb): 12037
• Forward Torque setting 4 (nm): 1360

• Hammer Case: Steel-lined Aluminum
• Head Width (in): 2.7
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Ball and Cam

• Lumens: 39
• Max Bolt Diameter (in): 3/4
• Max Free Speed (rpm): 1900
• Max Torque (ft-lb): 1003
• Max Torque (in-lb): 12037
• Max Torque (nm): 1360
• Motor: Brushless Motor

• Number of Batteries Required: 1
• Number of Power Settings: 4
• Nut-busting/Breakaway Torque (ft-lb): 1505
• Nut-busting/Breakaway Torque (in-lb): 18056
• Nut-busting/Breakaway Torque (nm): 2040
• Power Source: Battery Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb):

MP MP2265B

U UT2025R

IR 261

3/4" Air Impact Wrench, Super Duty, 1100 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The 261 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where you'll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.

Features And Benefits:

• Power to Weight: Lightweight but still delivers high torque output capabilities, making it the best choice for spring work, pinion nut and track pad removal, and major engine teardowns.
• Power: The 6 vane motor provides a high torque output for increased power.
• Jumbo Hammer Mechanism: The patented jumbo hammer is unaffected by air pressure changes and delivers 1100 ft-lbs. of max torque and a working torque of 200-900 ft-lbs.
• Square Socket: The square socket retaining ring makes this an ideal impact wrench for projects where you need increased socket connection, like auto repair and heavy truck and machinery jobs.
• Lasting Performance: This power tool is equipped with a pressure-fed lube system which provides trouble-free, longer performance.
• Handle Exhaust: Handle exhaust directs dust and dirt from being blow at you while working as it directs air away from the operator.

Product Application and Uses:

Vehicle Repair And Heavy Truck Markets

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 38
• Air Consumption @ Load (l/min): 1076
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 9.5
• Average Air Consumption (l/min): 269

• Blows per Min: 1000

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 100.3 / 111.3

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Jumbo Hammer
• Impacting Sound Pressure/Power Db(A): 98.4 / 109.4

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 5500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1100
• Max Torque (in-lb): 13196
• Max Torque (nm): 1491
• Min Hose Size (in): 1/2
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 96.7
• Product Length (in): 8.8

• Product Width (in): 4.7
• Product Height (in): 10.3
• Product Weight (lb): 12.4
• Recommended Forward Torque Range (ft-lb): 200-600
• Recommended Forward Torque Range (in-lb): 2399-7196
• Recommended Forward Torque Range (nm): 271-813
• Recommended Reverse Torque (ft-lb): 200-600
• Recommended Reverse Torque (nm): 271-813
• Retainer Type: Friction Ring

• Side to Center Distance (in): 2.4
• Side to Center Distance (mm): 61

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 10.4
• Warranty: 1-year

• Accessories: 261-BOOT

• Lubrication: 105-LBK1
<

IR 2236QTiMAX

Description: Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years - and the performance, durability, and power of the 2236 1/2 pneumatic impact is no different. Our patented Drive Xchange System lets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians. Powerful Versatility: Say goodbye to that drawer full of adapters for good. The Ingersoll Rand 2236 Pneumatic 1/2 inch impact wrench has an interchangeable anvil system that lets you tailor your tool to whatever job is at hand - without losing a single ft-lb of power. Innovation: Ingersoll Rand's patented Drive Xchange System helps you get more versatility, torque, and control out of your impact wrench. Torque: The 2236 series operates with 1,500 ft-lbs of breakaway torque.

Features And Benefits:

• Patented Drive Xchange System: Helps you get more versatility, torque, and control out of your impact wrench. With 3/8,inch 1/2 inch , and 3/4 inch drive options and 5 different anvil lengths ranging from 2 to 10 inch, you can do more work with less equipment.
• Powerful Versatility: 1,500 ft.-lbs. of breakaway torque from a unique patented motor design.
• Quiet: 4 decibels quieter running from a patented motor design.
• Patented Direct Greasing System: Greasing your tool has never been easier. Directly grease the tool's hammer for more efficient operation and increased run time.
• Reliable Performance: Stay working, and at peak power by quickly replacing worn or broken anvils.
• Ergonomic: Smaller, lighter and better balanced design under 4.5 lbs. and 7.4 inch overall length.
• Includes 1/2 Square Drive Anvil (A41H)

Product Application and Uses:

Vehicle Repair

• Includes: DXS2 1/2 inch Square Drive Anvil (A41H). Compatible with all DXS2 anvils and sockets. 3/8 and 3/4 drive size options as well as extended lengths sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 36
• Air Consumption @ Load (l/min): 1090
• Air Inlet: 1/4 inch NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 9
• Average Air Consumption (l/min): 255

IR 2135PTIMAX

1/2" Air Impact Wrench, 1100 ft-lb Torque, Titanium Hammercase, Pin Retainer, Pistol

Description: Powerful, durable and reliable, the 2135PTiMAX Series Impact Wrench will excel in any market.

Features And Benefits:

• Power: This wrench's high torque output and power regulator allow easy control over your tool.
• Durability: With a composite housing and a hammer case made of titanium, this wrench can endure repeated drops and harsh environments.
• Reliability: With twin hammer mechanism and powerful motor, the 2135PTiMAX is built not only for performance, but to last. Comes with a 1-year warranty.

Product Application and Uses:

Designed to remove and install threaded fasteners for vehicle repair, general industrial, facility maintenance applications.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 5
• Average Air Consumption (l/min): 142

• Blows per Min: 1250

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 109.2 / 120.2

• Hammer Case: Titanium
• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 99.8 / 110.8

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 9800
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 780
• Max Torque (in-lb): 9364
• Max Torque (nm): 1058
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 4
• Nut-busting/Breakaway Torque (ft-lb): 1100
• Nut-busting/Breakaway Torque (in-lb): 13196
• Nut-busting/Breakaway Torque (nm): 1491
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 278.48
• Product Length (in): 7.35

• Product Width (in): 2.7
• Product Height (in): 7.2
• Product Weight (lb): 3.95
• Recommended Forward Torque Range (ft-lb): 600
• Recommended Forward Torque Range (in-lb): 7196
• Recommended Forward Torque Range (nm): 813
• Retainer Type: Pin Detent

• Side to Center Distance (in): 1.37
• Side to Center Distance (mm): 35

• Special Features: Titanium Hammer case
• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 13.3
• Warranty: 1-year

• Accessories: 2135M-BOOT
• Accessories: 2350-BOOT

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2135-638
• Parts: 2135-THK1

• Parts: 2135-TK2
• Parts: 2135PTI-THK1
• Parts: 231B-A726

IR 2940-TK3

Tune-up Kit for Ingersoll Rand 2940 Series Impact Wrenches

• For Use With: 293
• For Use With: 2940A1
• For Use With: 2940A2
• For Use With: 2940B1
• For Use With: 2940B2
• For Use With: 2940P2

IR R3150

1/2" 20V Cordless Ratchet Wrench, 54 ft-lb Torque, 225 RPM, Bare Tool

Description: Convenience of Cordless. Power of Air. The Ingersoll Rand R3000 Series 20V Ratchet Wrench delivers the power you need where you need it — from the engine compartment to the maintenance department. Designed for professional service technicians, the R3150 offers exceptional performance in a variety of applications. With long-lasting durability and best-in-class power to- weight ratio for access to tight spots, you can rely on the it to do the job, do it fast, and do it every time.

Features And Benefits:

• Performance: With 54 ft-lbs of maximum torque and 225 rpm, the R3150 cordless ratchet delivers the same kind of power you expect from an air tool.
• Durability: Steel frame and tough composite housing is designed to be strong and durable, to protect the interior components of this cordless ratchet wrench.
• Versatility: Proven engineered head is the same durable ratchet head used in our air-powered ratchet, so it stands up to the toughest professional use.
• All-metal Gear Train: is robust, durable and optimized for maximum power and efficiency.
• Control: Variable-speed switch with electronic brake provides maximum control of this cordless ratchet wrench and increases safety-depress trigger, drive stops spinning.
• Access: Unique slim-line design provides easy access in tight spots, where you can get your arm, you can get your cordless ratchet wrench.
• Compatible with the IQV 20 Series battery platform.
• Warranty: 3-year warranty
• Ideal for a wide range of applications from engine repair and under car work to light industrial maintenance, repair & operations (MRO).
• Bare tool only, batteries and charger sold separately or with other kits.

Product Application and Uses:

These Cordless Ratchet Wrenches are designed to remove and install threaded fasteners. Ideal for general auto repair, collision repair and facilities maintenance.

• Includes: Bare tool only, batteries and charger sold separately or with other kits.
• Actuation/Throttle Type/Switch Type: Trigger

• Color: Grey
• Drive Size (in): 1/2
• Drive Type: Square

• Head Width (in): 1.57
• Housing Material: Impact and chemical-resistant composite housing

• Max Free Speed (rpm): 225
• Max Torque (ft-lb): 54
• Max Torque (in-lb): 646
• Max Torque (nm): 73

• Number of Batteries Required: 1
• Power Source: Battery Powered
• Product Length (in): 17.5

• Product Width (in): 3.2
• Product Height (in): 1.89
• Product Weight (lb): 3.5
• Recommended Forward Torque Range (ft-lb): 10-47
• Recommended Forward Torque Range (in-lb): 124-566
• Recommended Forward Torque Range (nm): 14-64

• Sound Pressure/Power Db(A): 86 / 97
• Speed Setting: Variable Speed

• Vibration Level (m/s2): 2.5
• Vibration Uncertainy K* (m/s2): .7
• Voltage DC: 20
• Warranty: 3-year tool, 2-year Battery, 3-year Charger

• Accessories: BC1221
• Accessories: BL2012

• Complete Tool Kits: R3150-K12
• Complete Tool Kits: R3150-K12-EU
• Complete Tool Kits: R3150-K22

IR 2101XPA

1/4" Mini Air Impact Wrench, 55 ft-lb Torque, Friction Ring Retainer, Pistol

Description: Despite its small size, this Mini Impact Wrench packs a punch. Thanks to its rocking dog impact mechanism and finely tuned vane motor, this wrench is as compact as it is powerful.

Features And Benefits:

• Access: Thanks to its small size, this wrench can fit in even the toughest to reach spaces.
• Reliability: These parts will stand the test of time. The rocking dog impact mechanism is easy to maintain, and delivers a powerful burst with low air needs.
• Increased Productivity: The less time you have to worry about changing parts, the more time you have to work.
• 1-year warranty

Product Application and Uses:

Designed to remove and install threaded fasteners. Optimized for the vehicle repair industry, body shops, and MRO

• Actuation/Throttle Type/Switch Type: Trigger
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 13.5
• Average Air Consumption (l/min): 382

• Blows per Min: 3650

• Color: Black
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/4
• Drive Type: Square
• Duty Rating: General Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 83.5 / 94.5

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Rocking Dog
• Impacting Sound Pressure/Power Db(A): 84.9 / 95.9

• Max Bolt Diameter (in): M5
• Max Free Speed (rpm): 14500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 55
• Max Torque (in-lb): 664
• Max Torque (nm): 75
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 6.9

• Product Width (in): 1.7
• Product Height (in): 5.9
• Product Weight (lb): 1.5
• Recommended Forward Torque Range (ft-lb): 50
• Recommended Forward Torque Range (in-lb): 602
• Recommended Forward Torque Range (nm): 68
• Retainer Type: Friction Ring

• Side to Center Distance (in): 0.85
• Side to Center Distance (mm): 22

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Compact
• Vanes: 5
• Vibration Level (m/s2): 3
• Warranty: 1-year

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2101XPA-42-5

IR 2934-A50

IR 510-638-4

Screw Pack, 4-Pack for Ingersoll Rand 290, 280, 293 Series Impact Wrench, 5 7A Series Drill

IR 1702SB1

3/8" Air Impact Wrench, 105 ft-lb Torque, Pin Retainer, Inline

Description: The 1702 Series Impact Wrench's steel hammer case and metal housing ensure a tough, durable tool that'll help you breeze through any job without having to worry about your tools giving up.

Features And Benefits:

• Power: With a jumbo hammer impact mechanism and power regulation, the 1702 Series is powerful and easy to control.
• Reliable: No matter how often you use it, the 1702 Series Impact Wrench will deliver the same high-quality output every time. Comes with a 1-year warranty.

Product Application and Uses:

These air impact wrenches are designed to remove and install threaded fasteners.

• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption @ Load (cfm): 13
• Air Consumption @ Load (l/min): 368
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 1500

• Color: Black
• Configuration/Handle Type: Straight
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: General Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 83.6 / 94.6

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Aluminum core with composite sleeve
• Impact Mechanism: Jumbo Hammer
• Impacting Sound Pressure/Power Db(A): 86.8 / 97.8

• Max Bolt Diameter (in): 0.375
• Max Free Speed (rpm): 10000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 105
• Max Torque (in-lb): 1257
• Max Torque (nm): 142
• Min Hose Size (in): 5/16
• Motor: Non-Biased

• Number of Power Settings: 5
• Power Source: Air Powered
• Product Length (in): 6.6

• Product Width (in): 2
• Product Height (in): 3.6
• Product Weight (lb): 2.5
• Recommended Forward Torque Range (ft-lb): 13-85
• Recommended Forward Torque Range (in-lb): 159-1018
• Recommended Forward Torque Range (nm): 18-115
• Retainer Type: Pin Detent

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 4.2
• Warranty: 1-year

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 1702SB-TK2
• Parts: 401-42A-6

IR 2236QPTiMAX

Description: Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years - and the performance, durability, and power of the 2236 1/2 pneumatic impact is no different. Our patented Drive Xchange System - lets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians. Powerful Versatility: Say goodbye to that drawer full of adapters for good. The Ingersoll Rand 2236 Pneumatic 1/2 inch impact wrench has an interchangeable anvil system that lets you tailor your tool to whatever job is at hand - without losing a single ft-lb of power. Innovation: Ingersoll Rand's patented Drive Xchange System helps you get more versatility, torque, and control out of your impact wrench. Torque: The 2236 series operates with 1,500 ft-lbs of breakaway torque.

Features And Benefits:

• Patented Drive Xchange System: Helps you get more versatility, torque, and control out of your impact wrench. With 3/8,inch 1/2 inch , and 3/4 inch drive options and 5 different anvil lengths ranging from 2 to 10 inch, you can do more work with less equipment.
• Powerful Versatility: 1,500 ft.-lbs. of breakaway torque from a unique patented motor design.
• Quiet: 4 decibels quieter running from a patented motor design.
• Patented Direct Greasing System: Greasing your tool has never been easier. Directly grease the tool's hammer for more efficient operation and increased run time.
• Reliable Performance: Stay working, and at peak power by quickly replacing worn or broken anvils.
• Ergonomic: Smaller, lighter and better balanced design under 4.5 lbs. and 7.4 inch overall length.
• Includes 1/2 Square Drive Pin Anvil (AP41H)

Product Application and Uses:

Industrial

• Includes: DXS2 1/2 inch Square Drive Pin Anvil (AP41H). Compatible with all DXS2 anvils and sockets. 3/8 and 3/4 drive size options as well as extended lengths sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 36
• Air Consumption @ Load (l/min): 1090
• Air Inlet: 1/4 inch NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 9
• Average Air Consumption (l/min): 255

IR 2115-TK2

Tune-up Kit for Ingersoll Rand 2115 and 2125 Series Impact Wrenches

• For Use With: 2115PTIMAX
• For Use With: 2115QTIMAX
• For Use With: 2115QTIMAX-AP
• For Use With: 2115QXPA
• For Use With: 2115TIMAX
• For Use With: 2115TIMAX-AP
• For Use With: 2125PTIMAX
• For Use With: 2125QTIMAX
• For Use With: 2125QTIMAX-AP

IR 2125PTIMAX

1/2" Air Impact Wrench, 332 ft-lb Torque, Titanium Hammercase, Pin Retainer, Pistol

Description: Made with durable materials and featuring a number of different anvil configurations, this 2115TiMAX Series are a tools you can count on.

Features And Benefits:

• Durable: With a titanium hammer case and composite housing, this wrench can withstand anything, including repeated drops and harsh environments.
• Versatile: This tool is so versatile, it can be used in just about any market.
• Easier access to grease fitting- for quicker maintenance and less downtime.
• Enhanced socket retention.
• 7-vane Motor delivers added power with less weight.
• Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency.
• Feather-touch trigger provides maximum control of this air impact wrench.
• Anodized end plate for enhanced durability.
• Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction.
• Patented one-hand forward/reverse control for easy operation.
• Optimized air flow for maximized performance when using this pneumatic impact wrench.
• 2-year warranty.

Product Application and Uses:

Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 17
• Air Consumption @ Load (l/min): 481
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 4
• Average Air Consumption (l/min): 113

• Blows per Min: 1500

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 99.7 / 100.7

• Hammer Case: Titanium
• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 93.2 / 104.2

• Max Bolt Diameter (in): 7/16
• Max Free Speed (rpm): 15000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 332
• Max Torque (in-lb): 3983
• Max Torque (nm): 450
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 4
• Power Source: Air Powered
• Product Length (in): 6.1

• Product Width (in): 2.2
• Product Height (in): 6.7
• Product Weight (lb): 2.51
• Recommended Forward Torque Range (ft-lb): 277
• Recommended Forward Torque Range (in-lb): 3328
• Recommended Forward Torque Range (nm): 376
• Retainer Type: Pin Detent

• Side to Center Distance (in): 1.1
• Side to Center Distance (mm): 28

• Special Features: Titanium Hammer case
• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 7.5
• Warranty: 2-year

• Accessories: 2115M-BOOT

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication

IR 2934-223

Gasket Service Part for Ingersoll Rand Power Tools

IR 3940-48

Dead Handle for Ingersoll Rand 3940, 3942, 3955 Series Impact Wrench

IR W5153-K22

1/2" 20V Cordless Impact Wrench 2 Battery Kit, 550 ft-lb Torque, Friction Ring Retainer, Pistol

Features And Benefits:

• POWER: The brushless motor and impact mechanism are finely tuned to unleash a high power-to-weight ratio, with 550 ft.-lbs. of nut busting torque and 365 ft.-lbs. of MAX torque at 5.3 lbs (with BL2022 battery). The all-metal drivetrain and hammer mechanism are designed to provide technicians the power they need without adding extra weight to the tool.
• CONTROL: With 4 power modes (MAX Power, Half Power, Wrench Tight, and Hand Tight), you can adjust a dial instead of changing tools to deliver the right amount of torque when you need it and eliminate rework. From brake calipers to valve covers and everything in between, there's no need to switch tools. The variable-speed switch with electronic brake provides MAX control of the tool.
• DURABLE: Protected by a chemical-resistant composite housing and a patented steel-reinforced frame, the W5153 is built to withstand repeated drops onto concrete and exposure to shop fluids. The IQV spark-free brushless technology and sealed, enhanced, lubricated reinforced bushing provide a longer-life motor you can rely on.
• ACCESS: Thanks to its 6.5" tip-to-tail compact ergonomic design and lightweight build, the W5133 can easily access tight spaces, giving you access no matter where your work may be hiding. A built-in 360 degree LED light ring with task light mode and 4 dimmable settings casts a wide beam to give you excellent visibility with no shadows.
• Tapered hammer case / Front End
• Compatible with IQV 20 Series Battery System
• Kit includes 1/2" Cordless Impact Wrench, (1) BL2022 5.0Ah battery, (1) BL2012 2.5Ah battery, 20V Battery Charger, Tool Bag

Product Application and Uses:

Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include brake calipers, valve covers, cylinder head cover removal, brake repairs, shock replacement, industrial and Mro.

• Includes: W5153 1/2" Cordless Impact Wrench, (1) BL2022 5.0Ah Battery, (1) BL2012 2.5Ah Battery, 20V Battery Charger, Tool Bag
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Blows per Min: 3300
• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: General Duty

• Forward Torque setting 1 (ft-lb): 2.2-8.9
• Forward Torque setting 1 (in-lb): 27-106
• Forward Torque setting 1 (nm): 3-12
• Forward Torque setting 2 (ft-lb): 9.6-24
• Forward Torque setting 2 (in-lb): 115-292
• Forward Torque setting 2 (nm): 13-33
• Forward Torque setting 3 (ft-lb): 240
• Forward Torque setting 3 (in-lb): 2876
• Forward Torque setting 3 (nm): 325
• Forward Torque setting 4 (ft-lb): 339
• Forward Torque setting 4 (in-lb): 4071
• Forward Torque setting 4 (nm): 460

• Hammer Case: Steel-lined Aluminum
• Head Width (in): 2.3
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Ball and Cam

• Lumens: 32
• Max Bolt Diameter (in): 1/2
• Max Free Speed (rpm): 2100
• Max Torque (ft-lb): 369
• Max Torque (in-lb): 4425
• Max Torque (nm): 500
• Motor: Brushless Motor

• Number of Batteries Required: 1
• Number of Power Settings: 4
• Nut-busting/Breakaway Torque (ft-lb): 549
• Nut-busting/Breakaway Torque (in-lb): 659
