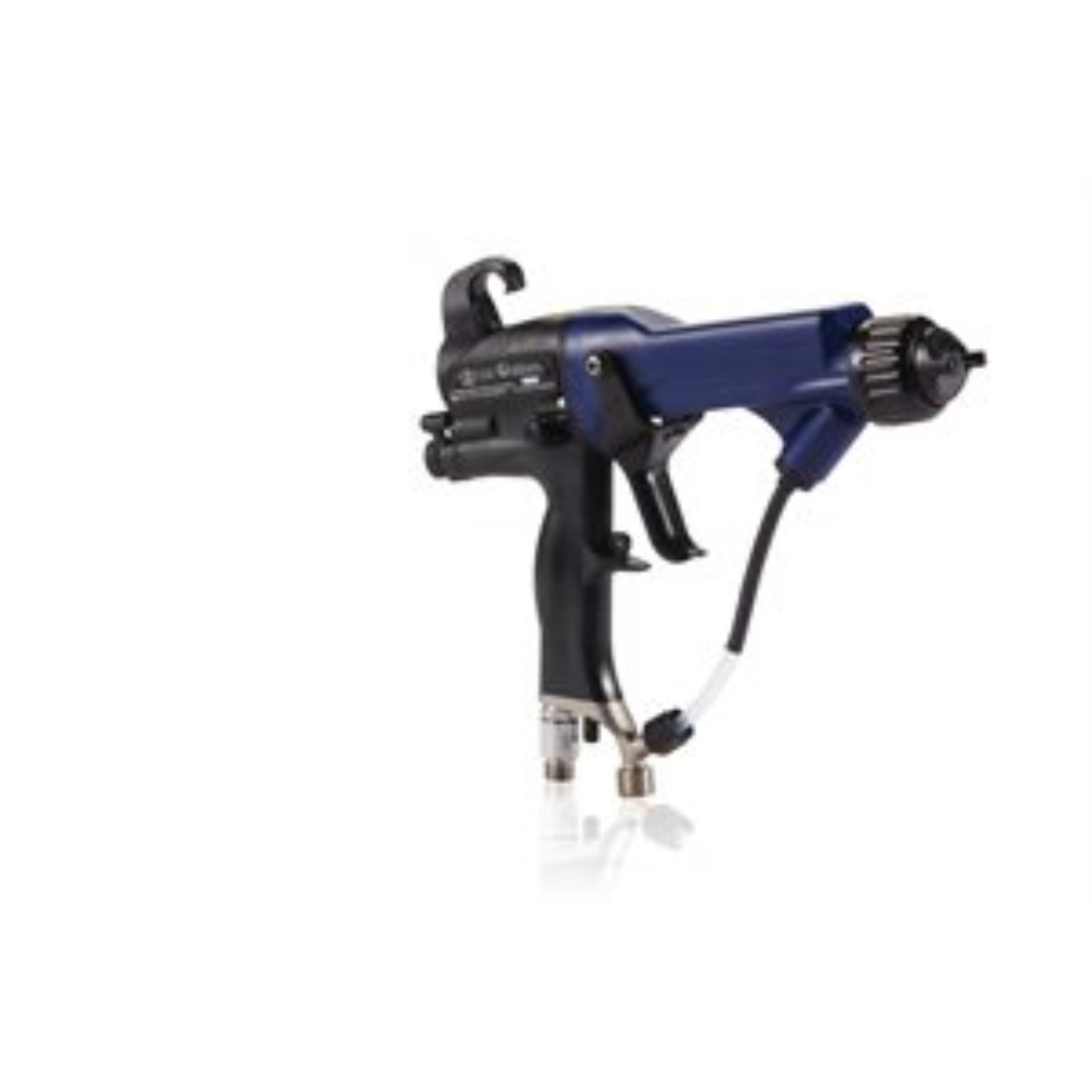

GG L85T90
PRO XP GUN, ES, 85KV, FIXED FLUID
Graco L85T90 Pro Xp85 Air Spray Manual Electrostatic 85kV, standard display, HW electrode, 0.055 in (1.5 mm) PHW nozzle, fixed fluid flow, standard tube
High air flow 85 kV electrostatic spray gun models give painters the feel and reach they need to paint from a distance and around large, complex areas.
Application: For applications that require abrasive, metallic, and extremely abrasive materials – often used to coat extruded aluminum and automotive components
- An electrostatic (ES) on/off with a fixed fluid valve extends electrode and nozzle life.
- More durable electrodes and nozzles extend applicator life.
- No fluid adjustment knob eliminates reducing fluid flow at the gun, requiring a regulator to change fluid flow.
- Model: Pro Xp
- Series: 85
- Product Series: A
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, Abrasive, Metallic
- Applicator Type: Manual
- Coating Type: Abrasive, Metallic
- Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
- Fluid Inlet Size (in): 3/8
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Type: Electrostatic
- Gun Weight (g): 676
- Gun Weight (kg): 0.675
- Gun Weight (lb): 1.49
- Gun Weight (oz): 23.81
- Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm²): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm²): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): Infinity
- Minimum Paint Resistivity (megohm/cm): 25
- Nozzle Size (cm): 0.15
- Nozzle Size (in): 0.055
- Nozzle Size (mm): 1.5
- Overall Length (cm): 26.67
- Overall Length (in): 10.5
- Overall Length (mm): 266.7
