METER-FLO PUMP, 9/14 CU IN/MIN CCW NPT

GG 557814

METER-FLO PUMP, 9/14 CU IN/MIN CCW NPT

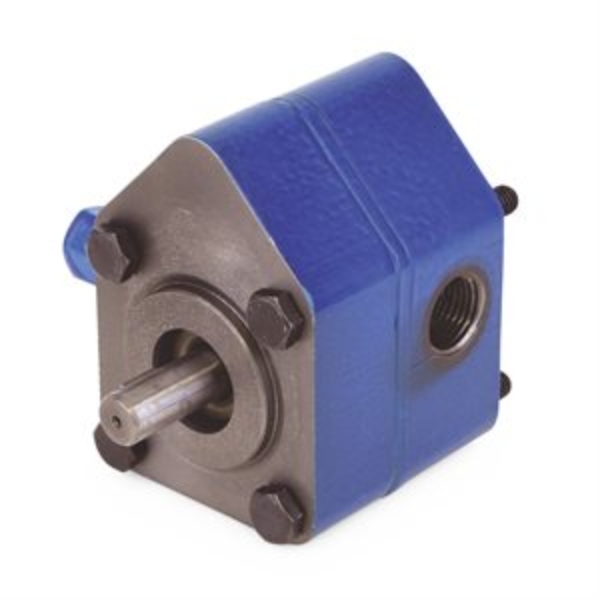

Graco 557814 Meter-Flo® Electric Pump, 14 cu in/min (229 cc/min) @ 1,725 rpm, NPT Ports, CCW

With its solid pump housing, these rugged gear pumps are designed for dependable operation in high demand applications. The gear pump is available with a direct-coupled 1/2 horsepower motor capable of 1,725 rpm’s with output volumes of 245 cubic inches per minute (4015 cc/min).

Application: Direct-drive, smoothly operating pumps ideal for applications requiring continuous delivery of hydraulic or lube oils.

Ideal for applications requiring continuous oil delivery up to 1,000 lubrication points
Positive displacement helps assure constant delivery of proper volume.
Match-ground heat-treated steel gears are enclosed in a rigid, cast-iron housing to assure dependability and long life.
Adjustable pressure relief valve protects pump against overload conditions.
Meter-flo pumps are available with a special coupling that allows easy replacement of older Meter-Flo pumps.
Lubriquip part number 540-800-011

Model: Meter-Flo

Application: In-Plant Machinery
Compatible Material: Oil
Compatible Metering Device: Series Progressive
Fluid Outlet Size (in): 0.5
Fluid Outlet Size (mm): 12.7000
Fluid Outlet Thread Type: NPT
Maximum Flow Rate (ci/min): 14
Maximum Fluid Output Pressure (bar): 103
Maximum Fluid Output Pressure (psi): 1500
Maximum Fluid Output Pressure (bar): 103
Maximum Fluid Output Pressure (psi): 1500
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum SUS Grade (SUS): 3000
Maximum Working Pressure (bar): 103
Maximum Working Pressure (kPa): 10300
Maximum Working Pressure (MPa): 10.3
Maximum Working Pressure (psi): 1500
Minimum Operating Temperature (°C): 10
Minimum Operating Temperature (°F): 50
Minimum SUS Grade (SUS): 300
Power Type: Electric
