Gun, ES, Auto XP, Bottom

GG LA2M16

PRO XP GUN, ES, AUTO BOTTOM, SMT, HC

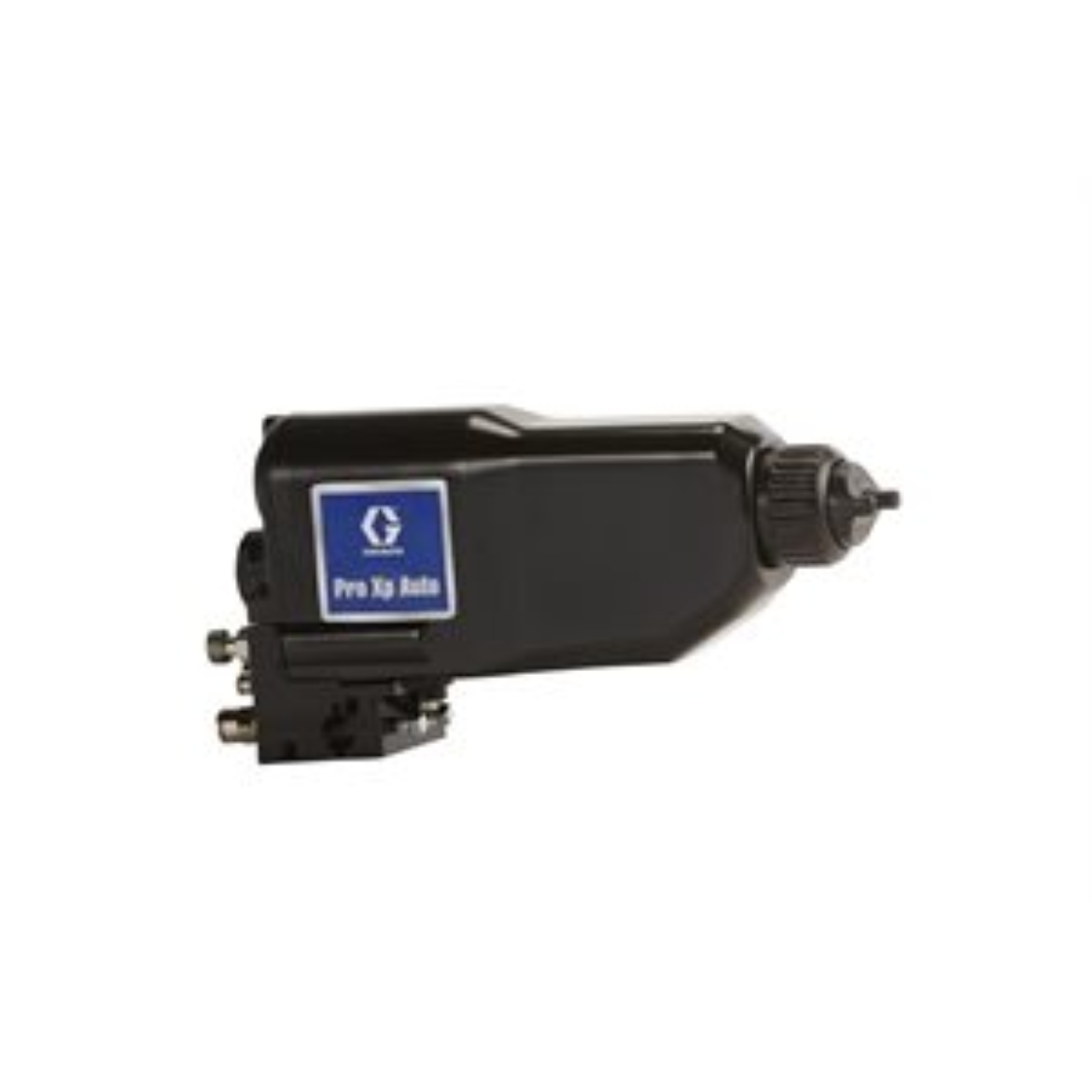

Graco LA2M16 Pro Xp Auto Air Spray Electrostatic Spray Gun, 85 kV, Smart, Rear Manifold, 1.5 mm (0.055 in) Nozzle, Standard Coating

Pro Xp Auto Air Spray has an 85 kV power supply and internal power so there's no electrical cord to damage or replace. Smart gun models connect to a control module for kV control and displaying gun performance. Ideal for low pressure, high quality spraying.

• Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns
• Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
• 85 kV power supply and internal power so theres no electrical cord to worry about damaging or replacing
• Durable components reduce cost of ownership, supported by a three year warranty

• Model: Pro Xp
• Series: Auto

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, Standard
• Applicator Type: Automatic

• Coating Type: Standard

• Compatible Paint Type: High-Conductivity

• Display Type: Smart

• Fluid Inlet Size (in): 1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• For Use With: Pro Xp Auto Control Module

• Gun Activation: Automatic
• Gun Type: Electrostatic
• Gun Weight (g): 1197
• Gun Weight (kg): 1.2
• Gun Weight (lb): 2.64
• Gun Weight (oz): 42.24

• Manifold Type: Rear

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Paint Resistivity (megohm/cm): Infinity

• Minimum Paint Resistivity (megohm/cm): 3

• Nozzle Size (cm): 0.15
• Nozzle Size (in): 0.055
• Nozzle Size (mm): 1.5

• Overall Length (cm): 25.91
• Overall Length (in): 10.2
• Overall Length (mm): 259.1
