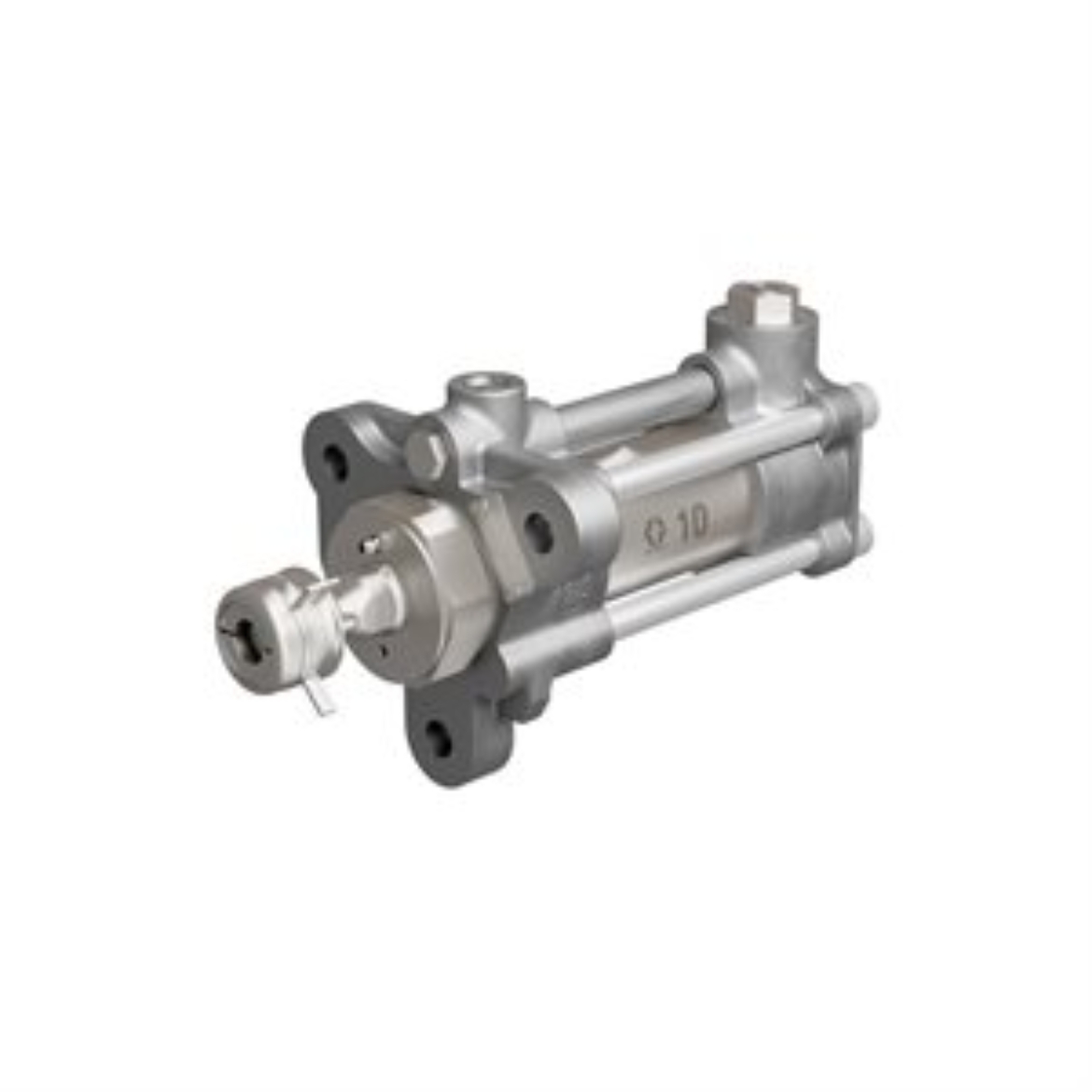

Z-Pump, 10CC, High Wear, S5

GG L010S5

LOWER, CHEMICAL, 010, SST, UCUP, HW

Graco L010S5 Z-Pump, 10cc, High Wear, S5

Z-Pumps are positive displacement pump components for use with the Graco and meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

• High Wear coatings and 1/2 inch (1.27 cm) checks easily manage material wear from thermal interface material (TIMs), acrylics, or other abrasive material applications.
• Precision control eliminates pressure spikes and guarantees on ratio dispense.
• Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

• Model: Z-Pump
• Series: S5

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Industrial

• Ball Check Size (in): .5"
• Ball Material: Silicon Nitride

• Coating Type: High Wear

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/4-16
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: SAE

• For Use With: EFR, HFR

• Maximum Flow Rate (GPM): 0.16

• Maximum Operating Temperature (°F): 180
• Maximum Output (cm³): 10

• Maximum Pump Speed (CPM): 60

• Maximum Viscosity (cP): 3000000

• Maximum Working Pressure (psi): 3500
