Other Pumps

GG 226940

FAST-FLO PUMP, 1:1, CS, 55 GAL

1:1 Ratio Fast-Flo Air Operated Piston Transfer Carbon Steel/Stainless Steel Drum Pump with T&L Packing

Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.

Maximum delivery up to 5 gpm (19 lpm) and maximum fluid working pressure up to 180 psi (12 bar). Ideal for lower viscosity fluids.Air-powered for high reliability and low costDelivery up to 5 gpm (19 lpm)Available in stainless steel or carbon steelUL options available when installed in accordance with NFPA

GG 226941

FAST-FLO PUMP, 1:1, CS, 55 GAL

1:1 Ratio Fast-Flo Air Operated Piston Transfer Carbon Steel/Stainless Steel Drum Pump with PE Packing

Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.

Maximum delivery up to 5 gpm (19 lpm) and maximum fluid working pressure up to 180 psi (12 bar). Ideal for lower viscosity fluids.Air-powered for high reliability and low costDelivery up to 5 gpm (19 lpm)Available in stainless steel or carbon steelUL options available when installed in accordance with NFPA

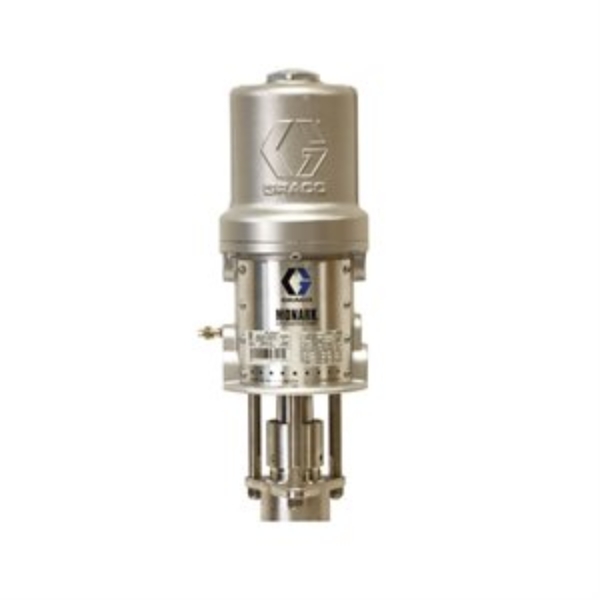

GG 224343

MONARK PUMP, 5:1

Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, UHMWPE/PTFE PackingsDesigned for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers and varnishes.Drum and stubby length models available for mounting and application flexibilityPositive displacement, 2-ball piston design provides uniform and easily controlled deliveryStainless steel or carbon steel models available to handle various fluidsFluid return stanchion for circulation back to the pumpUltra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids

GG 226946

FAST-FLO PUMP, (1:1), CS, 55 GAL

Graco 226946 1:1 Ratio Fast-Flo Air Operated Piston Transfer Carbon Steel/Stainless Steel Drum Pump with T Packing

Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.

Application: Maximum delivery up to 5 gpm (19 lpm) and maximum fluid working pressure up to 180 psi (12 bar). Ideal for lower viscosity fluids.

• Air-powered for high reliability and low cost
• Delivery up to 5 gpm (19 lpm)
• Available in stainless steel or carbon steel

• Model: Fast-Flo

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Height (in): 34.6

• Compatible Material: Antifreeze, Asphalt, Windshield Washer Fluid, Motor Oil, Used Oil, Hydraulic Fluid, Oil, Ink

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 100

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Intermittent Cycle Rate (CPM): 4

• Maximum Working Pressure (bar): 12.4
• Maximum Working Pressure (kPa): 1240
• Maximum Working Pressure (MPa): 1.2
• Maximum Working Pressure (psi): 180

• Minimum Flow Rate (GPM): 180

• Package Options: None

• Portable: Non-Portable

• Power Type: Pneumatic

• Pump Ratio: 1:1

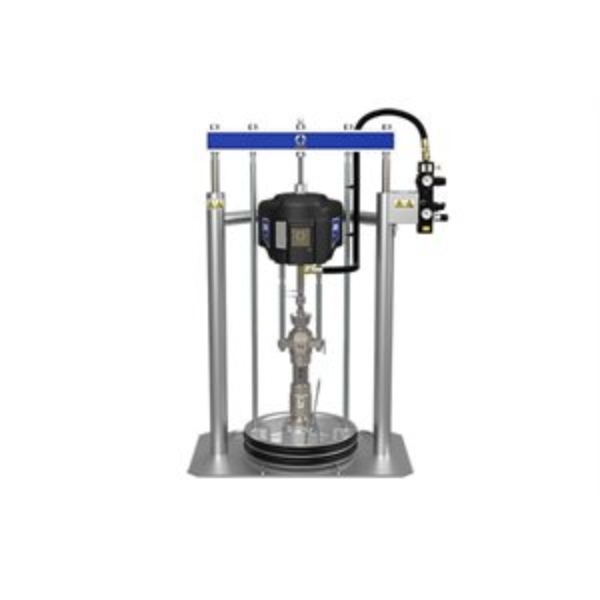

GG CM2L59

CHECK-MATE SUPPLY UNIT, 68:1, 3.0 RAM, 200L

68:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.For large drums up to 200 liter (55 gal)Graco D200 - For high-volume in-plant applicationsIndustry-first controls give you immediate and important information at the touch of a buttonQuick placement of drumPlaten wipers can be replaced in secondsPump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ramHigh-quality, durable parts reduce maintenance time, maximize uptime

GG 224350

MONARK PUMP, 5:1

Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, Drum Length, UHMWPE/PTFE PackingsDesigned for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers and varnishes.Drum and stubby length models available for mounting and application flexibilityPositive displacement, 2-ball piston design provides uniform and easily controlled deliveryStainless steel or carbon steel models available to handle various fluidsFluid return stanchion for circulation back to the pumpUltra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids

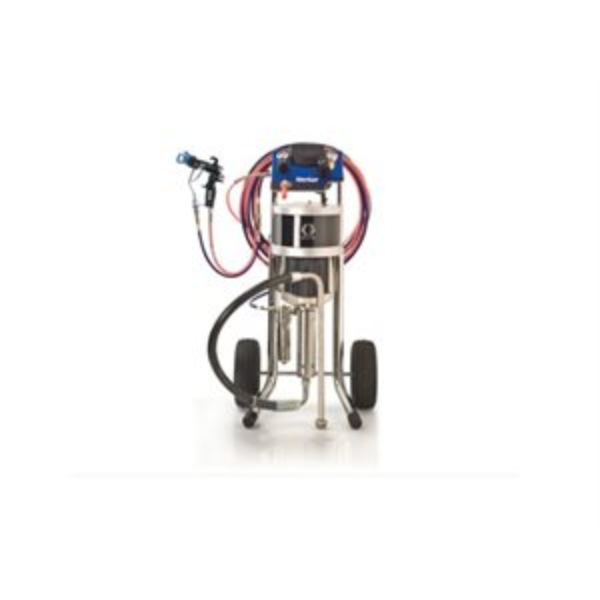

GG B15FA0

15:1 Merkur Bellows Pump, Assembly, 150Cc, Std

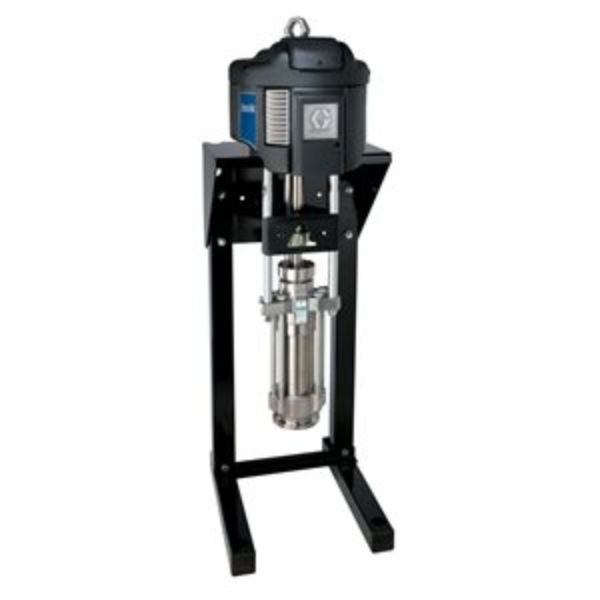

GG P23LSA

DURA-FLO PUMP, 6500/580

Dura-Flo NXT 2-Ball Piston Pump, 23:1, Low Noise Exhaust Motor, SST, 3 UHMW / 2 PTFE Packings

Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

Positive displacement, 2 ball piston design provides uniform and easily controlled deliveryHigh pump pressure and flow performance to handle a broad range of paints and coatingsImproved serviceability with fewer parts, faster repairs and lower ownership costMonitor and protect your pump with DataTrak

GG 563306

MODU-FLO PUMP, ASSY AL-25

Modu-Flo® AL-25 Pneumatic Pump without Reservoir

Mix and match pumps, reservoir and manifolds in any configuration to meet any application. Replace the pump or reservoir without disconnecting lubrication lines.

Easy to standardize on components and reduce inventoryAdjustable pump output for fast, convenient customizingLubriquip part number 521-000-021

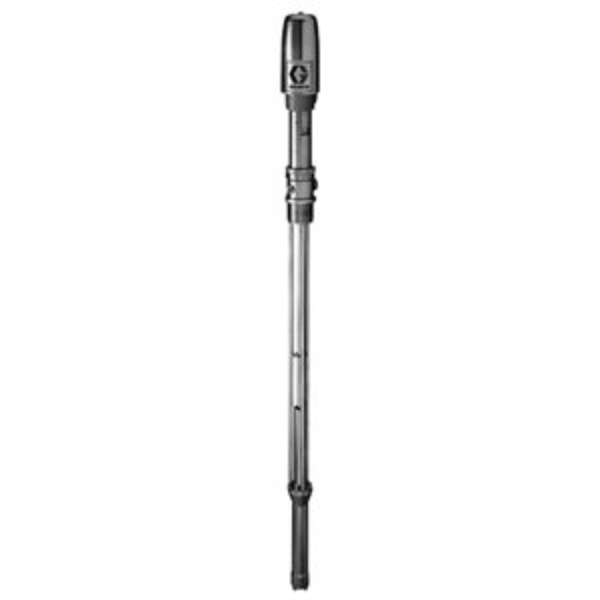

GG 223954

2:1 Standard Pump, Pail (Sst)

GG 24W347

ENDURA-FLO PUMP, 4:1 AODD, 150, BSP, STD

Endura-Flo 4D150, 4:1 Air Operated Diaphragm Pump, 150cc, BSPPThe Endura-Flo 4D offers the industry’s highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money.Endure-Flo diaphragms last longer against extreme operating conditionsEasy access to critical components for fast online maintenancePumps offer low pulsation output and smooth changeover for quick color changes, saving you time and moneyMinimal solvent to flush and consistent startup pressure make it perfect for multiple color change and piggable systemsCustom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges

GG 237129

FAST-FLO PUMP, (1:1)

Graco 237129 1:1 Ratio Fast-Flo Air Operated Piston Transfer Stainless Steel Drum Pump with T Packing

Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.

Application: Maximum delivery up to 5 gpm (19 lpm) and maximum fluid working pressure up to 180 psi (12 bar). Ideal for lower viscosity fluids.

• Air-powered for high reliability and low cost
• Delivery up to 5 gpm (19 lpm)
• Available in stainless steel or carbon steel

• Model: Fast-Flo

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Height (in): 34.6

• Compatible Material: Antifreeze, Asphalt, Windshield Washer Fluid, Motor Oil, Used Oil, Hydraulic Fluid, Oil, Ink

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 100

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Intermittent Cycle Rate (CPM): 4

• Maximum Working Pressure (bar): 12.4
• Maximum Working Pressure (kPa): 1240
• Maximum Working Pressure (MPa): 1.2
• Maximum Working Pressure (psi): 180

• Minimum Flow Rate (GPM): 180

• Package Options: None

• Portable: Non-Portable

• Power Type: Pneumatic

• Pump Ratio: 1:1

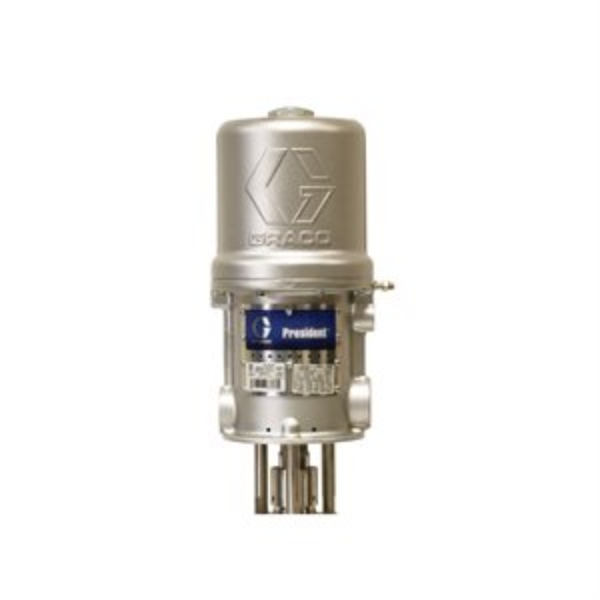

GG 224348

PRESIDENT PUMP, 10:1

President 10:1 Pneumatic 2-Ball Piston Pump, SST, Drum, UHMWPE/PTFE Packings2-ball pneumatic piston pumps for a wide range of applications.Reliable President air motor designed for low maintenance operation and long lifePositive displacement, 2-ball piston design provides uniform and easily controlled deliveryStainless steel or carbon steel models available to handle various fluids, including catalyzed materials

GG 260407

PUMP, PISTON HAND, FUEL

Graco 260407 Piston Hand Pump for Petroleum Products

• Lightweight die cast aluminum construction
• Corrosion resistant design
• High quality piston seals are designed for long life and smooth operation.
• Adjustable bung adapter allows pump to be rotated
• One quart per stroke gives fast, efficient fluid transfer
• Locking mechanism prevents unauthorized dispensing

• Application: Industrial

• Compatible Material: Oil, Grease

• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 0.75
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Hose, Die Cast Aluminum Nozzle, Inlet Suction Tube, Bung Adapter

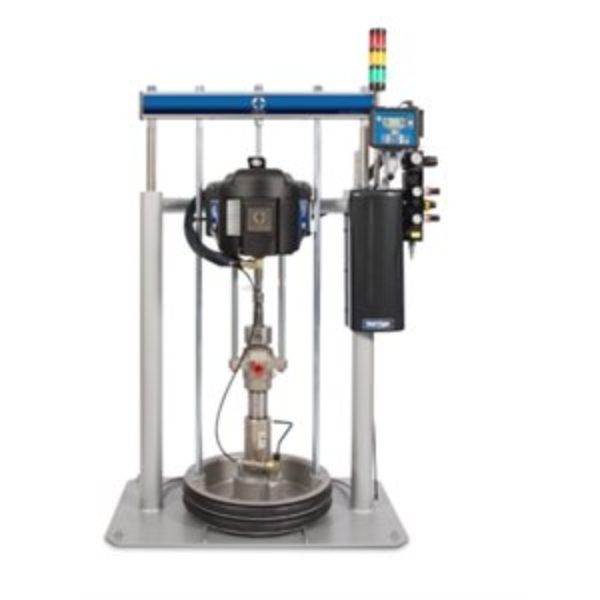

GG CM155A

CHECK-MATE SUPPLY UNIT, 63:1, 3.0 RAM, 200L

Graco CM155A 63:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm 2): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.1

• Maximum Fluid Pressure (bar): 434.4
• Maximum Fluid Pressure (kPa): 43440
• Maximum Fluid Pressure (psi): 6300

• Maximum Fluid Pressure (bar): 434.4
• Maximum Fluid Pressure (kPa): 43440
• Maximum Fluid Pressure (psi): 6300

• Maximum Height (cm): 259.9
• Maximum Height (ft): 8.53
• Maximum Height (in): 102.3
• Maximum Height (m): 2.6
• Maximum Height (mm): 2599

• Maximum Operating Temperature ( degree C): 49
• Maximum Operating Temperature ( degree F): 120

• Maximum Working Pressure (bar): 441
• Maximum Working Pressure (kPa): 44100
• Maximum Working Pressure (MPa): 44.1
• Maximum Working Pressure (psi): 6300

• Minimum Height (cm): 164.6
• Minimum Height (ft): 5.4
• Minimum Height (in): 64.8
• Minimum Height (m): 1.65
• Minimum Height (mm): 1646

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 106.7
• Overall Width (in): 42
• Overall Width (mm): 1067

• Power Type: Pneumatic

• Pump Ratio: 63:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

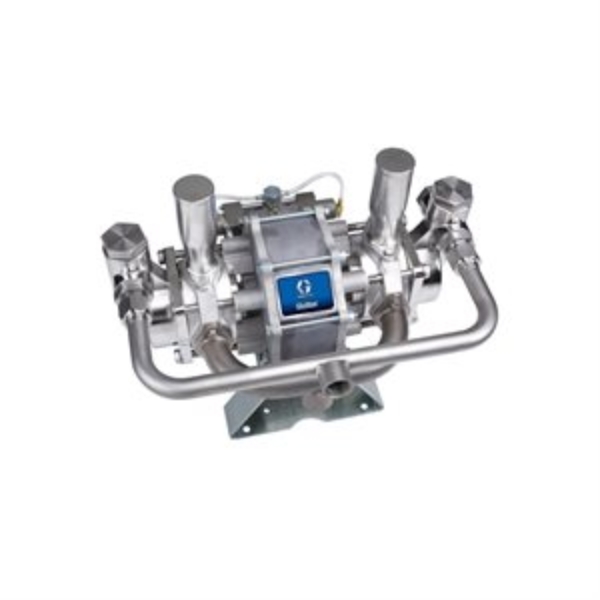

GG 220663

GLUTTON PUMP, (4:1 CS)

Glutton 4:1 Bellows Pump, CS, UHMWPE SealsThe Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materialsDesigned to handle a broad range of applications, including abrasive materialsReversible outlet manifold simplifies plumbing installationsVertical ball checks design ensures uniform ball wear and long life

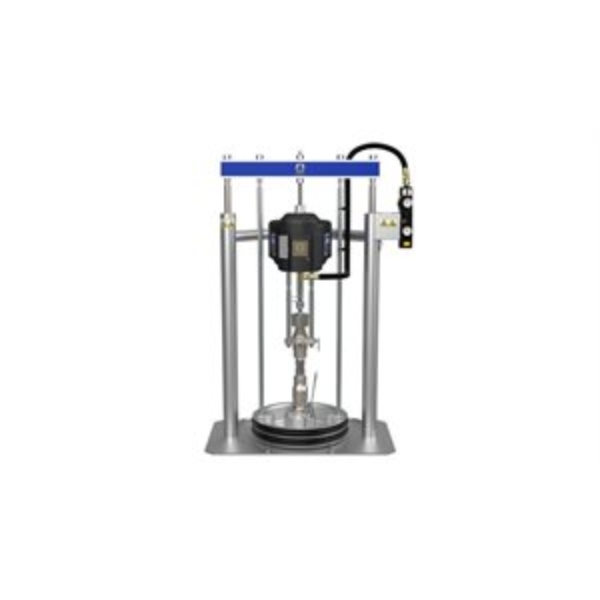

GG CM1559

CHECK-MATE SUPPLY UNIT, 63:1, 3.0 RAM, 200L

63:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.For large drums up to 200 liter (55 gal)Graco D200 - For high-volume in-plant applicationsIndustry-first controls give you immediate and important information at the touch of a buttonQuick placement of drumPlaten wipers can be replaced in secondsPump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ramHigh-quality, durable parts reduce maintenance time, maximize uptime

GG 25M740

ENDURA-FLO PUMP, 3:1 AODD, 150, NPT, STD

Endura-Flo 3D150, 3:1 Air Operated Diaphragm Pump, 150cc, NPTThe Endura-Flo 3D offers extended durability. The isolated air section of the 3:1 Endura-Flo pump prevents fluids from entering the air section and muffler. Ideal for fluid transfer and supply, small paint circulation and piggable paint systems requiring a lower pressure range and seeking extended diaphragm life.Endure-Flo diaphragms last longer against extreme operating conditionsEasy access to critical components for fast online maintenancePumps offer low pulsation output and smooth changeover for quick color changes, saving you time and moneyMinimal solvent to flush and consistent startup pressure make it perfect for multiple color change and piggable systemsCustom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges

GG 25M761

ENDURA-FLO PUMP, 3:1 AODD, 350, NPT, ADV

Endura-Flo 3D350, 3:1 Air Operated Diaphragm Pump, 350cc, NPT, DataTrakThe Endura-Flo 3D offers extended durability. The isolated air section of the 3:1 Endura-Flo pump prevents fluids from entering the air section and muffler. Ideal for fluid transfer and supply, small paint circulation and piggable paint systems requiring a lower pressure range and seeking extended diaphragm life.Endure-Flo diaphragms last longer against extreme operating conditionsEasy access to critical components for fast online maintenancePumps offer low pulsation output and smooth changeover for quick color changes, saving you time and moneyMinimal solvent to flush and consistent startup pressure make it perfect for multiple color change and piggable systemsCustom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridgesDataTrek option prevents runaway and tracks material usage

GG D73311

1In Dia Pump, Alu, Sst/tef/tef

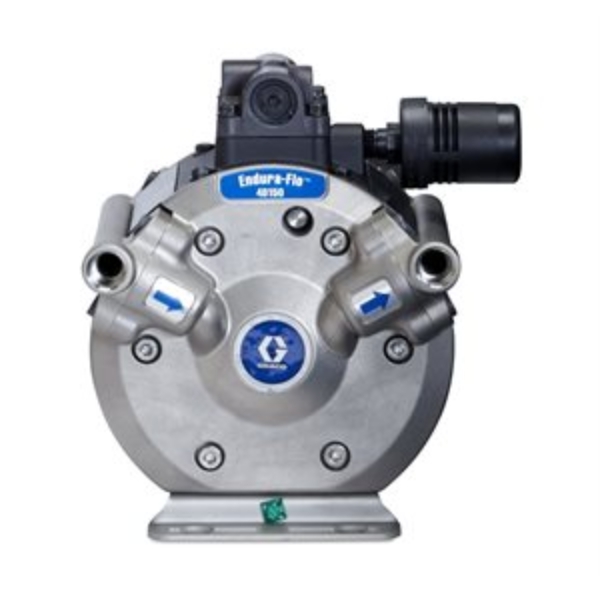

GG 24W346

ENDURA-FLO PUMP, 4:1 AODD, 150, NPT, STD

Endura-Flo 4D150, 4:1 Air Operated Diaphragm Pump, 150cc, NPTThe Endura-Flo 4D offers the industry’s highest-pressure ratio at 4:1. This easy to install pump is ideal for fluid transfer and supply, paint circulation, and piggable paint systems. Low pulsation output and smooth changeover for quick color changes ultimately save you time and money.Endure-Flo diaphragms last longer against extreme operating conditionsEasy access to critical components for fast online maintenancePumps offer low pulsation output and smooth changeover for quick color changes, saving you time and moneyMinimal solvent to flush and consistent startup pressure make it perfect for multiple color change and piggable systemsCustom mounting options include rotatable fluid manifolds, mounting brackets and spring loaded check cartridges

GG 235870

PUMP, EXTRUDER, SST, 190

DynaMite Pump Assembly

The Graco DynaMite Pump utilizes the NXT air motor to provide the power necessary to move viscous materials.

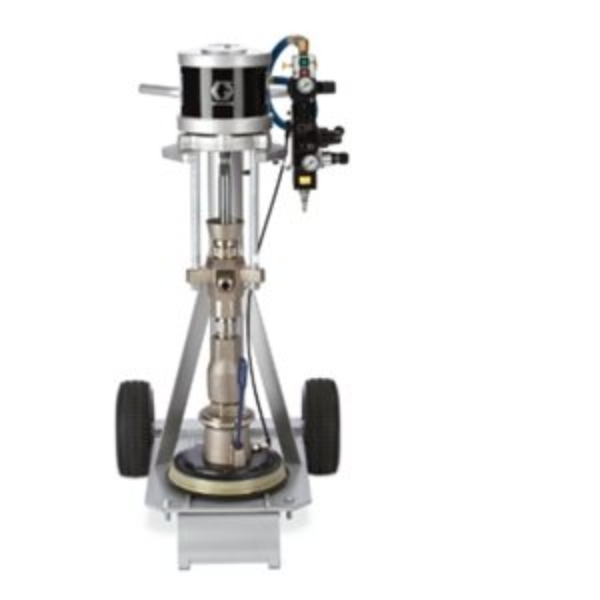

GG CM7A3B

CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, S20, 20L

20:1 Ratio 20 L S20 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air MotorsGraco S20 - For low-volume applications of medium to high-viscosity materialsIndustry-first controls give you immediate and important information at the touch of a buttonQuick placement of pailPlaten wipers can be replaced in secondsPump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ramHigh-quality, durable parts reduce maintenance time, maximize uptime

GG 220666

GLUTTON PUMP, (4:1 SST)

Glutton 4:1 Bellows Pump, SST, UHMWPE SealsThe Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materialsDesigned to handle a broad range of applications, including abrasive materialsReversible outlet manifold simplifies plumbing installationsVertical ball checks design ensures uniform ball wear and long life

GG C100-V2

Lsr Pump, 2-Ball Cat, 7:1 To 15:1, U
