Reels

GG XDL56B

XDX SERIES 20 REEL, HOSE

Graco XDL56B XDX 20, Air/Water/Antifreeze/WWS, 1/2 in (13 mm) Inlet, 3/8 in X 65 ft (10 mm X 20 m) Hose, NPT, Truck/Bench Mount, Metallic Blue

Graco's heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame, steel spool, sealed components and innovative swivel design for high-quality performance in the most demanding applications.

• Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
• Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

• Series: 20

• Application: Air, Water, Antifreeze, WWS

• Color: Metallic Blue

• Frame Type: Dual Pedestal

• Hose Inside Diameter (in): 3/8
• Hose Inside Diameter (mm): 9.525
• Hose Length (ft): 65
• Hose Length (m): 20

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Gender: Male
• Inlet Thread Type: NPSM

• Maximum Temperature (°C): 87
• Maximum Temperature (°F): 190

• Maximum Working Pressure (psi): 300

• Minimum Temperature (°C): -28
• Minimum Temperature (°F): -20

• Mount Location: Truck Mount, Bench Mount

• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Male

• Overall Height (in): 25.2
• Overall Height (mm): 640
• Overall Length (in): 23.4
• Overall Length (mm): 594
• Overall Width (in): 7.5
• Overall Width (mm): 191

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Air, Water, Antifreeze, WWS

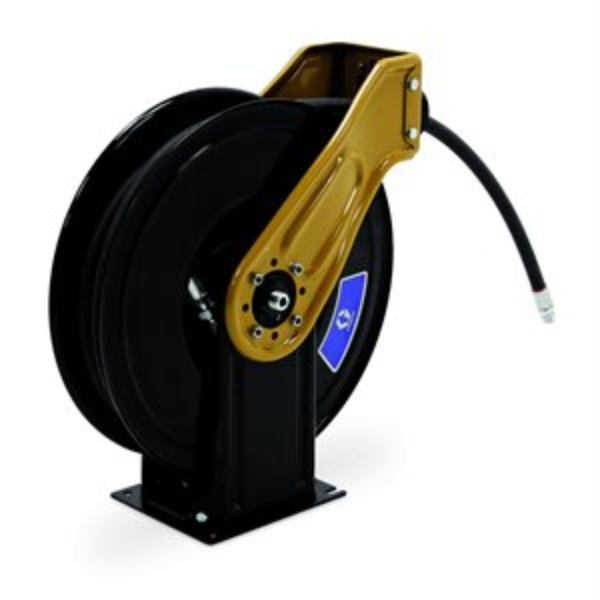

GG XDM65F

XDX SERIES 20 REEL, HOSE

Graco XDM65F XDX 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Truck/Bench Mount, Yellow

Graco's heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame, steel spool, sealed components and innovative swivel design for high-quality performance in the most demanding applications.

• Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
• Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

• Series: 20

• Application: Oil

• Color: Yellow

• Frame Type: Dual Pedestal

• Hose Inside Diameter (in): 1/2
• Hose Inside Diameter (mm): 12.7
• Hose Length (ft): 50
• Hose Length (m): 15

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Gender: Male
• Inlet Thread Type: NPSM

• Maximum Temperature (°C): 87
• Maximum Temperature (°F): 190

• Maximum Working Pressure (psi): 2000

• Minimum Temperature (°C): -28
• Minimum Temperature (°F): -20

• Mount Location: Truck Mount, Bench Mount

• Outlet Size (in): 1/2
• Outlet Size (mm): 12.7
• Outlet Thread Gender: Male

• Overall Height (in): 25.2
• Overall Height (mm): 640
• Overall Length (in): 23.4
• Overall Length (mm): 594
• Overall Width (in): 7.5
• Overall Width (mm): 191

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Oil

RC 7850 OLP

RC 7650 OHP

PV PLA 2000

WM XA-142140802021

GG XDM33B

XDX SERIES 10 REEL, HOSE

Graco XDM33B XDX 10, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 35 ft (13 mm X 11 m) Hose, NPT, Truck/Bench Mount, Metallic Blue

Graco's heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame, steel spool, sealed components and innovative swivel design for high-quality performance in the most demanding applications.

• Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
• Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

• Series: 10

• Application: Oil

• Color: Metallic Blue

• Frame Type: Dual Pedestal

• Hose Inside Diameter (in): 1/2
• Hose Inside Diameter (mm): 12.7
• Hose Length (ft): 35
• Hose Length (m): 11

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Gender: Male
• Inlet Thread Type: NPSM

• Maximum Temperature (°C): 87
• Maximum Temperature (°F): 190

• Maximum Working Pressure (psi): 2000

• Minimum Temperature (°C): -28
• Minimum Temperature (°F): -20

• Mount Location: Truck Mount, Bench Mount

• Outlet Size (in): 1/2
• Outlet Size (mm): 12.7
• Outlet Thread Gender: Male

• Overall Height (in): 25.2
• Overall Height (mm): 640
• Overall Length (in): 18.5
• Overall Length (mm): 473
• Overall Width (in): 7.5
• Overall Width (mm): 191

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Oil

GG XDM33D

XDX SERIES 10 REEL, HOSE

Graco XDM33D XDX 10, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 35 ft (13 mm X 11 m) Hose, NPT, Truck/Bench Mount, Black

Graco's heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame, steel spool, sealed components and innovative swivel design for high-quality performance in the most demanding applications.

• Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
• Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

• Series: 10

• Application: Oil

• Color: Black

• Frame Type: Dual Pedestal

• Hose Inside Diameter (in): 1/2
• Hose Inside Diameter (mm): 12.7
• Hose Length (ft): 35
• Hose Length (m): 11

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Gender: Male
• Inlet Thread Type: NPSM

• Maximum Temperature (°C): 87
• Maximum Temperature (°F): 190

• Maximum Working Pressure (psi): 2000

• Minimum Temperature (°C): -28
• Minimum Temperature (°F): -20

• Mount Location: Truck Mount, Bench Mount

• Outlet Size (in): 1/2
• Outlet Size (mm): 12.7
• Outlet Thread Gender: Male

• Overall Height (in): 25.2
• Overall Height (mm): 640
• Overall Length (in): 18.5
• Overall Length (mm): 473
• Overall Width (in): 7.5
• Overall Width (mm): 191

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Oil

WM XA-121120302511

WM XA-192140408011

GG XDH55D

XDX SERIES 20 REEL, HOSE

Graco XDH55D XDX 20, Grease, 1/2 in (13 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT, Truck/Bench Mount, Black

Graco's heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame, steel spool, sealed components and innovative swivel design for high-quality performance in the most demanding applications.

• Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
• Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

• Model: XDX
• Series: 20

• Application: Grease

• Color: Black

• Frame Type: Dual Pedestal

• Hose Inside Diameter (in): 3/8
• Hose Inside Diameter (mm): 9.525
• Hose Length (ft): 50
• Hose Length (m): 15

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Gender: Male
• Inlet Thread Type: NPSM

• Maximum Temperature (°C): 93
• Maximum Temperature (°F): 200

• Maximum Working Pressure (psi): 4800

• Minimum Temperature (°C): -40
• Minimum Temperature (°F): -40

• Mount Location: Truck Mount, Bench Mount

• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35
• Outlet Thread Gender: Male

• Overall Height (in): 25.2
• Overall Height (mm): 640
• Overall Length (in): 21
• Overall Length (mm): 533
• Overall Width (in): 7.5
• Overall Width (mm): 191

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Grease

GG XDL56F

XDX SERIES 20 REEL, HOSE

Graco XDL56F XDX 20, Air/Water/Antifreeze/WWS, 1/2 in (13 mm) Inlet, 3/8 in X 65 ft (10 mm X 20 m) Hose, NPT, Truck/Bench Mount, Yellow

Graco's heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame, steel spool, sealed components and innovative swivel design for high-quality performance in the most demanding applications.

• Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
• Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

• Series: 20

• Application: Air, Water, Antifreeze, WWS

• Color: Yellow

• Frame Type: Dual Pedestal

• Hose Inside Diameter (in): 3/8
• Hose Inside Diameter (mm): 9.525
• Hose Length (ft): 65
• Hose Length (m): 20

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Gender: Male
• Inlet Thread Type: NPSM

• Maximum Temperature (°C): 87
• Maximum Temperature (°F): 190

• Maximum Working Pressure (psi): 300

• Minimum Temperature (°C): -28
• Minimum Temperature (°F): -20

• Mount Location: Truck Mount, Bench Mount

• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Male

• Overall Height (in): 25.2
• Overall Height (mm): 640
• Overall Length (in): 23.4
• Overall Length (mm): 594
• Overall Width (in): 7.5
• Overall Width (mm): 191

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Air, Water, Antifreeze, WWS

GG XDL65B

XDX SERIES 20 REEL, HOSE

Graco XDL65B XDX 20, Air/Water/Antifreeze/WWS, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue

Graco's heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame, steel spool, sealed components and innovative swivel design for high-quality performance in the most demanding applications.

• Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
• Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

• Series: 20

• Application: Air, Water, Antifreeze, WWS

• Color: Metallic Blue

• Frame Type: Dual Pedestal

• Hose Inside Diameter (in): 1/2
• Hose Inside Diameter (mm): 12.7
• Hose Length (ft): 50
• Hose Length (m): 15

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Gender: Male
• Inlet Thread Type: NPSM

• Maximum Temperature (°C): 87
• Maximum Temperature (°F): 190

• Maximum Working Pressure (psi): 300

• Minimum Temperature (°C): -28
• Minimum Temperature (°F): -20

• Mount Location: Truck Mount, Bench Mount

• Outlet Size (in): 1/2
• Outlet Size (mm): 12.7
• Outlet Thread Gender: Male

• Overall Height (in): 25.2
• Overall Height (mm): 640
• Overall Length (in): 23.4
• Overall Length (mm): 594
• Overall Width (in): 7.5
• Overall Width (mm): 191

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Air, Water, Antifreeze, WWS

GG XDM65B

XDX SERIES 20 REEL, HOSE

Graco XDM65B XDX 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue

Graco's heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame, steel spool, sealed components and innovative swivel design for high-quality performance in the most demanding applications.

• Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
• Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

• Series: 20

• Application: Oil

• Color: Metallic Blue

• Frame Type: Dual Pedestal

• Hose Inside Diameter (in): 1/2
• Hose Inside Diameter (mm): 12.7
• Hose Length (ft): 50
• Hose Length (m): 15

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Gender: Male
• Inlet Thread Type: NPSM

• Maximum Temperature (°C): 87
• Maximum Temperature (°F): 190

• Maximum Working Pressure (psi): 2000

• Minimum Temperature (°C): -28
• Minimum Temperature (°F): -20

• Mount Location: Truck Mount, Bench Mount

• Outlet Size (in): 1/2
• Outlet Size (mm): 12.7
• Outlet Thread Gender: Male

• Overall Height (in): 25.2
• Overall Height (mm): 640
• Overall Length (in): 23.4
• Overall Length (mm): 594
• Overall Width (in): 7.5
• Overall Width (mm): 191

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Oil

IW 8001

PV DGF 1310IS

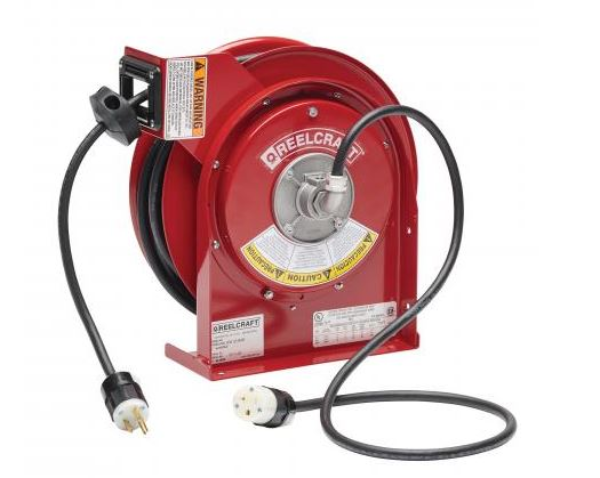

RC L4545 123 3A-RP

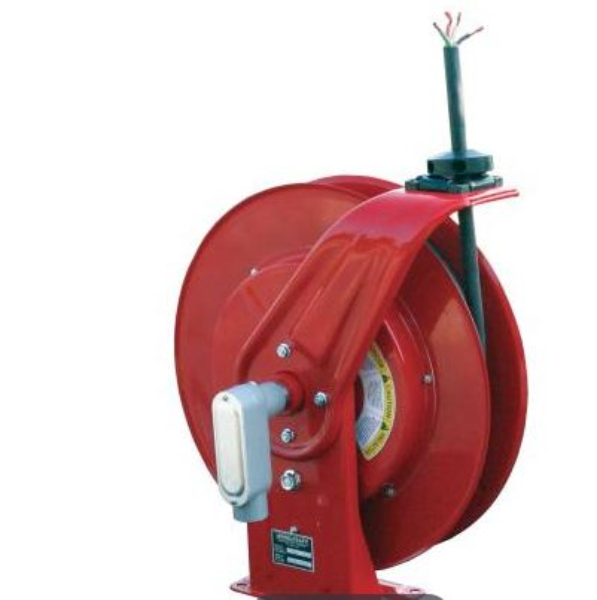

RC L7050 104X

WM XA-142120404021

WM XA-142161003011

WM XA-142161003021

WM XA-142161003031

WM XA-192140408021

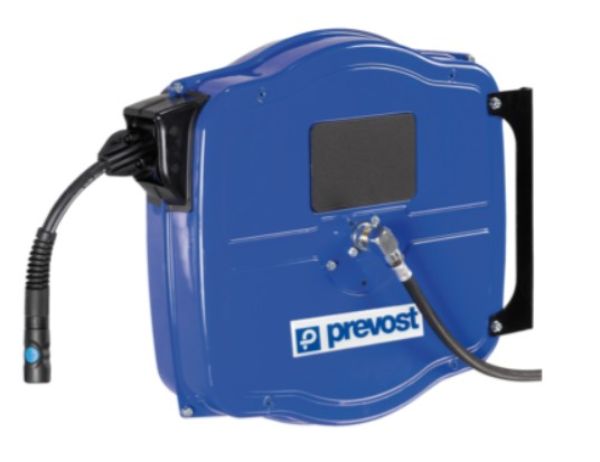

PV DGF 1015IS
