GRACO INC. S10595

GG 95/0850/11

GG 16T531

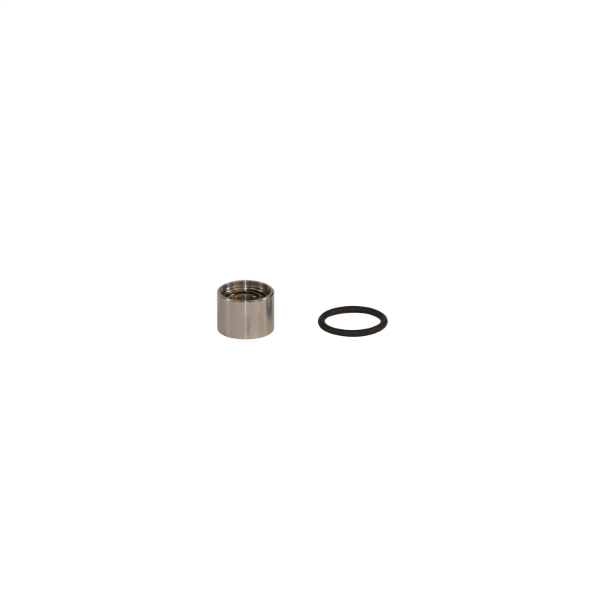

KIT,SCRAPER,CARTRIDGE

Graco 16T531 Scraper Cartridge Kit

KIT INCLUDES: PACKING, O-RING, 015, VITON [QTY. 1], HOUSING, SCRAPER, CARTRIDGE, ASSY [QTY. 1]

GG 25A207

GG 25A247

GG 25A298

KIT, DIAPHRAGM-D2 PT

GG 25A915

GG 25A909

GG 25A600

GG 25A918

GG 25A861

KIT, 1050 IND FK, FK, FK,

GG 25A859

KIT, 1050 IND PP, SP, SP, PT

GG 25A689

GG 25A863

KIT, 1050 IND SP, SP, SP, PT

GG 25A899

REGULATOR,ASSY,STACK,W/GUAGE

Graco 25A899 Material Regulator with Gauge

• Model: LSR

GG 25A856

GG 25A997

MODULE, STACK, LG MXR, VLV

Graco 25A997 Straight Thread Single Pass Mixing Stack with Material Valves

Straight Thread Single-Pass Mixing Stack designed for Graco F-5 two-component LSR equipment.

• Reduce pressure drops

  High-flow material passages on the regulator are 225% larger which reduces pressure drops through the barrel stack.

  • Easier to clean + assemble- No tapered national pipe thread (NPT) threads and regulator and mixer enhancements for greater clearance. Reduces cleaning time by 50 percent so you can spend more time producing parts.




  • Model: LSR
  • Air Line Tube Length (ft): 3
  • Air Line Tube Length (m): 0.915
  • Air Line Tube Outside Diameter (cm): 0.8
  • Air Line Tube Outside Diameter (in): 5/16
  • Air Line Tube Outside Diameter (mm): 8
  • For Use With: Fluid Automation F4 Series
  • Includes: Manifold, Mixer and Regulator, Manifold On/Off Valves, Solenoid Block With Two Solenoids
  • Number of Pieces: 12

GG 25A641

GG 25A693

BOX,CONTROL, TOUCH SCREEN

Graco 25A693 Touchscreen Box for Intelligent Paint Kitchen

GG 25A857

KIT, 1050 IND TP, AC, TP,

GG 25A914

GG 25A602

GG 25A830

BOX, SUPERVISOR

Graco 25A830 Supervisor Box, to communicate between the Pump Control Module, Tank Control Module, Variable Frequency Drives, and Touchscreen Box

GG 25A623

GG 25A855

GG 25A873

GG 25A862

GG 25A858

KIT, 1050 IND GE, GE, GE, PT

GG 25A481

REACTOR HEATED HOSE, 3500, W/SCUFF, 1/4X3/8

Graco 25A481 50 ft (15 m) Custom Application 2 Component Hose with 1/4 in (6.3 mm) and 3/8 in (9.5 mm) Inside Diameter

Graco's heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

• New multi-strand copper heating element has greatly increased hose quality:

  Provides 10-times* the flex life compared to previous flat copper heating element

  Long-term, even heating without hot spots

  Backwards compatible with existing Reactor heated hoses

  • Copper-heated hoses are designed specifically for use with Graco proportioners
  • Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
  • Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
  • Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
  • Helix-design whip hose uses braided copper wires for added flexibility and longer life




  • Model: Reactor Heated Hoses
  • Series: Specialty
  • For Use With: Plural Component Proportioners
  • Hose Inside Diameter (in): 3/8
  • Hose Inside Diameter (mm): 9.525
  • Hose Length (ft): 50
  • Hose Length (m): 15.2
  • Maximum Working Pressure (bar): 345
  • Maximum Working Pressure (kPa): 24100
  • Maximum Working Pressure (MPa): 34.5
  • Maximum Working Pressure (psi): 3500

GG 25A476

EXACTABLEND AGP SYSTEM,100CC/100CC,BOOM

Graco 25A476 Silicone ExactaBlend AGP Base Proportioner with Boom-Less One Lower Wiper

The Graco ExactaBlend AGP (Advanced Glazing Proportioner) provides on-ratio dispensing of two-component sealants and adhesives for curtainwall, insulating glass and other applications. The variable ratio ExactaBlend AGP offers advanced technologies at an affordable price.

Application: Precise application of silicone materials in insulating glass or structural glazing applications is critical for delivering superior adhesion, durability and leak-free performance.Advanced pumping technology creates a better, more consistent bead – which results in reduced rework and less wasted material.

• Superior mixing and ratio assurance for the glass industry
• Optimal mixing and on-ratio proportioning capabilities for quality assurance
• Quick and easy base purge reduces material waste Optional data download provides reports on ratio, flow rate and material usage
• Angle adapter kit makes work easier and more comfortable
• Easy to operate

• Series: AGP

• Amperage (A): 4

• Compatible Material: Solventborne, High Solids, Xirallic, Metallics, Varnish, CARC

GG 25A998

MODULE, STACK, LG MXR, VLV, CLR

Graco 25A998 Straight Thread Single Pass Mixing Stack with A/B Material Valves and Color Injector

Straight Thread Single-Pass Mixing Stack designed for Graco F-5 two-component LSR equipment.

• Reduce pressure drops

  High-flow material passages on the regulator are 225% larger which reduces pressure drops through the barrel stack.

  • Easier to clean + assemble- No tapered national pipe thread (NPT) threads and regulator and mixer enhancements for greater clearance. Reduces cleaning time by 50 percent so you can spend more time producing parts.




  • Model: LSR
  • Air Line Tube Length (ft): 3
  • Air Line Tube Length (m): 0.915
  • Air Line Tube Outside Diameter (cm): 0.8
  • Air Line Tube Outside Diameter (in): 5/16
  • Air Line Tube Outside Diameter (mm): 8
  • For Use With: Fluid Automation F4 Series
  • Includes: Manifold, Mixer and Regulator, Manifold On/Off Valves, Solenoid Block With Three Solenoids
  • Number of Air Line Tubes: 4
  • Number of Color Injectors: 1
  • Number of Pieces: 12

GG 25B001

GG 25B006

GG 25B010

GG 25B012

GG 25B013

GG 25B015

GG 25B021

APPLICATOR, GM100, SINGLE, 24VDC, PT100

Graco 25B021 GM100 Single Slim 24 VDC Applicator with Pt 100 RTD

With the InvisiPac Hot Melt Adhesive Applicator, you'll experience a new era in hassle-free operation with improved uptime. With its innovative free-flow manifold design and integrated applicator filtering - when used with the InvisiPac System - you can eliminate nozzle plugs. You'll finally have a hot melt system that runs reliably, unnoticed and invisible.

• Adhesive is processed in a better way

  The applicators free-flow manifold design is engineered to eliminate dead zones where char will build up

  Module includes an integrated filter assembly near the ball and seat junction that eliminates nozzle plugging

  Adhesive spends less time at high temperature, resulting in less char

  Changes in the heated hose construction significantly reduce the formation of char in the hose itself

  Less char allows you to use lower cost adhesives and save money

  • Works with the InvisiPac Tank-Free Hot Melt Delivery System
  • Quick start-up - ready in less than 10 minutes
  • Less char results in less nozzle plugging, less system maintenance and more uptime




  • Model: InvisiPac
  • Series: GM100
  • Ambient/Warm Melt/Hot Melt: Hot Melt
  • Application: Bonding, Sealing
  • Component Type: Single Component
  • For Use With: InvisiPac GM100 Plug-Free
  • Gun Activation: Automatic
  • Includes: Manual
  • Maximum Air Pressure (bar): 5.5
  • Maximum Air Pressure (kg/cm 2): 5.62
  • Maximum Air Pressure (kPa): 550
  • Maximum Air Pressure (MPa): 0.5
  • Maximum Air Pressure (psi): 80
  • Maximum Fluid Pressure (bar): 103
  • Maximum Fluid Pressure (kg/cm 2): 105.46
  • Maximum Fluid Pressure (kPa): 10300
  • Maximum Fluid Pressure (MPa): 10.3
  • Maximum Fluid Pressure (psi): 1500
  • Maximum Fluid Pressure (bar): 103
  • Maximum Fluid Pressure (kg/cm 2): 105.46
  • Maximum Fluid Pressure (kPa): 10300
  • Maximum Fluid Pressure (MPa): 10.3
  • Maximum Fluid Pressure (psi): 1500
  • Meter Type: Time Pressure
  • Minimum Air Inlet Pressure (bar): 4.4
  • Minimum Air Inlet Pressure (kg/cm 2): 4.57
  • Minimum Air Inlet Pressure (kPa): 440
  • Minimum Air Inlet Pressure (MPa): 0.44
  • Minimum Air Inlet Pressure (psi): 65
  • Number of Modules: 1
  • Number of Outputs: 1

GG 25B034

GG 25B031

GG 25B041

GG 25B081

GG 25B082

GG 25B123

KIT,CHECK VALVE,EFR

KIT INCLUDES: HOUSING, CHECK VALVE [QTY. 2], RETAINER, CHECK VALVE [QTY. 2], RETAINER, HOUSING, BALL [QTY. 2], SPRING, CONICAL, 1X.85X.281, SST [QTY. 2], BALL, .500, SILICON-NITRIDE, BLK [QTY. 2], SEAT, LAPPED [QTY. 2], O-RING, [QTY. 2], RETAINER, SPRING, PUMP [QTY. 2], PACKING, O-RING [QTY. 3], LUBRICANT, ANTI-SEIZE [QTY. 1], CAP, INLET VALVE [QTY. 1]

GG 25B128

KIT,INLET TRANSDUCER,EFR

KIT INCLUDES: BRACKET, SHELF, CONTROLS [QTY. 1], MODULE, GCA, CUBE, FCM [QTY. 1], MODULE, GCA, CUBE, BASE [QTY. 1], CABLE, CAN, FEMALE/FEMALE 1.0M [QTY. 1], SCREW, CAP, SOCKET HD [QTY. 4 ], WASHER, RETAINING [QTY. 2], SENSOR, PRESSURE, FLUID OUTLET [QTY. 2], ADAPTER, FITTING, PRESSURE SENSOR [QTY. 2], SCREW, CAP, SOCKET HEAD [QTY. 2], STRAP, TIE [QTY. 12 ], PACKING, O-RING 012 FX75 [QTY. 2]

GG 25B196

GG 25B241

KIT, GM100 MODULE

Graco 25B241 GM100 AC Module

KIT INCLUDES: MODULE, AC, GM100, INVISIPAC [QTY. 1], SCREW, VALVE [QTY. 2], LUBRICANT, ANTI-SEIZE [QTY. 1]

• Model: InvisiPac
• Series: GM100

• Channels: 4

GG 25B302

GG 25B296

KIT, PROCONTROL 1KE PLUS

Graco 25B296 ProControl 1KE Plus Closed Loop Fluid Pressure/Flow & Atomizing Air Control, ADCM, G3000, Regulators, Pressure Transducer, 2 I/P's

This ProControl 1KE Plus package includes everything manufacturers need to actively manage one component (1K) fluids, improve spray performance, and increase efficiency.

• Atomizing air control helps manual or automatic paint spray guns consistently produce a high quality finish.
• Closed loop control automatically and precisely adjusts fluid pressure or flow rate to maintain optimal spray performance, minimizing waste and maximizing quality.
• Flow monitor tracks precisely how much material goes through fluid lines, so that you can improve finishing processes and reduce waste.
• Full feature fluid management package works with manual paint spray guns or automatic spray applicators.

• Model: ProControl
• Series: 1KE Plus

• Control Box Voltage (V dc): 15

• Flow Control Type: Fluid Flow Control with Atomizing Air Control

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (psi): 100

• Maximum Fluid Inlet Pressure (bar): 7
• Maximum Fluid Inlet Pressure (psi): 100

• Maximum Fluid Inlet Pressure (bar): 7
• Maximum Fluid Inlet Pressure (psi): 100

• Maximum Operating Temperature ( degree C): 50
• Maximum Operating Temperature ( degree F): 120

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (MPa): 0.7
• Maximum Working Pressure (psi): 100

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Power Source: Order separate

GG 25B307

GG 25B304

GG 25B308

GG 25B403

GG 25B436

KIT, DIAPHRAGM-H6 SP

GG 25B449

GG 25B466

GG 25B471

MODULE,GATEWAY,ETHERNET

GG 25B473

MODULE,GATEWAY,PROFIBUS

GG 25B513

GG 25B589

GG 25C005

GG 25C157

KIT, FLANGE, SOLOTECH 30, BUNA

Graco 25C157 Kit, Flange to 1-1/4 Inch NPT Adapter, Buna Gasket

GG 25C187

GG 25C210

GG 25C212

GG 25C213

GG 25C281

GG 25C221

GG 25C418

SANIFORCE DRUM PUMP, 3A, 47" , 115V

Graco 25C418 Sanitary Progressive Cavity Drum Pump System with 115 Volt Variable Speed Motor and 47 inch Lower

Reduce maintenance and sanitization time at your facility with the SaniForce Drum Pump, designed for easy cleaning with quick tri-clamp connections, no moving parts and easy transferability.

• Easy Cleaning and Product Changeover

  With this simple knock down design, cleaning between drums or product changeovers has never been easier!

  • Operational Flexibility Throughout Your Facility

    With the electric pump operation, you simply plug it in to be ready for transfer in minutes!

    • Easy Mobility

      The light weight design allows all operators to move pumps between drums to increase facility output.

      • Certified to FDA standards
      • Simple design to facilitate easy cleaning and reduce maintenance and downtime
      • Flow rates up to 35 GPM (132 LPM) with a smooth output of material
      • Easily transferable from container to container and adaptable to drums, totes and kettles




      • Fluid Outlet Size (cm): 3.81
      • Fluid Outlet Size (in): 1-1/2
      • Fluid Outlet Size (mm): 38.1
      • Maximum Working Pressure (bar): 3
      • Maximum Working Pressure (kPa): 296
      • Maximum Working Pressure (psi): 43

GG 25C420

SANIFORCE DRUM PUMP, PC , 39" , 115V

Graco 25C420 Sanitary Progressive Cavity Drum Pump System with 115 Volt Variable Speed Motor and 39 Inch Lower

Reduce maintenance and sanitization time at your facility with the SaniForce Drum Pump, designed for easy cleaning with quick tri-clamp connections, minimal moving parts and easy transferability.

• Powered by variable speed electric motor
• Certified to FDA standards
• Simple design to facilitate easy cleaning and reduce maintenance and downtime
• Easily transferable from container to container and adaptable to drums, totes and kettles

• Fluid Outlet Size (cm): 3.81
• Fluid Outlet Size (in): 1.5
• Fluid Outlet Size (mm): 38.1

• Maximum Working Pressure (bar): 6
• Maximum Working Pressure (kPa): 600
• Maximum Working Pressure (MPa): 0.6
• Maximum Working Pressure (psi): 87

GG 25C450

MODULE,GCA,ADM

GG 25C451

AGITATOR, BACK GEAR, SIPHON

Graco 25C451 Electric Back Gear Drum Agitator with drum cover, elevator, siphon, shaft and blades, UL

Heavy-duty, electric, back-geared agitator (UL listed) mixes and maintains suspension of industrial coatings stored in 55 gallon (208 liter) drums.

• Electric agitators are up to 5 times more efficient than pneumatic agitators.
• Speed remains constant, regardless of material level in tank.
• Quiet motor improves work environment with a sound pressure level of less than 75 dBA at 30 rpm.

• For Use With: 55 Gallon (208 Liter) Drum

• Includes: Drum Cover, Elevator, Siphon, Shaft, Blade

• Maximum Operating Temperature ( degree C): 40
• Maximum Operating Temperature ( degree F): 104

• Maximum Speed (RPM): 50

• Maximum Viscosity (cP): 3000

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Motor Type: Electric

• Power Rating (HP): 0.75
• Power Rating (kW): 0.37

GG 25C454

AGITATOR, ASSY, DIRECT DRIVE

Graco 25C454 7.5 in OD Flange Mount Agitator Motor (3 in 150# ANSI Flange Mounting Holes), UL

Low shear, electric, direct drive agitator mixes and maintains suspension of industrial coatings stored in fluid tanks.

• Electric agitators are up to 5 times more efficient than pneumatic agitators.
• Speed remains constant, regardless of material level in tank.
• Low shear mixing ensures uniform particle dispersion without material degradation.

• For Use With: Drum or Pressure Tank

• Includes: Motor, Flange

• Maximum Operating Temperature ( degree C): 40
• Maximum Operating Temperature ( degree F): 104

• Maximum Speed (RPM): 500

• Maximum Viscosity (cP): 300

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Motor Type: Electric

• Power Rating (HP): 0.75
• Power Rating (kW): 0.37

GG 25C462

AGITATOR, ASSY, PRESSURE TANK 5 GAL

Graco 25C462 Pressure Tank Agitator Assembly, 5 gallon (19 L), UL

Low shear, electric, direct drive agitator mixes and maintains suspension of industrial coatings stored in fluid tanks.

• Electric agitators are up to 5 times more efficient than pneumatic agitators.
• Speed remains constant, regardless of material level in tank.
• Low shear mixing ensures uniform particle dispersion without material degradation.

• For Use With: 5 Gallon (19 Litre) Pressure Tank

• Includes: Shaft, Impeller

• Maximum Operating Temperature ( degree C): 40
• Maximum Operating Temperature ( degree F): 104

• Maximum Speed (RPM): 500

• Maximum Viscosity (cP): 300

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Motor Type: Electric

• Power Rating (HP): 0.75
• Power Rating (kW): 0.37

GG 25C471

AGITATOR, ASSY, PRESSURE TANK, 15 GAL

Graco 25C471 Pressure Tank Agitator Assembly, 15 gallon (56 L), UL

Low shear, electric, direct drive agitator (UL listed) mixes and maintains suspension of industrial coatings stored in fluid tanks. This model includes a shaft and impeller, but no pressure tank. It can replace existing air motor driven pressure tank agitators.

• Electric agitators are up to 5 times more efficient than pneumatic agitators.
• Speed remains constant, regardless of material level in tank.
• Low shear mixing ensures uniform particle dispersion without material degradation.

• For Use With: 15 Gallon (57 Litre) Pressure Tank

• Includes: Shaft, Impeller

• Maximum Operating Temperature ( degree C): 40
• Maximum Operating Temperature ( degree F): 104

• Maximum Speed (RPM): 500

• Maximum Viscosity (cP): 300

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Motor Type: Electric

• Power Rating (HP): 0.75
• Power Rating (kW): 0.37

GG 25C411

SANIFORCE DRUM PUMP, CENT , FDA, 39" , 115V

Graco 25C411 115 VAC Variable Speed Centrifugal Drum Pump System with North American Plug Style, and 39 inch Lower

Reduce maintenance and sanitization time at your facility with the SaniForce Drum Pump, designed for easy cleaning with quick tri-clamp connections, no moving parts and easy transferability.

• Easy Cleaning and Product Changeover
  • With this simple knock down design, cleaning between drums or product changeovers has never been easier!
• Operational Flexibility Throughout Your Facility
  • With the electric pump operation, you simply plug it in to be ready for transfer in minutes!
• Easy Mobility
  • The light weight design allows all operators to move pumps between drums to increase facility output.
• Simple design to facilitate easy cleaning and reduce maintenance and downtime
• Flow rates up to 35 GPM (132 LPM) with a smooth output of material
• Easily transferable from container to container and adaptable to drums, totes and kettles

• Fluid Outlet Size (cm): 3.81
• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1

• Maximum Flow Rate (GPM): 35
• Maximum Flow Rate (L/min): 132

• Maximum Working Pressure (bar): 3
• Maximum Working Pressure (kPa): 296
• Maximum Working Pressure (psi): 43

GG 25C468

GG 25C486

AGITATOR, BACK GEAR, SIPHON

Graco 25C486 Electric Back Gear Drum Agitator with siphon, shaft and blades, UL, drum cover and elevator not included

Heavy-duty, electric, back-geared agitator (UL listed) mixes and maintains suspension of industrial coatings stored in 55 gallon (208 liter) drums.

• Drum cover and elevator are not included.
• Speed remains constant, regardless of material level in tank.
• Quiet electric motor improves work environment.
• drum cover and elevator not included

• For Use With: 55 Gallon (208 Liter) Drum

• Includes: Siphon, Shaft, Blade

• Maximum Operating Temperature ( degree C): 40
• Maximum Operating Temperature ( degree F): 104

• Maximum Speed (RPM): 50

• Maximum Viscosity (cP): 3000

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Motor Type: Electric

• Power Rating (HP): 0.75
• Power Rating (kW): 0.37

GG 25C536

TANK, HIGH PRESS, AGIT 5 GAL

Graco 25C536 Agitator with pressure tank, 5 gallon (19 L)

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

• Use less compressed air than most rotary vane air motors.
• Install quickly and operate quietly.
• Maintain easily - air line lubrication not required.
• Control speed with Gracos Intelligent Paint Kitchen (IPK).
• Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Includes: 5 Gallon Pressure Tank

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Speed (RPM): 150

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Motor Type: Pneumatic - Radial Piston

GG SN712009

GG SN713005

GG SN713006

GG SN713007

GG SN713-1A-078-669

GG SN751-1A

LSR INJECTOR,ASSY,COLOR

GG SN750002

GG SP15.0103

SANIFORCE AODD PUMP, 15903A.PS02ASSASSPTEOEP21

Graco SP15.0103 SaniForce 2.0 3A Series Pneumatic Diaphragm Pump, 1590, S02A, SSA, SS, FK, E, C21

SaniForce pneumatic diaphragm pumps are designed to meet requirements for the most rigorous food, beverage, personal care, and pharmaceutical transfer applications. SaniForce AODD pumps reduce the amount of tri-clamps and gaskets utilized in the fluid path creating a pump that is easier to sanitize and clean as well as quicker and easier to disassemble and maintain. Handle solids up to 3.8 inches in diameter and allow for vertical and horizontal pump installation. 316L stainless steel fluid section and multiple elastomer options provide flexibility to handle almost any material and cleaning chemical. Elastomer options for high temperature fluids or steam cleaning options.

• Flow rates up to 150 gpm (567 lpm) and pressure up to 125 psi (8.6 bar)
• Handle solids up to 3.8(96.5 mm) in diameter
• Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design.
• Multiple approval and certification options: 3A, ATEX, USP Class VI, CE, 3.1 certification
• Optional leak sensors notify users when processes may be compromised
• 316L stainless steel wetted section
• Multiple internal elastomers to be compatible with you material and cleaning chemicals
• Tri-clamp and sanitary DIN connections available

• Air Exhaust Port Size (in): 3/4
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Sanitary

• Ball Material: PTFE

• Center Section Material: Stainless Steel

• Compatible Material: Edible Oil, Food, Personal Care

• Connection Type: Tri-Clamp

• Diaphragm Compatible Material: EPDM
• Diaphragm Material: EPDM Overmolded

• Fluid Inlet Size (cm): 3.8
• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1

• Fluid Outlet Size (cm): 3.81
• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Section Material: 316L Stainless Steel

• For Use With: Food, Personal Care

• Manifold Configuration: Center Port
• Manifold O-Ring Material: EPDM
• Material Certification: EN 1024:2004 Type 2.1 (Standard)

• Maximum Air Consumption (SCFM): 150
• Maximum Air Pressure (bar): 6.9

• Maximum Air Pressure (kPa): 690
• Maximum Air Pressure (MPa): 0.689
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 165

• Maximum Flow Rate (GPM): 90
• Maximum Flow Rate (L/min): 341

• Maximum Fluid Pressure (bar): 8.27
• Maximum Fluid Pressure (kPa): 827
• Maximum Fluid Pressure (MPa): 0.827
• Maximum Fluid Pressure (psi): 120

• Maximum Fluid Pressure (bar): 8.27
• Maximum Fluid Pressure (kPa): 827
• Maximum Fluid Pressure (MPa): 0.827
• Maximum Fluid Pressure (psi): 120

• Maximum Operating Temperature ( degree C): 135
• Maximum Operating Temperature ( degree F): 275

• Maximum Solid Size (cm): 1.27
• Maximum Solid Size (in): 0.5
• Maximum Solid Size (mm): 12.7

• Minimum Operating Tempe

GG SN751K

GG SSP-119

GG SP415007

GG SSP-120

GG SP415010

GG SSP-133

GG LTX655

RAC X LTX TIP, SPRAY, (655)

Graco LTX655 RAC X SwitchTip, 655

The Reverse-A-Clean (RAC) 655 RAC X SwitchTip produces a 12 to 14 inch fan and has a 0.055 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 30
• Maximum Fan Width (in): 12
• Maximum Fan Width (mm): 356

• Maximum Flow Rate (GPM): 3.25
• Maximum Flow Rate (L/min): 12.30

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 12
• Minimum Fan Width (mm): 305

• Orifice Diameter (in): 0.055

• Pattern Size (in): 12 to 14
• Pattern Size (mm): 304.8 to 355.6

GG LTX721

RAC X LTX TIP, SPRAY, 721

Graco LTX721 RAC X SwitchTip, 721

The Reverse-A-Clean (RAC) 721 RAC X SwitchTip produces a 14 to 16 inch fan and has a 0.021 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 35
• Maximum Fan Width (in): 14
• Maximum Fan Width (mm): 406

• Maximum Flow Rate (GPM): 0.47
• Maximum Flow Rate (L/min): 1.78

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 14
• Minimum Fan Width (mm): 356

• Orifice Diameter (in): 0.021

• Pattern Size (in): 14 to 16
• Pattern Size (mm): 355.6 to 406.4

GG LTX723

RAC X LTX TIP, SPRAY, (723)

Graco LTX723 RAC X SwitchTip, 723

The Reverse-A-Clean (RAC) 723 RAC X SwitchTip produces a 14 to 16 inch fan and has a 0.023 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 35
• Maximum Fan Width (in): 14
• Maximum Fan Width (mm): 406

• Maximum Flow Rate (GPM): 0.57
• Maximum Flow Rate (L/min): 2.16

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 14
• Minimum Fan Width (mm): 356

• Orifice Diameter (in): 0.023

• Pattern Size (in): 14 to 16
• Pattern Size (mm): 355.6 to 406.4

GG LTX817

RAC X LTX TIP, SPRAY, (817)

Graco LTX817 RAC X SwitchTip, 817

The Reverse-A-Clean (RAC) 817 RAC X SwitchTip produces a 16 to 18 inch fan and has a 0.017 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 40
• Maximum Fan Width (in): 16
• Maximum Fan Width (mm): 457

• Maximum Flow Rate (GPM): 0.31
• Maximum Flow Rate (L/min): 1.17

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 16
• Minimum Fan Width (mm): 406

• Orifice Diameter (in): 0.017

• Pattern Size (in): 16 to 18
• Pattern Size (mm): 406.4 to 457.2

GG LTX819

RAC X LTX TIP, SPRAY, (819)

Graco LTX819 RAC X SwitchTip, 819

The Reverse-A-Clean (RAC) 819 RAC X SwitchTip produces a 16 to 18 inch fan and has a 0.019 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 40
• Maximum Fan Width (in): 16
• Maximum Fan Width (mm): 457

• Maximum Flow Rate (GPM): 0.38
• Maximum Flow Rate (L/min): 1.44

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 16
• Minimum Fan Width (mm): 406

• Orifice Diameter (in): 0.019

• Pattern Size (in): 16 to 18
• Pattern Size (mm): 406.4 to 457.2

GG LTX821

RAC X LTX TIP, SPRAY, (821)

Graco LTX821 RAC X SwitchTip, 821

The Reverse-A-Clean (RAC) 821 RAC X SwitchTip produces a 16 to 18 inch fan and has a 0.021 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 40
• Maximum Fan Width (in): 16
• Maximum Fan Width (mm): 457

• Maximum Flow Rate (GPM): 0.47
• Maximum Flow Rate (L/min): 1.78

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 16
• Minimum Fan Width (mm): 406

• Orifice Diameter (in): 0.021

• Pattern Size (in): 16 to 18
• Pattern Size (mm): 406.4 to 457.2

GG LTX827

RAC X LTX TIP, SPRAY, (827)

Graco LTX827 RAC X SwitchTip, 827

The Reverse-A-Clean (RAC) 827 RAC X SwitchTip produces a 16 to 18 inch fan and has a 0.027 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 40
• Maximum Fan Width (in): 16
• Maximum Fan Width (mm): 457

• Maximum Flow Rate (GPM): 0.77
• Maximum Flow Rate (L/min): 2.91

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 16
• Minimum Fan Width (mm): 406

• Orifice Diameter (in): 0.027

• Pattern Size (in): 16 to 18
• Pattern Size (mm): 406.4 to 457.2

GG LW075A

KIT, LOWER,75CC ASSY

Graco LW075A Merkur Wet-Cup Style Stainless Steel Displacement Pump, 75 cc, Chromex coated rod and 3 UHMWPE, 2 PTFE packings
