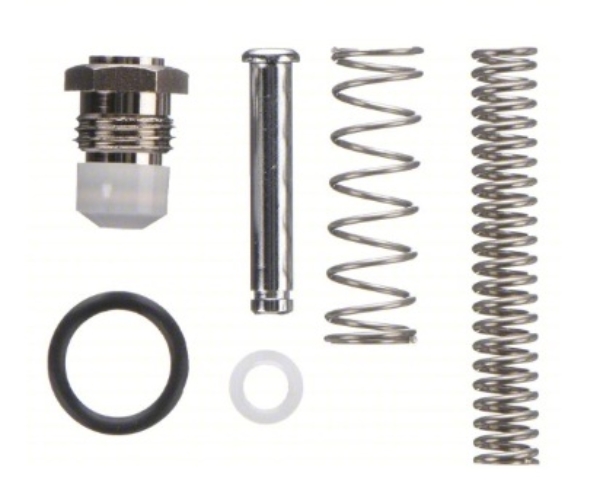

IW 5650

IW 7950

IW 93001680

IW 93007750

IW 93008180

IW 930011820

IW 94493020

IW I1352

IW 93002190

IW 93011710

IW 07201092

IW EFBS04B-9.5

IW 94401592

IW 94402592

IW 94944571

IW 94405591

IW 93001410

IW 93001420

IW 93001430

IW 6335

IW 6336

IW 2714

IW 0101010000

IW 0494215000

IW 04005510

IW 04002020

IW 10010

IW 04938490

IW 10013

IW 10035

IW 10040

IW 11010

IW 14000200-T

IW 14000210-T

IW 14000230-T

IW 140004A0-T

IW 140016A0-T

IW 1457000000

IW 180060

IW 180650

IW 20021

IW 21010

IW 21012

IW 21016

IW 21023

IW 2713

IW 3005

IW 2866

IW 3025

IW 3015

IW 3035

IW 3040

IW 3045

IW 3050

IW 3090

IW 3100

IW 3095

IW 3103

IW 3105

IW 3115

IW 4588C

IW 4649

IW 4599

IW 4695

IW 4698

IW 4696

IW 9023

IW 9014

IW 9024

IW 90407203

IW 9134

IW 9206

IW 9217

IW 9230

The Iwata Air Gunsa HVLP 1.3mm Nozzle Sealer Spray Gun (9230) is a dependable and efficient spray gun tailored for automotive refinishing professionals, particularly for sealer application. Utilizing HVLP (High Volume Low Pressure) technology, it ensures minimal overspray and high material transfer efficiency. The spray gun features a lightweight, ergonomic design that enhances user comfort during prolonged use, while its polished exterior simplifies cleanup and maintenance. Designed with performance and practicality in mind, this gravity-feed spray gun balances affordability and quality for consistently smooth and even finishes.

KEY FEATURES AND BENEFITS:

• Optimized Sealer Application: Engineered specifically for applying automotive sealers, delivering even and consistent coverage.
• Efficient HVLP Technology: Reduces overspray and increases material transfer, minimizing waste and saving costs.
• Ergonomic & Lightweight Design: Soft trigger pull and low weight reduce user fatigue during extended use.
• Polished Surface: Corrosion-resistant finish enables quick and easy cleanup, maintaining gun performance.
• Balanced Gravity-Feed System: Center post cup mount offers optimal balance and handling during operation.
• Consistent Spray Pattern: Delivers uniform atomization for professional results on every project.
• Economical & Versatile: High-quality build offered at an affordable price, compatible with a wide range of compressors.

SPECIFICATIONS:

• Nozzle Size: 1.3mm
• Cup Size: 600 ml
• Air Pressure at Gun Inlet: 2.0 bar (30 PSI)
• Air Consumption: 340 NL/min (12.0 CFM)
• Fluid Output: 150 ml/min
• Pattern Width: 280 mm
• Air Connection: G 1/4"M
• Fluid Connection: G 1/4"F
• Weight: 517 g

HOW TO USE:

1. Prepare Your Workspace: Ensure a well-ventilated area and use appropriate safety gear, including respirator, gloves, and safety glasses.
2. Mix Your Sealer: Prepare and strain the sealer as per manufacturer instructions to remove impurities.
3. Fill the Cup: Pour the mixed sealer into the 600 ml cup and attach it securely to the gun.
4. Connect Air Supply: Attach the compressor hose to the G 1/4"M air inlet on the spray gun.
5. Set Air Pressure: Adjust regulator to maintain 2.0 bar (30 PSI) for optimal spray performance.
6. Adjust Fluid and Pattern: Perform a test spray and fine-tune the fluid and fan pattern knobs for your desired spray width and material flow.
7. Apply Sealer: Spray at a steady pace while maintaining consistent distance; overlap each pass by approximately 50%.
8. Clean the Gun: Clean immediately after use per manufacturer guidelines; do not use halogenated hydrocarbon solvents.

BENEFITS OF USING IWATA AIR GUNSA HVLP 1.3MM NOZZLE SEALER SPRAY GUN (9230):

• Optimized for applying sealers, ensuring smooth and reliable finishes on automotive surfaces.
• Minimizes material waste through efficient HVLP transfer technology.
• Lightweight and ergonomic design enhances comfort and reduces fatigue during long jobs.
• Polished exterior allows quick, hassle-free cleaning and maintenance.
• Provides consistent, professional-grade spray results every time.
• Affordable pricing offers excellent value for both hobbyists and professionals.
• Compatible with a wide range of compressors due to
