Breakers and Busters

APT 18848

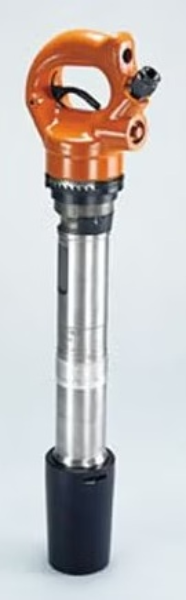

633 Rivet Buster 6 Stroke w/18820 WHIPH

APT 18846

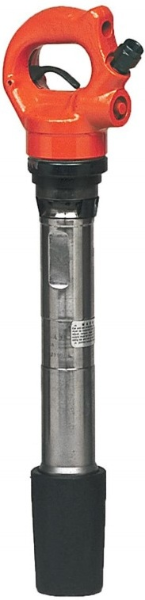

1133 Rivet Buster 11 Stroke w/18820 Whip Hose

APT 18768

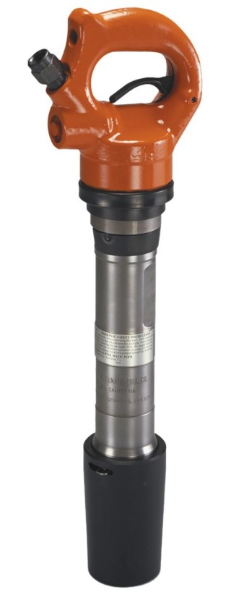

133 RIVET BUSTER 8 STROKE

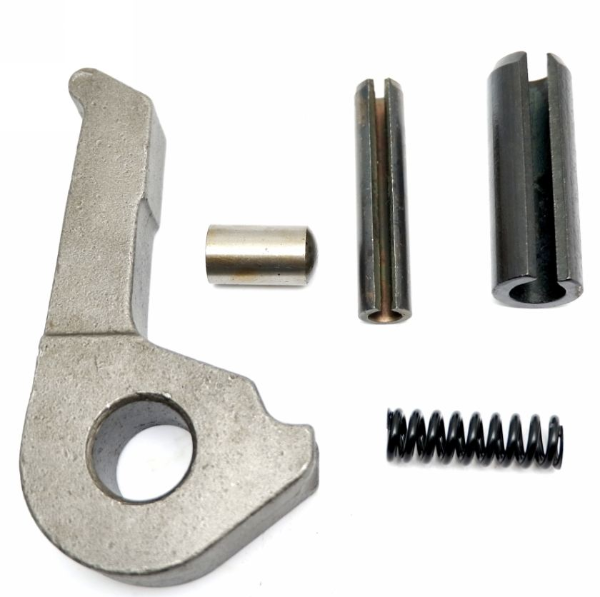

IR 51310506

KIT, LATCH

IR MX90B

Pavement Breaker, 1-1/4 X 6" Hex Shank, 5.75" Stroke Length, 2.62" Bore

The most versatile of our available pavement breakers, the MX90 models are great for anything from heavy asphalt removal to industrial maintenance to heavy demolition. The directional exhaust prevents blowback, and with one of the fewest parts in the industry, the MX Series is easier and less complex to service.

Features And Benefits

• Variable Exhaust Deflector: The MX Series has an exhaust deflector that will rotate 360 degrees, allowing you to choose the direction of exhaust air.
• Durability: As our most versatile pavement breakers, the MX Series can easily withstand the needs of any job. From handling harsh environments to repeated drops, the MX Series won’t let you down. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.
• Power: The MX90 pavement breakers deliver large blow energy thanks to our Power-Strok™ piston technology.
• 1-year warranty.

Product Application and Uses: Heavy asphalt removal, industrial maintenance, heavy demolition.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 85
Air Consumption @ Load (l/min): 2407
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.62
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Yes
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 87
Retainer Type: Latch
Shank SIze (in): 1-1/4 X 6
Shank Type: Hex
Steels: Yes
Stroke Length (in): 5.75
Warranty: 1-year

Similar IR

• MX90A

Z3385

1 1/4 X 6 ASPHALT CUTTER

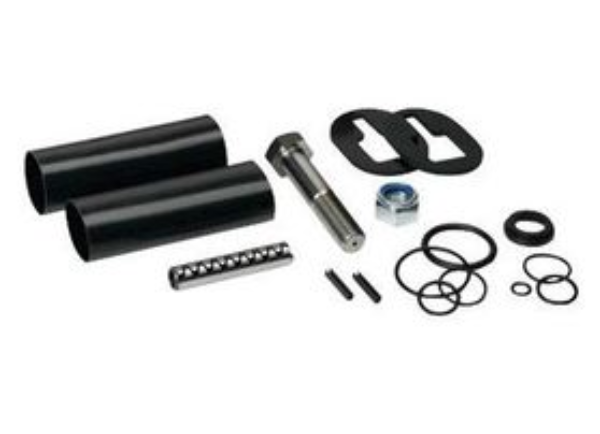

IR 51310498

TUNE-UP KIT

MPT MP-TPB90-114

BREAKER PAVEMENT 90 LB. 1-1/4

IR 51942175

LEVER (51292480)

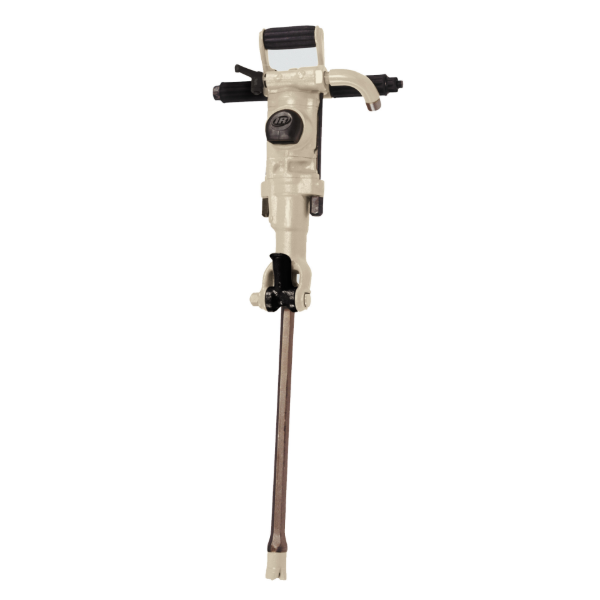

IR JRD30-A

Rock Drill, 7/8 x 3-1/4" Hex Shank, 1.44" Stroke

The JRD30 Series rock drill is one of our most versatile units. Perfect for both wet and dry drill jobs, the JRD30 can be used to drill up to 10 feet deep and 1.5 inches wide in concrete or soft to medium rock.

Features And Benefits

• Easy Access: The JRD30 Series is easy enough to maneuver in tight spaces, and light enough to use when the occasion calls for horizontal drilling.
• Wet Drilling Capabilities: Take this drill anywhere it needs to go - but wet drilling environments in particular can extend the life of your tool.
• Lightweight: This rock drill is lightweight but powerful, and durable enough to stand up to the toughest conditions.

Product Application and Uses: Perfect for both wet and dry drill jobs, the JRD30 can be used to drill up to 10 feet deep and 1.5 inches wide in concrete or soft to medium rock.
Air Consumption @ Load (cfm): 73
Air Consumption @ Load (l/min): 2067
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 2700
Bore Diameter (in): 2.38
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Exhaust Location: Front
Max Hole Depth (ft): 10
Max Hole Diameter (in): 1.5
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 19.5
Product Weight (lb): 29
Shank SIze (in): 7/8 x 3-1/4
Shank Type: Hex
Stroke Length (in): 1.44
Warranty: 1-year

Similar IR

• JRD30-B
• JRD50-B

APT 5240

MODEL 190, 90# BREAKER 1-1/4 CHUCK

IR 51299212

SLEEVE

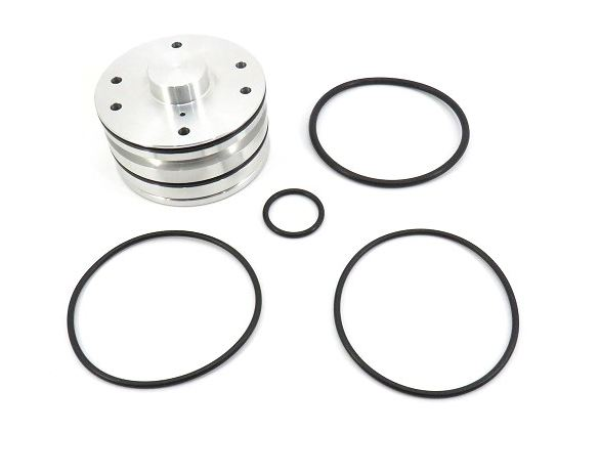

IR 51955391

VALVE CHEST (51955417)

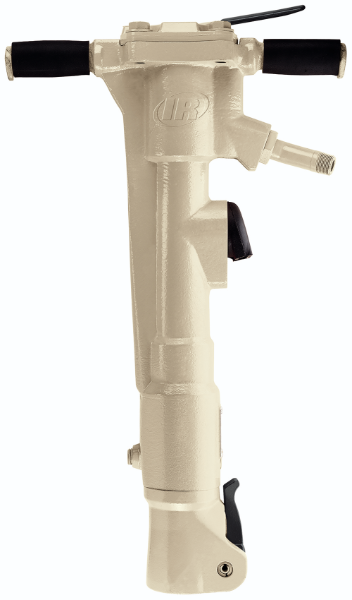

IR MX60B

Pavement Breaker, 1-1/4 X 6" Hex Shank, 5.75" Stroke Length, 1250 BPM, 2.06" Bore

The most versatile of our available pavement breakers, the MX60 models are great for anything from heavy asphalt removal to industrial maintenance to heavy demolition. The directional exhaust prevents blowback, and with one of the fewest parts in the industry, the MX Series is easier and less complex to service.

Features And Benefits

• Variable Exhaust Deflector: The MX Series has an exhaust deflector that will rotate 360 degrees, allowing you to choose the direction of exhaust air.
• Durability: As our most versatile pavement breakers, the MX Series can easily withstand the needs of any job. From handling harsh environments to repeated drops, the MX Series won’t let you down. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.
• Power: The MX60 pavement breakers deliver large blow energy at 1250 BPM thanks to our Power-Strok™ piston technology.

Product Application and Uses: Heavy asphalt removal, industrial maintenance, heavy demolition.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 70
Air Consumption @ Load (l/min): 1982
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.06
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Optional
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 76
Retainer Type: Latch
Shank SIze (in): 1-1/4 X 6
Shank Type: Hex
Steels: Yes
Stroke Length (in): 5.75
Warranty: 1-year

Similar IR

• MX60BF

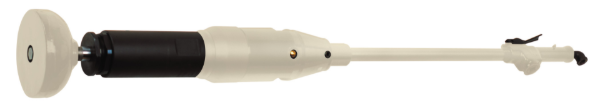

IR 441A2

Pneumatic Backfill Tamper, 5.75" Round Malleable Butt, 4" Stroke, 2" Bore

With dual-action sand wipers, a built-in muffler and a side exhaust, this tool is built for heavy use. These tools are commonly used by municipal and utility crews for compacting around both utility line repairs and new installations such as street lights, fire hydrants, and telephone poles prior to pouring concrete. In addition, this proven tool is ideal for backfilling around foundations or other tight areas.

Features And Benefits

• Durability: With a plated piston and front-end seal to protect your tool, this Backfill Tamper can be used in the toughest environments. The sand-wiper seal prevents dirt and grit from getting inside the tool.
• Reliability: Thanks to a built-in lubricator, these tools are built to run smoothly and last, while extending overall operating life. Comes with a 1-year warranty.
• Power: Thanks to its high-power output, you’ll be able to breeze through any job.

Product Application and Uses: These tools are commonly used by municipal and utility crews for compacting around both utility line repairs and new installations such as street lights, fire hydrants, and telephone poles prior to pouring concrete. In addition, this proven tool is ideal for backfilling around foundations or other tight areas.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 36
Air Consumption @ Load (l/min): 1020
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 1750
Bore Diameter (in): 2
Butt Diameter (in): 5.75
Butt Material: Malleable/ Steel
Butt Shape: Round
Color: Beige
Configuration/Handle Type: Straight
Duty Rating: Super Duty
Exhaust Location: Side
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: Built In
Power Source: Air Powered
Product Length (in): 50.88
Product Weight (lb): 21.4
Retainer Type: Latch
Shank Opening: 1" Tapered Rod
Special Features: Time Tested Valve Design, Round Piston Rod, Built In Muffler, Optional Front End Butts Available.
Steels: Yes
Stroke Length (in): 4
Warranty: 1-year

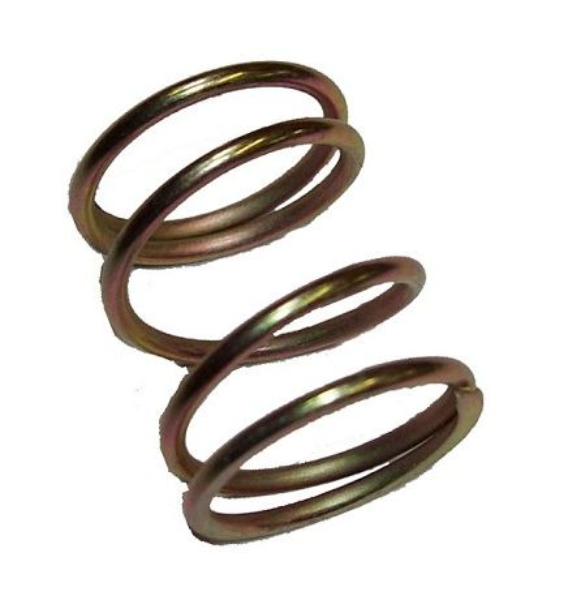

IR 51952828

SPRING

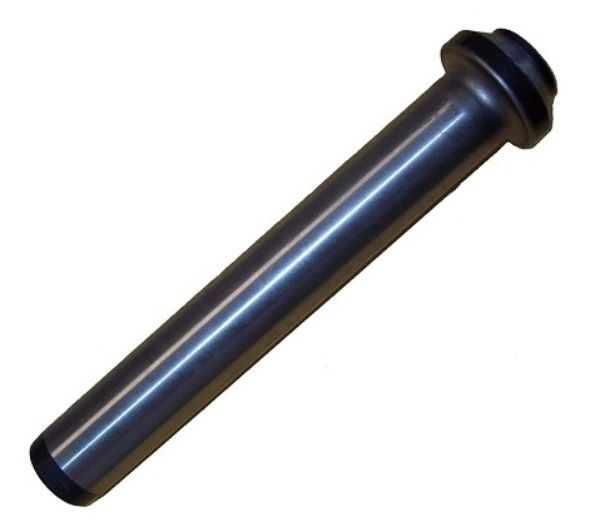

IR 51986495

HAMMER BLOCK

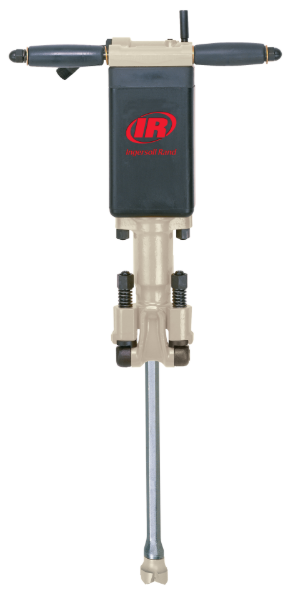

IR JH40C3

Jack Hammer, 1 x 4-1/4" Hex Shank, 2.63" Stroke

The JH40 Series jackhammer sports a hole capacity of up to 18 feet deep and 2 inches across, and is tough enough to blast away hard rock. Great for blasting holes, industrial work, and excavation projects, the JH40 will see you through any project.

Features And Benefits

• Wet or Dry Drilling: Take the JH40 to any environment you need to work in.
• Capacity: Hole capacity of up to 18 feet deep and 2 inches across.
• Powerful: With 2000 blows per minute, the JH40 Series jackhammer lives up to the strength and power our customers have come to expect from Ingersoll Rand tools.
• Applications: Great for blasting holes, industrial work, and excavation projects, the JH40 will see you through any project.

Product Application and Uses: Blasting holes, industrial work, and excavation projects.
Air Consumption @ Load (cfm): 115
Air Consumption @ Load (l/min): 3257
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 2000
Bore Diameter (in): 2.5
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Exhaust Location: Side
Max Hole Depth (ft): 18
Max Hole Diameter (in): 2
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 22.5
Product Weight (lb): 61
Shank SIze (in): 1 x 4-1/4
Shank Type: Hex
Stroke Length (in): 2.63
Warranty: 1-year

Similar IR

• JH40C1
• JH40C2

Z3100

1 X 4 1/4 X 14 PT

IR 241A1M

Pneumatic Floor Sand Rammer, 3" Round Malleable Butt, 4" Stroke, 1-5/16" Bore

Versatile, powerful and ergonomic, this floor sand rammer can handle any heavy duty job with ease, without having to worry about dirt and grit getting inside and ruining the machinery.

Features And Benefits

• Versatile: The floor sand rammer comes with a long handle attachment that can be added for standing operation.
• Durability: With a front-end seal and plated piston, this tool is designed to combat wear and last through the toughest environments.
• Reliability: Ingersoll Rand tools are built to last, and this floor sand rammer is no different. Comes with a 1-year warranty.

Product Application and Uses: Designed for use in foundries for compacting sand in floor level molds and patterns and tamping backfill in construction applications.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 29
Air Consumption @ Load (l/min): 821
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 1590
Bore Diameter (in): 1-5/16
Butt Diameter (in): 3
Butt Material: Malleable/ Steel
Butt Shape: Round
Color: Beige
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Side
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Muffler: Built In
Power Source: Air Powered
Product Length (in): 52.75
Product Weight (lb): 27
Retainer Type: Latch
Shank Opening: 1-5/16"
Sound Pressure/Power Db(A): 92.3 / 103.3
Special Features: Time Tested Valve Design, Round Piston Rod, Built In Muffler, Optional Front End Butts Available.
Steels: Yes
Stroke Length (in): 4
Vibration Level (m/s2): 56.2
Vibration Uncertainy K* (m/s2): 18.5
Warranty: 1-year

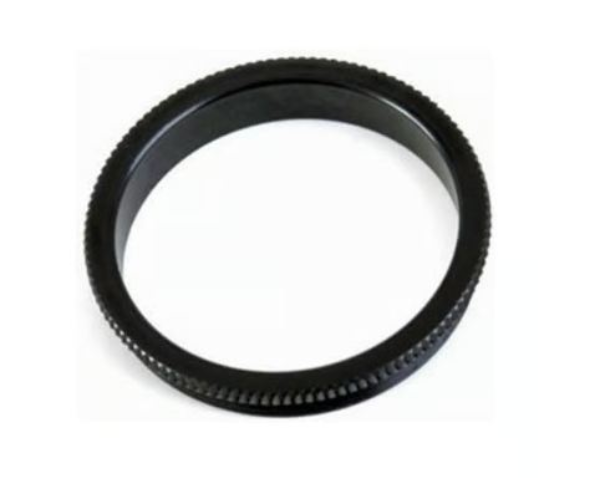

IR 51954337

RETAINER

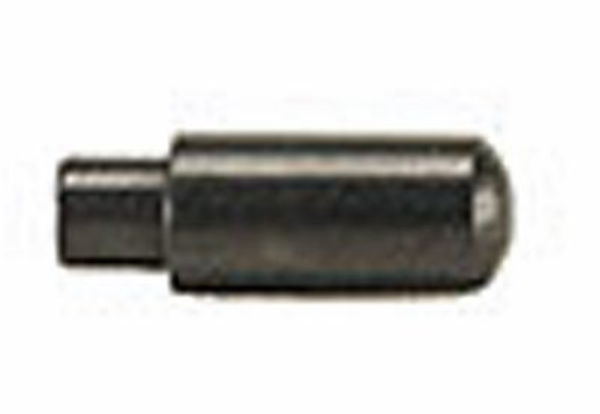

IR 73L-245

RETAINING LEVER PLUNGER

IR MX60A

Pavement Breaker 1-1/8 x 6" Hex Shank, 5-3/4" Stroke Length, 1250 BPM, 2.06" Bore

The most versatile of our available pavement breakers, the MX60 is great for anything from heavy asphalt removal to industrial maintenance to heavy demolition. The directional exhaust prevents blowback, and you can choose between a standard or "flex handle" to add to vibration reduction. With one of the fewest parts in the industry, the MX Series is easier and less complex to service.

Features And Benefits

• Variable Exhaust Deflector: The MX Series has an exhaust deflector that will rotate 360 degrees, allowing you to choose the direction of exhaust air.
• Durability: As our most versatile pavement breakers, the MX Series can easily withstand the needs of any job. From handling harsh environments to repeated drops, the MX Series won’t let you down. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.
• Power: The MX60 delivers large blow energy at 1250 BPM thanks to our Power-Strok™ piston technology.

Product Application and Uses: Mx60 And Mx90 Models Are Great For Anything From Heavy Asphalt Removal To Industrial Maintenance To Heavy Demolition
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 70
Air Consumption @ Load (l/min): 1982
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.06
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Industrial Duty
Height Over Spindle (in): 27.5
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Optional
Power Source: Air Powered
Product Length (in): 27.5
Product Width (in): 7.4
Product Weight (lb): 76
Retainer Type: Latch
Shank SIze (in): 1-1/8 X 6
Shank Type: Hex
Standards/Certifications: Standards
Steels: Yes
Stroke Length (in): 5.75
Warranty: 1-year

Similar IR

• MX60AF
• MX60BF
• MX60B

IR MX90A

Pavement Breaker, 1-1/8 X 6" Hex Shank, 5.75" Stroke Length, 2.62" Bore

The most versatile of our available pavement breakers, the MX90 models are great for anything from heavy asphalt removal to industrial maintenance to heavy demolition. The directional exhaust prevents blowback, and with one of the fewest parts in the industry, the MX Series is easier and less complex to service.

Features And Benefits

• Variable Exhaust Deflector: The MX Series has an exhaust deflector that will rotate 360 degrees, allowing you to choose the direction of exhaust air.
• Durability: As our most versatile pavement breakers, the MX Series can easily withstand the needs of any job. From handling harsh environments to repeated drops, the MX Series won’t let you down. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.
• Power: The MX90 pavement breakers deliver large blow energy thanks to our Power-Strok™ piston technology.
• 1-year warranty.

Product Application and Uses: Heavy asphalt removal, industrial maintenance, heavy demolition.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 85
Air Consumption @ Load (l/min): 2407
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.62
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Yes
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 87
Retainer Type: Latch
Shank SIze (in): 1-1/8 X 6
Shank Type: Hex
Steels: Yes
Stroke Length (in): 5.75
Warranty: 1-year

Similar IR

• MX90AF

Z3110

1 X 4 1/4 X 14 CHSL
