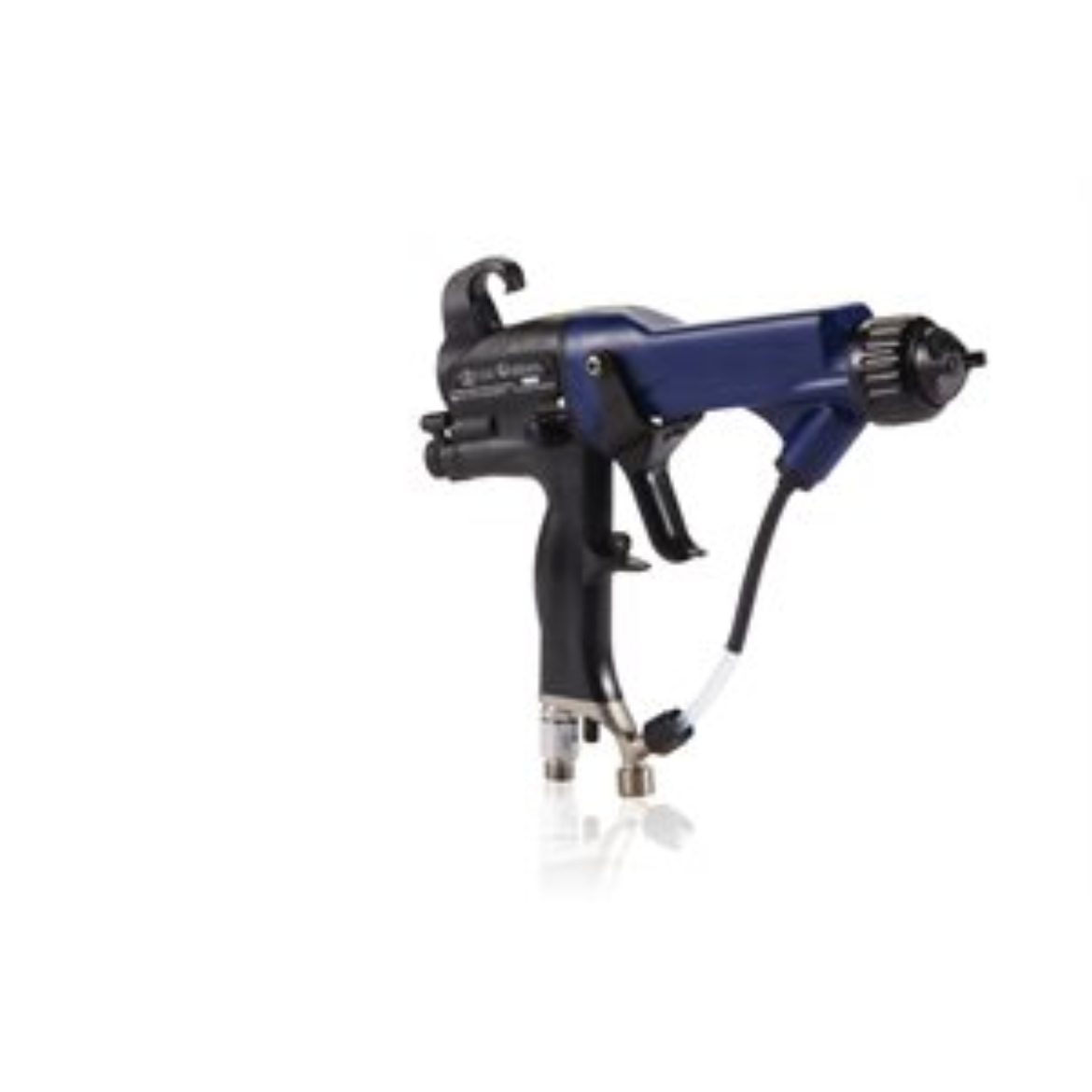

GG L85T71
PRO XP GUN, ES, 85KV, SOFT SPRAY
Graco L85T71 Pro Xp85 Air Spray Manual Electrostatic Gun, 85 kV, 0.039 in (1.0 mm) nozzle, standard display, soft spray air cap
Soft spray air cap and nozzle are ideal for small, lightweight parts that need a fine finish with minimal paint flow.
- Lower atomizing airflow and fluid flow help keep the part in place while it's being sprayed. This improves transfer efficiency and finish quality on anything that's small and lightweight.
- Model: Pro Xp
- Series: 85
- Product Series: A
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, Standard
- Applicator Type: Manual
- Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
- Fluid Inlet Size (in): 3/8
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Type: Electrostatic
- Gun Weight (g): 676
- Gun Weight (kg): 0.675
- Gun Weight (lb): 1.49
- Gun Weight (oz): 23.81
- Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm 2): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature ( degree C): 48
- Maximum Fluid Temperature ( degree F): 120
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm 2): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature ( degree C): 48
- Maximum Fluid Temperature ( degree F): 120
- Maximum Paint Resistivity (megohm/cm): Infinity
- Minimum Paint Resistivity (megohm/cm): 25
- Nozzle Size (cm): 0.1
- Nozzle Size (in): 0.039
- Nozzle Size (mm): 1
- Overall Length (cm): 26.67
- Overall Length (in): 10.5
- Overall Length (mm): 266.7
