Cordless Tools

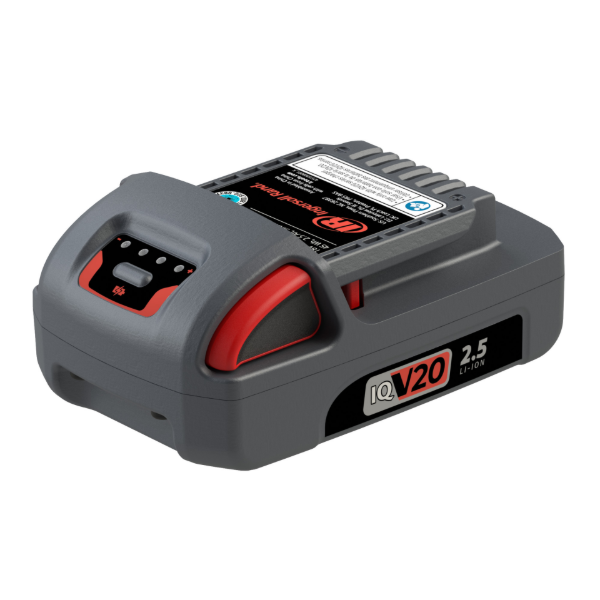

Battery, Iqv20V 2.5Ah
IR BL2012
IQV20 20V 2.5Ah Lithium-Ion Battery for Ingersoll Rand Power Tools
Description: The BL2012 IQV20 Series High Capacity r2.5 lithium ion battery delivers a high-charge capacity with low internal impedance for maximum power delivery and run-time. The intelligent Battery Management System allows the battery to communicate with the tool and charger to offer triple battery protection. The slim pack design is fully compatible with our charger.
Features And Benefits:
- Performance: The BL2012 20V 2.5Ah battery delivers 95% longer run time than its predecessor the BL2005 (That's over 221 lug nuts when used with the W5130!). And at the same size and weight as the previous model you can get more work done on a single charge.
- Durability: The intelligent Battery Management System (BMS) allows the battery to communicate with the tool and charger to offer triple battery protection prevent over loading over charging and over discharging for longer tool and battery life.
- Versatility: The BL2012 2.5Ah batteries slim design allows you to go further with less in your way. Its light weight doesn't compromise power letting you keep working on big jobs with a slimmer tool.
- Battery Fuel Gauge - 4 light positions
- Quick charging feature in one hour or less
Product Application and Uses:
IQV20 Series cordless tools
- Battery Capacity (Ah): 2.5
- Battery Capacity (Wh): 49
- Charge Time: 40 minutes
- Color: Grey
- Number of Battery Cells: 5
- Power Source: Battery Powered
- Product Length (in): 4.8
- Product Width (in): 3.1
- Product Height (in): 2.1
- Product Weight (lb): 0.95
- Voltage DC: 20
- Warranty: 2-year
- Battery Type: Tabbed

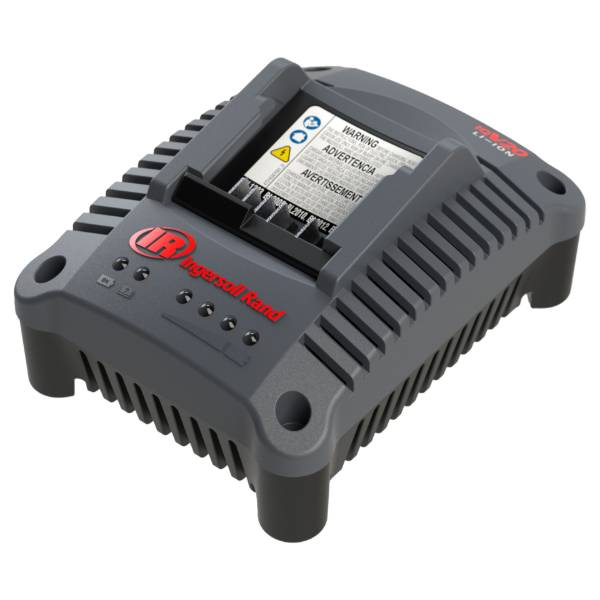

- Accessories: BC1124
- Accessories: BC1124-EU
- Accessories: BC1221
- Accessories: BC1221-EU
- Accessories: BL2005-BOOT
- Accessories: BC1124-CN
- Accessories: BC1124-JP
- Accessories: BC1124-ANZ
- Accessories: BC1124-KR
- For Use With: D3141
- For Use With: D3141-K22
- For Use With: D3141-K22-AP1
- For Use With: D3141-K22-AR
- For Use With: D3141-K22-BR
- For Use With: D3141-K22-CN
- For Use With: D3141-K22-EU
- For Use With: D3141-K22-IN
- For Use With: D3141-K22-JP
- For Use With: D3141-K22-KR
- For Use With: D3411
- For Use With: D3411-K22
- For Use With: D3411-K22-AP1
- For Use With: D3411-K22-CN
- For Use With: D3411-K22-EU
- For Use With: D3411-K22-IN
- For Use With: D3411-K22-JP
- For Use With: G4621
- For Use With: IQV20-K201
- For Use With: QCN2A30S6
- For Use With: QCN2P02Q4
- For Use With: QCN2P08Q4
- For Use With: QCN2P12Q4
- For Use With: QCP2A30S6
- For Use With: QCP2A30S6-K2-CN
- For Use With: QCP2A30S6-K2-EU
- For Use With: QCP2A30S6-K2-IN
- For Use With: QCP2P02Q4
- For Use With: QCP2P04Q4
- For Use With: QCP2P04Q4-K2-CN
- For Use With: QCP2P04Q4-K2-EU
- For Use With: QCP2P04Q4-K2-IN
- For Use With: QCP2P08Q4
- For Use With: QCP2P08Q4-K2-CN
- For Use With: QCP2P08Q4-K2-EU
- For Use With: QCP2P08Q4-K2-IN
- For Use With: QCP2P12Q4
- For Use With: QCP2P12Q4-K2-CN
- For Use With: QCP2P12Q4-K2-EU
- For Use With: QCP2P12Q4-K2-IN
- F

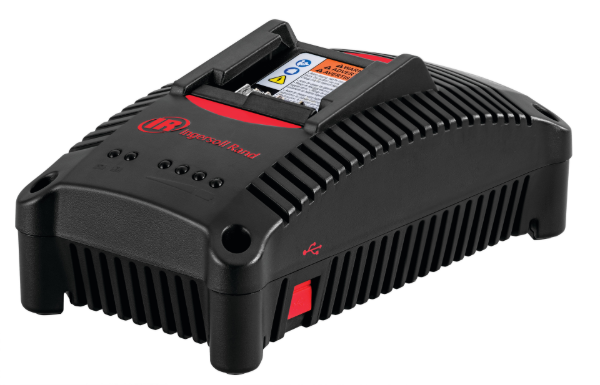

Charger, 40V
IR BC1161
IQV 40V Universal Lithium-ion Battery Charger for Ingersoll Rand Power Tools
Description: The BC1161 lithium-ion 40V charger gets the batteries in our IQV 40 Series charged and ready to go whenever you are. This innovative, multi-use battery charger will help you get back to work without missing a step. Compatible only with the IQV 40 BL4011 40 volt battery.
Features And Benefits:
- Productivity: An LED Fuel Gauge and audible alarm will let you know when your batteries are fully charged and ready to get back to work.
- Versatility: Not only can the BC1161 be mounted vertically or horizontally on a wall or work bench but the USB charge port on the side means you don't have to fight for an outlet with your tablet or smart phone. Let us take care of the clutter, you take care of your work.
Product Application and Uses:
Compatible only with the Ingersoll Rand IQV 40 Series BL4011 40 volt battery.
- Charge Time: 55 minutes
- Color: Grey
- Voltage DC: 40
- Warranty: 3-year
- Accessories: BL4011

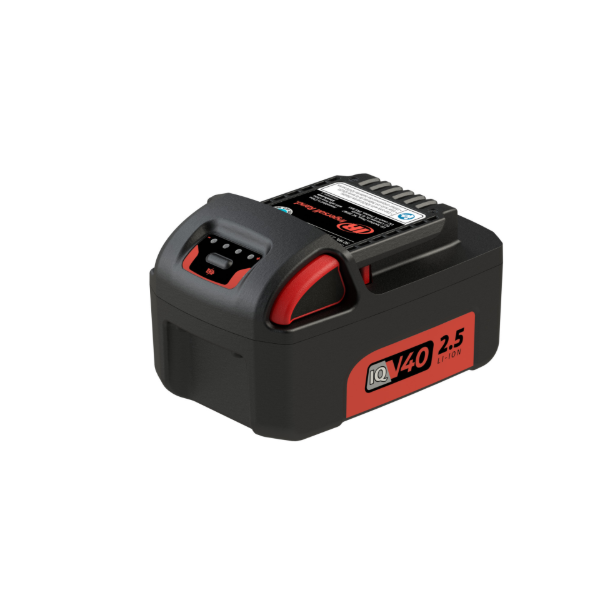

Battery, 40V
IR BL4011
IQV40 40V 2.5Ah Lithium-Ion Battery for Ingersoll Rand Power Tools
Description: The IQV40 Series high-power, 40-volt lithium-ion battery delivers a high-charge capacity with low internal impedance for maximum power delivery and run-time. Complete with an intelligent Battery Management System (BMS), the IQV40 battery provides power-level and current control from the battery to the switch to the motor for increased torque and runtime.
Features And Benefits:
- Durability: The intelligent Battery Management System allows the battery to communicate with the tool and charger to offer triple battery protection, prevent over loading over charging and over discharging for longer tool and battery life.
- Compatibility: For use with any Ingersoll Rand IQV40 series cordless tool.
Product Application and Uses:
For use with any Ingersoll Rand IQV 40 Series cordless power tool.
- Battery Capacity (Ah): 2.5
- Battery Capacity (Wh): 100
- Charge Time: 85 minutes
- Color: Grey
- Number of Battery Cells: 10
- Power Source: Battery Powered
- Product Weight (lb): 1.54
- Voltage DC: 40
- Warranty: 2-year
- Battery Type: Tabbed
- Accessories: BC1161
- Accessories: BL2010-BOOT
- For Use With: QXBD5PT20CPM16
- For Use With: QXBD5PT27CPM16
- For Use With: QXBD5PT40CPM16
- For Use With: QXFD5PT10CPM12
- For Use With: QXFD5PT13CPM16
- For Use With: QXFD5PT200PM12
- For Use With: QXFD5PT20CPM16
- For Use With: QXFD5PT27CPM16
- For Use With: QXFD5PT40CPM16
- For Use With: QXFD5PT500PM12
- For Use With: QXX2A52T0396PS12
- For Use With: QXX2A52T0594PS12
- For Use With: QXX5A45T0180PS12
- For Use With: QXX5A45T0270PS12
- For Use With: QXX5A52T0880PS12
- For Use With: QXX5A72T1080PS16
- For Use With: QXX5A72T1620PS16
- For Use With: QXXD2PT10CPM12
- For Use With: QXXD2PT10CPM12-K2
- For Use With: QXXD2PT200PM12
- For Use With: QXXD2PT200PM12-K2
- For Use With: QXXD2PT500PM12
- For Use With: QXXD2PT500PM12-K2
- For Use With: QXXD5PT01KPW16
- For Use With: QXXD5PT01KPW16K2
- For Use With: QXXD5PT10CPM12
- For Use With: QXXD5PT10CPM12K2
- For Use With: QXXD5PT13CPM16
- For Use With: QXXD5PT13CPM16K2
- For Use With: QXXD5PT200PM12
- For Use With: QXXD5PT200PM12K2
- For Use With: QXXD5PT20CPM16
- For Use With: QXXD5PT20CPM16K2
- For Use With: QXXD5PT27CPM16
- For Use With: QXXD5PT27CPM16K2
- For Use With: QXXD5PT40CPM16
- For Use With: QXXD5PT40CPM16K2
- For Use With: QXXD5PT500PM12
- For Use With: QXXD5PT500PM12K2

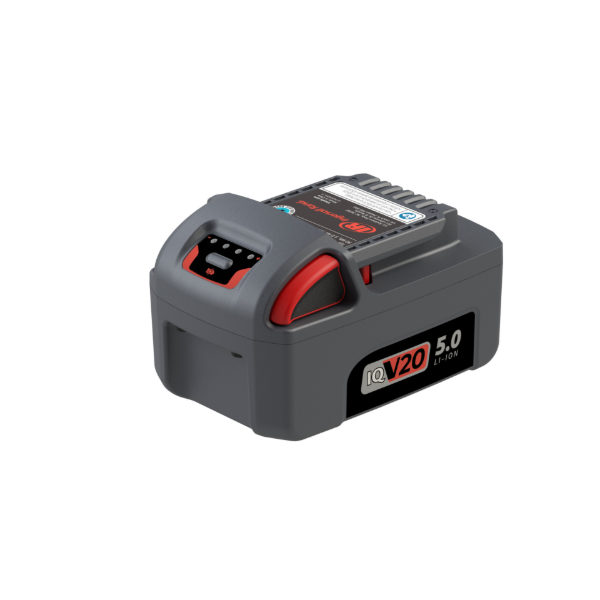

Battery, 20V, 5.0Ah
IR BL2022
IQV20 20V 5Ah Lithium-Ion Battery for Ingersoll Rand Power Tools
Description: The BL2022 IQV20 Series High Capacity x5.0 Battery delivers unmatched performance with 68% longer run time and the same size and weight as its predecessor. Fully compatible with all existing IQV20 tools and chargers and equipped with the same intelligent Battery Management System (BMS) we make sure you get more out of every volt.
Features And Benefits:
- Power: High Capacity 20V 5.0Ah battery delivers longer run time to get more work done on a single charge.
- Optimization: Intelligent Battery Management System protects against over loading, over charging and over discharging for longer tool and battery life.
- Compatibility: BL2022 5.0Ah battery is compatible with all IQV20 series power tools and 20V battery charger allowing you to swap batteries and tools to get the job done right every time.
- Performance: The BL2022 Lithium-Ion 20V 5.0Ah battery delivers 66% longer run time than its predecessor (That's over 800 lug nuts when used with the IR W7150 cordless impact wrench).
- Battery Fuel Gauge - 4 light positions.
- Quick charging feature in one hour or less.
Product Application and Uses:
IQV20 Series cordless tools
- Battery Capacity (Ah): 5
- Battery Capacity (Wh): 100
- Charge Time: 80 minutes
- Color: Grey
- Number of Battery Cells: 10
- Power Source: Battery Powered
- Product Length (in): 4.8
- Product Width (in): 3.1
- Product Height (in): 2.8
- Product Weight (lb): 1.61
- Voltage DC: 20
- Warranty: 2-year
- Battery Type: Tabbed
- Accessories: BC1124
- Accessories: BC1221
- Accessories: BL2010-BOOT
- For Use With: C5101
- For Use With: D3141
- For Use With: D3141-K22
- For Use With: D3141-K22-AR
- For Use With: D3141-K22-BR
- For Use With: D3141-K22-CN
- For Use With: D3141-K22-EU
- For Use With: D3141-K22-IN
- For Use With: D3141-K22-JP
- For Use With: D3141-K22-KR
- For Use With: D3411
- For Use With: D3411-K22
- For Use With: D3411-K22-AP1
- For Use With: D3411-K22-CN
- For Use With: D3411-K22-EU
- For Use With: D3411-K22-IN
- For Use With: D3411-K22-JP
- For Use With: D5140-K22-EU
- For Use With: D5241
- For Use With: D5241-K22
- For Use With: D5241-K22-AP1
- For Use With: D5241-K22-AR
- For Use With: D5241-K22-BR
- For Use With: D5241-K22-CN
- For Use With: D5241-K22-EU
- For Use With: D5241-K22-IN
- For Use With: D5241-K22-JP
- For Use With: D5241-K22-KR
- For Use With: G5351
- For Use With: G5351-K22
- For Use With: G5351M
- For Use With: G5351M-K22-AP
- For Use With: G5351M-K22-AR
- For Use With: G5351M-K22-BR
- For Use With: G5351M-K22-EU
- For Use With: G5351M-K22-IN
- For Use With: G5351M-K22-JP
- For Use With: QCN2A30S6
- For Use With: QCN2P02Q4
- For Use With: QCN2P08Q4
- For Use With: QCN2P12Q4
- For Use With: QCP2A30S6
- For Use With: QCP2A30S6-K2-CN
- For Use With: QCP2A30S6-K2-EU
- For Use With: QCP2A30S6-K2-IN
- For Use With: QCP2P02Q4
- For Use With: QCP2P04Q4
- For Use With: QCP2P04Q4-K2-CN
- For Use With:
Backcap Assembly, 20V Angle, No Radio, Display, Standard
IR QXFD2AT000P000
Backcap Assembly, 20V Angle, No Radio, Display, Standard
1/4in QC Pistol 18V Cordless Dr, 1.5-9NM, With Battery
AIM SPC-P2925Q
1/4in QC Pistol 18V Cordless Dr, 1.5-9NM, With Battery
Qx No Radio, Display, 20V Pistol 4 Nm Standard Quick Connect 1/4 Inch
IR QXFD2PT004PQ04
1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb Torque, 1500 RPM, Display, Pistol
Description: Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!
Features And Benefits:
- Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
- Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
- Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
- In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup, Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
- Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
- Performance Mode: with medium energy pulses, is the best all-purpose mode.
- Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
- Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
- Includes: Bare tool only, batteries and charger sold separately.
- Actuation/Throttle Type/Switch Type: Trigger
- Anvil Length: Standard
- Built-in Light: Yes
- Color: Grey
- Configuration/Handle Type: Pistol Grip
- Data Storage Capacity: 1200 cycles
- Drive Size (in): 1/4
- Drive Type: Hex
- Max Free Speed (rpm): 1500
- Max Torque (ft-lb): 3.0
- Max Torque (in-lb): 35
- Max Torque (nm): 4
- Motor: Brushless Motor
- Power Source: Battery Powered
- Product Length (in): 8.48
- Product Height (in) (with Battery): 10.07
- Product Weight (lb): 2
- Recommended Forward Torque Range (ft-lb): 0.6-3.0
- Recommended Forward Torque Range (in-lb): 7.1-35
- Recommended Forward Torque Range (nm): 0.8-4
- Retainer Type: Quick Change
- Reversible: Reversible
- Side to Center Distance (in): 1
- Side to Center Distance (mm): 25
- Sound Pressure/Power Db(A): < 70.0
- User Interface: Display
- Vibration Level (m/s2): < 2.5
- Voltage DC: 20
- Warranty: 1-year Tool, 2-year Battery, 3-year Charger
- Wireless Tool Tracking: No Wireless Functionality
- Wireless Tool Tracking: Mini USB
Qx No Radio, Display, 20V Pistol 12 Nm Standard Quick Connect 1/4 Inch
IR QXFD2PT012PQ04
1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol
Description: Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!
Features And Benefits:
- Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
- Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
- Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
- In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup, Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
- Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
- Performance Mode: with medium energy pulses, is the best all-purpose mode.
- Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
- Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
- Includes: Bare tool only, batteries and charger sold separately.
- Actuation/Throttle Type/Switch Type: Trigger
- Anvil Length: Standard
- Built-in Light: Yes
- Color: Grey
- Configuration/Handle Type: Pistol Grip
- Data Storage Capacity: 1200 cycles
- Drive Size (in): 1/4
- Drive Type: Hex
- Max Free Speed (rpm): 750
- Max Torque (ft-lb): 8.9
- Max Torque (in-lb): 106
- Max Torque (nm): 12
- Motor: Brushless Motor
- Power Source: Battery Powered
- Product Length (in): 8.48
- Product Height (in) (with Battery): 10.07
- Product Weight (lb): 2
- Recommended Forward Torque Range (ft-lb): 1.8-8.9
- Recommended Forward Torque Range (in-lb): 21-106
- Recommended Forward Torque Range (nm): 2.4-12
- Retainer Type: Quick Change
- Reversible: Reversible
- Side to Center Distance (in): 1
- Side to Center Distance (mm): 25
- Sound Pressure/Power Db(A): < 70.0
- User Interface: Display
- Voltage DC: 20
- Warranty: 1-year Tool, 2-year Battery, 3-year Charger
- Wireless Tool Tracking: No Wireless Functionality
- Wireless Tool Tracking: Mini USB
Backcap Assembly, 40V Angle, No Radio, Display, Standard
IR QXFD5AT000P000
Backcap Assembly, 40V Angle, No Radio, Display, Standard
QX WIFI And Bluetooth, Display, 40V, Angle, 80nm
IR QXWD5AT080ES08
1/2" 40V, Cordless Angle ETS QX Limitless Precision Fastening, 708 in-lb, 375 RPM
Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.
Features And Benefits:
- CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
- Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
- Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
- Reduces Limitation of Communications Distance Between Tools and Controller
- COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
- Connects Up to 10 Tools with INSIGHTqcx Controllers
- Limits Hardware Footprint
- Up to 40% Reduction in Initial Hardware Investments
- Transfers End of Run Fastening Data Quickly
- Tools Are Ready for the Next Cycle 50% Faster
- Includes: Bare tool only, batteries and charger sold separately.
- Actuation/Throttle Type/Switch Type: Trigger
- Anvil Length: Standard
- Built-in Light: No
- Color: Grey
- Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
- Data Storage Capacity: 1200 cycles
- Drive Size (in): 1/2
- Drive Type: Square
- Max Free Speed (rpm): 375
- Max Torque (ft-lb): 59
- Max Torque (in-lb): 708
- Max Torque (nm): 80
- Motor: Brushless Motor
- Power Source: Battery Powered
- Product Length (in): 23.1
- Product Weight (lb): 5
- Recommended Forward Torque Range (ft-lb): 8.9-59
- Recommended Forward Torque Range (in-lb): 106-708
- Recommended Forward Torque Range (nm): 12.0-80
- Retainer Type: Pin Detent
- Reversible: Reversible
- Side to Center Distance (in): 0.85
- Side to Center Distance (mm): 22
- User Interface: Display
- Voltage DC: 40
- Warranty: 1-year Tool, 2-year Battery, 3-year Charger
- Wireless Tool Tracking: 2.4 GHz Wi-Fi
- Wireless Tool Tracking: 5 GHz Wi-Fi
- Wireless Tool Tracking: USB-C
- Wireless Tool Tracking: 802.15.4
- Wireless Tool Tracking: Bluetooth
QX WIFI and Bluetooth, Display, 20V Pistol, 12Nm, Standard Quick Connect, 1/4 In
IR QXWD2PT012PQ04
1/4" Hex 20V, Cordless QX Limitless Precision Fastening, 106 in-lb, 750 RPM, Pistol
Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.
Features And Benefits:
- CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
- Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
- Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
- Reduces Limitation of Communications Distance Between Tools and Controller
- COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
- Connects Up to 10 Tools with INSIGHTqcx Controllers
- Limits Hardware Footprint
- Up to 40% Reduction in Initial Hardware Investments
- Transfers End of Run Fastening Data Quickly
- Tools Are Ready for the Next Cycle 50% Faster
- Includes: Bare tool only, batteries and charger sold separately.
- Actuation/Throttle Type/Switch Type: Trigger
- Anvil Length: Standard
- Built-in Light: Yes
- Color: Grey
- Configuration/Handle Type: Pistol Grip
- Data Storage Capacity: 1200 cycles
- Drive Size (in): 1/4
- Drive Type: Hex
- Max Free Speed (rpm): 750
- Max Torque (ft-lb): 8.9
- Max Torque (in-lb): 106
- Max Torque (nm): 12
- Motor: Brushless Motor
- Power Source: Battery Powered
- Product Length (in): 8.48
- Product Weight (lb): 2
- Recommended Forward Torque Range (ft-lb): 1.8-8.9
- Recommended Forward Torque Range (in-lb): 21-106
- Recommended Forward Torque Range (nm): 2.4-12
- Retainer Type: Quick Change
- Reversible: Reversible
- Side to Center Distance (in): 0.8
- Side to Center Distance (mm): 20
- User Interface: Display
- Voltage DC: 20
- Warranty: 1-year Tool, 2-year Battery, 3-year Charger
- Wireless Tool Tracking: 2.4 GHz Wi-Fi
- Wireless Tool Tracking: 5 GHz Wi-Fi
- Wireless Tool Tracking: USB-C
- Wireless Tool Tracking: 802.15.4
- Wireless Tool Tracking: Bluetooth
Qx No Radio, Display, 20V Pistol 12 Nm Standard Square 3/8 Inch
IR QXFD2PT012PS06
3/8" 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol
Description: Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!
Features And Benefits:
- Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
- Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
- Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
- In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup, Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
- Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
- Performance Mode: with medium energy pulses, is the best all-purpose mode.
- Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
- Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
- Includes: Bare tool only, batteries and charger sold separately.
- Actuation/Throttle Type/Switch Type: Trigger
- Anvil Length: Standard
- Built-in Light: Yes
- Color: Grey
- Configuration/Handle Type: Pistol Grip
- Data Storage Capacity: 1200 cycles
- Drive Size (in): 3/8
- Drive Type: Square
- Max Free Speed (rpm): 750
- Max Torque (ft-lb): 8.9
- Max Torque (in-lb): 106
- Max Torque (nm): 12
- Motor: Brushless Motor
- Power Source: Battery Powered
- Product Length (in): 8.35
- Product Height (in) (with Battery): 10.07
- Product Weight (lb): 2
- Recommended Forward Torque Range (ft-lb): 1.8-8.9
- Recommended Forward Torque Range (in-lb): 21-106
- Recommended Forward Torque Range (nm): 2.4-12
- Retainer Type: Pin Detent
- Reversible: Reversible
- Side to Center Distance (in): 1
- Side to Center Distance (mm): 25
- Sound Pressure/Power Db(A): < 70.0
- User Interface: Display
- Voltage DC: 20
- Warranty: 1-year Tool, 2-year Battery, 3-year Charger
- Wireless Tool Tracking: No Wireless Functionality
- Wireless Tool Tracking: Mini USB

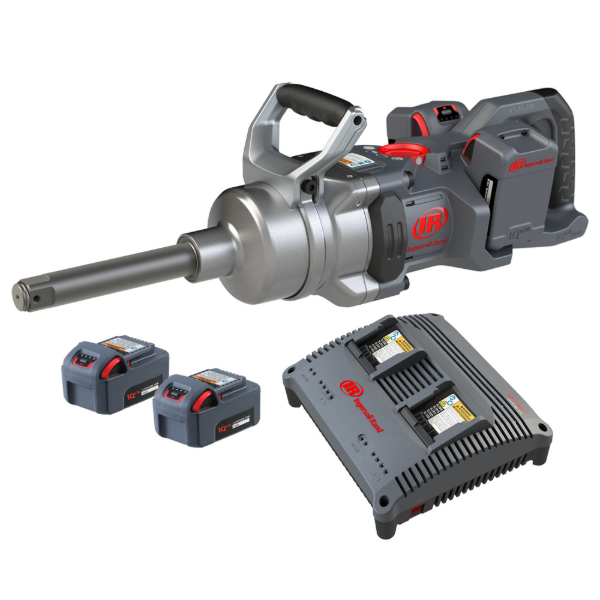

1" Iqv20X2 Impact Wrench Kit
IR W9691-K4E
1" 20V Cordless Impact Wrench 4 Battery Kit, 6" Ext Anvil, 3000 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-Handle
Description: Introducing the world's most powerful extended anvil 1" cordless impact wrench: the W9691 from Ingersoll Rand. Get 3,000 ft-lbs of nut busting torque with 100% mobility from the market leader in 1" impact wrenches. This powerful cordless impact wrench combines the power of air with the freedom of cordless mobility. Give yourself the ability to move about freely around any job site where space and maneuverability are at a premium.
Features And Benefits:
- Power: World's Most Powerful 1" Cordless Impact Wrench with best in class power-to-weight ratio. 3,000 ft-lbs of nut busting torque, 2,200 ft-lbs of tightening torque.
- Productivity: 250 bolts per charge – tackle a full day's worth of work. Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
- Extended Reach: The 6-inch extended anvil provides you with increased reach that's invaluable when working with deeper fasteners.
- IP56 rated for tough environmental conditions.
- Safety: Remove hoses & trip hazards to keep operators & technicians safe.
- IQV Power Control System includes 3 modes: MAX Power, MID, and Snug.
- Brushless motor delivers durability and efficiency.
- 360° adjustable D-handle: rotates fully around the tool as the job demands.
- Impact and chemical-resistant housing.
- Compatible with IQV 20 Series Battery System.
- 3-year limited warranty.
- Kit includes impact wrench, (4) batteries, charger, charger cord, and manuals.
Product Application and Uses:
Cordless Impact Wrenches are designed to remove and install threaded fasteners.
- Includes: W9691 Extended Anvil Impact Wrench, (4) BL2022 5.0Ah Batteries, BC1221 Dual Bay Charger, Charger Cord, Manuals
- Actuation/Throttle Type/Switch Type: Inside Trigger
- Anvil Length: 6" Extended
- Blows per Min: 1170 (BL2022)
- Bolts per Charge (on and Off): 250
- Built-in Light: No
- Color: Grey
- Configuration/Handle Type: D-Handle
- Drive Size (in): 1
- Drive Type: Square
- Duty Rating: Industrial Duty
- Fasteners per charge: 250
- Forward Torque setting 1 (ft-lb): 184
- Forward Torque setting 1 (in-lb): 2213
- Forward Torque setting 1 (nm): 250
- Forward Torque setting 2 (ft-lb): 406
- Forward Torque setting 2 (in-lb): 4868
- Forward Torque setting 2 (nm): 550
- Forward Torque setting 3 (ft-lb): 2213
- Forward Torque setting 3 (in-lb): 26552
- Forward Torque setting 3 (nm): 3000
- Hammer Case: Steel-lined Aluminum
- Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
- Impact Mechanism: Ball and Cam
- Max Bolt Diameter (in): 1-1/4
- Max Free Speed (rpm): 890
- Max Torque (ft-lb): 2213
- Max Torque (in-lb): 26552
- Max Torque (nm): 3000
- Motor: Brushless Motor
- Number of Batteries Required: 2
- Number of Power Settings: 4
- Nut-busting/Breakaway Torque (ft-lb): 3000
- Nut-busting/Breakaway Torque (in-lb): 35996
- Nut-busting/Breakaway Torque (nm): 4067
- Power Source: Battery Powered
- Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 103.09
- Product Length (in): 26.13
- Product Width (in): 6.93
- Product Height (in): 8.11
- Product Weigh
CellClutch Tool, Pistol, 700 RPM, 3.2-12 NM, 1/4 QC
CL CLBP12Q
SCREWDRIVER, CL PISTOL - 12NM- Reduced Operator Error - Pre-set torque, " ok" " not ok" green and red lights make tool operation simple.Eliminate cross threads and errors during rundowns with programmable speeds and strategies.
- Eliminate Over Torque Damage - Contactless electronic switch shuts off tightening rotation when set torque is reached.
- Reliable Single Battery Platform - Milwaukee® M18 Red Lithium battery can be used across the entire Cleco cordless range to reduce complexity and costs in your plant.
- Quick Tool Installation - Setting the preferred torque is a quick and easy 3-step process: Complete a rundown, read the torque and make adjustments, complete another rundown to verify required torque is met.
- Speed Control - Easily change the tool's RPM settings to meet the required application requirements.
Tool Configuration: Pistol
Weight (lbs): 2.4 lb

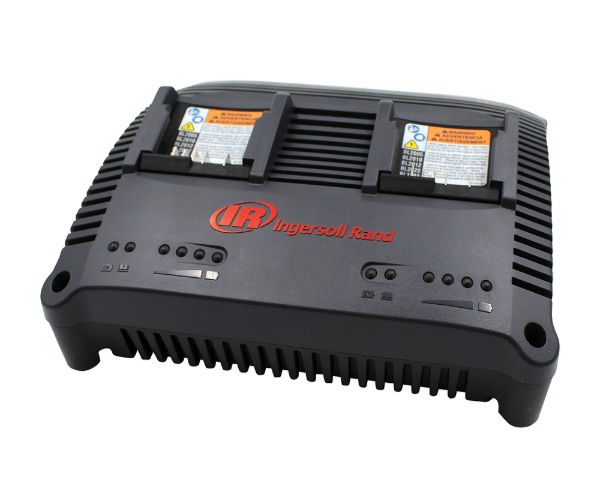

Dual Bay Charger Assy, 12V/20V, North America
IR BC1221
IQV 12V & 20V Universal Lithium-ion Battery Dual Bay Charger for Ingersoll Rand Power Tools
Description: The BC1221 lithium-ion universal charger gets all of the batteries in our IQV 12 , and IQV 20 Series lineup charged and ready to go whenever you are. Whether it's our 20V or 12V batteries, this innovative, multi-use battery charger will help you get back to work without missing a step. For use with any of our BL2022, BL2010, BL2012, BL2013, BL2023, and BL1203.
Features And Benefits:
- Charges 20v & 12v batteries for Ingersoll Rand IQv Series Cordless tools
- Capable of charging 2 battery packs simultaneously
- An LED Fuel Gauge and audible alarm will let you know when your batteries are fully charged
- Wall-mount capability – both vertically & horizontally
- USB port for charging phones or tablets
Product Application and Uses:
For use with any Ingersoll Rand IQV 12 and IQV 20 Lithium-Ion Batteries, BL2022, BL2010, BL2012, BL2023 and BL1203.
- Color: Grey
- Product Length (in): 10.1
- Product Width (in): 9
- Product Height (in): 3.9
- Product Weight (lb): 3.95
- Warranty: 3-year
- Accessories: BL1203
- Accessories: BL2012
- Accessories: BL2022
- For Use With: QCN2A30S6
- For Use With: QCN2P02Q4
- For Use With: QCN2P04Q4
- For Use With: QCN2P08Q4
- For Use With: QCN2P12Q4
- For Use With: QCP2A30S6
- For Use With: QCP2A30S6-K2-CN
- For Use With: QCP2A30S6-K2-EU
- For Use With: QCP2A30S6-K2-IN
- For Use With: QCP2P02Q4
- For Use With: QCP2P02Q4-K2-CN
- For Use With: QCP2P02Q4-K2-EU
- For Use With: QCP2P02Q4-K2-IN
- For Use With: QCP2P04Q4
- For Use With: QCP2P04Q4-K2-CN
- For Use With: QCP2P04Q4-K2-EU
- For Use With: QCP2P04Q4-K2-IN
- For Use With: QCP2P08Q4
- For Use With: QCP2P08Q4-K2-CN
- For Use With: QCP2P08Q4-K2-EU
- For Use With: QCP2P08Q4-K2-IN
- For Use With: QCP2P12Q4
- For Use With: QCP2P12Q4-K2-CN
- For Use With: QCP2P12Q4-K2-EU
- For Use With: QCP2P12Q4-K2-IN
- For Use With: RTS025PQ4
- For Use With: RTS060PH6
- For Use With: RTS060PH8
- For Use With: RTS060PS6
- For Use With: RTS060PS8
- For Use With: RTS140PH8
- For Use With: RTS140PS8
- For Use With: RTS225PH8
- For Use With: RTS225PS8
- For Use With: W7153
- For Use With: W8171
- For Use With: W8171-K2
- For Use With: W8171-K2-AP1
- For Use With: W8171-K2-CN
- For Use With: W8171-K2-EU
- For Use With: W8171-K2-IN
- For Use With: W8171-K2-JP
- For Use With: W8171-K2-KR
- For Use With: W8191
- For Use With: W8191-K2
- For Use With: W8191-K2-AP1
- For Use With: W8191-K2-CN
- For Use With: W8191-K2-EU
- For Use With: W8191-K2-IN
- For Use With: W8191-K2-JP
- For Use With: W8191-K2-KR
- For Use With: W8571
- For Use With: W8571-K2
- For Use With: W8571-K2-AP1
- For Use With: W8571-K2-CN
- For Use With: W8571-K2-EU
- For Use With: W8571-K2-IN
- For Use With: W8571-K2-JP
- For Use With: W8571-K2-KR
- For Use With: W8591
- For Use With: W8591-K2
- For Use With: W8591-K2-AP1
- For
QX WIFI AND BLUETOOTH, DISPLAY, 20V PISTOL 24 NM ETS QUARE 3/8 INCH
IR QXWD2PT024ES06
3/8" 20V, Cordless ETS QX Limitless Precision Fastening, 212 in-lb, 330 RPM, Pistol
Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.
Features And Benefits:
- CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
- Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
- Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
- Reduces Limitation of Communications Distance Between Tools and Controller
- COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
- Connects Up to 10 Tools with INSIGHTqcx Controllers
- Limits Hardware Footprint
- Up to 40% Reduction in Initial Hardware Investments
- Transfers End of Run Fastening Data Quickly
- Tools Are Ready for the Next Cycle 50% Faster
- Includes: Bare tool only, batteries and charger sold separately.
- Actuation/Throttle Type/Switch Type: Trigger
- Anvil Length: Standard
- Built-in Light: Yes
- Color: Grey
- Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
- Data Storage Capacity: 1200 cycles
- Drive Size (in): 3/8
- Drive Type: Square
- Max Free Speed (rpm): 330
- Max Torque (ft-lb): 18
- Max Torque (in-lb): 212
- Max Torque (nm): 24
- Motor: Brushless Motor
- Power Source: Battery Powered
- Product Length (in): 8.35
- Product Weight (lb): 2
- Recommended Forward Torque Range (ft-lb): -
- Recommended Forward Torque Range (in-lb): -
- Recommended Forward Torque Range (nm): 4.8 – 24
- Retainer Type: Pin Detent
- Reversible: Reversible
- Side to Center Distance (in): 1
- Side to Center Distance (mm): 25
- User Interface: Display
- Voltage DC: 20
- Warranty: 1-year Tool, 2-year Battery, 3-year Charger
- Wireless Tool Tracking: 2.4 GHz Wi-Fi
- Wireless Tool Tracking: 5 GHz Wi-Fi
- Wireless Tool Tracking: USB-C
- Wireless Tool Tracking: 802.15.4
- Wireless Tool Tracking: Bluetooth
Superceded To Qxfd2Pt018Pq04
IR QXC2PT18PQ4
Superceded To Qxfd2Pt018Pq04
Backcap Assembly, 20V Angle, No Radio, No Display, Standard
IR QXFN2AT000P000
Backcap Assembly, 20V Angle, No Radio, No Display, Standard
Qx No Radio, Display, 20V Angle 27 Nm Standard Square 3/8 Inch
IR QXFD2AT027PS06
3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 239 in-lb Torque, 330 RPM, Display
Description: Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!
Features And Benefits:
- Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
- Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
- Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
- In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup, Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
- Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
- Performance Mode: with medium energy pulses, is the best all-purpose mode.
- Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
- Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
- Includes: Bare tool only, batteries and charger sold separately.
- Actuation/Throttle Type/Switch Type: Trigger
- Anvil Length: Standard
- Built-in Light: No
- Color: Grey
- Configuration/Handle Type: Right Angle
- Data Storage Capacity: 1200 cycles
- Drive Size (in): 3/8
- Drive Type: Square
- Max Free Speed (rpm): 330
- Max Torque (ft-lb): 20
- Max Torque (in-lb): 239
- Max Torque (nm): 27
- Motor: Brushless Motor
- Power Source: Battery Powered
- Product Length (in): 21.73
- Product Weight (lb): 3.7
- Recommended Forward Torque Range (ft-lb): 4.0-20
- Recommended Forward Torque Range (in-lb): 48-239
- Recommended Forward Torque Range (nm): 5.4-27
- Retainer Type: Pin Detent
- Reversible: Reversible
- Side to Center Distance (in): 0.67
- Side to Center Distance (mm): 17
- User Interface: Display
- Voltage DC: 20
- Warranty: 1-year Tool, 2-year Battery, 3-year Charger
- Wireless Tool Tracking: No Wireless Functionality
- Wireless Tool Tracking: Mini USB
Qx No Radio, Display, 40V Angle 80 Nm Standard Square 1/2 Inch
IR QXFD5AT080PS08
1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 708 in-lb, 375 RPM, Display
Description: Designed to replace traditional clutch tools, the 40V QXFD Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. QXFD Tools comes with an Additional Display which helps on the Tool Programming and reducing setup time. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.
Features And Benefits:
- Comes with 32 programmable tightening configuration.
- 1,200 cycles of onboard tightening data storage.
- Configurable preventative maintenance alarms.
- Intuitive qualitative feedback using Green, Red, and Yellow indicators.
- The QX Series IQV 40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQV Series 40V, 2.5Ah charger BC1161.
- Insight Connect Android APP LINK.
- Programming Methods: Through USB with Insight Connect App available on Android, ICS Software, Through On Board Tool Display/ Key.
- Includes: Bare tool only, batteries and charger sold separately.
- Actuation/Throttle Type/Switch Type: Trigger
- Anvil Length: Standard
- Built-in Light: No
- Color: Grey
- Configuration/Handle Type: Right Angle
- Data Storage Capacity: 1200 cycles
- Drive Size (in): 1/2
- Drive Type: Square
- Max Free Speed (rpm): 375
- Max Torque (ft-lb): 59
- Max Torque (in-lb): 708
- Max Torque (nm): 80
- Motor: Brushless Motor
- Power Source: Battery Powered
- Product Length (in): 23.07
- Product Height (in): 3.94
- Product Weight (lb): 5
- Recommended Forward Torque Range (ft-lb): 8.9-59
- Recommended Forward Torque Range (in-lb): 106-708
- Recommended Forward Torque Range (nm): 12.0-80
- Retainer Type: Pin Detent
- Reversible: Reversible
- Side to Center Distance (in): 0.85
- Side to Center Distance (mm): 22
- User Interface: Display
- Voltage DC: 40
- Warranty: 1-year Tool, 2-year Battery, 3-year Charger
- Wireless Tool Tracking: No Wireless Functionality
- Wireless Tool Tracking: Mini USB

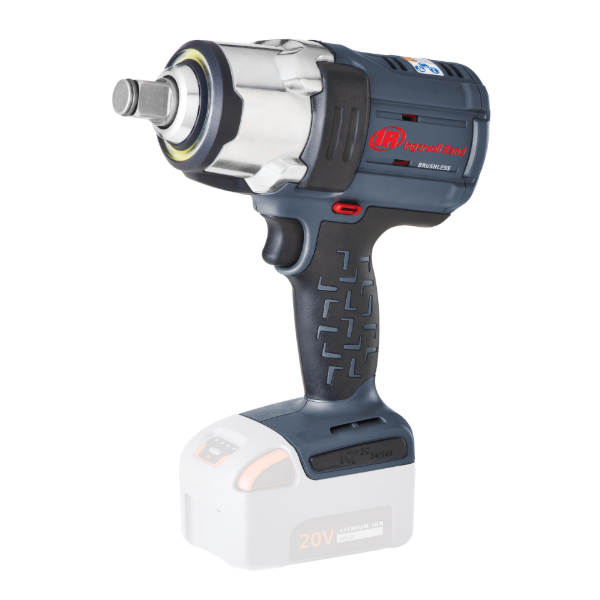

3/4" 20V Impact, W7172
IR W7172
3/4" 20V Cordless Impact Wrench, 1500 ft-lb Torque, Friction Ring and Thru-hole Retainer, Pistol, Bare Tool
Description: The IQV 20 Series W7172 3/4" 20V High Torque Impact Wrench delivers 1500 ft-lb of nut busting torque and utilizes the IQV Power Control System, going from MAX torque to "hand tight" in no time with the best in class length from tip to tail.
Features And Benefits:
- Power: Powerful brushless motor and impact mechanism are finely tuned for best in class power-to-weight ratio. 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque.
- Control: Includes the IQV Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight. From axle nuts to oil pans, flange bolts to pre-torque joints there's no need to switch tools.
- Access: 8.5" short tip-to-tail design and 360â° shadowless task light with 4 dimmable settings provides increased visibility and access.
- Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency.
- Variable-speed switch (half and full power only) with electronic brake provides maximum control of the tool and increases safety—release trigger, drive stops spinning.
- Patented steel-reinforced nylon casing protects against aggressive fluids, chemicals and repeated drops.
- Ideally used for removing or fastening cradle bolts, tire changing, fleet truck maintenance and in industrial and MRO settings.
- Weighs only 7.8 lbs (with BL2022 battery).
- 3-year warranty.
- Compatible with IQV 20 Series Battery System
Product Application and Uses:
Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include tire changing, cradle bolts, fleet truck maintenance, industrial and MRO.
- Includes: Bare tool only, batteries and charger sold separately or with other kits.
- Actuation/Throttle Type/Switch Type: Trigger
- Anvil Length: Standard
- Blows per Min: 2450 (BL2022)
- Built-in Light: Yes
- Color: Grey
- Configuration/Handle Type: Pistol Grip
- Drive Size (in): 3/4
- Drive Type: Square
- Duty Rating: General Duty
- Forward Torque setting 1 (ft-lb): 3.7-10
- Forward Torque setting 1 (in-lb): 44-124
- Forward Torque setting 1 (nm): 5-14
- Forward Torque setting 2 (ft-lb): 37-111
- Forward Torque setting 2 (in-lb): 443-1328
- Forward Torque setting 2 (nm): 50-150
- Forward Torque setting 3 (ft-lb): 531
- Forward Torque setting 3 (in-lb): 6373
- Forward Torque setting 3 (nm): 720
- Forward Torque setting 4 (ft-lb): 1003
- Forward Torque setting 4 (in-lb): 12037
- Forward Torque setting 4 (nm): 1360
- Hammer Case: Steel-lined Aluminum
- Head Width (in): 2.7
- Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
- Impact Mechanism: Ball and Cam
- Max Bolt Diameter (in): 3/4
- Max Free Speed (rpm): 1900
- Max Torque (ft-lb): 1003
- Max Torque (in-lb): 12037
- Max Torque (nm): 1360
- Motor: Brushless Motor
- Number of Batteries Required: 1
- Number of Power Settings: 4
- Nut-busting/Breakaway Torque (ft-lb): 1505
- Nut-busting/Breakaway Torque (in-lb): 18056
- Nut-busting/Breakaway Torque (nm): 2040
- Power Source: Battery Powered
- Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 194.81
- Product Length (in): 8.5
- Product
Qx No Radio, Display, 20V Pistol 18 Nm Standard Square 3/8 Inch
IR QXFD2PT018PS06
3/8" 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb Torque, 500 RPM, Display, Pistol
Description: Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!
Features And Benefits:
- Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
- Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
- Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
- In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup, Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
- Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
- Performance Mode: with medium energy pulses, is the best all-purpose mode.
- Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
- Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
- Includes: Bare tool only, batteries and charger sold separately.
- Actuation/Throttle Type/Switch Type: Trigger
- Anvil Length: Standard
- Built-in Light: Yes
- Color: Grey
- Configuration/Handle Type: Pistol Grip
- Data Storage Capacity: 1200 cycles
- Drive Size (in): 3/8
- Drive Type: Square
- Max Free Speed (rpm): 500
- Max Torque (ft-lb): 13
- Max Torque (in-lb): 159
- Max Torque (nm): 18
- Motor: Brushless Motor
- Power Source: Battery Powered
- Product Length (in): 8.35
- Product Height (in) (with Battery): 10.07
- Product Weight (lb): 2
- Recommended Forward Torque Range (ft-lb): 2.7-13
- Recommended Forward Torque Range (in-lb): 32-159
- Recommended Forward Torque Range (nm): 3.6-18
- Retainer Type: Pin Detent
- Reversible: Reversible
- Side to Center Distance (in): 1
- Side to Center Distance (mm): 25
- User Interface: Display
- Voltage DC: 20
- Warranty: 1-year Tool, 2-year Battery, 3-year Charger
- Wireless Tool Tracking: No Wireless Functionality
- Wireless Tool Tracking: Mini USB
QX WIFI and Bluetooth, Display, 20V Angle, 18Nm, Standard Square, 3/8 In
IR QXWD2AT018PS06
3/8" 20V, Cordless Angle QX Limitless Precision Fastening, 159 in-lb, 500 RPM
Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.
Features And Benefits:
- CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
- Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
- Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
- Reduces Limitation of Communications Distance Between Tools and Controller
- COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
- Connects Up to 10 Tools with INSIGHTqcx Controllers
- Limits Hardware Footprint
- Up to 40% Reduction in Initial Hardware Investments
- Transfers End of Run Fastening Data Quickly
- Tools Are Ready for the Next Cycle 50% Faster
- Includes: Bare tool only, batteries and charger sold separately.
- Actuation/Throttle Type/Switch Type: Trigger
- Anvil Length: Standard
- Built-in Light: No
- Color: Grey
- Configuration/Handle Type: Right Angle
- Data Storage Capacity: 1200 cycles
- Drive Size (in): 3/8
- Drive Type: Square
- Max Free Speed (rpm): 500
- Max Torque (ft-lb): 13
- Max Torque (in-lb): 159
- Max Torque (nm): 18
- Motor: Brushless Motor
- Power Source: Battery Powered
- Product Length (in): 24.34
- Product Weight (lb): 2.8
- Recommended Forward Torque Range (ft-lb): 2.7-13
- Recommended Forward Torque Range (in-lb): 32-159
- Recommended Forward Torque Range (nm): 3.6-18
- Retainer Type: Pin Detent
- Reversible: Reversible
- Side to Center Distance (in): 0.51
- Side to Center Distance (mm): 13
- User Interface: Display
- Voltage DC: 20
- Warranty: 1-year Tool, 2-year Battery, 3-year Charger
- Wireless Tool Tracking: 2.4 GHz Wi-Fi
- Wireless Tool Tracking: 5 GHz Wi-Fi
- Wireless Tool Tracking: USB-C
- Wireless Tool Tracking: 802.15.4
- Wireless Tool Tracking: Bluetooth
Payment options
