GG L60M16
PRO XP GUN, ES, 60KV, SMART, HC

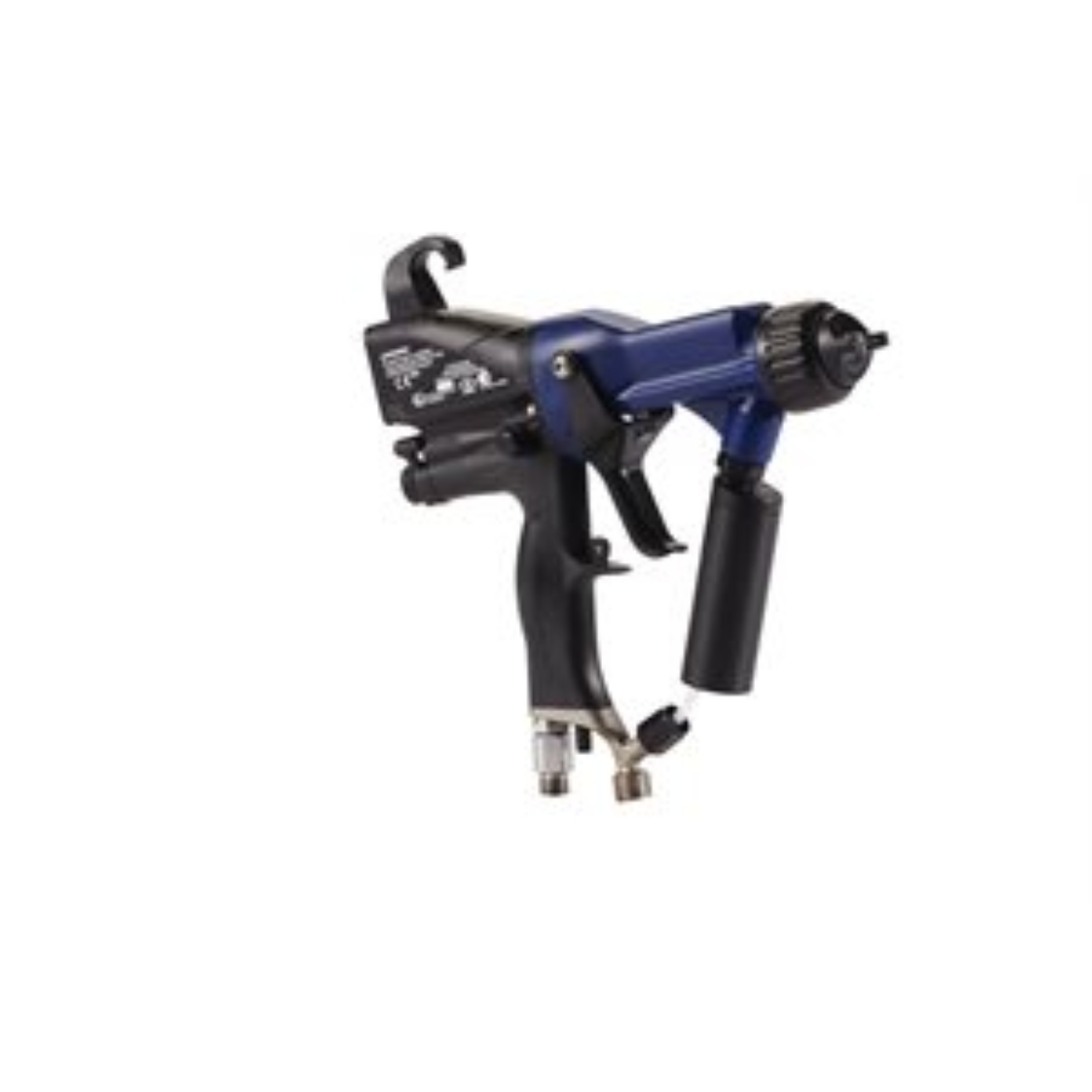

Graco L60M16 Pro Xp60 Air Spray Manual Electrostatic High Conductivity Gun, 60 kV, 0.055 in (1.5 mm) precision high wear nozzle, smart display
This 60 kV high conductivity model combines material savings and excellent finish quality into a small, light gun body, making it easy to spray.
Application: For spraying low resistivity materials, such as abrasives and metallic coatings
- Smart controls help you analyze performance, adapt to your voltage needs and troubleshoot easily.
- Metal tip precision high-wear nozzle, high-wear electrode, and more durable fluid tube improve longevity.
- Removable black fluid tube cover allows operator to see fluid movement.
- Made in the USA
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, High Conductivity, High Wear
- Applicator Type: Manual
- Coating Type: Abrasive, Metallic, High Conductivity, High Wear
- Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes
- Fluid Inlet Size (in): 3/8
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Type: Electrostatic
- Gun Weight (g): 670
- Gun Weight (kg): 0.67
- Gun Weight (lb): 1.48
- Gun Weight (oz): 23.63
- Includes: Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm²): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kg/cm²): 7.14
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): 25
- Minimum Paint Resistivity (megohm/cm): 1
- Nozzle Size (cm): 0.15
- Nozzle Size (in): 0.055
- Nozzle Size (mm): 1.5
- Overall Length (cm): 24.13
- Overall Length (in): 9.5
- Overall Length (mm): 241.3
