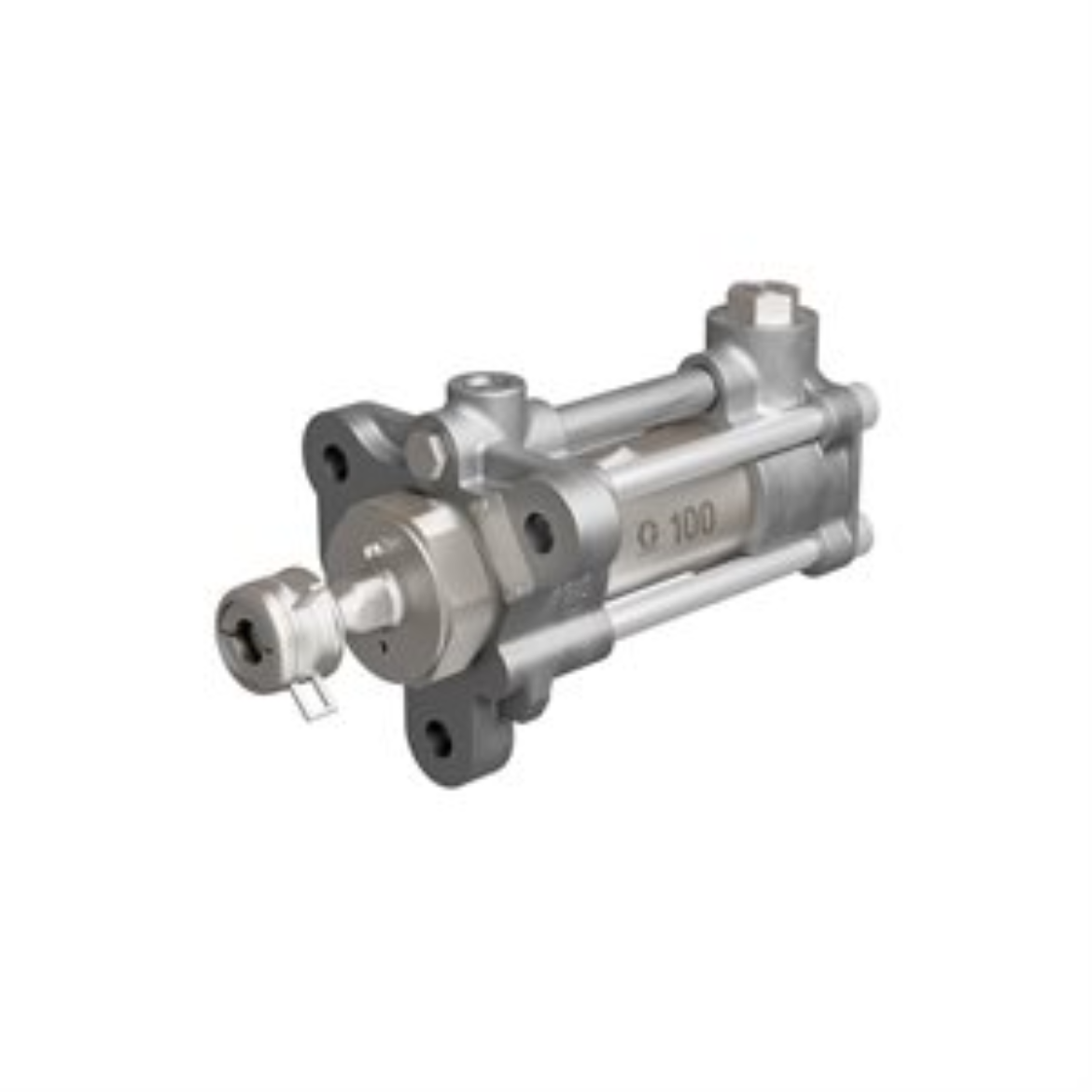

GG L100S4
LOWER, CHEMICAL, 100, SST, UCUP

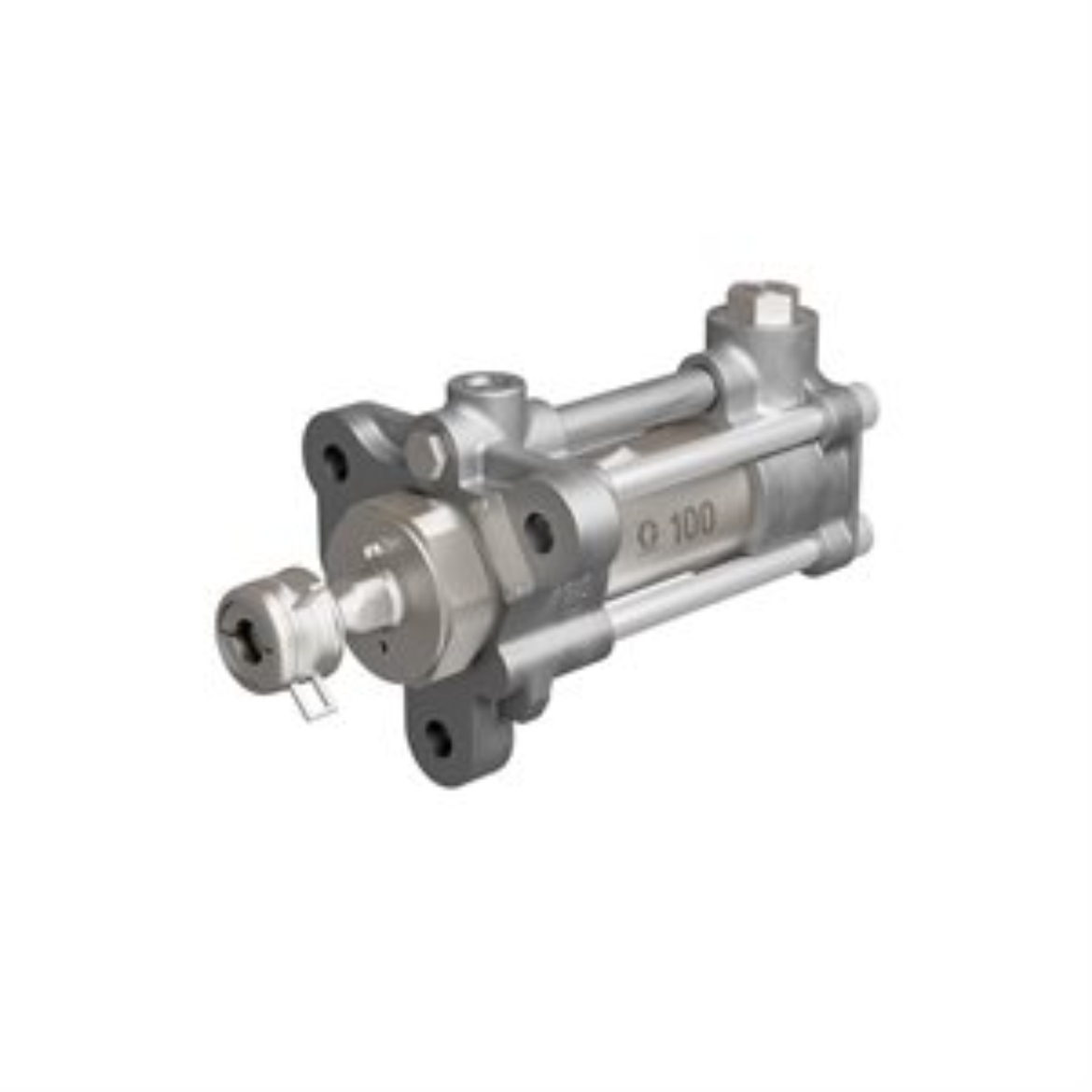

Graco L100S4 Z-Pump, 100 cc, Severe Duty, S4
Z-Pumps are positive displacement pump components for use with the Graco and meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.
- Severe Duty coatings and 1/2 inch (1.27 cm) checks easily manage material wear from silicones, sealants, epoxies, and structural adhesives.
- Precision control eliminates pressure spikes and guarantees on ratio dispense.
- Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Industrial
- Ball Check Size (in): 1/2
- Ball Material: Silicon Nitride
- Coating Type: Severe Duty
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: SAE
- Maximum Flow Rate (GPM): 1.59
- Maximum Operating Temperature (°F): 180
- Maximum Output (cm³): 100
- Maximum Pump Speed (CPM): 60
- Maximum Viscosity (cP): 3000000
