Fluid Regulators

GG 214706

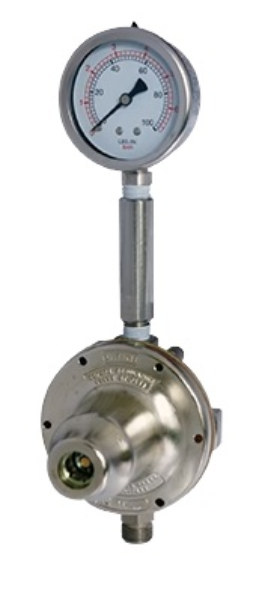

REGULATOR, PRESS FLUID SST

Graco 214706 Low Pressure Fluid Regulator, 250 Max psi, 5-100 psi Range, 3.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f), 1/4 (f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Removable adjustment key eliminates operator interference
• Manual quick flush mode ensures easy cleaning without impacting production settings
• PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Thread Gender: Female
• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.36

• Maximum Regulated Pressure (bar): 7
• Maximum Regulated Pressure (kPa): 700
• Maximum Regulated Pressure (MPa): 0.7
• Maximum Regulated Pressure (psi): 100

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 18
• Maximum Working Pressure (kPa): 1800
• Maximum Working Pressure (MPa): 1.8
• Maximum Working Pressure (psi): 250

• Minimum Regulated Pressure (bar): 0.3
• Minimum Regulated Pressure (kPa): 34
• Minimum Regulated Pressure (MPa): 0.034
• Minimum Regulated Pressure (psi): 5

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Female

DD HGB-508-1

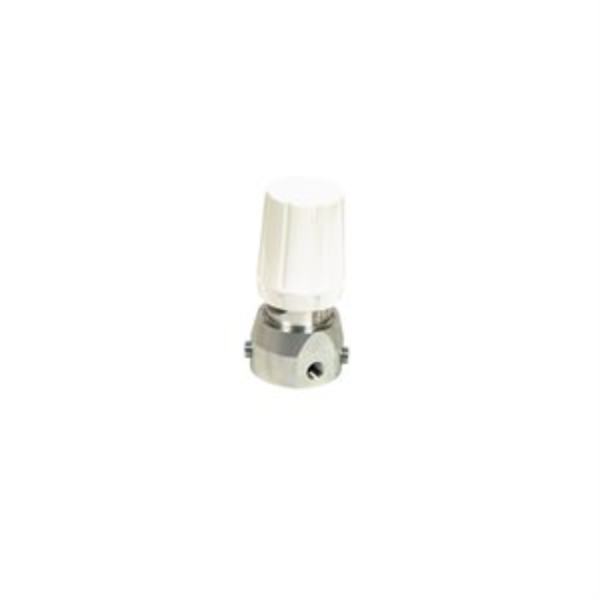

GG 236770

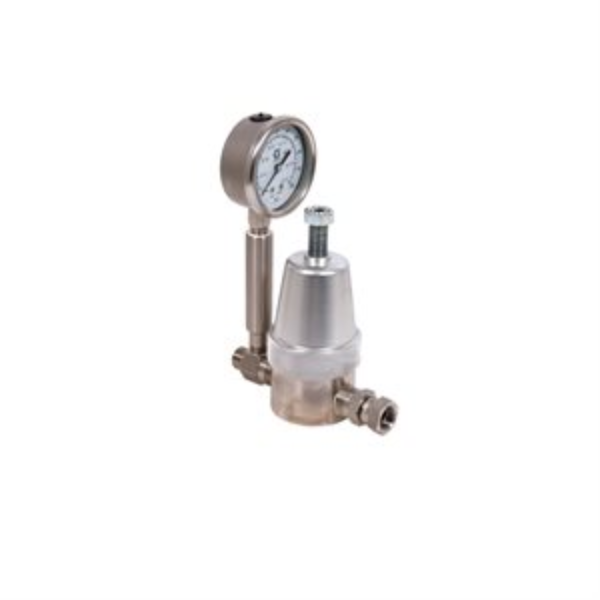

REGULATOR, BACK PRESSURE

Graco 236770 Back Pressure Regulator, Low Pressure Mini, 180 Max psi, SST, Manual, 3/8 (m) x 3/8 (f), with Gauge

Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Tungsten and carbide materials ensure low wear and long life
• Compact and lightweight design saves space and reduces payload for small circulation systems
• Air operated model available for automated control, Conversion kit (237448)

• Compatible Material: Catalyst, Waterborne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPSM

• Maximum Flow Rate (GPM): 4.3
• Maximum Flow Rate (L/min): 16.28

• Maximum Regulated Pressure (bar): 12.4
• Maximum Regulated Pressure (kPa): 1240
• Maximum Regulated Pressure (psi): 180

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (psi): 300

• Minimum Regulated Pressure (bar): 0.3
• Minimum Regulated Pressure (kPa): 30
• Minimum Regulated Pressure (MPa): 0.03
• Minimum Regulated Pressure (psi): 5

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Type: NPSM

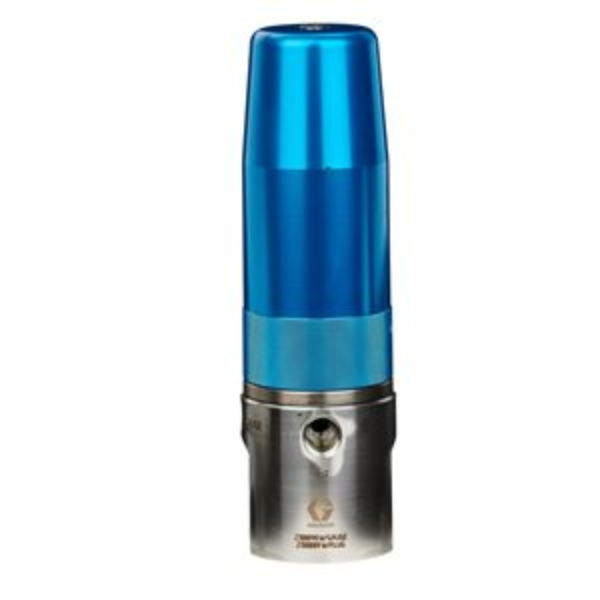

GG 238890

REGULATOR, PRESSURE, FLUID

Graco 238890 Corrosion Resistant High Pressure Fluid Regulator, 500-3000 psi Range, 1.0 GPM, SST, Spring, 3/8(f) x 3/8(f), 1/4(f) Port, with gauge

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Tungsten and carbide materials ensure low wear and long life
• Valve cartridge for quick cleaning and replacement - reduce downtime

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.8

• Maximum Regulated Pressure (bar): 207
• Maximum Regulated Pressure (kPa): 20700
• Maximum Regulated Pressure (MPa): 21
• Maximum Regulated Pressure (psi): 3000

• Maximum Viscosity (cP): 15000

• Maximum Working Pressure (bar): 414
• Maximum Working Pressure (kPa): 41400
• Maximum Working Pressure (MPa): 41
• Maximum Working Pressure (psi): 6000

• Minimum Regulated Pressure (bar): 34
• Minimum Regulated Pressure (kPa): 3400
• Minimum Regulated Pressure (MPa): 3.4
• Minimum Regulated Pressure (psi): 500

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525

GG 903958

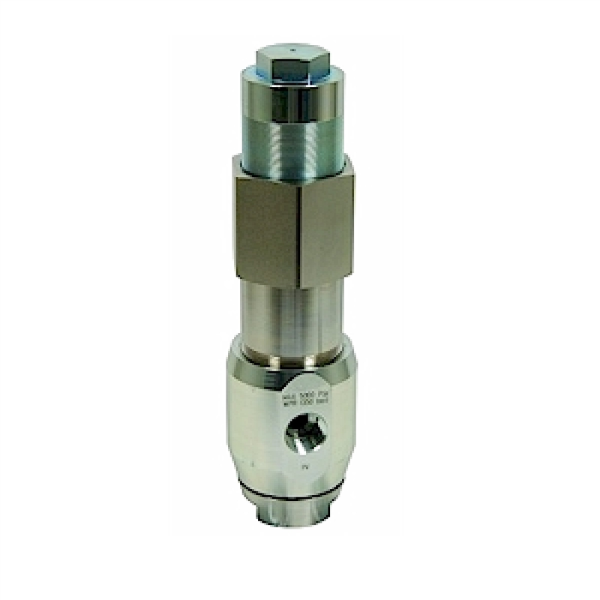

REGULATOR, MASTIC

Graco 903958 Spring Operated Mastic Fluid Pressure Regulator

The mastic regulator is ideal for low to high viscosity sealants or adhesives

• Actuation Type: Spring

• Flow Control Type: Regulation

• Gauge Port Size (cm): 1.905
• Gauge Port Size (in): 3/4
• Gauge Port Size (mm): 19.05

• Gauge Port Type: NPT

• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Type: NPT

• Maximum Regulated Pressure (bar): 310
• Maximum Regulated Pressure (kPa): 31000
• Maximum Regulated Pressure (MPa): 31.0
• Maximum Regulated Pressure (psi): 4500

• Maximum Viscosity (cP): 80000

• Maximum Working Pressure (bar): 344
• Maximum Working Pressure (kPa): 34400
• Maximum Working Pressure (MPa): 34.4
• Maximum Working Pressure (psi): 5000

• Minimum Regulated Pressure (bar): 70
• Minimum Regulated Pressure (kPa): 7000
• Minimum Regulated Pressure (MPa): 7.0
• Minimum Regulated Pressure (psi): 1000

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Type: NPT

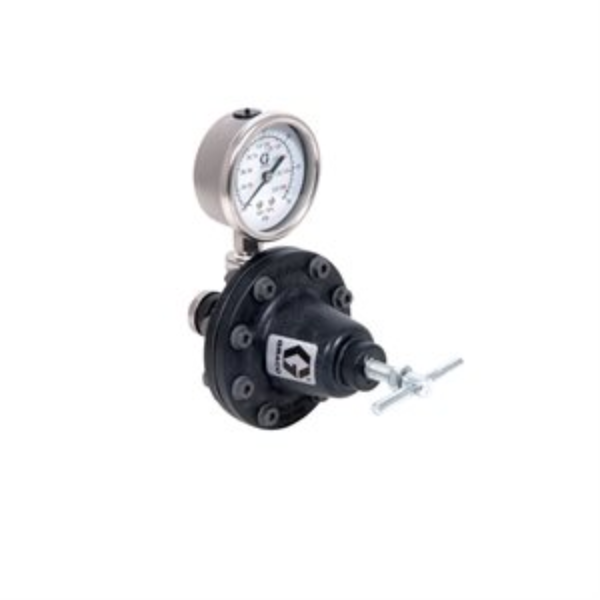

GG 217314

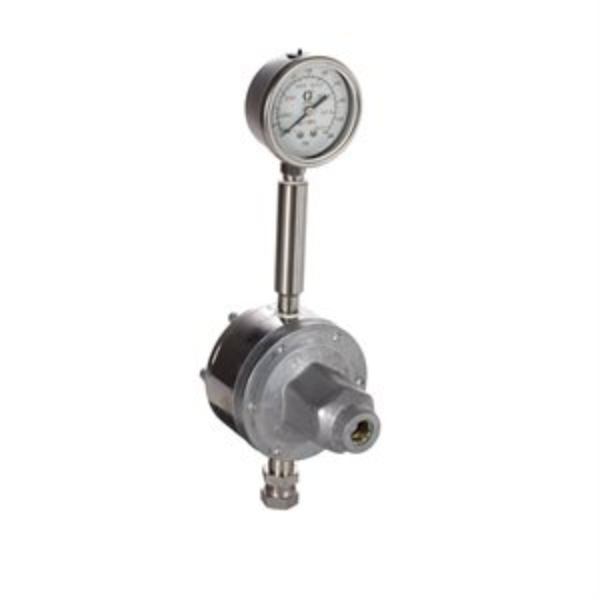

REGULATOR, PRESS, FLUID

Graco 217314 Low Pressure Fluid Regulator, 250 Max psi, 20-160 psi Range, 3.0 GP (m), SST, Spring Type, 3/8 (f) x 3/8 (f), 1/4 (f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Removable adjustment key eliminates operator interference
• Manual quick flush mode ensures easy cleaning without impacting production settings
• PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Thread Gender: Female
• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.36

• Maximum Regulated Pressure (bar): 11
• Maximum Regulated Pressure (kPa): 1100
• Maximum Regulated Pressure (MPa): 1.1
• Maximum Regulated Pressure (psi): 160

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 18
• Maximum Working Pressure (kPa): 1800
• Maximum Working Pressure (MPa): 1.8
• Maximum Working Pressure (psi): 250

• Minimum Regulated Pressure (bar): 1.4
• Minimum Regulated Pressure (kPa): 140
• Minimum Regulated Pressure (MPa): 0.14
• Minimum Regulated Pressure (psi): 20

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Female

GG 241976

REGULATOR, PRESS, FLUID, 0-60 PSI

Graco 241976 Low Pressure Lightweight Fluid Regulator, 3-30 psi (0.2-2 bar), 0.5 gpm, Acetal, Air, 1/4(f) x 1/4(f), 1/4(f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

• Lightweight composite material is compatible with waterborne materials
• PTFE, stainless steel seat, and carbide ball provide wear resistance
• Pressure adjustment key with locking mechanism protects production settings

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Regulator Only
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 0.5
• Maximum Flow Rate (L/min): 1.89

• Maximum Regulated Pressure (bar): 2.1
• Maximum Regulated Pressure (kPa): 210
• Maximum Regulated Pressure (MPa): 0.21
• Maximum Regulated Pressure (psi): 30

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (MPa): 0.7
• Maximum Working Pressure (psi): 100

• Minimum Regulated Pressure (bar): 0.2
• Minimum Regulated Pressure (kPa): 20
• Minimum Regulated Pressure (MPa): 0.02
• Minimum Regulated Pressure (psi): 3

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35

BB 84-320

BB 107906

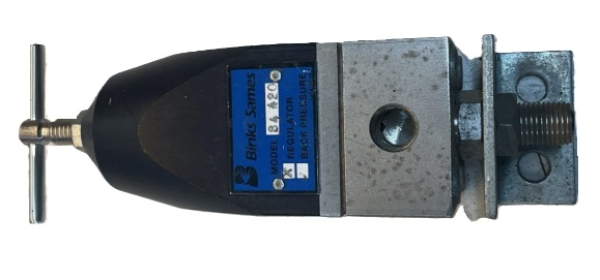

BB 84-420

GG 203831

REGULATOR,FLUID

Graco 203831 Low Pressure Fluid Regulator, 0-60 psi (0-4 bar) Regulated Pressure, 3.0 GPM, Aluminum, Spring Type, 3/8(f) x 3/8(m), 1/4(f) Port

For accurate, positive control of fluid pressure to one spray gun, dispensing valve, or atomizing head. Gives positive control of fluid pressures in most normal direct supply and circulating spray systems

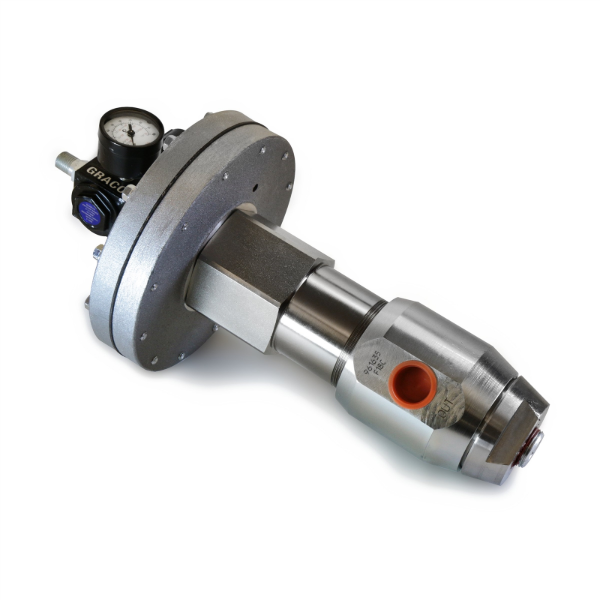

GG 961635

REGULATOR, MASTIC, 5000 PSI

Graco 961635 Air Operated Mastic Fluid Pressure Regulator

The mastic regulator is ideal for low to high viscosity sealants or adhesives

• Actuation Type: Air

• Flow Control Type: Regulation

• Gauge Port Size (cm): 1.905
• Gauge Port Size (in): 3/4
• Gauge Port Size (mm): 19.05

• Gauge Port Type: NPT

• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Type: NPT

• Maximum Regulated Pressure (bar): 310
• Maximum Regulated Pressure (kPa): 31000
• Maximum Regulated Pressure (MPa): 31.0
• Maximum Regulated Pressure (psi): 4500

• Maximum Viscosity (cP): 80000

• Maximum Working Pressure (bar): 344
• Maximum Working Pressure (kPa): 34400
• Maximum Working Pressure (MPa): 34.4
• Maximum Working Pressure (psi): 5000

• Minimum Regulated Pressure (bar): 17
• Minimum Regulated Pressure (kPa): 1700
• Minimum Regulated Pressure (MPa): 1.7
• Minimum Regulated Pressure (psi): 250

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Type: NPT

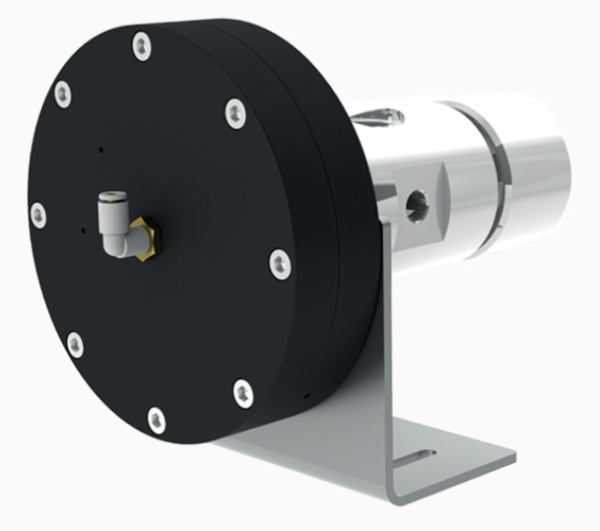

GG 205425

GG 234266

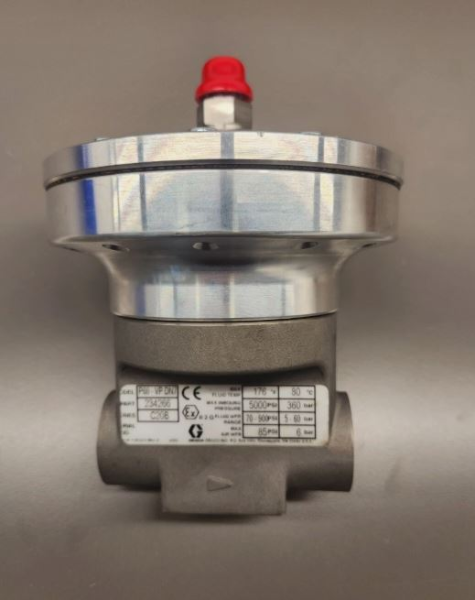

REGULATOR, PRESSURE, NPT, P60-VP DN7

Graco 234266 High Pressure Fluid Regulator, 5000 Max psi, 70-900 psi Range, 11.3 GPM, SST, Air Type, 3/4 (f) x 3/4 (f), 1/4 BSPP Port

Our pneumatically operated fluid pressure regulators are designed primarily for use with highly viscous coatings

• Actuation Type: Air

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: BSPP

• Includes: Regulator Only
• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 11.3
• Maximum Flow Rate (L/min): 42.8

• Maximum Regulated Pressure (bar): 60
• Maximum Regulated Pressure (kPa): 6000
• Maximum Regulated Pressure (MPa): 6
• Maximum Regulated Pressure (psi): 900

• Maximum Working Pressure (bar): 360
• Maximum Working Pressure (kPa): 36000
• Maximum Working Pressure (MPa): 36
• Maximum Working Pressure (psi): 5000

• Minimum Regulated Pressure (bar): 5
• Minimum Regulated Pressure (kPa): 500
• Minimum Regulated Pressure (MPa): 0.5
• Minimum Regulated Pressure (psi): 70

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05

GG 24C375

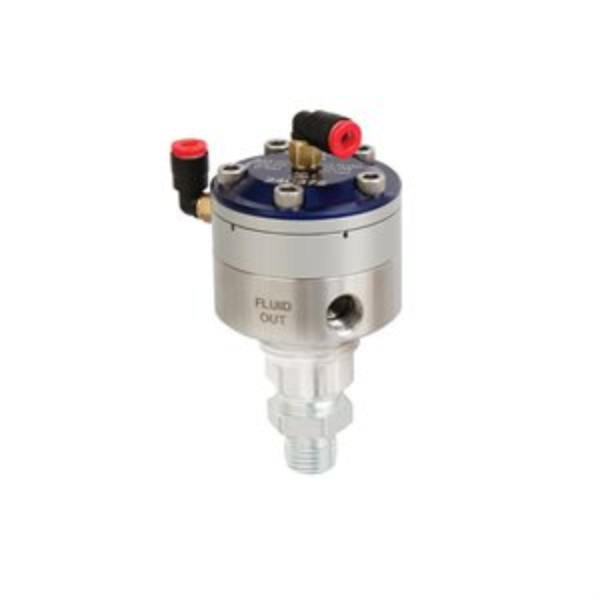

REGULATOR, FLUID, 1:1 RATIO

Graco 24C375 1:1 Precision Flow Fluid Pressure Regulator, 90 psi (6.2 bar) max pressure, silver ratio spacer

Fluid regulators keep your system functioning more productively.

• Available with mechanical control or pneumatic control
• Suitable for fluids with low and high viscosities
• Models available with wetted parts made of stainless steel

• Actuation Type: Air

• Includes: Regulator Only
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Regulated Pressure (bar): 7
• Maximum Regulated Pressure (kPa): 700
• Maximum Regulated Pressure (MPa): 0.7
• Maximum Regulated Pressure (psi): 100

• Maximum Working Pressure (bar): 6.3
• Maximum Working Pressure (kPa): 630
• Maximum Working Pressure (MPa): 0.6
• Maximum Working Pressure (psi): 90

• Minimum Working Pressure (bar): 0.069
• Minimum Working Pressure (kg/cm 2): 0.07
• Minimum Working Pressure (kPa): 6.9

• Minimum Working Pressure (psi): 1

• Outlet Size (cm): 0.3175
• Outlet Size (in): 1/8
• Outlet Size (mm): 3.175

GG 206819

VALVE, BACK PRESSURE

Graco 206819 Back Pressure Fluid Regulator, 3000 Max psi, CS, Spring Type, 1/4 (f) x 1/4 (f)

Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand

• Tungsten and carbide materials ensure low wear and long life
• Plated carbon steel housing is compatible with solvent-borne

  materials

• Laser-marked indication lines for easy pressure adjustment

  and process control

• Compatible Material: Solvent borne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3.5
• Maximum Flow Rate (L/min): 13.25

• Maximum Regulated Pressure (bar): 207
• Maximum Regulated Pressure (kPa): 20700
• Maximum Regulated Pressure (psi): 3000

• Maximum Viscosity (cP): 500

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 21000
• Maximum Working Pressure (psi): 3000

• Minimum Regulated Pressure (bar): 70
• Minimum Regulated Pressure (kPa): 7000
• Minimum Regulated Pressure (MPa): 7
• Minimum Regulated Pressure (psi): 1000

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35
• Outlet Thread Type: NPT

RR 74151-01

BB 135-80

BB 84-410

GG 204501

GG 236449

REGULATOR, PRESS, FLUID

Graco 236449 Low Pressure Lightweight Fluid Regulator, Gauge, 3-30 psi (0.2-2 bar), 0.5 gpm, Acetal, Spring, 1/4(f) x 1/4(f), 1/4(f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

• Lightweight composite material is compatible with waterborne materials
• PTFE, stainless steel seat, and carbide ball provide wear resistance
• Pressure adjustment key with locking mechanism protects production settings

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 0.5
• Maximum Flow Rate (L/min): 1.89

• Maximum Regulated Pressure (bar): 2.1
• Maximum Regulated Pressure (kPa): 210
• Maximum Regulated Pressure (MPa): 0.2
• Maximum Regulated Pressure (psi): 30

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (MPa): 0.7
• Maximum Working Pressure (psi): 100

• Minimum Regulated Pressure (bar): 0.2
• Minimum Regulated Pressure (kPa): 20
• Minimum Regulated Pressure (MPa): 0.02
• Minimum Regulated Pressure (psi): 3

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35

BB 84-411

BB 845000

GG 214895

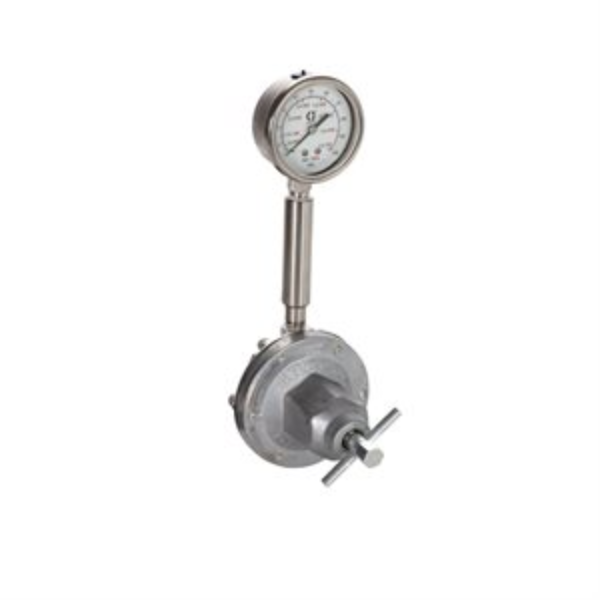

REGULATOR, FLUID PRESS

Graco 214895 Low Pressure Fluid Regulator, 250 Max psi, 5-100 psi Range, 3.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f), 1/4 (f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Removable adjustment key eliminates operator interference
• Manual quick flush mode ensures easy cleaning without impacting production settings
• PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Thread Gender: Female
• Gauge Port Type: NPT

• Includes: Regulator Only
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.36

• Maximum Regulated Pressure (bar): 7
• Maximum Regulated Pressure (kPa): 700
• Maximum Regulated Pressure (MPa): 0.7
• Maximum Regulated Pressure (psi): 100

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 18
• Maximum Working Pressure (kPa): 1800
• Maximum Working Pressure (MPa): 1.8
• Maximum Working Pressure (psi): 250

• Minimum Regulated Pressure (bar): 0.3
• Minimum Regulated Pressure (kPa): 34
• Minimum Regulated Pressure (MPa): 0.034
• Minimum Regulated Pressure (psi): 5

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Female

GG 236450

REGULATOR, PRESS, FLUID

Graco 236450 Low Pressure Lightweight Fluid Regulator, Gauge, 20-100 psi (1-7 bar), 0.5 gpm, Acetal, Spring, 1/4(f) x 1/4(f), 1/4(f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

• Lightweight composite material is compatible with waterborne materials
• PTFE, stainless steel seat, and carbide ball provide wear resistance
• Pressure adjustment key with locking mechanism protects production settings

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 0.5
• Maximum Flow Rate (L/min): 1.89

• Maximum Regulated Pressure (bar): 7.0
• Maximum Regulated Pressure (kPa): 700
• Maximum Regulated Pressure (MPa): 0.7
• Maximum Regulated Pressure (psi): 100

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (MPa): 0.7
• Maximum Working Pressure (psi): 100

• Minimum Regulated Pressure (bar): 1.4
• Minimum Regulated Pressure (kPa): 140
• Minimum Regulated Pressure (MPa): 0.14
• Minimum Regulated Pressure (psi): 20

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35
