Automatic Dispense Guns

GG GCP4R1

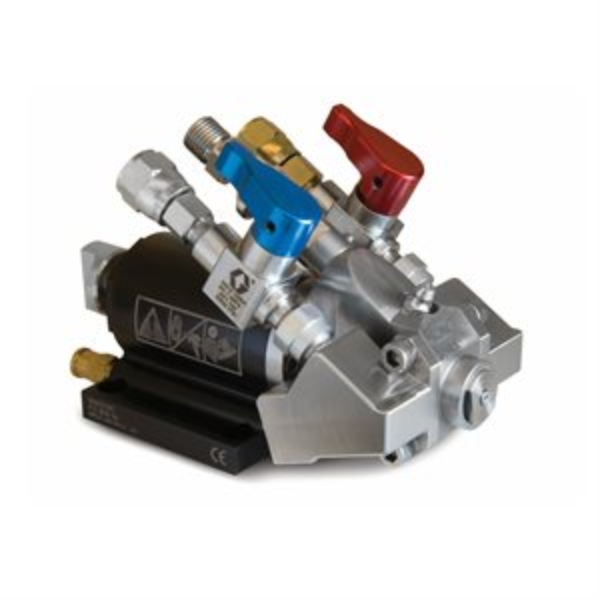

P2 GUN, AUTOMATIC

Probler P2 Automatic Gun with 01 Mix Chamber Kit

The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.

For high output spray polyurethane foam and polyurea applications.Easy daily maintenanceResponsive trigger actionEasy-to-replace mix chamber insertAnti-crossover design virtually eliminates possibility of material entering the air pistonErgonomic handle and balanced design

GG 24P217

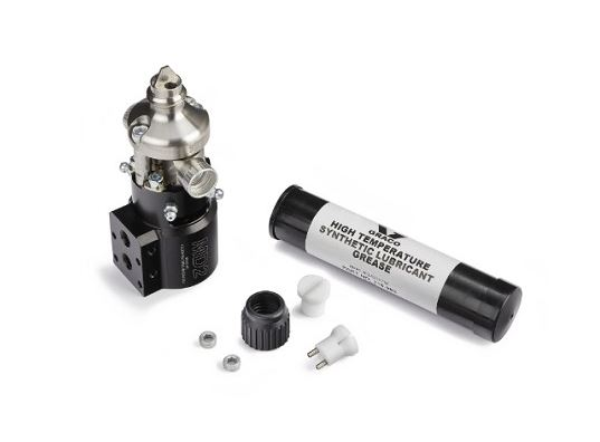

DISPENSER, ASSY, MD2, HANDLE

MD2 Dispense Valve with HandleAccurately dispenses and mixes two-component sealants and adhesivesMinimizes maintenance time and costs while maximizing dispense timeDesigned with fewer parts and is easy to cleanStreamlines maintenance and serviceComplete modular design adapts to different installation needsNo unique tools required

GG GCP4R0

P2 GUN, AUTOMATIC

Graco GCP4R0 Probler P2 Automatic Gun with 00 Mix Chamber Kit

The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.

Application: For high output spray polyurethane foam and polyurea applications.

• Easy daily maintenance
• Responsive trigger action
• Easy-to-replace mix chamber insert
• Ergonomic handle and balanced design

• Model: P2
• Series: Auto

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4-18
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPT

• Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.11125
• Component B Inlet Size (in): 7/16-18
• Component B Inlet Size (mm): 11.1125
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.074
• Fluid Orifice Size (in): 0.029
• Fluid Orifice Size (mm): 0.74

• Gun Activation: Automatic
• Gun Series: Automatic
• Gun Type: Air-Purge
• Gun Weight (g): 1770
• Gun Weight (kg): 1.77
• Gun Weight (lb): 3.9
• Gun Weight (oz): 32.4

• Maximum Air Inlet Pressure (bar): 7.6
• Maximum Air Inlet Pressure (kPa): 760
• Maximum Air Inlet Pressure (MPa): 0.76
• Maximum Air Inlet Pressure (psi): 110
• Maximum Air Pressure (bar): 7.6

• Maximum Air Pressure (kPa): 760
• Maximum Air Pressure (MPa): 0.76
• Maximum Air Pressure (psi): 110

• Maximum Flow Rate (kg/min): 18
• Maximum Flow Rate (lb/min): 40

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Working Pressure (bar): 221
• Maximum Fluid Working Pressure (MPa): 22.1
• Maximum Fluid Working Pressure (psi): 3200

• Minimum Air Inlet Pressure (bar): 6.2
• Minimum Air Inlet Pressure (kPa): 620
• Minimum Air Inlet Pressure (MPa): 0.62
• Minimum Air Inlet Pressure (psi): 90

• Minimum Flow Rate (kg/min): 1.4
• Minimum Flow Rate (lb/min): 3

• Mix Chamber: 00 (.029)

• Overall Height (cm): 12.1
• Overall Height (in): 4.75
• Overall Height (mm): 121
• Overall Length (cm): 7.9
• Overall Length (in): 3.125
• Overall Length (mm): 79
• Overall Width (cm): 17.4
• Overall Width (in): 6

GG LC0006

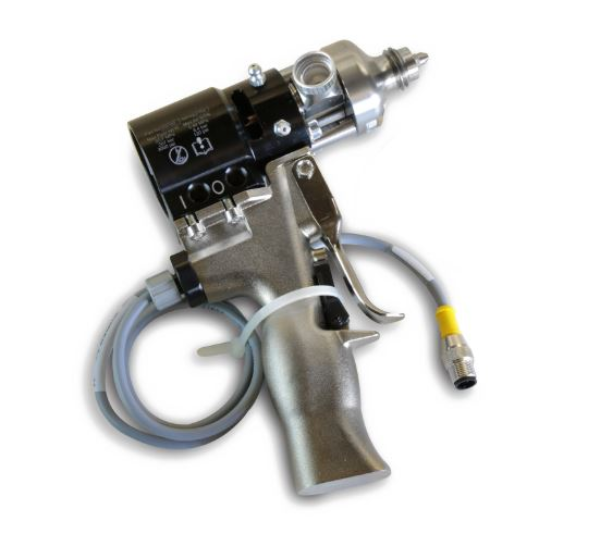

MD2 Valve, 10:1 Wide Ratio, Soft Seat Electricall Actuated Gun Trigger

GG SG261

LSR (Liquid, Silicone, Rubber) 622 Gun-Single Part Shut-Off, Air Operated
