GRACO INC. S10595
GRACO INC. S10595 branded products
REGULATOR, MASTIC, HEATED
GG 246643
GG 246643
REGULATOR, MASTIC, HEATED
Air Operated Heated Mastic Fluid Pressure Regulator The heated mastic regulator is ideal for low to high viscosity warm-melt and hot-melt sealants or adhesives
$6,110.00
REACTOR HEATED HOSE, 2000PSI, 3/8ID W/SGRD
GG 246678
GG 246678
REACTOR HEATED HOSE, 2000PSI, 3/8ID W/SGRD
Graco 246678 50 ft x 3/8 in Heated Hose, 2000 psi, Thermocouple, Mesh Scuff, Reactor 1
Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
Application: For Reactor proportioners.- New multi-strand copper heating element has greatly increased hose quality:
- Copper-heated hoses are designed specifically for use with Graco proportioners
- Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
- Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
- Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
- Helix-design whip hose uses braided copper wires for added flexibility and longer life
Provides 10-times* the flex life compared to previous flat copper heating element
Long-term, even heating without hot spots
Backwards compatible with existing Reactor heated hoses
- Model: Reactor 1
- Series: Mesh Scuff
- Compatible Sprayer: Reactor 1
- For Use With: Plural Component Proportioners
- Hose Heating Type: External Heated
- Hose Inside Diameter (in): 3/8
- Hose Inside Diameter (mm): 9.525
- Hose Length (ft): 50
- Hose Length (m): 15.2
- Inside Diameter (in): 3/8
- Maximum Working Pressure (bar): 138
- Maximum Working Pressure (kPa): 13800
- Maximum Working Pressure (MPa): 13.8
- Maximum Working Pressure (psi): 2000
$2,660.00
REACTOR HEATED HOSE, 3500PSI, 3/8 W/SCFGRD
GG 246679
GG 246679
REACTOR HEATED HOSE, 3500PSI, 3/8 W/SCFGRD
50 ft x 3/8 in Heated Hose, 3500 psi, Thermocouple, Mesh Scuff, Reactor 1Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
For Reactor proportioners.New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
$3,780.00
REGULATOR, MASTIC
GG 246687
GG 246687
REGULATOR, MASTIC
Air Operated Mastic Fluid Pressure Regulator These regulators control downstream pressure for mastic or semi-solid material. Install a regulator ahead of each spray gun or extruder gun in a multiple outlet system. The regulator provides precise pressure control to each spray gun from a common header system. It also dampens flow surges when line valves are opened and during pump stroke changeover.
$2,900.00
FIREBALL 225 PUMP, 3:1, (UNIVERSAL)
GG 246775
GG 246775
FIREBALL 225 PUMP, 3:1, (UNIVERSAL)
Graco 246775 Mini Fire-Ball® 225 3:1 Universal Size Oil Pump
You can&prime, t afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
Application: The Mini Fire-Ball 225 3:1 is perfect for medium pressure, low volume oil applications.- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated &Prime, dirty&Prime, air environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
- Model: Mini Fire-Ball
- Series: 225
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Air Motor Effective Diameter (in): 2.25
- Application: Industrial
- Compatible Material: Oil
- Cycles Per Gallon: 43.5
- Fluid Inlet Size (in): 1-1/2
- Fluid Inlet Size (mm): 38.1
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)
- Maximum Air Consumption (SCFM): 20
- Maximum Air Inlet Pressure (bar): 12.41
- Maximum Air Inlet Pressure (kPa): 1241
- Maximum Air Inlet Pressure (psi): 180
- Maximum Continuous Cycle Rate (CPM): 100
- Maximum Working Pressure (bar): 37
- Maximum Working Pressure (kPa): 3700
- Maximum Working Pressure (MPa): 3.7
- Maximum Working Pressure (psi): 540
- Power Type: Pneumatic
- Pump Ratio: 3:1
$1,245.00

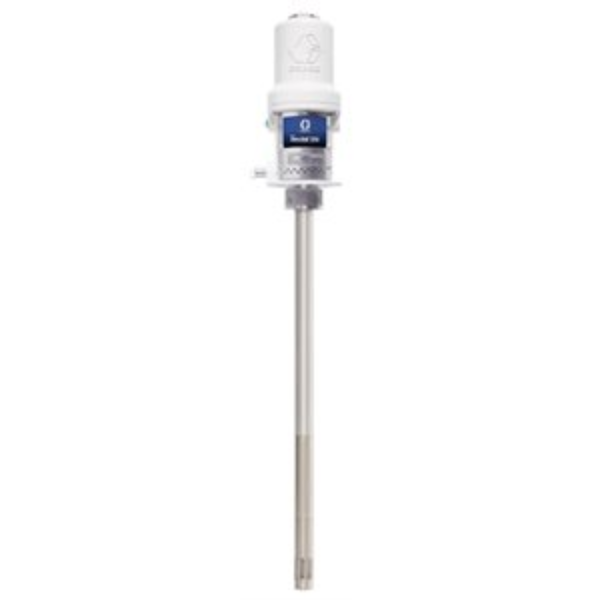

Fireball 225 Pump, Mini , GR, 50:1
GG 246780
GG 246780
Fireball 225 Pump, Mini , GR, 50:1
Mini Fire-Ball® 225 50:1 Pump for 120 lb (55 kg). DrumYou can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications. Durable Casting - Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost. Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process. Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair. Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing. Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
$1,385.00

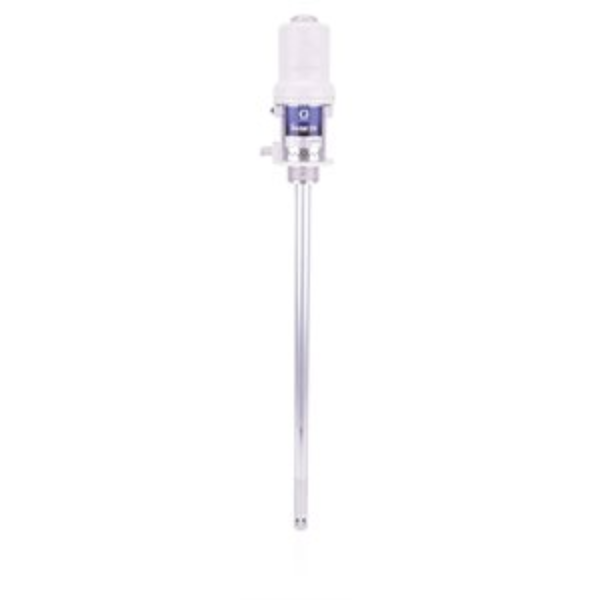

FIREBALL 225 PUMP, GREASE, 50:1, 400#
GG 246781
GG 246781
FIREBALL 225 PUMP, GREASE, 50:1, 400#
Mini Fire-Ball® 225 50:1 400 lb (180 kg). Grease PumpYou can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications. Durable - Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost. Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process. Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair. Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing. Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
$1,630.00
Pump, Displ, W/Lube, .743 ORDER GG 2007119
GG 246832
GG 246832
Pump, Displ, W/Lube, .743 ORDER GG 2007119
Call for pricing
Kit, Supply, 2:1 (w/Plumb)
GG 246898
GG 246898
Kit, Supply, 2:1 (w/Plumb)
Graco 246898 T2 Package: Includes 2 Pumps (Stainless Steel) and 2 Supply hoses
Graco&prime, s family of transfer pumps maintains performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.
Application: Ideal for moving A and B materials to Reactor spray machines.- Provide consistent feed pressures and flow rates for dependable results
- Lower pressure drops with higher viscosity materials at any ambient temperature
- Designed and manufactured by the worldwide leader in pump technology
- Quick-release bung adapter for easy drum removal without interference from hose connections
- Stainless steel wetted parts for corrosion-resistance
- PTFE seals for improved performance and less maintenance
- Model: T2
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Industrial
- Compatible Material: Polyurethane Materials
- Cycles Per Gallon: 15.9
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 12.5
- Maximum Air Inlet Pressure (kPa): 1250
- Maximum Air Inlet Pressure (MPa): 1.2
- Maximum Air Inlet Pressure (psi): 180
- Maximum Continuous Cycle Rate (CPM): 100
- Maximum Flow Rate (GPM): 5
- Maximum Flow Rate (L/min): 19
- Maximum Operating Temperature (°C): 88
- Maximum Operating Temperature (°F): 190
- Maximum Working Pressure (bar): 28
- Maximum Working Pressure (kPa): 2800
- Maximum Working Pressure (MPa): 2.8
- Maximum Working Pressure (psi): 405
- Package Options: Supply Hose
- Pump Ratio: 2.25:1
$5,570.00
FIREBALL 225 PUMP, 3:1 , BUNG MT, 55/275 GAL
GG 246907
GG 246907
FIREBALL 225 PUMP, 3:1 , BUNG MT, 55/275 GAL
Mini Fire-Ball® 225 3:1 55 Gallon (200 Liter) Oil Pump - Bung Mounted PackageYou can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
The Mini Fire-Ball 225 3:1 is perfect for medium pressure, low volume oil applications. Durable - Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost. Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process. Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair. Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing. Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
$1,570.00

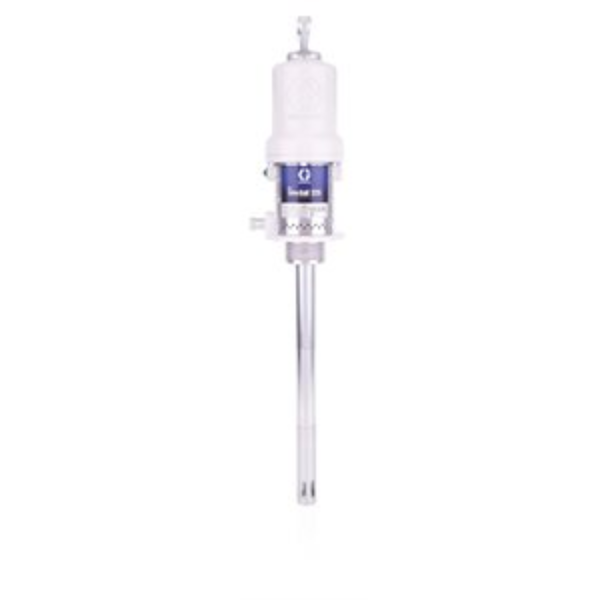

FIREBALL 225 PUMP, GREASE, 50:1 35#
GG 246909
GG 246909
FIREBALL 225 PUMP, GREASE, 50:1 35#
Mini Fire-Ball® 225 50:1 35 lb (16 kg). Grease PumpYou can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications. Durable - Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost. Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process. Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair. Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing. Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
$1,385.00
DISPENSER, PORT, FB 225, 50:1, 35#
GG 246910
GG 246910
DISPENSER, PORT, FB 225, 50:1, 35#
Mini Fire-Ball® 225 50:1 35 lb. and 50 lb. (16 kg and 23 kg) Grease Pump - Portable Pail Dispenser PackageYou can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications. Durable Casting - Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost. Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process. Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair. Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing. Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
$2,590.00
Kit, Repair, Gears
GG 246949
GG 246949
KIT, REPAIR, GEARS
KIT INCLUDES: GEAR, ASSY, HIGH RESOLUTION [QTY. 1], SHAFT, SUB-ASSY, HELICAL GEAR [QTY. 1], O-RING, SEAL, HELICAL GEAR METER [QTY. 2], SPACER, SHAFT, GEAR [QTY. 1]
$2,760.00
FUSION AP GUN, AF2929, FT0438
GG 247112
GG 247112
FUSION AP GUN, AF2929, FT0438
Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.029 in (0.74 mm) Impingement Port and 8-10 in (203-254 mm) Pattern SizeWith long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
For high output spray polyurethane foam and polyurea applications. Easy air-blast tip cleaning reduces build-up and tip clogging. Long-lasting side seals means less downtime for maintenance Quick-release fluid housing - lets you easily change the mix chambers without tools Hand-tightened front cap - no tools needed to clean and maintain seals and mix chamber Ergonomic handle
$3,940.00
Fusion Ap Gun, .024in Orifice Size, .029in Impingement Port, 8-10in Flat Pattern Size
GG 247111
GG 247111
FUSION AP GUN, AF2929, FT0424
Graco 247111 Flat Pattern Fusion Air-Purge Gun with 0.024 in (0.61 mm) Orifice Size, 0.029 in (0.74 mm) Impingement Port and 8-10 in (203-254 mm) Pattern Size
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Flat
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Fluid Orifice Size (cm): 0.061
- Fluid Orifice Size (in): 0.024
- Fluid Orifice Size (mm): 0.61
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Impingement Port Size (in): 0.029
- Impingement Port Size (mm): 0.70
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature ( degree C): 93
- Maximum Fluid Temperature ( degree F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature ( degree C): 93
- Maximum Fluid Temperature ( degree F): 200
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 00 (.029)
- Overall Height (cm): 20.6
- Overall Height (in): 8.1
- Overall Height (mm): 206
- Overall Length (cm): 19.1
- Overall Length (in): 7.5
- Overall Length (mm): 191
- Overall Width (cm): 8.4
- Overall Width (in): 3.3
- Overall Width (mm): 84
- Pattern Size (in): 8-10 in @ 24 in from target
Call for pricing
FUSION AP GUN, AF2020, FT0424
GG 247101
GG 247101
FUSION AP GUN, AF2020, FT0424
Graco 247101 Flat Pattern Fusion Air-Purge Gun with 0.024 in (0.61 mm) Orifice Size, 0.020 in (0.51 mm) Impingement Port and 8-10 in (203-254 mm) Pattern Size
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Flat
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Fluid Orifice Size (cm): 0.061
- Fluid Orifice Size (in): 0.024
- Fluid Orifice Size (mm): 0.61
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Impingement Port Size (in): 0.020
- Impingement Port Size (mm): 0.50
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 000 (.020)
- Overall Height (cm): 20.6
- Overall Height (in): 8.1
- Overall Height (mm): 206
- Overall Length (cm): 19.1
- Overall Length (in): 7.5
- Overall Length (mm): 191
- Overall Width (cm): 8.4
- Overall Width (in): 3.3
- Overall Width (mm): 84
- Pattern Size (in): 10 in @ 24 in from target
$3,940.00

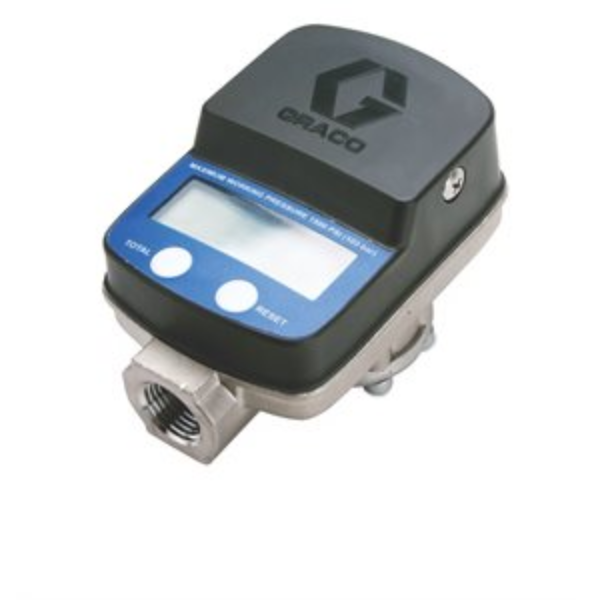

METER, INLINE
GG 247453
GG 247453
METER, INLINE
Graco 247453 SDI15 Med/High Pressure, Med/High Flow In-Line Meter for Petroleum- and Synthetic-Based Oils, Antifreeze, Windshield Washer Fluid
These durable, easy-to-use in-line electronic dispense meters are designed with automotive dealerships, fast lube centers, and service shops in mind.
Application: Typical applications include automotive, fast lube centers, service shops, heavy-duty dealerships, fleet service facilities, in-plant and mining.- Rugged stainless steel body remains corrosion free in hard environments for years of trouble-free service.
- Large, easy-to-read LCD display show dispense quantities.
- Simple operator controls and measures in pints, quarts, liters or gallons.
- Energy efficient powered by two AA alkaline batteries.
- Compatible with Petroleum- and synthetic-based oils (motor, gear and ATF), antifreeze, windshield washer fluid, and diesel exhaust fluid.
- Model: SDI15
- Battery Chemistry: Alkaline
- Battery Size: AA
- Compatible Material: Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze, Windshield Washer Fluid
- For Use With: petroleum-based and synthetic oils and antifreeze
- Inlet Size (cm): 1.27
- Inlet Size (in): 0.5
- Inlet Size (mm): 12.7
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 15
- Maximum Flow Rate (L/min): 57
- Maximum Operating Temperature (°C): 50
- Maximum Operating Temperature (°F): 122
- Maximum Working Pressure (bar): 105
- Maximum Working Pressure (kPa): 10500
- Maximum Working Pressure (MPa): 10.5
- Maximum Working Pressure (psi): 1500
- Meter Accuracy (%): ±0.5
- Meter Repeatability (%): ±0.15
- Minimum Operating Temperature (°C): -20
- Minimum Operating Temperature (°F): -4
$857.00
HYDRA-CLEAN SYSTEM, 12:1 WALL MT
GG 247550
GG 247550
HYDRA-CLEAN SYSTEM, 12:1 WALL MT
Hydra-Clean® 12:1 Wall Mount Pneumatic Pressure Washer PackageClean up your facility the quick, easy and efficient way with Graco Hydra-Clean pressure washers! Designed with Graco’s NXT air motor, it's ideal for industrial and sanitary applications including food processing facilities, heavy duty cleaning, maintenance, shipyards, oil rigs and more.
Ideal for heavy duty cleaning and maintenance for industrial and sanitary applications Great for high pressure cleaning and sanitizing Fits most pressure, flow and material requirements Use with open-head universal drums Designed to use with cold or hot water up to 180°F (82°C) Spray down portability for use in sanitary applications Supports multiple guns Efficient cleaning with water, detergent or chemical solutions
$19,560.00
FIREBALL 225 PUMP, BASE, 50:1, 120#
GG 246915
GG 246915
FIREBALL 225 PUMP, BASE, 50:1, 120#
Mini Fire-Ball® 225 50:1 120 lb. (54 kg) Grease Pump - Portable Package Caster BaseYou can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications. Durable - Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost. Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process. Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair. Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing. Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
$2,850.00

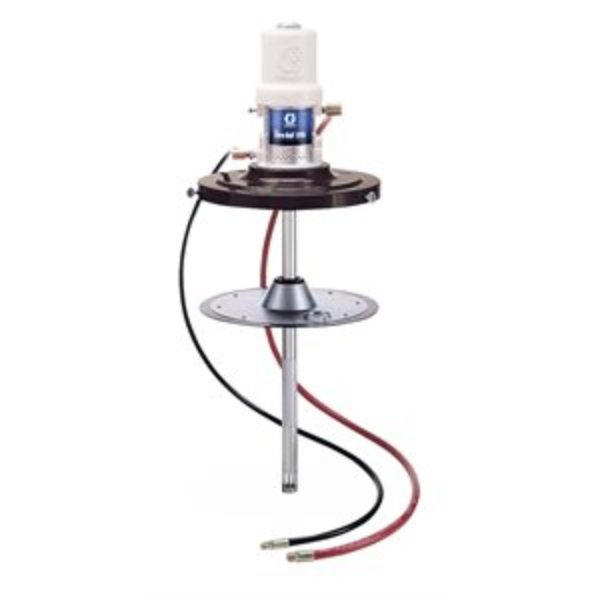

FIREBALL 225 PUMP, STAT, 50:1, 120#
GG 246914
GG 246914
FIREBALL 225 PUMP, STAT, 50:1, 120#
Mini Fire-Ball® 225 50:1 120 lb. (54 kg) Grease Pump - Stationary Supply PackageYou can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications. Durable Casting - Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost. Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process. Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair. Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing. Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
$2,270.00

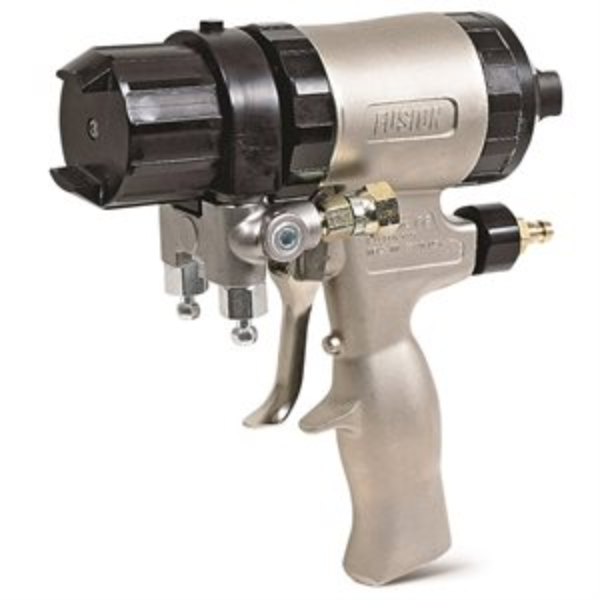

FUSION MP GUN, MF1818, FTM424
GG 247258
GG 247258
FUSION MP GUN, MF1818, FTM424
Graco 247258 Flat Pattern Fusion Mechanical Purge Gun with 0.024 in (0.61 mm) Orifice Size and Mix Chamber with 0.018 in (0.46 mm) Impingement Port
Whether you&prime, re spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.
Application: For high output spray polyurethane foam and polyurea applications.- Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
- Long-lasting PolyCarballoy mix module
- Advanced mix module and tip provides superior mixing capabilities
- Model: Fusion MP
- Series: Flat
- Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam
- Fluid Orifice Size (cm): 0.061
- Fluid Orifice Size (in): 0.024
- Fluid Orifice Size (mm): 0.61
- Gun Type: Mechanical-Purge
- Gun Weight (g): 1315
- Gun Weight (kg): 1.32
- Gun Weight (lb): 2.9
- Gun Weight (oz): 46.4
- Impingement Type: Standard
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Module: .018
- Overall Height (cm): 20.6
- Overall Height (in): 8.1
- Overall Height (mm): 206
- Overall Length (cm): 19.3
- Overall Length (in): 7.6
- Overall Length (mm): 193
- Overall Width (cm): 7.9
- Overall Width (in): 3.1
- Overall Width (mm): 79
- Pattern Size (in): 10 in @ 24 in from target
$4,560.00

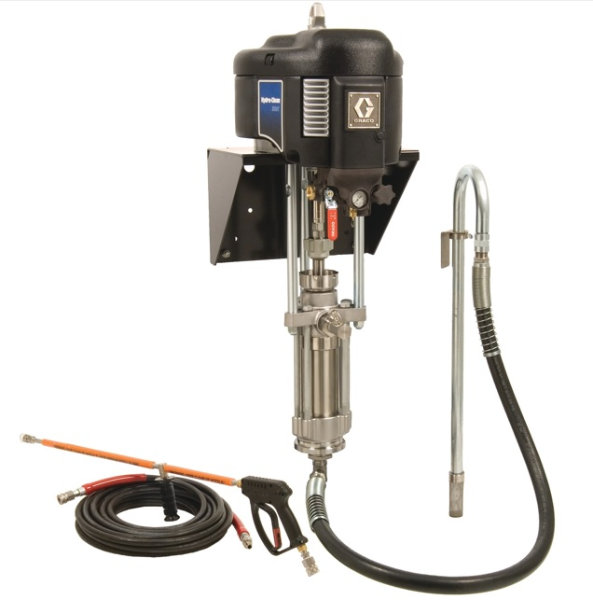

HYDRA-CLEAN SYSTEM, 30:1 WALL MT
GG 247554
GG 247554
HYDRA-CLEAN SYSTEM, 30:1 WALL MT
Hydra-Clean® 30:1 Wall Mount Pneumatic Pressure Washer PackageClean up your facility the quick, easy and efficient way with Graco Hydra-Clean pressure washers! Designed with Graco’s NXT air motor, it's ideal for industrial and sanitary applications including food processing facilities, heavy duty cleaning, maintenance, shipyards, oil rigs and more.
Ideal for heavy duty cleaning and maintenance for industrial and sanitary applications Great for high pressure cleaning and sanitizing Fits most pressure, flow and material requirements Use with open-head universal drums Designed to use with cold or hot water up to 180°F (82°C) Spray down portability for use in sanitary applications Supports multiple guns Efficient cleaning with water, detergent or chemical solutions
$24,100.00

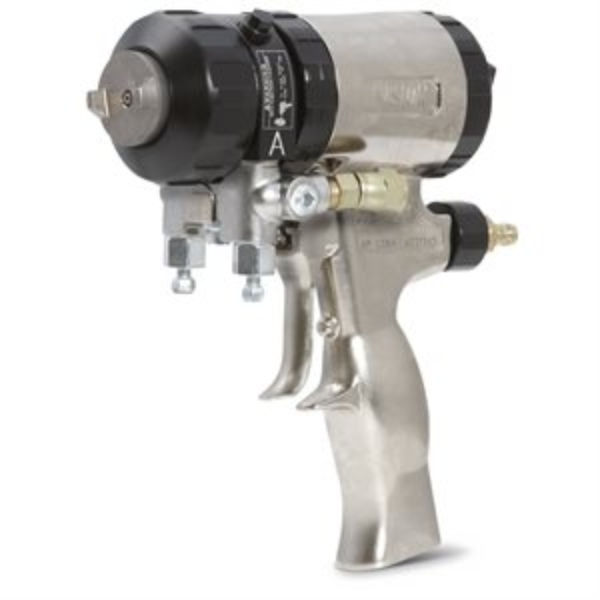

FUSION AP GUN, AF5252, FT0838
GG 247137
GG 247137
FUSION AP GUN, AF5252, FT0838
Graco 247137 Flat Pattern Fusion Air-Purge Gun with 0.038 in (0.96 mm) Orifice Size, 0.052 in (1.3 mm) Impingement Port and 16-18 in (406-457 mm) Pattern Size
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Flat
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Fluid Orifice Size (cm): 0.097
- Fluid Orifice Size (in): 0.038
- Fluid Orifice Size (mm): 0.97
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Impingement Port Size (in): 0.052
- Impingement Port Size (mm): 1.30
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 02 (.052)
- Overall Height (cm): 20.6
- Overall Height (in): 8.1
- Overall Height (mm): 206
- Overall Length (cm): 19.1
- Overall Length (in): 7.5
- Overall Length (mm): 191
- Overall Width (cm): 8.4
- Overall Width (in): 3.3
- Overall Width (mm): 84
- Pattern Size (in): 16-18 in @ 24 in from target
$3,940.00
FILTER, 10 MICRON
GG 563095
GG 563095
FILTER, 10 MICRON
Graco 563095 Spin-On Oil Filter Assembly with External 150 psi Relief Valve - 200 psi, 3/4 in. NPT, 10 Micron
- 10 micron Spin-On Filter Assembly, NPT, External 150 psi (10.3 bar) Relief
- Lubriquip part number 473-000-271
- Maximum Working Pressure (bar): 14
- Maximum Working Pressure (kPa): 1400
- Maximum Working Pressure (MPa): 140
- Maximum Working Pressure (psi): 200
- Port Size (cm): 1.905
- Port Size (in): 3/4
- Port Size (mm): 19.05
$149.00

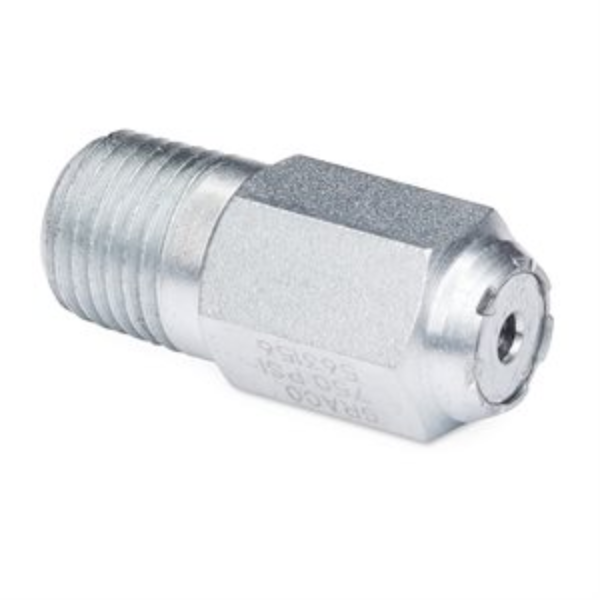

VALVE, RELIEF, 1/4 NPT, 750 PSI
GG 563156
GG 563156
VALVE, RELIEF, 1/4 NPT, 750 PSI
Graco 563156 Automatic Relief Indicator for MX Divider Valves, 750 psi (52 bar)
Keep your machine running while lubrication gets to critical points. These performance indicators pinpoint lube line blockages but allow the lube system to continue to supply lubrication to points that are not blocked.
- No time or effort required for reset after blockage is cleared
- Easy information on blocked lines, high system pressure or blocked bearings
- Works with MSP, MX, MXP, MJ and MHH divider valves
- Model: Trabon
- Application: In-Plant Machinery, Off-Road Equipment, Compressor Equipment
- Compatible Material: Oil, Grease
- Connection Size (in): 0.25
- Indicator Type: Automatic Relief Indicators
- Maximum Working Pressure (bar): 51
- Maximum Working Pressure (kPa): 5100
- Maximum Working Pressure (MPa): 5
- Maximum Working Pressure (psi): 750
- Overall Length (cm): 3
- Overall Length (in): 1.37
- Overall Length (mm): 35
$30.20
MSP VALVE, ASSY MSP 10S
GG 562712
GG 562712
MSP VALVE, ASSY MSP 10S
Trabon® MSP Modular Divider Valve - MSP-10S - 0.020 in³ (0.33 cm³)The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event. Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Built-in outlet check valves ensure accurate lube delivery every time Lubriquip part number 106-100-025
$58.00

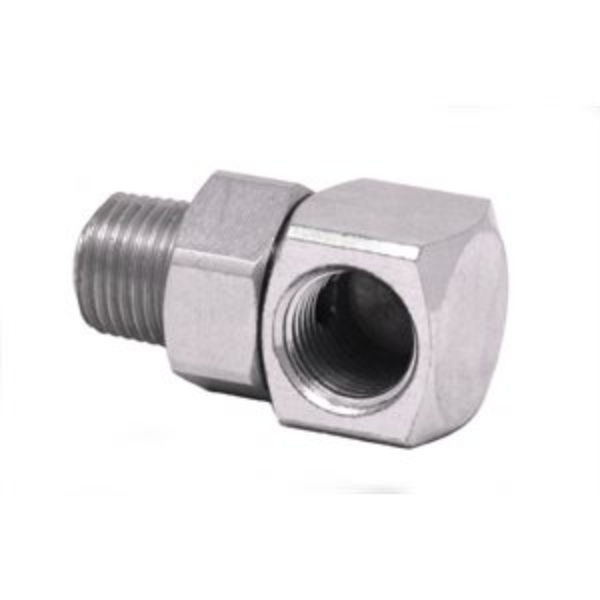

SWIVEL, 90 1/8 PORT NITRILE
GG 563148
GG 563148
SWIVEL, 90 1/8 PORT NITRILE
Compact 90º Angle Swivel - 1/8 inch, NitrileThe Trabon Straight and Angle Swivels are available in standard ball bearing or compact types. Primarily designed for medium to high pressure service in centralized oil and grease systems, these swivels provide a simple and inexpensive means of making line connections between either stationary, or oscillating surfaces.
90º Swivel Adapter - 1/8 inch (3.2 mm) NPT x 1/8 inch (3.2 mm) NPT Female Lubriquip part number 501-257-000 Trabon part number 1257
$37.50

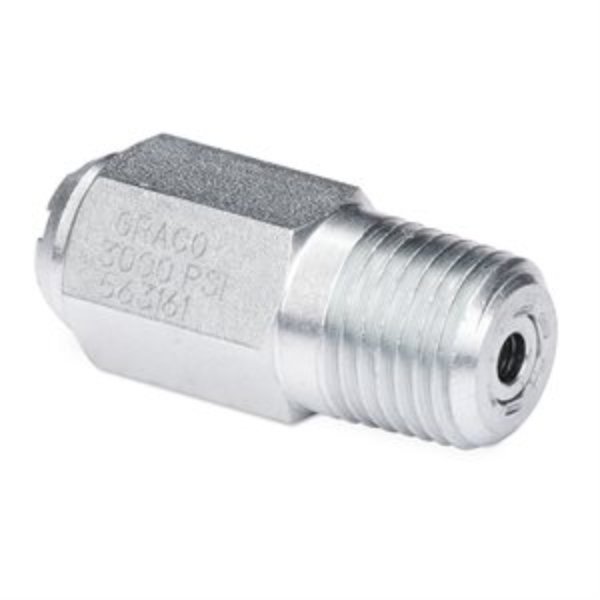

VALVE, RELIEF, 1/4 NPT, 3000 PSI
GG 563161
GG 563161
VALVE, RELIEF, 1/4 NPT, 3000 PSI
Graco 563161 Automatic Relief Indicator for MX Divider Valves, 3000 psi (207 bar)
Keep your machine running while lubrication gets to critical points. These performance indicators pinpoint lube line blockages but allow the lube system to continue to supply lubrication to points that are not blocked.
- No time or effort required for reset after blockage is cleared
- Easy information on blocked lines, high system pressure or blocked bearings
- Works with MSP, MX, MXP, MJ and MHH divider valves
- Model: Trabon
- Application: In-Plant Machinery, Off-Road Equipment, Compressor Equipment
- Compatible Material: Oil, Grease
- Connection Size (in): 0.25
- Indicator Type: Automatic Relief Indicators
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (MPa): 21
- Maximum Working Pressure (psi): 3000
- Overall Length (cm): 3
- Overall Length (in): 1.37
- Overall Length (mm): 35
$30.20

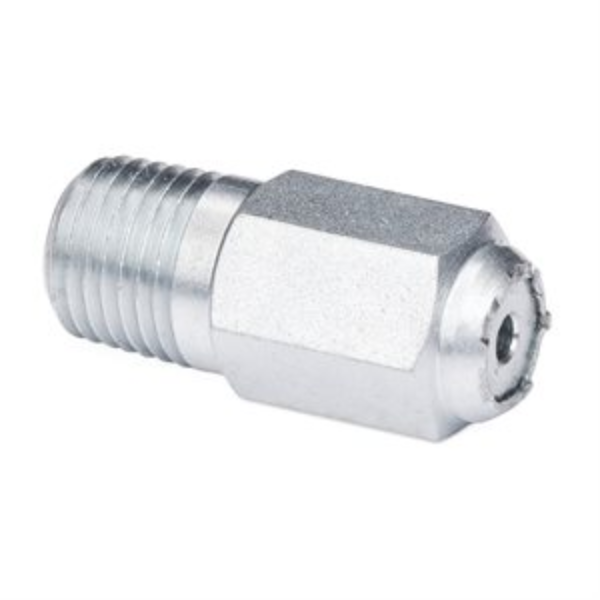

VALVE, RELIEF, 1/4 NPT, 2500 PSI
GG 563160
GG 563160
VALVE, RELIEF, 1/4 NPT, 2500 PSI
Graco 563160 Automatic Relief Indicator for MX Divider Valves, 2500 psi (172 bar)
Keep your machine running while lubrication gets to critical points. These performance indicators pinpoint lube line blockages but allow the lube system to continue to supply lubrication to points that are not blocked.
- No time or effort required for reset after blockage is cleared
- Easy information on blocked lines, high system pressure or blocked bearings
- Works with MSP, MX, MXP, MJ and MHH divider valves
- Model: Trabon
- Application: In-Plant Machinery, Off-Road Equipment, Compressor Equipment
- Compatible Material: Oil, Grease
- Connection Size (in): 0.25
- Indicator Type: Automatic Relief Indicators
- Maximum Working Pressure (bar): 172
- Maximum Working Pressure (kPa): 17200
- Maximum Working Pressure (MPa): 17
- Maximum Working Pressure (psi): 2500
- Overall Length (cm): 3
- Overall Length (in): 1.37
- Overall Length (mm): 35
$30.20

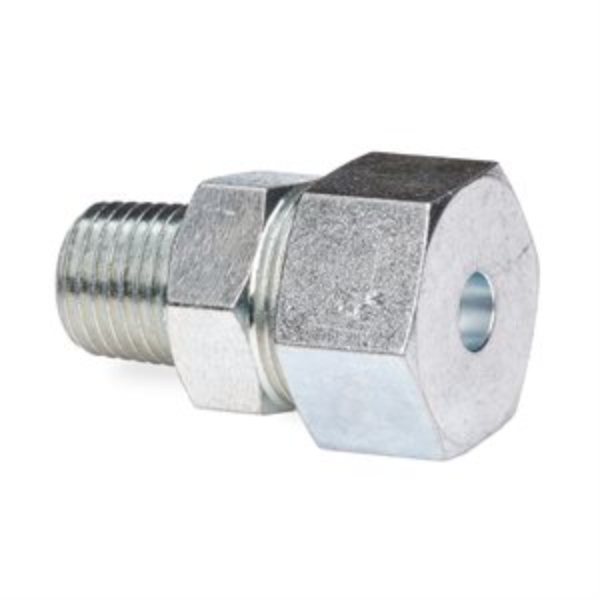

FITTING, BLOWOUT 1/4 NPTF 2350 PSI
GG 563184
GG 563184
FITTING, BLOWOUT 1/4 NPTF 2350 PSI
Graco 563184 Rupture-to-Atmosphere Indicators for MX Divider Valves - 2350 psi, 1/4 inch-18 inch NPT(f) - Grease
Application: Rupture-to-Atmosphere Indicators for use with MX Divider Valves.
- Used in conjunction with system pressure switch–can warn of a fault while allowing lube system to continue to deliver to critical bearings.
- Requires replacement of the rupture disc to restart the lube system.
- Easy information on blocked lines, high system pressure or blocked bearings.
- Trabon part number 9206-16
- Compatible Material: Grease
- Connection Size (in): 0.25
- Indicator Type: Rupture-to-Atmosphere Indicator
- Maximum Working Pressure (bar): 162
- Maximum Working Pressure (kPa): 16200
- Maximum Working Pressure (MPa): 16.2
- Maximum Working Pressure (psi): 2350
$38.50
BLOCK, SPINDL-GARD, .0030
GG 563131
GG 563131
BLOCK, SPINDL-GARD, .0030
High Speed Spindl-Gard (HSSG) Block - 0.0030 cu in displacement For use with Air Oil High Speed Spindl-Gard® Systems.0.0030 in3 displacement
Lubriquip part number 484-095-229
$517.00
FILTER, ASSY LUBE
GG 563091
GG 563091
FILTER, ASSY LUBE
In-Line Oil Filter - MSP Standard Inlet Filter, 3500 psi, 1/4-18 NPTF, 10 Micron; Lubriquip part number 473-000-234 For use with Trabon MSP divider valves. Installs into inlet port.MSP Standard Inlet 10 micron Oil Filter, NPT
Uses replacement filter element p/n 557134.
$383.00
MHH VALVE, CHECK, 1/8 NPT, REV, 5000
GG 563200
GG 563200
MHH VALVE, CHECK, 1/8 NPT, REV, 5000
Graco 563200 Single Ball Check Valve - 35 psi Nominal Cracking Pressure, 1/8 in NPSF (F) x 1/8 in NPTF (M), Steel, 5,000 psi
- Lubriquip part number 509-355-030
- Trabon part number 9355-35
- Application: Compressor Equipment
- Ball Material: Steel
- Body Material: Steel
- Compatible Material: Oil, Grease
- Inlet Size (cm): 0.3175
- Inlet Size (in): 1/8
- Inlet Size (mm): 3.175
- Inlet Thread Gender: Female
- Inlet Thread Type: NPT
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (MPa): 34.5
- Maximum Working Pressure (psi): 5000
- Number of Balls: Single Ball
- Outlet Size (cm): 0.3175
- Outlet Size (in): 1/8
- Outlet Size (mm): 3.175
- Outlet Thread Gender: Female
- Outlet Thread Type: NPS
$52.00
VALVE, CHECK 1/8 250 PSI
GG 563198
GG 563198
VALVE, CHECK 1/8 250 PSI
Single Ball Check Valve - 250 psi Nominal Cracking Pressure, 1/8 in NPTF (M) x 1/8 in NPSF (F), Steel, 5,000 psiSingle Ball Check Valve
250 psi nominal cracking pressure
1/8 inch (3.2 mm) NPTF (M) x 1/8 inch (3.2 mm) NPSF (F)
steel body/ball
5,000 psi max
Lubriquip part number 509-350-250 Trabon part number 9350-250
$27.90
VALVE, CHECK, 1/4 NPT, 35
GG 563207
GG 563207
VALVE, CHECK, 1/4 NPT, 35
Single Ball Check Valve - 35 psi Nominal Cracking Pressure, 1/4 in NPTF (M) x 1/4 in NPSF (F), Steel, 5,000 psiDouble Ball Check Valve
35 psi nominal cracking pressure
1/4 inch (6.4 mm) NPTF (M) x 1/4 inch (6.4 mm) NPSF (F)
steel body/ball
5,000 psi max
Lubriquip part number 509-360-030 Trabon part number 9360-35
$33.20

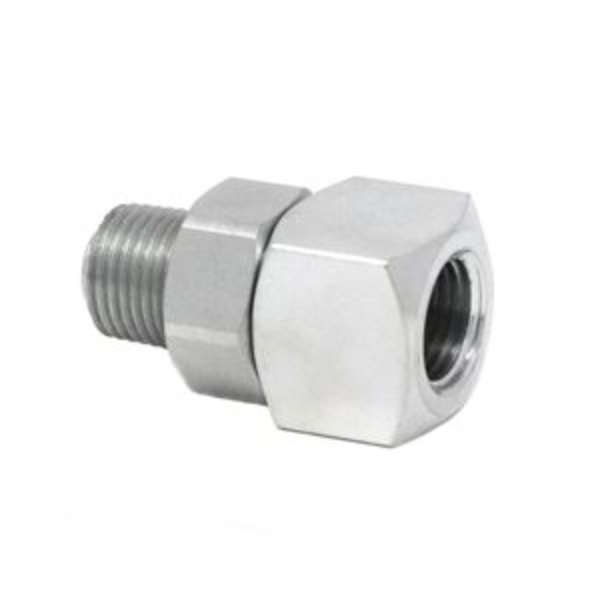

SWIVEL, 180 1/8 PORT NITRILE
GG 563150
GG 563150
SWIVEL, 180 1/8 PORT NITRILE
Compact 180º Straight Swivel - 1/8 inch, Nitrile180º Compact Swivel - 1/8 inch (3.2 mm)
Lubriquip part number 501-258-000 Trabon part number 1258
$39.00
Filter, Spin-On 25 Micron NPT
GG 563096
GG 563096
Filter, Spin-On 25 Micron NPT
Spin-On Filter Assembly - 25 Micron, NPT, External 150 psi Relief25 micron Spin-On Filter Assembly, NPT, External 150 psi (10.3 bar) Relief
Lubriquip part number 473-000-275
$178.50
Automatic Relief Indicator for MSP, MXP, MHH and MJ Divider Valves, 2000 PSI
GG 563167
GG 563167
Automatic Relief Indicator for MSP, MXP, MHH and MJ Divider Valves, 2000 PSI
$31.60

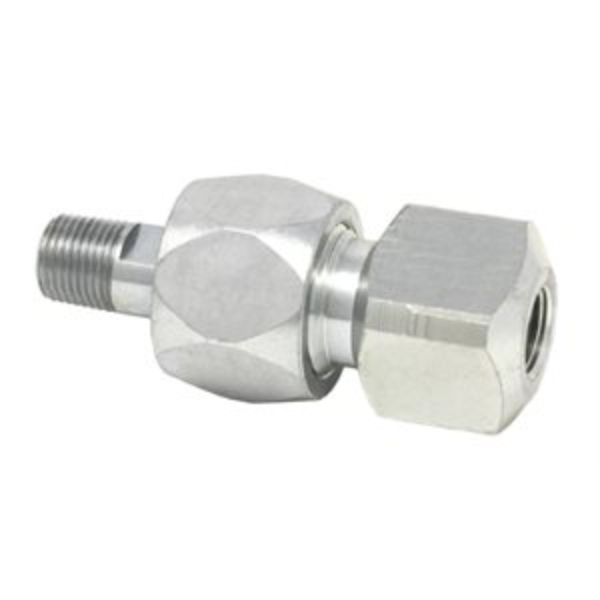

SWIVEL, BALL 1/8 180
GG 563213
GG 563213
SWIVEL, BALL 1/8 180
Graco 563213 180º Straight Swivel - 1/8 inch (3.2 mm)
- 180º Straight Swivel - 1/8 inch (3.2 mm)
- Lubriquip part number 509-402-000
- Trabon part number 9402
- Angle (°): 180
- Connection Type: Threaded
- For Use With: Pipe
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (MPa): 20.7
- Maximum Working Pressure (psi): 3000
$66.75

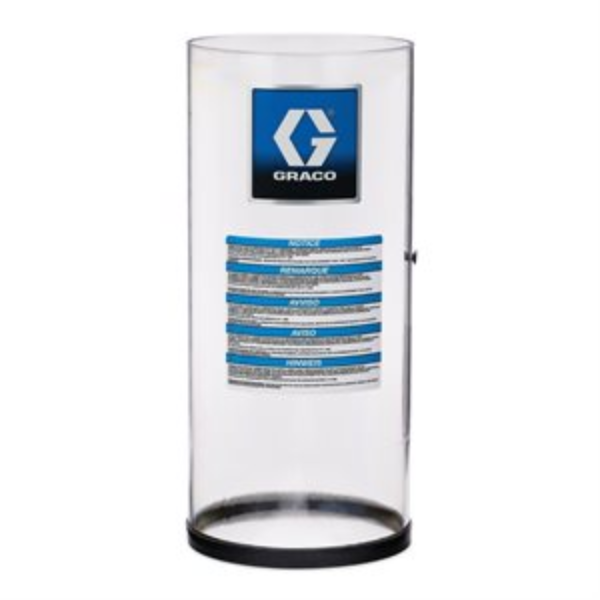

TUBE, RESV REPLACE 12LB PLSTC
GG 562902
GG 562902
TUBE, RESV REPLACE 12LB PLSTC
Modu-Flo and E-Pump Spare Parts and Accessories - 12 pt./lb. Plastic Replacement Reservoir Assembly, 6 in OD x 13 in longReservoir Repair Kits - Plastic tube with u-cup seal for part numbers 562892 and 562896
Lubriquip part number 185-100-730
$419.00
VALVE, CHECK REVERSE 1/4 35 PSI
GG 563211
GG 563211
VALVE, CHECK REVERSE 1/4 35 PSI
Single Ball Check Valve - 35 psi Nominal Cracking Pressure, 1/4 in NPSF (F) x 1/4 in NPTF (M), Steel, 5,000 psiSingle Ball Check Valve
35 psi nominal cracking pressure
1/4 inch (6.4 mm) NPSF (F) x 1/4 inch (6.4 mm) NPTF (M)
steel body/ball
5,000 psi max
Lubriquip part number 509-365-030 Trabon part number 9365-35
$43.90

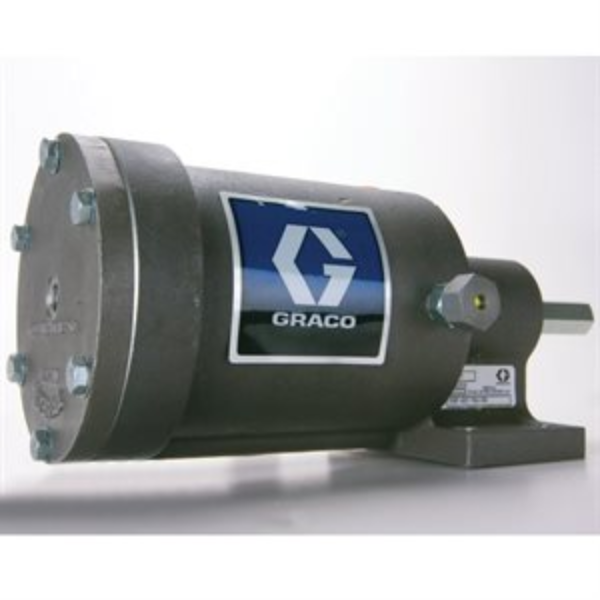

MSA-100 PUMP, ASSY
GG 562855
GG 562855
MSA-100 PUMP, ASSY
MSA-100™ Pneumatic PumpMSA Series products are used together with main lubrication supply lines where the pump is fed directly with no additional reservoir required. No reservoir makes the MSA Series ideal for locations that are difficult to reach or undesirable to enter. Use the MSA-100 when high operating pressures and larger outputs are required.
Ideal for applications where space is a premium Handles high pressure lubricant feed of direct line intake Used with or without a reservoir for the ultimate flexibility Lubriquip part number 140-000-171
$2,690.00

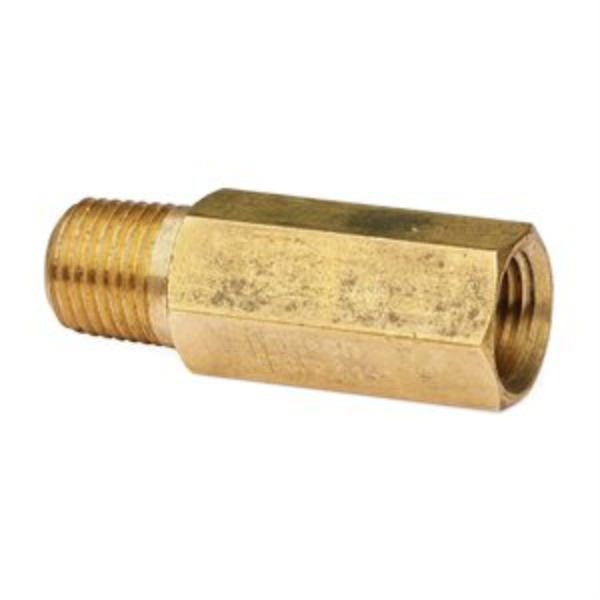

VALVE, RESTRICTOR VLV
GG 563072
GG 563072
VALVE, RESTRICTOR VLV
Graco 563072 Air Inlet Restrictor Valve for MSA-10 and MSA-100
Application: For use with MSA-10 and MSA-100 Pumps.
- Air Inlet Restrictor Valve
- Lubriquip part number 463-410-080
$151.00
VALVE, CHECK, 1/8 NPT, 5000
GG 563196
GG 563196
VALVE, CHECK, 1/8 NPT, 5000
Single Ball Check Valve - 35 psi Nominal Cracking Pressure, 1/8 in NPTF (M) x 1/8 in NPSF (F), Steel, 5,000 psiSingle Ball Check Valve
35 psi nominal cracking pressure
1/8 inch (3.2 mm) NPTF (M) x 1/8 inch (3.2 mm) NPSF (F)
steel body/ball
5,000 psi max
Lubriquip part number 509-350-030 Trabon part number 9350-35
$26.80

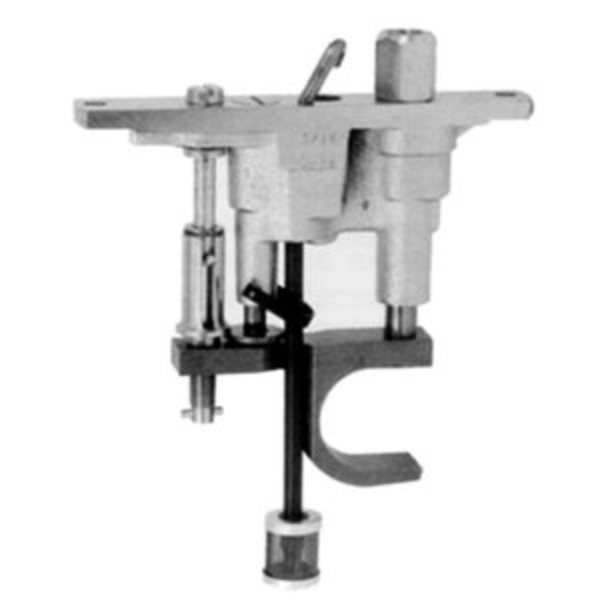

MODEL 25 PUMP, ASSY, .312, DIA
GG 562950
GG 562950
MODEL 25 PUMP, ASSY, .312, DIA
Graco 562950 Manzel® Model 25 Compressor Lubricator Replacement Pump, 5/16 in (7.9 mm), 1000 psi (69 bar)
Provide lubrication to cylinder walls, bearings and other moving parts of equipment such as sugar mills, steam engines, presses and general machinery.
- General-purpose lubrication: automatic, precision metering for all types of machinery
- Clear-Vue pumping unit shows amount of lubricant being pumped
- Self-contained, removable pumping unit. All units interchangeable - remove two pump screws and lift out
- Lubriquip part number 321-410-015
- Manzel part number 60050-B
- Model: Manzel
- Series: Model 25
- Compatible Material: Oil
- Drive Option: Direct Rotary
- Lubricator Feed Type: Force Feed
- Maximum Drive Speed (RPM): 60
- Maximum Fluid Viscosity (SUS): 5000
- Maximum Number of Drops Per Stroke (drops/stroke): 12
- Maximum Working Pressure (bar): 69
- Maximum Working Pressure (kPa): 6900
- Maximum Working Pressure (psi): 1000
- Minimum Drive Speed (RPM): 3
- Minimum Fluid Viscosity (SUS): 100
- Minimum Number of Drops Per Stroke (drops/stroke): 0.25
- Outlet Size (cm): 0.635
- Outlet Size (in): 1/4
- Outlet Size (mm): 6.35
- Outlet Thread Gender: Female
- Outlet Thread Type: NPS
- Overall Depth (cm): 65
- Overall Depth (in): 25.59
- Overall Depth (mm): 650
- Overall Height (cm): 21.6
- Overall Height (in): 8.50
- Overall Height (mm): 215.9
- Overall Width (cm): 15.24
- Overall Width (in): 6
- Overall Width (mm): 152.4
- Piston Size (cm): 0.79
- Piston Size (in): 0.31
- Piston Size (mm): 7.9
- Pump Size (cm): 0.8
- Pump Size (in): 5/16
- Pump Size (mm): 8
$700.00

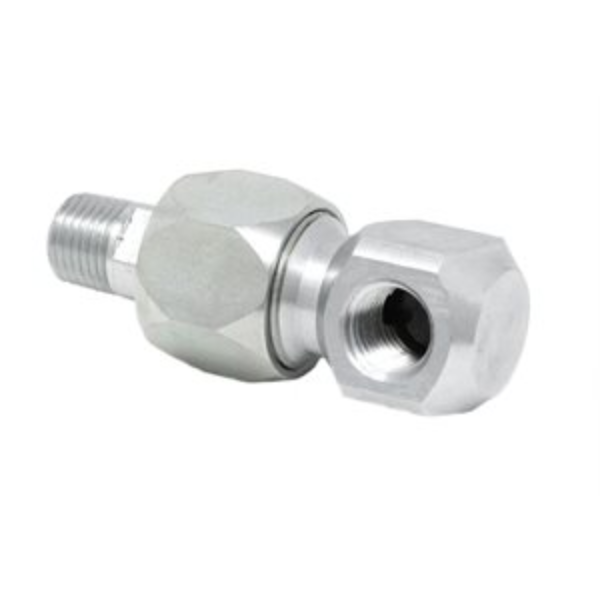

SWIVEL, BALL 1/4 90
GG 563214
GG 563214
SWIVEL, BALL 1/4 90
Graco 563214 90º Angle Swivel - 1/4 inch (6.4 mm)
- 90º Angle Swivel - 1/4 inch (6.4 mm)
- Lubriquip part number 509-405-000
- Trabon part number 9405
- Angle (°): 90
- Connection Type: Threaded
$69.75

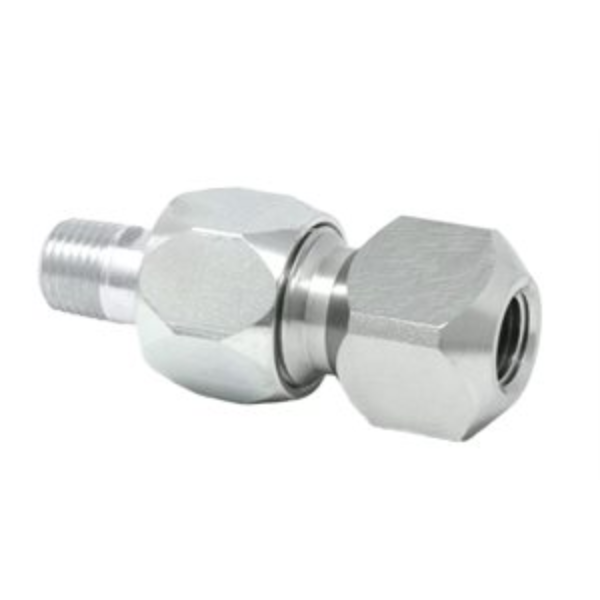

SWIVEL, BALL 1/4 180
GG 563215
GG 563215
SWIVEL, BALL 1/4 180
Graco 563215 180º Straight Swivel - 1/4 inch (6.4 mm)
- 180º Straight Swivel - 1/4 inch (6.4 mm)
- Lubriquip part number 509-406-000
- Trabon part number 9406
- Angle (°): 180
- Connection Type: Threaded
- For Use With: Pipe
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (MPa): 20.7
- Maximum Working Pressure (psi): 3000
$76.75

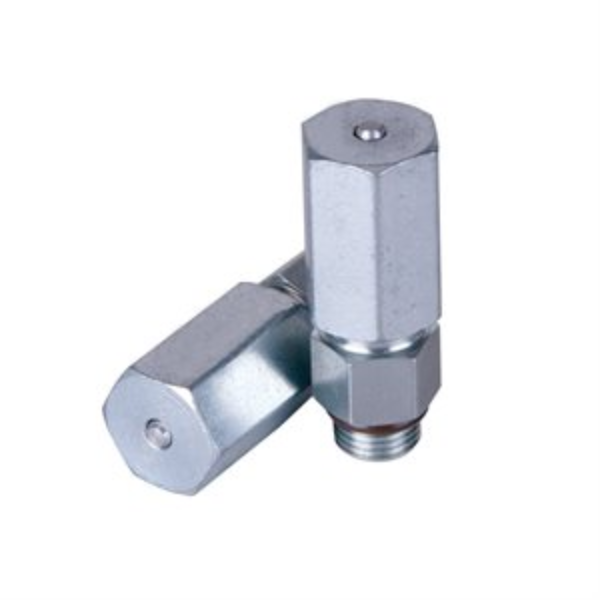

INDICATOR, RUPTURE PIN, 1/8 NPSF-ORB, 6400 PSI
GG 563226
GG 563226
INDICATOR, RUPTURE PIN, 1/8 NPSF-ORB, 6400 PSI
Trabon® Replacement Rupture Indicator, 1/8-27 NPSF with O-Ring, 6400 psi (441 bar)Used on MH divider valve applications where lube system pressures exceed 2,500 psi (172 bar).
High pressure from blockage causes a disc to rupture Lubricant forces an indicator pin to protrude, indicating the blockage High pressure backs up through the system and trips a switch to shut the system off When fault is corrected, disc must be replaced and pin reset Lubriquip part number 509-499-165
$75.75
SWIVEL, BALL 1/8 90
GG 563212
GG 563212
SWIVEL, BALL 1/8 90
90º Angle Swivel - 1/8 inch (3.2 mm)90º Angle Swivel - 1/8 inch (3.2 mm)
Lubriquip part number 509-400-000 Trabon part number 9400
$62.75
INDICATOR, RUPTURE PIN, 1/8 NPTF, 5500 PSI
GG 563223
GG 563223
INDICATOR, RUPTURE PIN, 1/8 NPTF, 5500 PSI
Trabon® Replacement Rupture Indicator, 1/8-27 NPTF, 5500 psi (379 bar)Trabon Performance Indicators are pressure-sensitive devices that pinpoint excessive pressure in Trabon series progressive lubricating systems. These devices, which are installed in the alternate outlet ports of divider valves, signal a fault either by causing an indicator pin to protrude or by releasing lubricant to the atmosphere. All Performance Indicators respond quickly to protect the lube system and locate lube line blockage.
Used on MH divider valve applications where lube system pressures exceed 2,500 psi (172 bar). High pressure from blockage causes a disc to rupture. Lubricant forces an indicator pin to protrude, indicating the blockage. High pressure backs up through the system and trips a switch to shut the system off. When fault is corrected, disc must be replaced and pin reset. Divider Valve Rupture Indicators w/Memory - 5,500 psi (379 bar) Lubriquip part number 509-499-140 Trabon part number 9499-14
$68.00

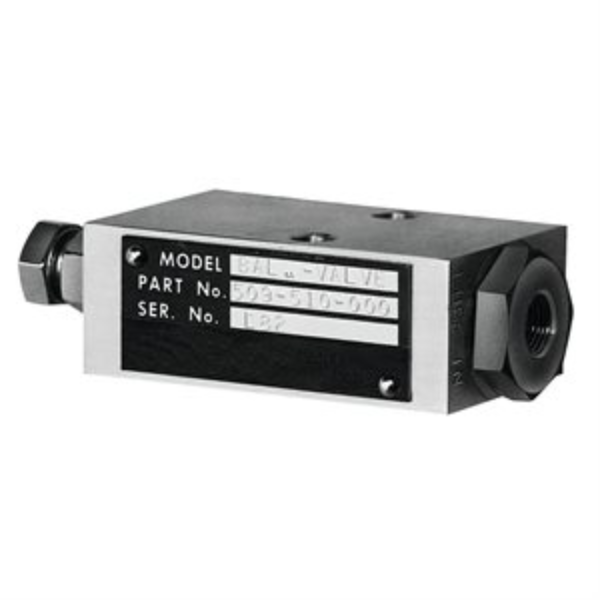

MHH VALVE, BALANCING, 1/8-27
GG 563230
GG 563230
MHH VALVE, BALANCING, 1/8-27
Graco 563230 Balancing Valve, 1/8-27
- Lubriquip part number 509-510-000
- Trabon part number 9510
- Adjustable: Adjustable
- Compatible Material: Oil
- Inlet Size (cm): 0.3175
- Inlet Size (in): 1/8
- Inlet Size (mm): 3.175
- Inlet Thread Type: NPSF
- Material: Steel
- Maximum Working Pressure (bar): 448
- Maximum Working Pressure (kPa): 44800
- Maximum Working Pressure (MPa): 44.8
- Maximum Working Pressure (psi): 6500
- Outlet Size (cm): 0.3175
- Outlet Size (in): 1/8
- Outlet Size (mm): 3.175
- Outlet Thread Type: NPSF
- Overall Height (cm): 3.81
- Overall Height (in): 1.5
- Overall Height (mm): 38.1
- Overall Length (cm): 10
- Overall Length (in): 3.834
- Overall Length (mm): 97
- Overall Width (cm): 2.54
- Overall Width (in): 1
- Overall Width (mm): 25.4
$537.00
INDICATOR, MAN RESET 1500 PS MJ/MSP
GG 563235
GG 563235
INDICATOR, MAN RESET 1500 PS MJ/MSP
Reset Indicator with Memory, 1500 psi (103 bar), 1/8 NPTF - MJ, MH, MS, MXP Divider ValvesEasy information on blocked lines, high system pressure or blocked bearings.
Provides quick troubleshooting tool with visual indication No tools for reset or parts to replace after indication Easy information on blocked lines, high system pressure or blocked bearings Lubriquip part number 509-931-050
$26.70
INDICATOR, MAN RESET 500 PS MJ/MSP
GG 563232
GG 563232
INDICATOR, MAN RESET 500 PS MJ/MSP
Graco 563232 Reset Indicator with Memory, 500 psi (35 bar), 1/8 NPTF - MJ, MH, MS, MXP Divider Valves
Easy information on blocked lines, high system pressure or blocked bearings.
- Provides quick troubleshooting tool with visual indication
- No tools for reset or parts to replace after indication
- Easy information on blocked lines, high system pressure or blocked bearings
- Model: Trabon
- Application: On-Road Vehicles, Off-Road Equipment
- Compatible Material: Oil, Grease
- Connection Size (in): 0.125
- Indicator Type: Reset Indicator with Memory
- Maximum Working Pressure (bar): 34
- Maximum Working Pressure (kPa): 3400
- Maximum Working Pressure (MPa): 3
- Maximum Working Pressure (psi): 500
$26.70
INDICATOR, MAN RESET 2500 PS MJ/MSP
GG 563237
GG 563237
INDICATOR, MAN RESET 2500 PS MJ/MSP
Reset Indicator with Memory, 2500 psi (172 bar), 1/8 NPTF - MJ, MH, MS, MXP Divider ValvesEasy information on blocked lines, high system pressure or blocked bearings.
Provides quick troubleshooting tool with visual indication No tools for reset or parts to replace after indication Easy information on blocked lines, high system pressure or blocked bearings Lubriquip part number 509-931-070
$26.70
INDICATOR, MAN RESET 1000 PS MJ/MSP
GG 563234
GG 563234
INDICATOR, MAN RESET 1000 PS MJ/MSP
Graco 563234 Reset Indicator with Memory, 1000 psi (69 bar), 1/8 NPTF - MJ, MH, MS, MXP Divider Valves
Easy information on blocked lines, high system pressure or blocked bearings.
- Provides quick troubleshooting tool with visual indication
- No tools for reset or parts to replace after indication
- Easy information on blocked lines, high system pressure or blocked bearings
- Model: Trabon
- Application: On-Road Vehicles, Off-Road Equipment
- Compatible Material: Oil, Grease
- Connection Size (in): 0.125
- Indicator Type: Reset Indicator with Memory
- Maximum Working Pressure (bar): 69
- Maximum Working Pressure (kPa): 6900
- Maximum Working Pressure (MPa): 7
- Maximum Working Pressure (psi): 1000
$26.70

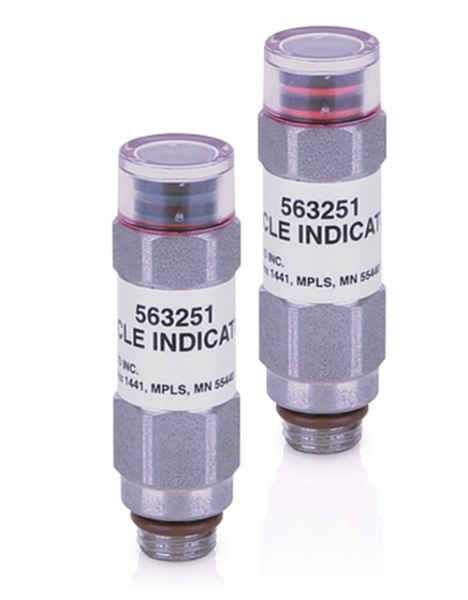

INDICATOR, CYCLE
GG 563251
GG 563251
INDICATOR, CYCLE
MSP and MHH Divider Valves - Visual Cycle IndicatorThe self-contained Visual Cycle Indicator is designed to allow for easy installation to Trabon MSP and Manzel MHH divider valves. The red indicator ring moves with the valve piston, allowing the user to visually determine the timing of each divider valve cycle.
For use with Oil or Grease lubrication systems, at pressures up to 7500 psi (517 bar). Makes physical contact with valve piston Polycarbonate housing allows for clear view of red indicator ring All parts are captured FKM o-ring seal for broad compatibility with synthetic oils and greases Replaces Lubriquip part number 509-932-522
$125.00
INDICATOR, MANUAL RESET, O-RING, 2500 PSI
GG 563258
GG 563258
INDICATOR, MANUAL RESET, O-RING, 2500 PSI
Graco 563258 Reset Indicator with Memory, 2500 psi (172 bar), 1/8 NPSF with O-Ring for MSP, MXP, and MHH Divider Valves
Easy information on blocked lines, high system pressure or blocked bearings.
- Provides quick troubleshooting tool with visual indication
- No tools for reset or parts to replace after indication
- Easy information on blocked lines, high system pressure or blocked bearings
- Model: Trabon
- Application: On-Road Vehicles, Off-Road Equipment, Compressor Equipment
- Compatible Material: Oil, Grease
- Connection Size (in): 0.125
- For Use With: MSP, MXP, and MHH Divider Valves
- Indicator Type: Reset Indicator with Memory
- Maximum Working Pressure (bar): 172
- Maximum Working Pressure (kPa): 17200
- Maximum Working Pressure (MPa): 17
- Maximum Working Pressure (psi): 2500
$26.70
SWITCH, SW BLOWOUT HI PRESS P3
GG 563326
GG 563326
SWITCH, SW BLOWOUT HI PRESS P3
Graco 563326 High Pressure Blowout Switch for 5.68 liter (12 pt.) and 9.46 liter (20 pt.) or 5.44 kg (12 lb.) and 9.06 kg (20 lb.) Reservoirs
Application: For use with Modu-Flo Pneumatic Pumps.
- High Pressure Blowout Switch for 5.68 litre (12 pt.) and 9.46 litre (20 pt.) or 5.44 kg (12 lb.) and 9.06 kg (20 lb.) Reservoirs
- Lubriquip part number 521-001-200
- Model: Modu-Flo
- Compatible Material: Oil, Grease
- For Use With: Modu-Flo 12 and 20 pt (5.7 and 9.5 L) or 12 and 20 lb (5.4 and 9.1 kg) cylindrical reservoirs
- Maximum Working Pressure (bar): 100
- Maximum Working Pressure (kPa): 10000
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1450
$619.00
INDICATOR, MANUAL RESET, O-RING, 2000 PSI
GG 563257
GG 563257
INDICATOR, MANUAL RESET, O-RING, 2000 PSI
Reset Indicator with Memory, 2000 psi (138 bar), 1/8 NPSF with O-Ring for MSP, MXP, and MHH Divider ValvesEasy information on blocked lines, high system pressure or blocked bearings.
Provides quick troubleshooting tool with visual indication No tools for reset or parts to replace after indication Easy information on blocked lines, high system pressure or blocked bearings Lubriquip part number 509-932-640
$26.70

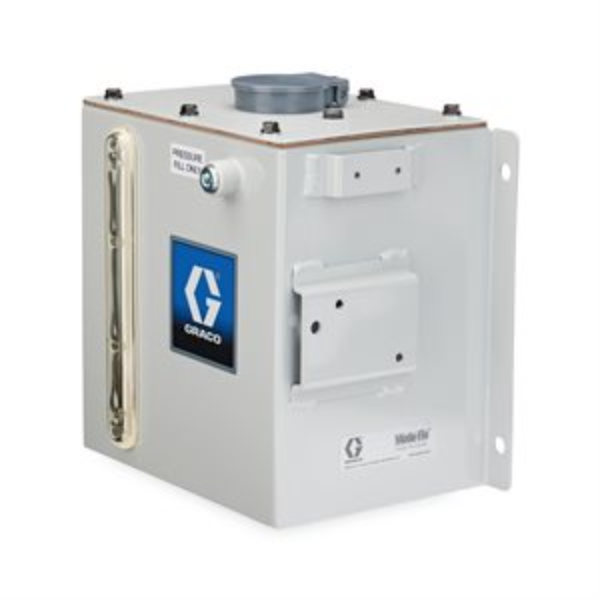

RESERVOIR, TANK 12PT T1
GG 563319
GG 563319
RESERVOIR, TANK 12PT T1
Graco 563319 12 pt. (5.67 liter) Rectangular Oil Reservoir - Metal
Application: For use with Modu-Flo and E-Series Pumps.
- 12 pt (5.67 liter) Rectangular - Metal
- Lubriquip part number 521-001-060
- Model: Trabon
- Application: Compressor Equipment
- Compatible Material: Oil
- Material: Metal
$959.00
KIT, ACCESSORY, L/L, 5/12 PT
GG 563316
GG 563316
KIT, ACCESSORY, L/L, 5/12 PT
Modu-Flo Low Level Switch Assemblies - 15 Amp Low Level Switch for 5 and 12 pt. Cylindrical Oil Reservoirs, SPDT15 amp Low Level Switch for 5 and 12 pt Cylindrical Oil Reservoirs, SPDT
Lubriquip part number 521-001-030
$377.00
INDICATOR, RESET 3000 PSI 1/8 NPSF
GG 563261
GG 563261
INDICATOR, RESET 3000 PSI 1/8 NPSF
Graco 563261 Reset Indicator with Memory, 3000 psi (207 bar), 1/8 NPSF with O-Ring - MH, MS, MXP Divider Valves
Easy information on blocked lines, high system pressure or blocked bearings.
- Provides quick troubleshooting tool with visual indication
- No tools for reset or parts to replace after indication
- Easy information on blocked lines, high system pressure or blocked bearings
- Model: Trabon
- Application: On-Road Vehicles, Off-Road Equipment, Compressor Equipment
- Compatible Material: Oil, Grease
- Connection Size (in): 0.125
- Indicator Type: Reset Indicator with Memory
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (MPa): 21
- Maximum Working Pressure (psi): 3000
$27.90
SWITCH, BLOWOUT HI PRESS P4
GG 563327
GG 563327
SWITCH, BLOWOUT HI PRESS P4
Graco 563327 High Pressure Blowout Switch for all Rectangular Reservoirs
Application: For use with Modu-Flo Pumps.
- High Pressure Blowout Switch for all Rectangular Reservoirs
- Lubriquip part number 521-001-210
- Model: Modu-Flo
- Compatible Material: Oil, Grease
- For Use With: Modu-Flo Tanks and Reservoirs
- Maximum Working Pressure (bar): 100
- Maximum Working Pressure (kPa): 10000
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1450
$648.00
INDICATOR, MANUAL RESET, O-RING, 1000 PSI
GG 563255
GG 563255
INDICATOR, MANUAL RESET, O-RING, 1000 PSI
Reset Indicator with Memory, 1000 psi (69 bar), 1/8 NPSF with O-Ring for MSP, MXP, and MHH Divider ValvesEasy information on blocked lines, high system pressure or blocked bearings.
Provides quick troubleshooting tool with visual indication No tools for reset or parts to replace after indication Easy information on blocked lines, high system pressure or blocked bearings Lubriquip part number 509-932-620
$26.70

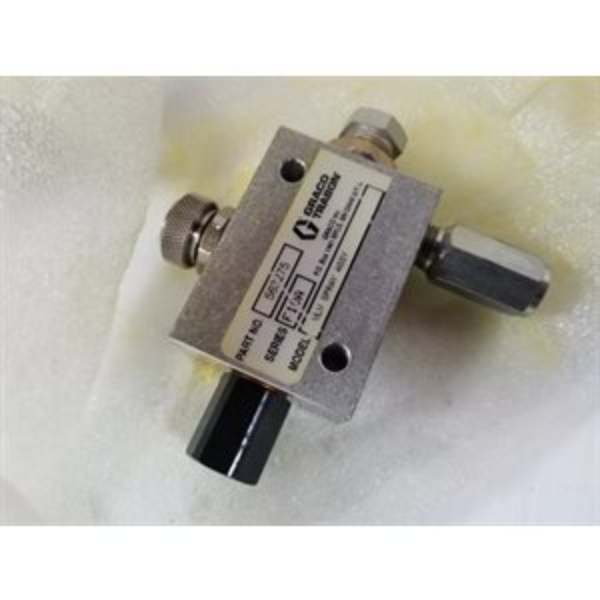

SPRA VALVE, SPRAY 4 IN DIA
GG 563275
GG 563275
SPRA VALVE, SPRAY 4 IN DIA
Graco 563275 Air-lube Control Valve and Nozzle Assembly - 4 in. spray diameter, normal
- Conserves air–air required only during spray interval
- Versatile–can be used with any centralized lube system or mechanical oiler and will handle grease or oil
- External mix nozzle purges itself and prevents clogging
- 4 in. spray diameter, normal
- Lubriquip part number 510-652-000
- Trabon part number 10652
- Compatible Material: Oil, Grease
- Maximum Air Pressure (bar): 11
- Maximum Air Pressure (kPa): 1100
- Maximum Air Pressure (psi): 150
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 102
- Maximum NLGI Grade: #2
- Overall Width (cm): 2.54
- Overall Width (in): 1
- Overall Width (mm): 25.4
$884.00

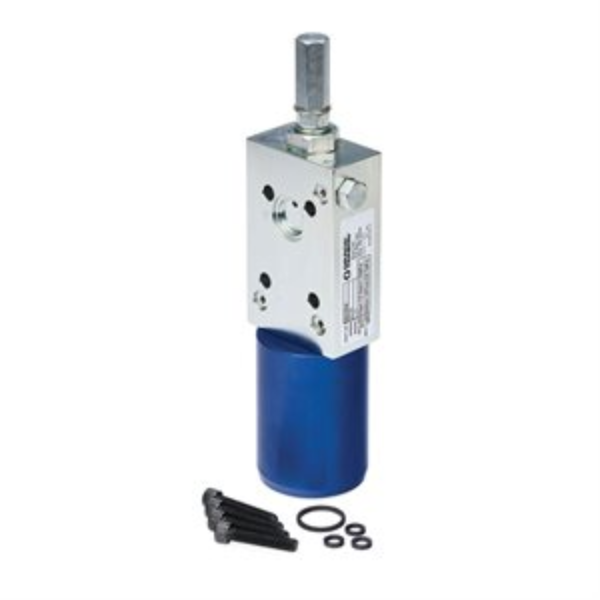

MODU-FLO PUMP, ASSEMBLY, AL-5M
GG 563304
GG 563304
MODU-FLO PUMP, ASSEMBLY, AL-5M
Modu-Flo® AL-5M Pneumatic Pump without ReservoirMix and match pumps, reservoir and manifolds in any configuration to meet any application. Replace the pump or reservoir without disconnecting lubrication lines.
Easy to standardize on components and reduce inventory Adjustable pump output for fast, convenient customizing Lubriquip part number 521-000-001
$903.00

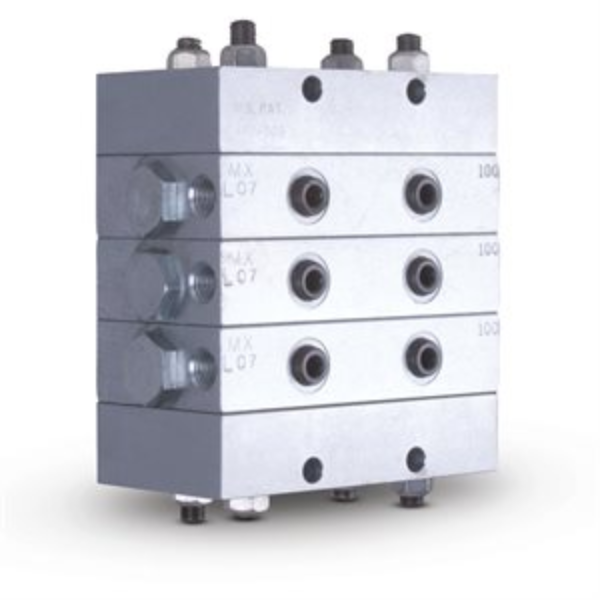

BLOCK, END MACH MX
GG 563287
GG 563287
BLOCK, END MACH MX
Graco 563287 Trabon® MX Divider Valve - MX End
Application: For use with Trabon® MX Divider Valves.
- MX end
- Lubriquip part number 510-921-004
- Model: Trabon
- Series: MX
- Application: In-Plant Machinery
$368.00

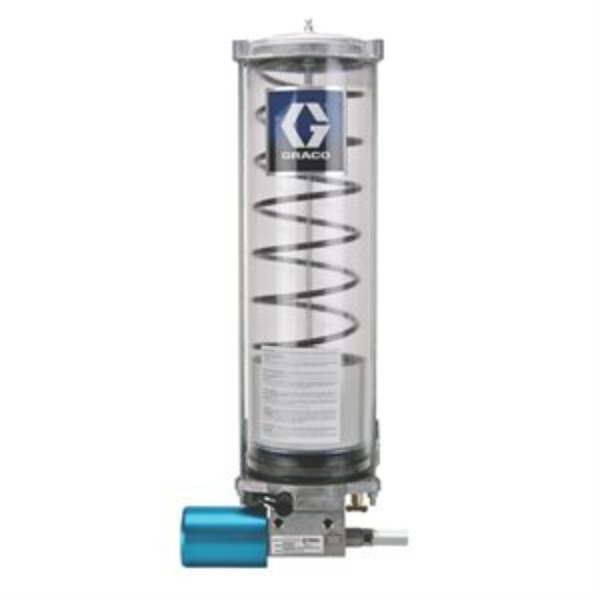

MODU-FLO PUMP, ASSY, AL-50
GG 563308
GG 563308
MODU-FLO PUMP, ASSY, AL-50
Graco 563308 Modu-Flo® AL-50 Pneumatic Pump without Reservoir
Mix and match pumps, reservoir and manifolds in any configuration to meet any application. Replace the pump or reservoir without disconnecting lubrication lines.
- Easy to standardize on components and reduce inventory
- Adjustable pump output for fast, convenient customizing
- Lubriquip part number 521-000-041
- Model: Modu-Flo
- Series: AL-50
- Application: In-Plant Machinery
- Compatible Material: Oil, Grease
- Compatible Metering Device: Series Progressive
- Maximum Air Inlet Pressure (bar): 10.34
- Maximum Air Inlet Pressure (kPa): 1034
- Maximum Air Inlet Pressure (psi): 150
- Maximum Cycle Rate (CPM): 30
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum Fluid Output Pressure (bar): 241
- Maximum Fluid Output Pressure (psi): 3500
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20680
- Maximum Working Pressure (MPa): 31
- Maximum Working Pressure (psi): 3000
- Overall Depth (cm): 8.1
- Overall Depth (in): 3.188
- Overall Depth (mm): 81
- Overall Height (cm): 8.1
- Overall Height (in): 3.188
- Overall Height (mm): 81
- Overall Width (cm): 32.5
- Overall Width (in): 12.812
- Overall Width (mm): 325
- Power Type: Pneumatic
$1,380.00
VALVE, SOL ASSY 3-WAY
GG 563315
GG 563315
VALVE, SOL ASSY 3-WAY
Graco 563315 Trabon® Accessories - 3-way pneumatic solenoid valve, 115 VAC
Application: For use with LubriSystem®, Modu-Flo and E-Series Pneumatic Pumps.
- 3-Way Pneumatic Solenoid Valve, 115 VAC
- Lubriquip part number 521-001-020
- Compatible Material: Oil, Grease
- Maximum NLGI Grade: #2
$510.00

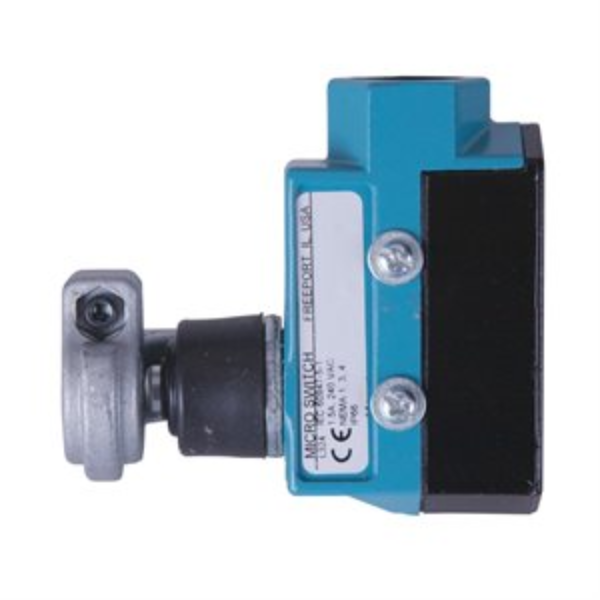

SWITCH, CYCLE, SPDT
GG 563272
GG 563272
SWITCH, CYCLE, SPDT
Graco 563272 Cycle Switch (SPDT) and Bracket Assembly - MJ, MSP and MXP Divider Valves
Monitors piston movement to ensure completed lubrication cycle–must have cycle indicator pin
- Provides positive feedback based on actual metering piston movement
- Mounts to MJ, MSP, MXP, or MX divider with cycle pin option with simple install
- Able to be set for normally open or normally closed operation
- Trabon part number 10599
$310.00
MODU-FLO Pump, Assy AL-25
GG 563306
GG 563306
MODU-FLO Pump, Assy AL-25
Modu-Flo® AL-25 Pneumatic Pump without ReservoirMix and match pumps, reservoir and manifolds in any configuration to meet any application. Replace the pump or reservoir without disconnecting lubrication lines.
Easy to standardize on components and reduce inventory Adjustable pump output for fast, convenient customizing Lubriquip part number 521-000-021
$925.00

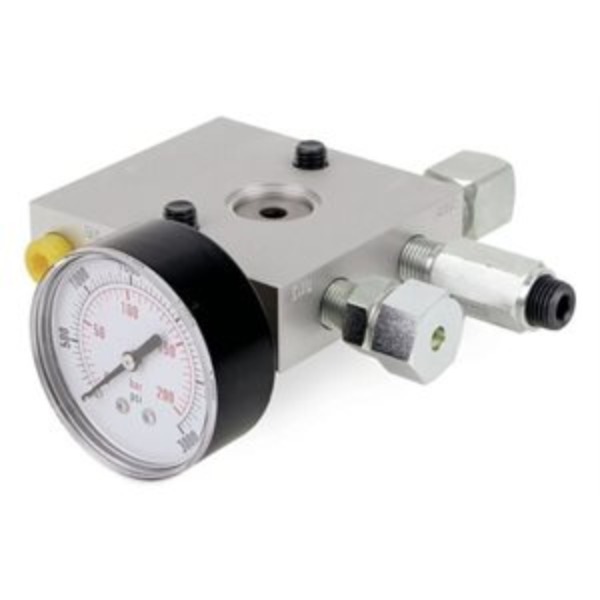

MANIFOLD, ASSY RESV TO PUMP
GG 563324
GG 563324
MANIFOLD, ASSY RESV TO PUMP
Graco 563324 Pump-to-Reservoir Manifold for Modu-Flo Pumps, NPT, Dry Gauge, Fill Check, Outlet Check, Blowout
Application: For use with Modu-Flo Pumps.
- Pump/Reservoir Manifold (NPT) w/Outlet Check Valve, System Fill Check Valve, Blowout Assembly, 0-3,000 psi Pressure Gauge
- Lubriquip part number 521-001-180
- Model: Trabon
- Includes: Outlet Check Valve, System Fill Check Valve, Blowout Assembly, Pressure Gauge
$378.00
SWITCH, LL GRS RESV
GG 563322
GG 563322
SWITCH, LL GRS RESV
Graco 563322 Low Level Switch, 15 Amp, for all Grease Reservoirs
Application: For use with Modu-Flo, E-Series, LubriSystem and Lube Master Pumps.
- Low Level Switch for 5, 6, 12 and 20 pt Cylindrical Grease Reservoirs
- Lubriquip part number 521-001-110
- Inlet Size (cm): 1.2700
- Inlet Size (in): 0.5
- Inlet Size (mm): 12.7000
- Inlet Thread Type: NPT
$184.50
VALVE, SOL ASSY 24VDC
GG 563332
GG 563332
VALVE, SOL ASSY 24VDC
Graco 563332 Trabon® Accessories - 3-way pneumatic solenoid valve, 24 VDC
Application: For use with LubriSystem®, Modu-Flo and E-Series Pneumatic Pumps.
- 3-Way, 24 VDC Solenoid Valve
- Lubriquip part number 521-002-100
- Compatible Material: Oil, Grease
- Maximum NLGI Grade: #2
$510.00
KIT, ACCESSORY, L/L, 12/24/40 PT
GG 563318
GG 563318
KIT, ACCESSORY, L/L, 12/24/40 PT
Modu-Flo Low Level Switch Assemblies - 15 Amp Low Level Switch for 6 pt. Cylindrical Oil Reservoirs and all Tank Reservoirs, SPDT15 amp Low Level Switch for 6 pt Cylindrical Oil Reservoirs and all Tank Reservoirs, SPDT
Lubriquip part number 521-001-050
$364.00
E-SERIES PUMP, 1/4NPSF
GG 563358
GG 563358
E-SERIES PUMP, 1/4NPSF
Graco 563358 E-Series™ Pump Only - with 1750 psi (121 bar) Rupture Disc
The E-Series pump is a great, minimum cost, entry level alternative to standard pneumatic pump products. This all-in-one pump package comes complete with no assembly required and is easy to install. All pump packages include high-pressure rupture disc assembly and lube outlet check valve. Great for any application where price is a concern and installation time is at a premium.
- Easy field installation of accessories without disturbing existing plumbing
- Smart pump design with few moving parts ensures long-lasting dependability
- Lubriquip part number 521-300-180
- Model: E-Series
- Application: In-Plant Machinery
- Compatible Material: Oil, Grease
- Compatible Metering Device: Series Progressive
- Fluid Outlet Size (in): 0.5
- Fluid Outlet Size (mm): 12.7000
- Fluid Outlet Thread Type: NPSF
- Includes: E-Series Pump, Rupture Disc
- Material: Aluminum, Plastic
- Maximum Air Inlet Pressure (bar): 10.34
- Maximum Air Inlet Pressure (kPa): 1034
- Maximum Air Inlet Pressure (psi): 150
- Maximum cST Grade (cST): 30000
- Maximum Cycle Rate (CPM): 10
- Maximum Fluid Output Pressure (bar): 138
- Maximum Fluid Output Pressure (psi): 2000
- Maximum Fluid Output Pressure (bar): 138
- Maximum Fluid Output Pressure (psi): 2000
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 137.9
- Maximum Working Pressure (kPa): 13790
- Maximum Working Pressure (MPa): 13.8
- Maximum Working Pressure (psi): 2000
- Power Type: Pneumatic
$484.00
SWITCH, SUBMERSIBLE, SPDT
GG 563273
GG 563273
SWITCH, SUBMERSIBLE, SPDT
Graco 563273 Cycle Switch (SPDT) and Bracket Assembly, Moisture-Resistant - MJ, MS, MHH and MXP Divider Valves
Monitors piston movement to ensure completed lubrication cycle–must have cycle indicator pin
- Provides positive feedback based on actual metering piston movement
- Mounts to MJ, MSP, MXP, or MX divider with cycle pin option with simple install
- Able to be set for normally open or normally closed operation
$648.00

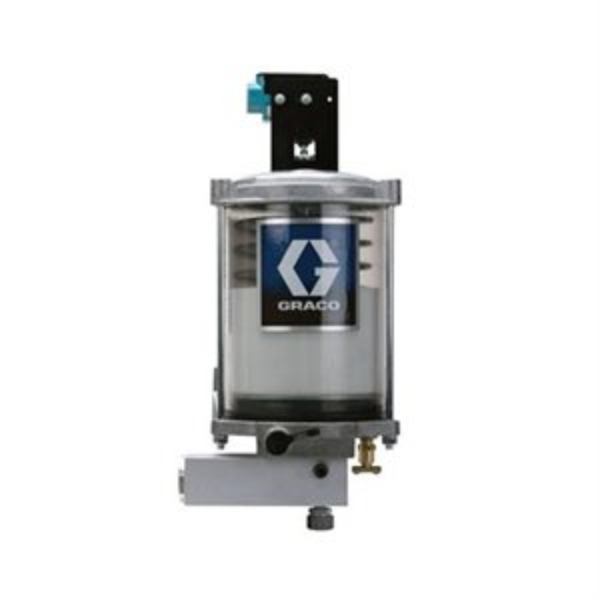

E-SERIES PUMP, RESV ASSY GRS LL
GG 563360
GG 563360
E-SERIES PUMP, RESV ASSY GRS LL
Graco 563360 E-Series™ Pump and Reservoir Assembly - 5 lb (2.26 kg) Plastic Grease, 1/4 in. NPSF, Low Level Switch
The E-Series pump is a great, minimum cost, entry level alternative to standard pneumatic pump products. This all-in-one pump package comes complete with no assembly required and is easy to install. All pump packages include high-pressure rupture disc assembly and lube outlet check valve. Great for any application where price is a concern and installation time is at a premium.
- Easy field installation of accessories without disturbing existing plumbing
- Smart pump design with few moving parts ensures long-lasting dependability
- Lubriquip part number 521-300-360
- Model: E-Series
- Air Inlet Size (in): 0.2502
- Air Inlet Size (mm): 6.35
- Application: In-Plant Machinery
- Compatible Material: Grease
- Maximum Working Pressure (bar): 24
- Maximum Working Pressure (kPa): 2400
- Maximum Working Pressure (MPa): 2.4
- Maximum Working Pressure (psi): 350
- Power Type: Pneumatic
$1,515.00
