Fireball 225 Pump,Grease,50:1 35#

GG 246909

FIREBALL 225 PUMP, GREASE, 50:1 35#

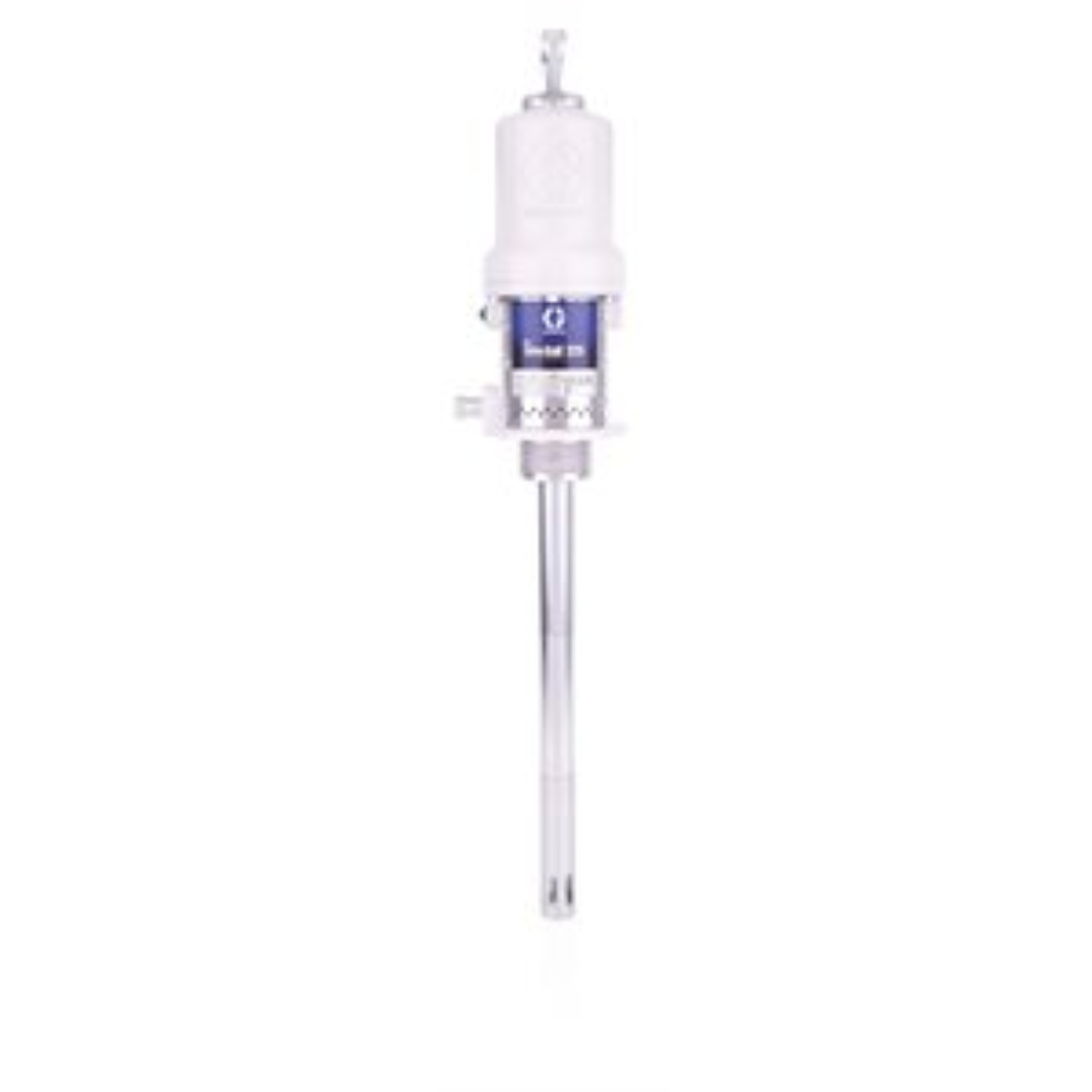

Graco 246909 Mini Fire-Ball 225 50:1 35 lb (16 kg). Grease Pump

You cant afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Mini Fire-Ball
• Series: 225

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 2.25

• Application: Industrial

• Compatible Material: Grease

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease

• Maximum Air Inlet Pressure (bar): 9.65
• Maximum Air Inlet Pressure (kPa): 965
• Maximum Air Inlet Pressure (psi): 140

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Intermittent Cycle Rate (CPM): 100

• Maximum Working Pressure (bar): 580
• Maximum Working Pressure (kPa): 58000
• Maximum Working Pressure (MPa): 58
• Maximum Working Pressure (psi): 8400

• Power Type: Pneumatic

• Pump Ratio: 50:1
