E-Series™ Pump and Reservoir Assembly - 5 lb (2.26 kg) Plastic Grease, 1/4in. NPSF, Low Level Switch

GG 563360

E-SERIES PUMP, RESV ASSY GRS LL

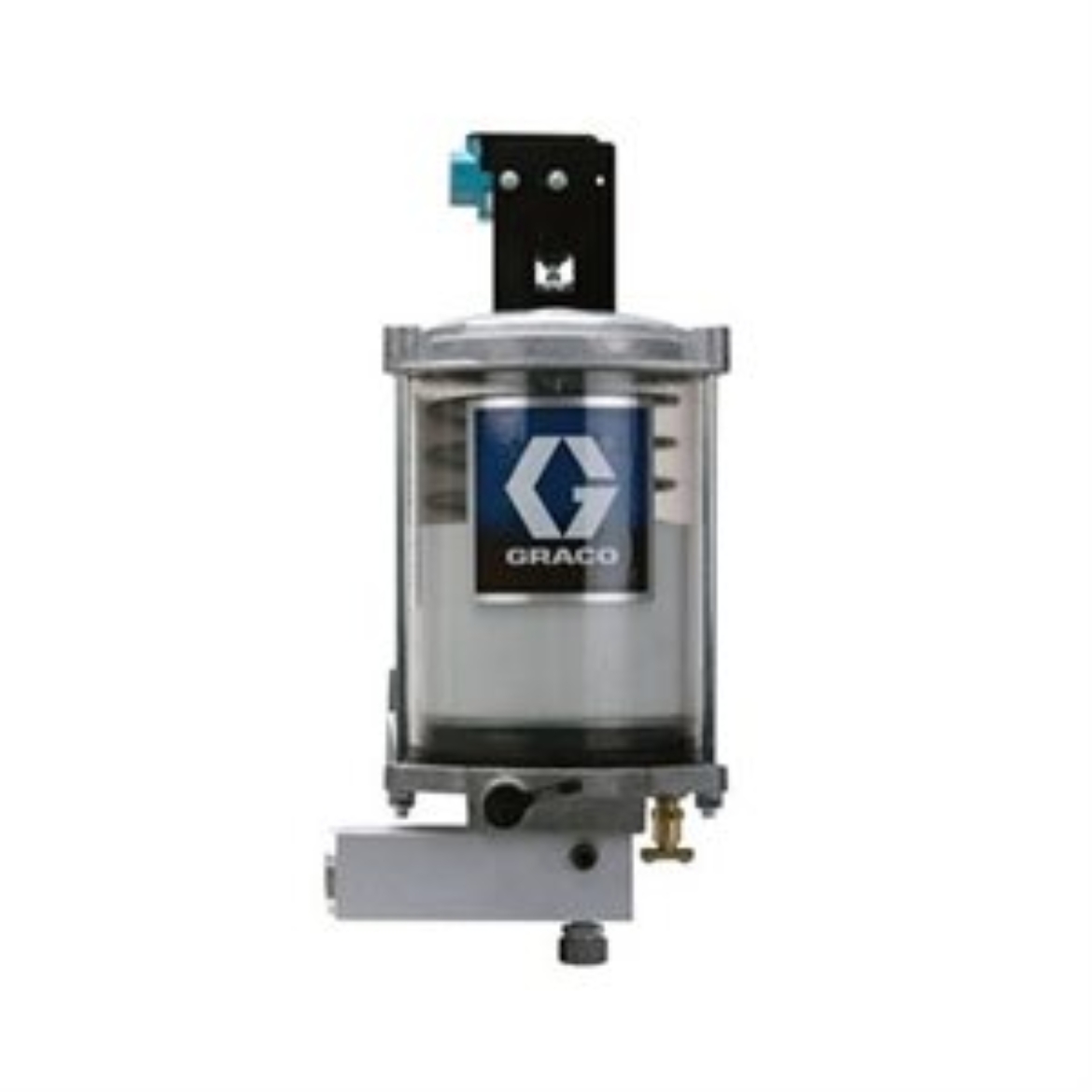

Graco 563360 E-Series Pump and Reservoir Assembly - 5 lb (2.26 kg) Plastic Grease, 1/4 in. NPSF, Low Level Switch

The E-Series pump is a great, minimum cost, entry level alternative to standard pneumatic pump products. This all-in-one pump package comes complete with no assembly required and is easy to install. All pump packages include high-pressure rupture disc assembly and lube outlet check valve. Great for any application where price is a concern and installation time is at a premium.

• Easy field installation of accessories without disturbing existing plumbing
• Smart pump design with few moving parts ensures long-lasting dependability
• Lubriquip part number 521-300-360

• Model: E-Series

• Air Inlet Size (in): 0.2502
• Air Inlet Size (mm): 6.35

• Application: In-Plant Machinery

• Compatible Material: Grease

• Maximum Working Pressure (bar): 24
• Maximum Working Pressure (kPa): 2400
• Maximum Working Pressure (MPa): 2.4
• Maximum Working Pressure (psi): 350

• Power Type: Pneumatic
