Flat Pattern Fusion Mechanical Purge Gun With .024 In Orfice And Mix Chamber With .018 Port

GG 247258

FUSION MP GUN, MF1818, FTM424

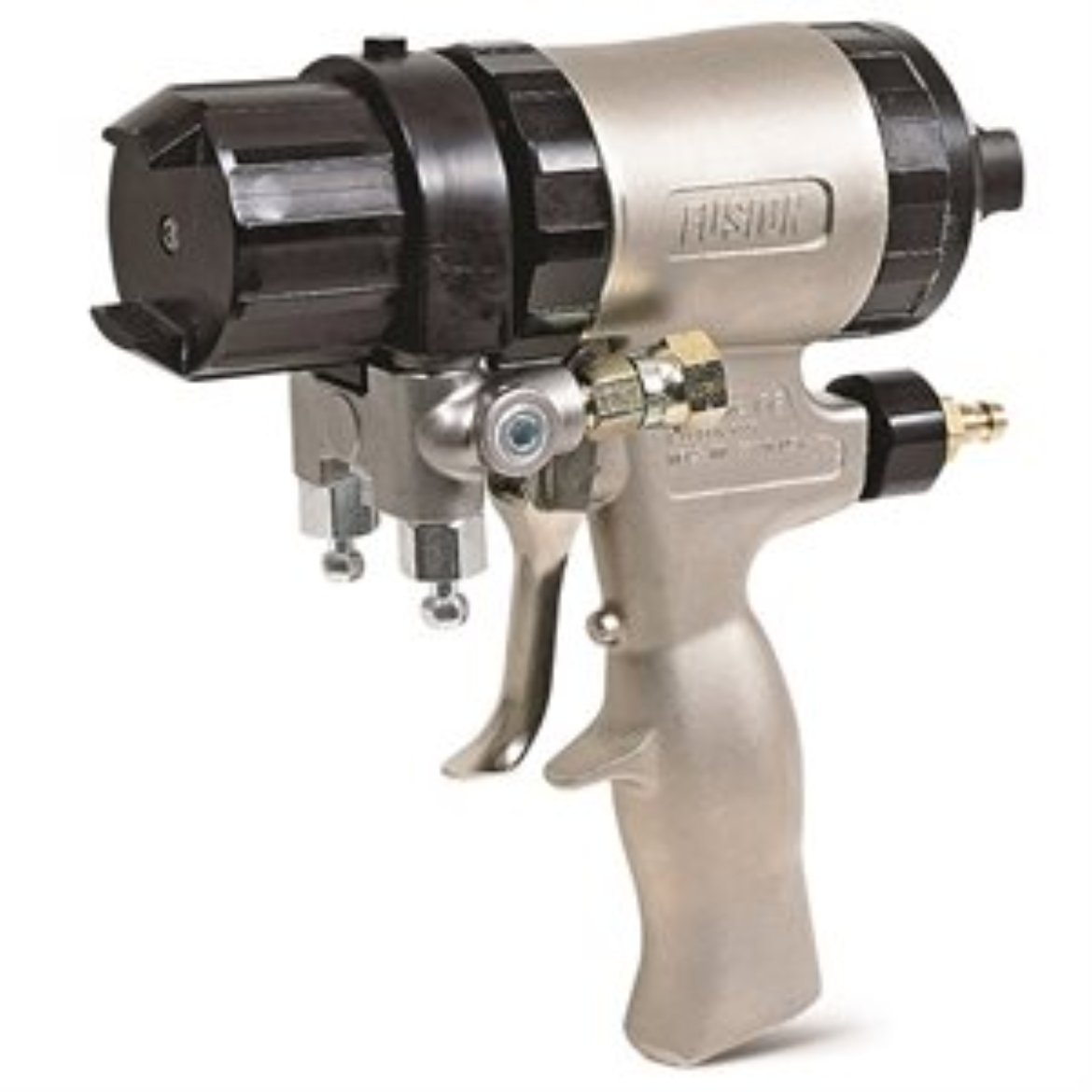

Graco 247258 Flat Pattern Fusion Mechanical Purge Gun with 0.024 in (0.61 mm) Orifice Size and Mix Chamber with 0.018 in (0.46 mm) Impingement Port

Whether youre spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties - giving you great results at the jobsite.

• Easy mechanical cleaning - mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Flat

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam

• Fluid Orifice Size (cm): 0.061
• Fluid Orifice Size (in): 0.024
• Fluid Orifice Size (mm): 0.61

• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Type: Standard

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .018

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm): 193
• Overall Width (cm): 7.9
• Overall Width (in): 3.1
• Overall Width (mm): 79

• Pattern Size (in): 10 in @ 24 in from target
