GG 247453
METER, INLINE

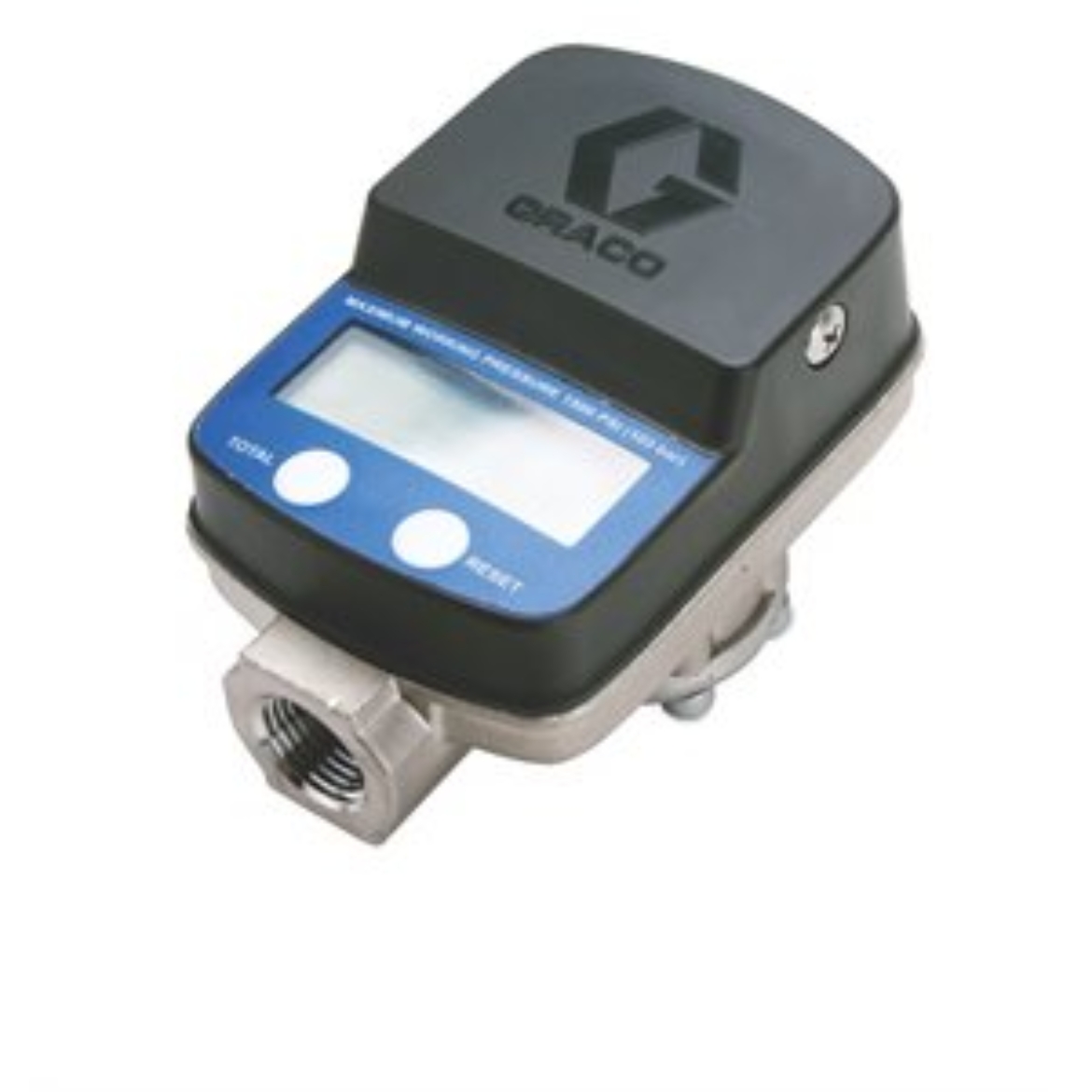

Graco 247453 SDI15 Med/High Pressure, Med/High Flow In-Line Meter for Petroleum- and Synthetic-Based Oils, Antifreeze, Windshield Washer Fluid
These durable, easy-to-use in-line electronic dispense meters are designed with automotive dealerships, fast lube centers, and service shops in mind.
Application: Typical applications include automotive, fast lube centers, service shops, heavy-duty dealerships, fleet service facilities, in-plant and mining.
- Rugged stainless steel body remains corrosion free in hard environments for years of trouble-free service.
- Large, easy-to-read LCD display show dispense quantities.
- Simple operator controls and measures in pints, quarts, liters or gallons.
- Energy efficient powered by two AA alkaline batteries.
- Compatible with Petroleum- and synthetic-based oils (motor, gear and ATF), antifreeze, windshield washer fluid, and diesel exhaust fluid.
- Battery Chemistry: Alkaline
- Battery Size: AA
- Compatible Material: Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze, Windshield Washer Fluid
- For Use With: petroleum-based and synthetic oils and antifreeze
- Inlet Size (cm): 1.27
- Inlet Size (in): 0.5
- Inlet Size (mm): 12.7
- Maximum Flow Rate (GPM): 15
- Maximum Flow Rate (L/min): 57
- Maximum Operating Temperature ( degree C): 50
- Maximum Operating Temperature ( degree F): 122
- Maximum Working Pressure (bar): 105
- Maximum Working Pressure (kPa): 10500
- Maximum Working Pressure (MPa): 10.5
- Maximum Working Pressure (psi): 1500
- Meter Accuracy (%): plus/minus 00.5
- Meter Repeatability (%): plus/minus 00.15
- Minimum Operating Temperature ( degree C): -20
- Minimum Operating Temperature ( degree F): -4
