FIREBALL 225 PUMP, 3:1, (UNIVERSAL)

Manufacturer: GRACO INC. S10595

GG 246775

FIREBALL 225 PUMP, 3:1, (UNIVERSAL)

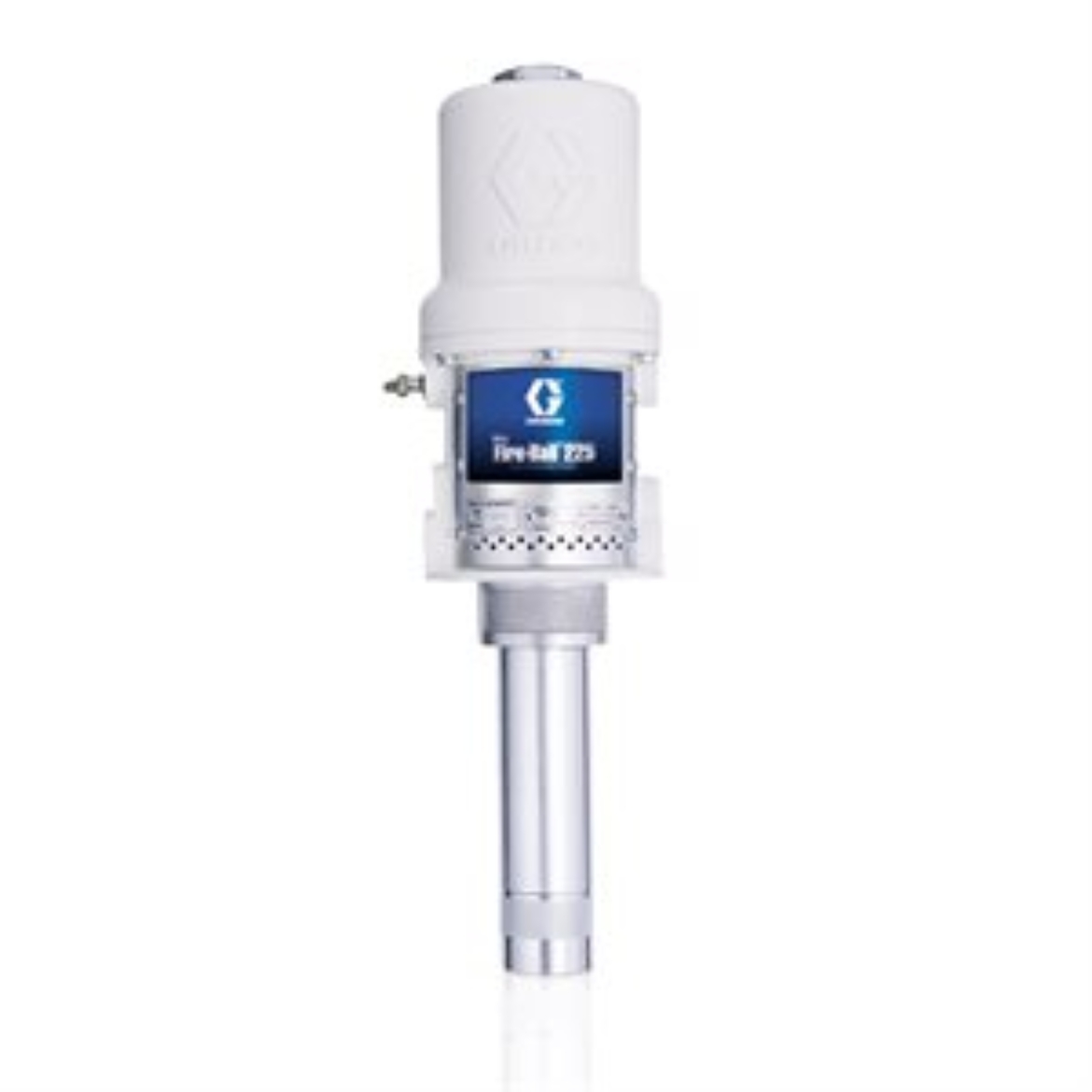

Graco 246775 Mini Fire-Ball® 225 3:1 Universal Size Oil Pump

You can&prime, t afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

Application: The Mini Fire-Ball 225 3:1 is perfect for medium pressure, low volume oil applications.
  • Durable - Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated &Prime, dirty&Prime, air environments for long life without repair.
  • Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.


  • Model: Mini Fire-Ball
  • Series: 225
  • Air Inlet Size (in): 3/8
  • Air Inlet Size (mm): 9.525
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Air Motor Effective Diameter (in): 2.25
  • Application: Industrial
  • Compatible Material: Oil
  • Cycles Per Gallon: 43.5
  • Fluid Inlet Size (in): 1-1/2
  • Fluid Inlet Size (mm): 38.1
  • Fluid Inlet Thread Gender: Female
  • Fluid Inlet Thread Type: NPT
  • Fluid Outlet Size (in): 1/2
  • Fluid Outlet Size (mm): 12.7
  • Fluid Outlet Thread Gender: Female
  • Fluid Outlet Thread Type: NPT
  • For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)
  • Maximum Air Consumption (SCFM): 20
  • Maximum Air Inlet Pressure (bar): 12.41
  • Maximum Air Inlet Pressure (kPa): 1241
  • Maximum Air Inlet Pressure (psi): 180
  • Maximum Continuous Cycle Rate (CPM): 100
  • Maximum Working Pressure (bar): 37
  • Maximum Working Pressure (kPa): 3700
  • Maximum Working Pressure (MPa): 3.7
  • Maximum Working Pressure (psi): 540
  • Power Type: Pneumatic
  • Pump Ratio: 3:1
SKU: GG 246775
Availability:
Price: $1,245.00
