GG 246780
FIREBALL 225 PUMP, MINI , GR, 50:1

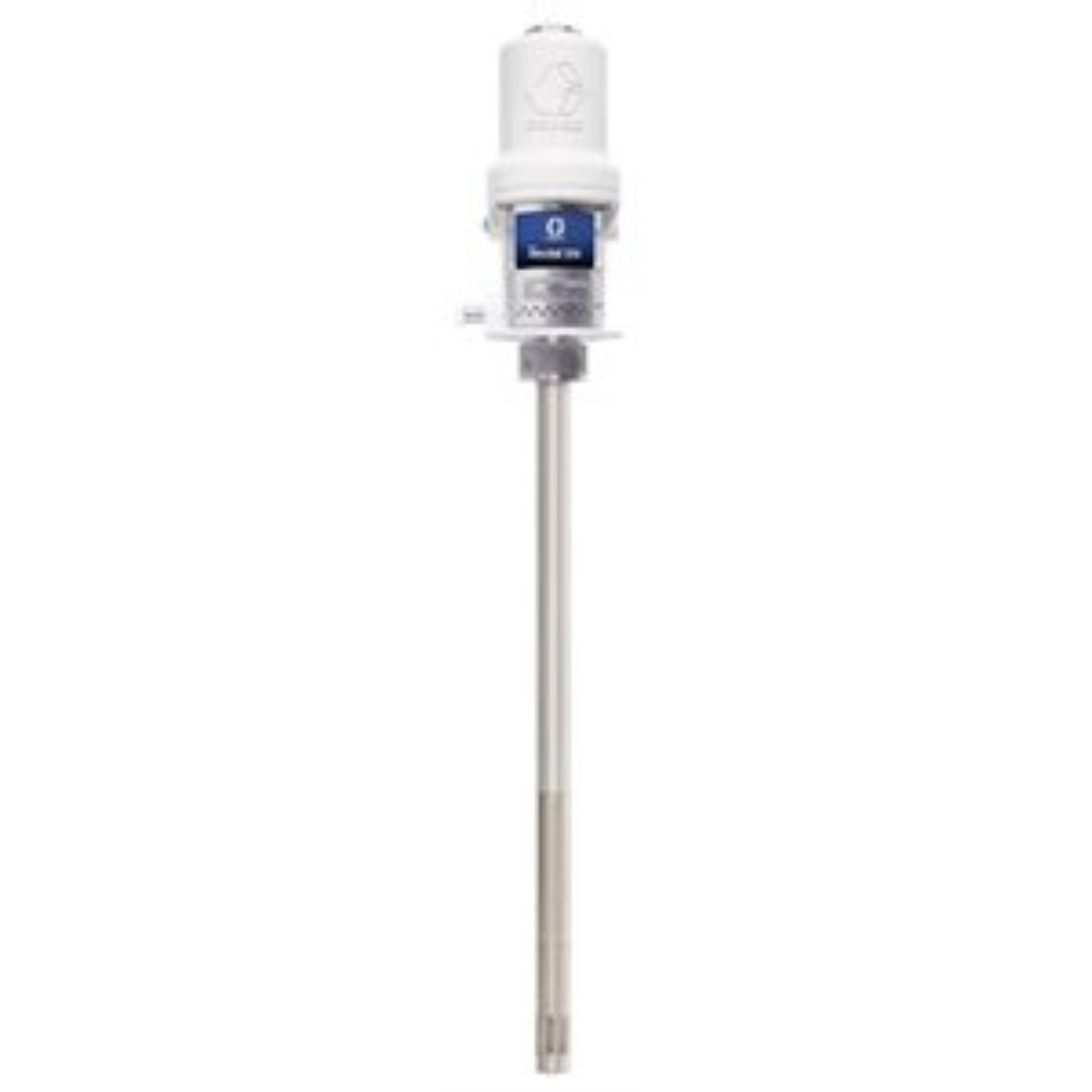

Graco 246780 Mini Fire-Ball 225 50:1 Pump for 120 lb (55 kg). Drum
You cant afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
Application: The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications.
- Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
- Model: Mini Fire-Ball
- Series: 225
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Air Motor Effective Diameter (in): 2.25
- Compatible Material: Grease
- Fluid Inlet Type: Slotted
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Size (mm): 6.35
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar): 9.65
- Maximum Air Inlet Pressure (kPa): 965
- Maximum Air Inlet Pressure (psi): 140
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Intermittent Cycle Rate (CPM): 100
- Maximum Working Pressure (bar): 580
- Maximum Working Pressure (kPa): 58000
- Maximum Working Pressure (MPa): 58
- Maximum Working Pressure (psi): 8400
