GG 563230
MHH VALVE, BALANCING, 1/8-27

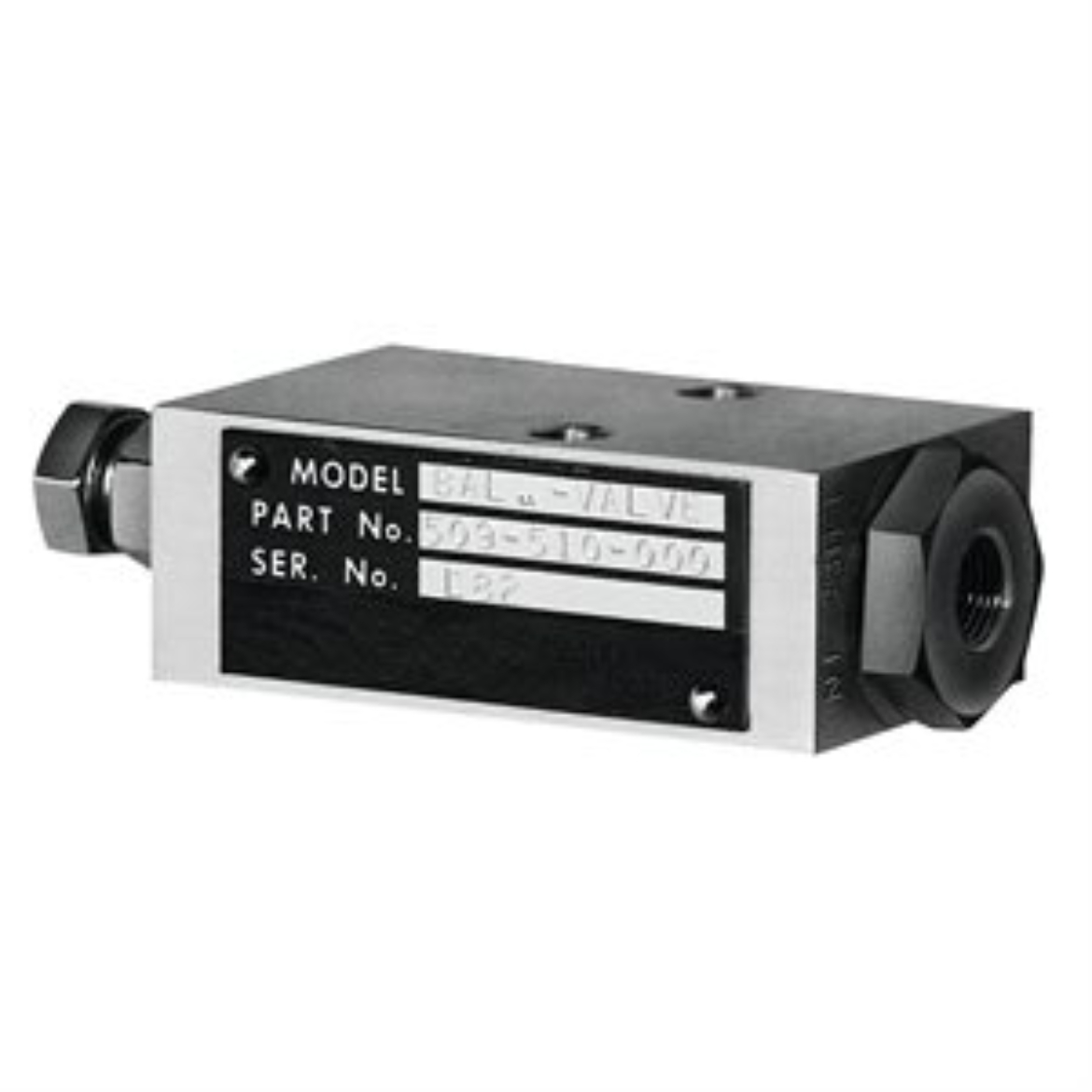

Graco 563230 Balancing Valve, 1/8-27
- Lubriquip part number 509-510-000
- Trabon part number 9510
- Inlet Size (cm): 0.3175
- Inlet Size (in): 1/8
- Inlet Size (mm): 3.175
- Maximum Working Pressure (bar): 448
- Maximum Working Pressure (kPa): 44800
- Maximum Working Pressure (MPa): 44.8
- Maximum Working Pressure (psi): 6500
- Outlet Size (cm): 0.3175
- Outlet Size (in): 1/8
- Outlet Size (mm): 3.175
- Outlet Thread Type: NPSF
- Overall Height (cm): 3.81
- Overall Height (in): 1.5
- Overall Height (mm): 38.1
- Overall Length (cm): 10
- Overall Length (in): 3.834
- Overall Length (mm): 97
- Overall Width (cm): 2.54
- Overall Width (in): 1
- Overall Width (mm): 25.4
