Swivel, 90, 1/8 Port

GG 563148

SWIVEL, 90 1/8 PORT NITRILE

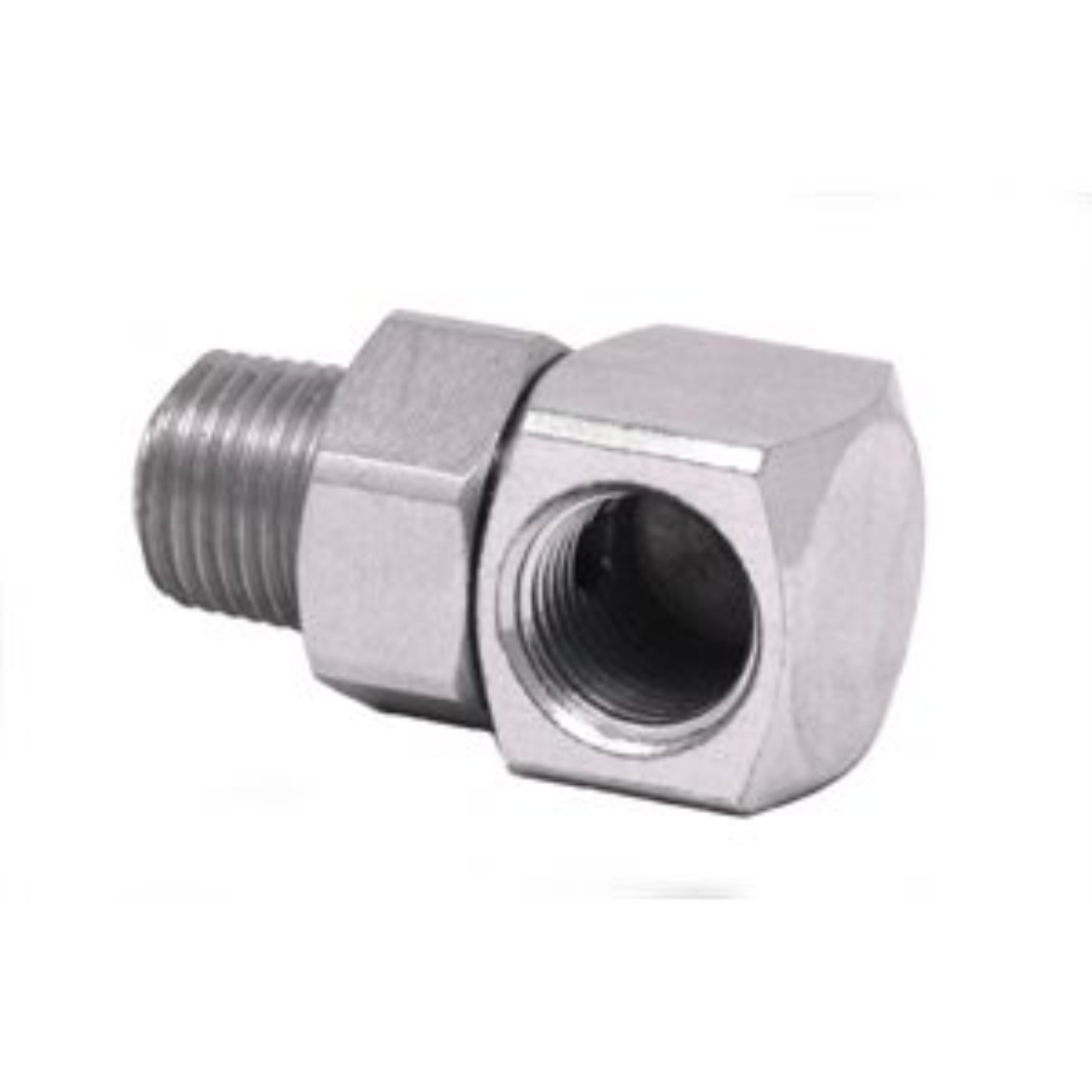

Graco 563148 Compact 90 degree Angle Swivel - 1/8 inch, Nitrile

The Trabon Straight and Angle Swivels are available in standard ball bearing or compact types. Primarily designed for medium to high pressure service in centralized oil and grease systems, these swivels provide a simple and inexpensive means of making line connections between either stationary, or oscillating surfaces.

• 90 degree Swivel Adapter - 1/8 inch (3.2 mm) NPT x 1/8 inch (3.2 mm) NPT Female
• Lubriquip part number 501-257-000
• Trabon part number 1257

• Angle ( degree ): 90
• Application: On-Road Vehicles

• Compatible Material: Oil, Grease

• Connection Type: Threaded

• For Use With: Pipe

• Material: Steel

• Maximum Working Pressure (bar): 34
• Maximum Working Pressure (kPa): 3400
• Maximum Working Pressure (MPa): 3.4
• Maximum Working Pressure (psi): 500
