Fireball 225 Pump,Stat,50:1,120#

GG 246914

FIREBALL 225 PUMP, STAT, 50:1, 120#

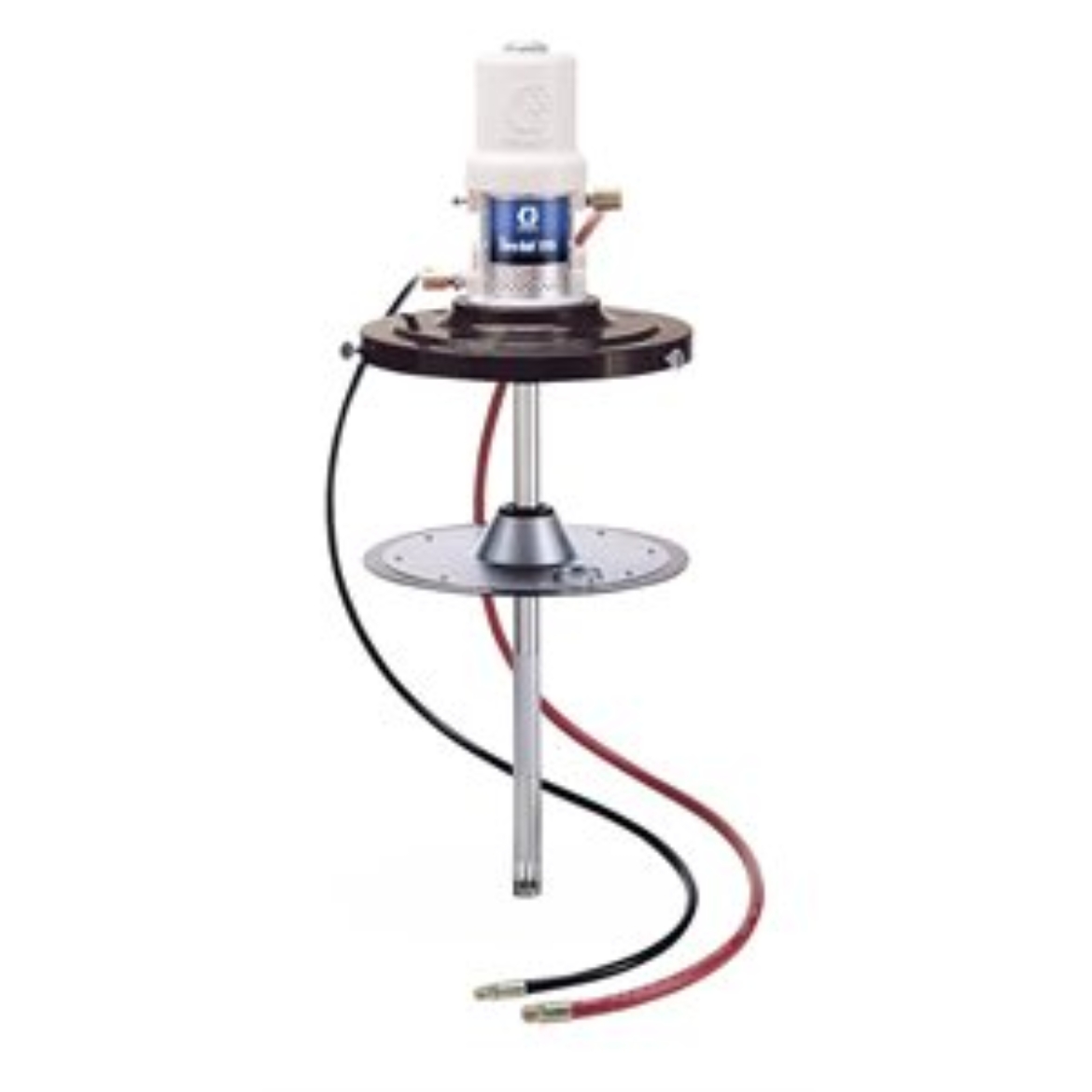

Graco 246914 Mini Fire-Ball 225 50:1 120 lb. (54 kg) Grease Pump - Stationary Supply Package

You cant afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Mini Fire-Ball
• Series: 225

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Grease

• Container Size (lb): 120

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Mini Fireball 50:1 225 Pump, Hose and Fitting Kit, Cover, Follow Plate, Shim

• Maximum Air Working Pressure: 140

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Mount Location: Drum Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 15
