GG 562950
MODEL 25 PUMP, ASSY, .312, DIA

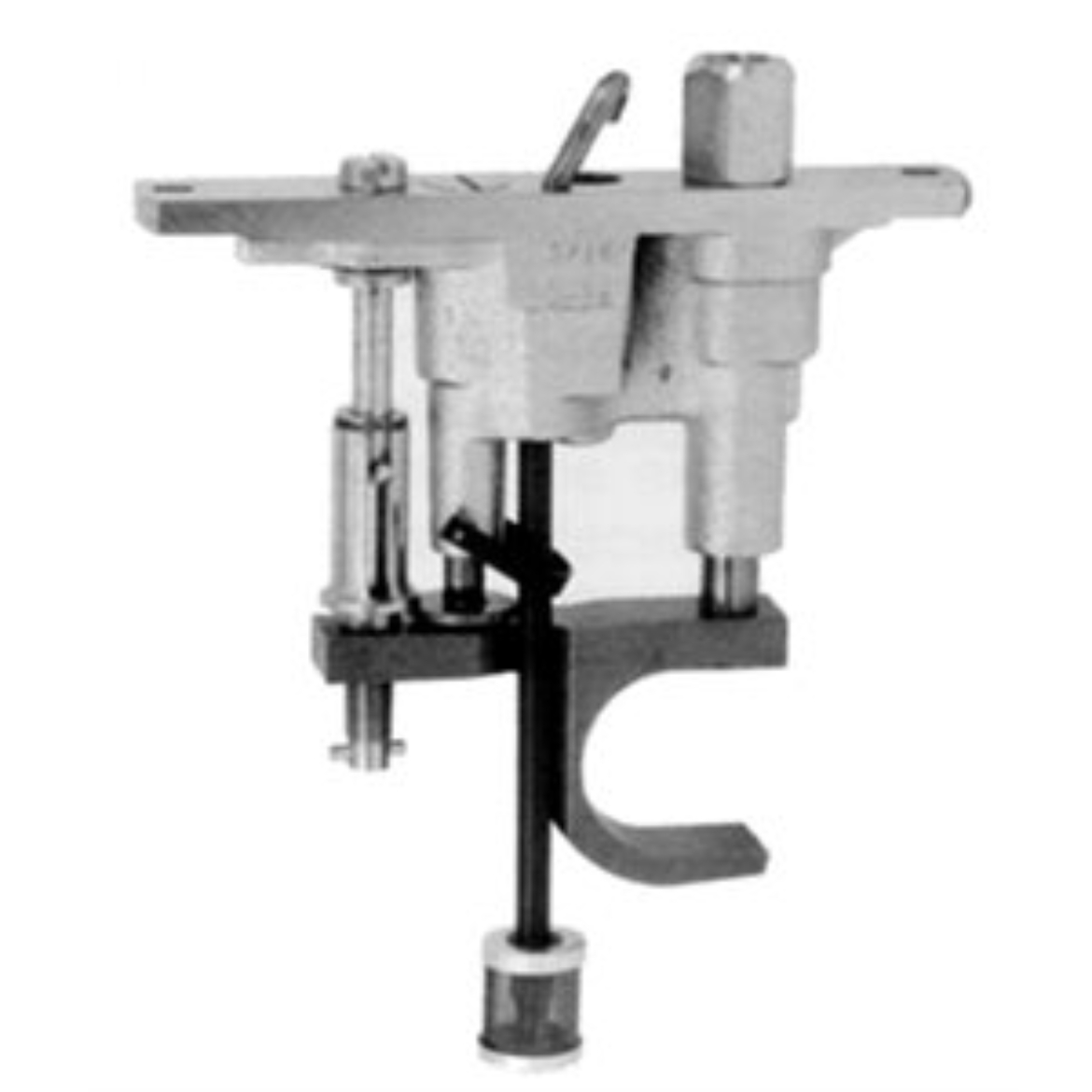

Graco 562950 Manzel® Model 25 Compressor Lubricator Replacement Pump, 5/16 in (7.9 mm), 1000 psi (69 bar)
Provide lubrication to cylinder walls, bearings and other moving parts of equipment such as sugar mills, steam engines, presses and general machinery.
- General-purpose lubrication: automatic, precision metering for all types of machinery
- Clear-Vue pumping unit shows amount of lubricant being pumped
- Self-contained, removable pumping unit. All units interchangeable - remove two pump screws and lift out
- Lubriquip part number 321-410-015
- Manzel part number 60050-B
- Model: Manzel
- Series: Model 25
- Drive Option: Direct Rotary
- Lubricator Feed Type: Force Feed
- Maximum Drive Speed (RPM): 60
- Maximum Fluid Viscosity (SUS): 5000
- Maximum Number of Drops Per Stroke (drops/stroke): 12
- Maximum Working Pressure (bar): 69
- Maximum Working Pressure (kPa): 6900
- Maximum Working Pressure (psi): 1000
- Minimum Drive Speed (RPM): 3
- Minimum Fluid Viscosity (SUS): 100
- Minimum Number of Drops Per Stroke (drops/stroke): 0.25
- Outlet Size (cm): 0.635
- Outlet Size (in): 1/4
- Outlet Size (mm): 6.35
- Outlet Thread Gender: Female
- Outlet Thread Type: NPS
- Overall Depth (cm): 65
- Overall Depth (in): 25.59
- Overall Depth (mm): 650
- Overall Height (cm): 21.6
- Overall Height (in): 8.50
- Overall Height (mm): 215.9
- Overall Width (cm): 15.24
- Overall Width (in): 6
- Overall Width (mm): 152.4
- Piston Size (cm): 0.79
- Piston Size (in): 0.31
- Piston Size (mm): 7.9
- Pump Size (cm): 0.8
- Pump Size (in): 5/16
- Pump Size (mm): 8
