Msa-100 Pump, Assy

GG 562855

MSA-100 PUMP, ASSY

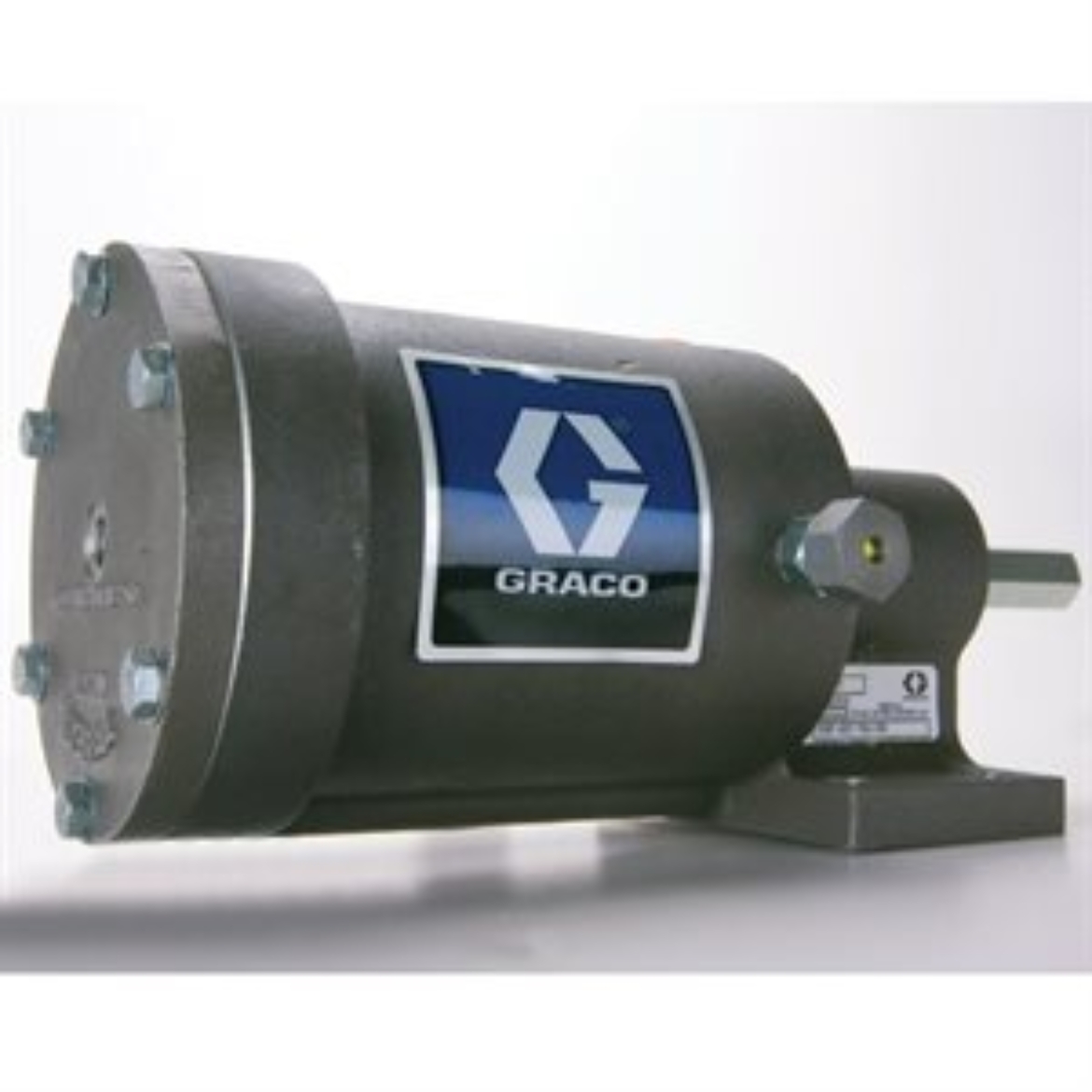

Graco 562855 MSA-100 Pneumatic Pump

MSA Series products are used together with main lubrication supply lines where the pump is fed directly with no additional reservoir required. No reservoir makes the MSA Series ideal for locations that are difficult to reach or undesirable to enter. Use the MSA-100 when high operating pressures and larger outputs are required.

• Ideal for applications where space is a premium
• Handles high pressure lubricant feed of direct line intake
• Used with or without a reservoir for the ultimate flexibility

• Model: MSA
• Series: 100

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSF

• Application: In-Plant Machinery

• Compatible Material: Oil, Grease
• Compatible Metering Device: Series Progressive

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Type: NPSF

• Material: Aluminum

• Maximum Air Inlet Pressure (bar): 9.65
• Maximum Air Inlet Pressure (kPa): 965
• Maximum Air Inlet Pressure (psi): 140

• Maximum Cycle Rate (CPM): 30

• Maximum Fill Inlet Pressure (bar): 34.5
• Maximum Fill Inlet Pressure (kPa): 3450
• Maximum Fill Inlet Pressure (psi): 500

• Maximum Fluid Output Pressure (bar): 207
• Maximum Fluid Output Pressure (psi): 3000

• Maximum Fluid Output Pressure (bar): 207
• Maximum Fluid Output Pressure (psi): 3000

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 206.8
• Maximum Working Pressure (kPa): 20680
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Minimum Air Inlet Pressure (psi): 60

• Overall Depth (cm): 17.6
• Overall Depth (in): 6.94
• Overall Depth (mm): 176

• Overall Height (cm): 14.5
• Overall Height (in): 5.69
• Overall Height (mm): 145
• Overall Width (cm): 32.6
• Overall Width (in): 12.83
• Overall Width (mm): 326

• Power Type: Pneumatic
