GG 246915
FIREBALL 225 PUMP, BASE, 50:1, 120#

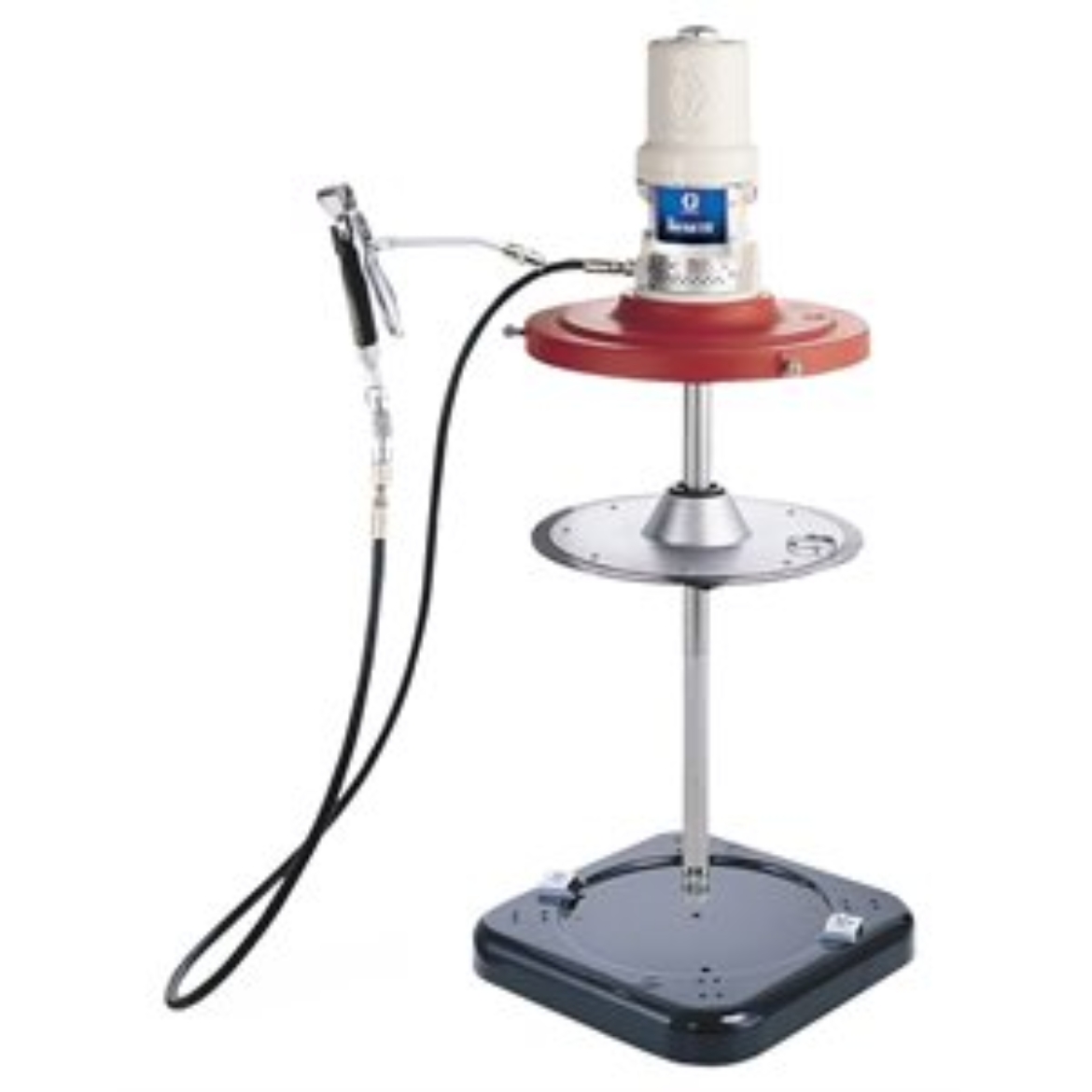

Graco 246915 Mini Fire-Ball 225 50:1 120 lb. (54 kg) Grease Pump - Portable Package Caster Base
You cant afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
Application: The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications.
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
- Model: Mini Fire-Ball
- Series: 225
- Air Inlet Size (in): 0.375
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: Grease
- Fluid Inlet Type: Slotted
- Fluid Outlet Size (cm): 0.635
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Size (mm): 6.35
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Includes: Mini Fireball 50:1 225 Pump, Dispense Kit, Cover, Follow Plate, Holster, Portable Base, Shim
- Maximum Air Working Pressure: 140
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (MPa): 35
- Maximum Working Pressure (psi): 5000
- Mount Location: Drum Mount
- Pump Ratio: 50:1
- Pump Weight (lb): 15
