E-Series Pump, 1/4Npsf

GG 563358

E-SERIES PUMP, 1/4NPSF

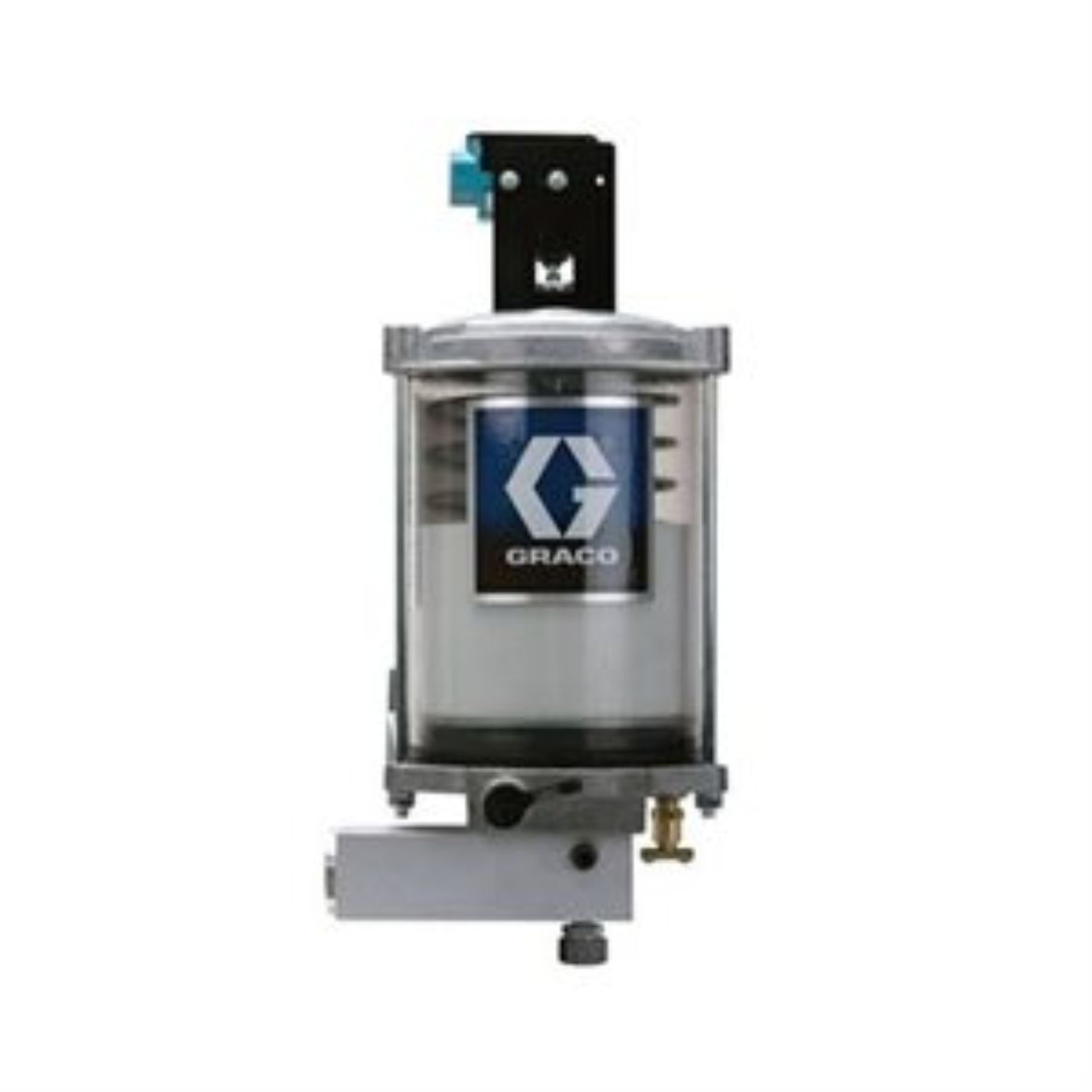

Graco 563358 E-Series Pump Only - with 1750 psi (121 bar) Rupture Disc

The E-Series pump is a great, minimum cost, entry level alternative to standard pneumatic pump products. This all-in-one pump package comes complete with no assembly required and is easy to install. All pump packages include high-pressure rupture disc assembly and lube outlet check valve. Great for any application where price is a concern and installation time is at a premium.

• Easy field installation of accessories without disturbing existing plumbing
• Smart pump design with few moving parts ensures long-lasting dependability
• Lubriquip part number 521-300-180

• Model: E-Series

• Application: In-Plant Machinery

• Compatible Material: Oil, Grease
• Compatible Metering Device: Series Progressive

• Fluid Outlet Size (in): 0.5
• Fluid Outlet Size (mm): 12.7000
• Fluid Outlet Thread Type: NPSF

• Includes: E-Series Pump, Rupture Disc

• Material: Aluminum, Plastic

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum cST Grade (cST): 30000
• Maximum Cycle Rate (CPM): 10

• Maximum Fluid Output Pressure (bar): 138
• Maximum Fluid Output Pressure (psi): 2000

• Maximum Fluid Output Pressure (bar): 138
• Maximum Fluid Output Pressure (psi): 2000

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 137.9
• Maximum Working Pressure (kPa): 13790
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Power Type: Pneumatic
