Impacts

CL CV-500R

IMPACT WRENCH, COMP 1/2" SQ DR, RING RET

CL CV-500P

IMPACT WRENCH, COMP 1/2" SQ DR, PIN RET

CL CV-375R

IMPACT WRENCH, COMP 3/8" SQ DR, RING RET

CL 19RAA07AH3

NUTRUNNER (500 rpm, 6.8Nm, 3/8 SQ DR)

IR 1702P4

3/8" Air Impact Wrench, 125 ft-lb Torque, Quick Change Retainer, Pistol

The 1702 Series Impact Wrench’s steel hammer case and metal housing ensure a tough, durable tool that’ll help you breeze through any job without having to worry about your tools giving up.

Features And Benefits

• Power: With a jumbo hammer impact mechanism and power regulation, the 1702 Series is powerful and easy to control.
• Reliable: No matter how often you use it, the 1702 Series Impact Wrench will deliver the same high-quality output every time. Comes with a 1-year warranty.

Product Application and Uses: These air impact wrenches are designed to remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 15
Air Consumption @ Load (l/min): 425
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 1500
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Hex
Duty Rating: General Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 96.0 / 107.0
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 92.2 / 103.2
Max Bolt Diameter (in): 0.4375
Max Free Speed (rpm): 10000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 125
Max Torque (in-lb): 1496
Max Torque (nm): 169
Min Hose Size (in): 5/16
Motor: Non-Biased
Number of Power Settings: 6
Power Source: Air Powered
Product Length (in): 6
Product Width (in): 2.7
Product Height (in): 6.3
Product Weight (lb): 2.75
Recommended Forward Torque Range (ft-lb): 20-100
Recommended Forward Torque Range (in-lb): 239-1204
Recommended Forward Torque Range (nm): 27-136
Retainer Type: Quick Change
Side to Center Distance (in): 1.35
Side to Center Distance (mm): 34
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 2.7
Warranty: 1-year

Similar IR

• 1702P1

IR 211

3/8" Air Impact Wrench, 150 ft-lb Torque, Friction Ring Retainer, Inline

The 211 Straight Impact Wrench is extremely efficient. Tested just for you, this wrench doesn’t stall and you can rely on it from beginning to end.

Features And Benefits

• Power: The ball and cam mechanism delivers a high output of power. Coupled with its vane motor and power regulator, you’ll be speeding through your work in no time.
• Access: Thanks to its straight grip and overall design, this impact wrench is great for use in hard-to-reach spaces.
• Great for Vehicle Repair: The square socket retaining ring makes this an ideal impact wrench for projects where you’ll be switching sockets frequently.
• Durability: This impact wrench's steel hammer case provides you with increased durability for heavy-duty projects. No matter how hard you work, this wrench can handle it.
• 1-year warranty

Product Application and Uses: Designed to remove and install threaded fasteners. Optimized for the vehicle repair industry, body shops, and MRO
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 11
Air Consumption @ Load (l/min): 10
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 2.5
Average Air Consumption (l/min): 71
Blows per Min: 1500
Color: Silver
Configuration/Handle Type: Straight
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 98.4 / 105.6
Hammer Case: Steel
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Impacting Sound Pressure/Power Db(A): 94.6 / 105.6
Max Bolt Diameter (in): 0.375
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 150
Max Torque (in-lb): 1797
Max Torque (nm): 203
Min Hose Size (in): 3/8
Motor: Non-Biased
Number of Power Settings: 5
Power Source: Air Powered
Product Length (in): 6.6
Product Width (in): 2
Product Height (in): 3.6
Product Weight (lb): 2.4
Recommended Forward Torque Range (ft-lb): 20-125
Recommended Forward Torque Range (in-lb): 239-1505
Recommended Forward Torque Range (nm): 27-170
Recommended Reverse Torque (ft-lb): 20-125
Recommended Reverse Torque (nm): 27-170
Retainer Type: Friction Ring
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 5.9
Warranty: 1-year

Similar IR

• 212

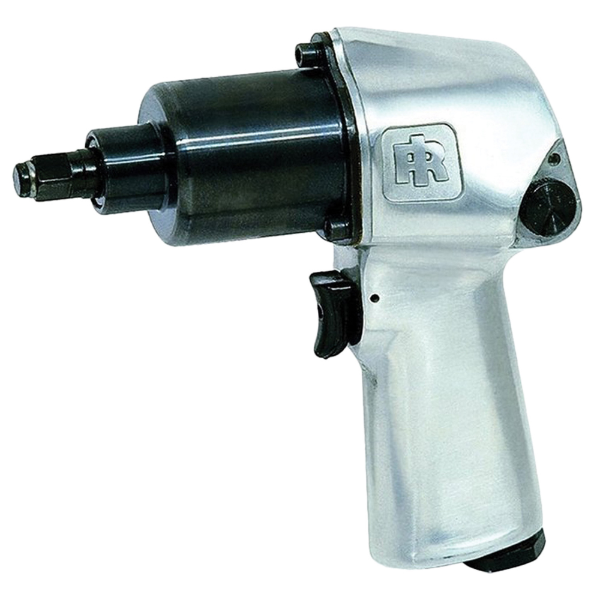

IR 212

3/8" Air Impact Wrench, Super Duty, 150 ft-lb Torque, Friction Ring Retainer, Pistol

Whether you’re working on vehicle repair or maintenance repair, the 212 Impact Wrench will help you through even the toughest of jobs.

Features And Benefits

• Reliability: This wrench was built to ensure high quality output from its first day to its last.
• Durability: This steel hammer case and metal housing make the 212 Impact Wrench as durable as it is efficient. It can withstand repeated drops and harsh environments with ease.
• Access: With a pistol grip and ergonomic design, this wrench helps you access hard-to-reach spots every time.
• Power: The wrench's finely tuned vane motor pairs smoothly with the jumbo hammer impact mechanism on the 212 Impact Wrench for maximum power.

Includes: Bare Tool
Product Application and Uses: Vehicle Repair Or Maintenance Repair
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 11
Air Consumption @ Load (l/min): 311
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 2.5
Average Air Consumption (l/min): 71
Blows per Min: 1500
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 96.0 / 107.0
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 92.2 / 103.2
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 150
Max Torque (in-lb): 1797
Max Torque (nm): 203
Min Hose Size (in): 3/8
Motor: Non-Biased
Number of Power Settings: 6
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 51.9
Product Length (in): 6
Product Width (in): 2.8
Product Height (in): 6.5
Product Weight (lb): 2.89
Recommended Forward Torque Range (ft-lb): 20-125
Recommended Forward Torque Range (in-lb): 239-1505
Recommended Forward Torque Range (nm): 27-170
Recommended Reverse Torque (ft-lb): 20-125
Recommended Reverse Torque (nm): 27-170
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 6.5
Warranty: 1-year

Similar IR

• 2115TIMAX
• 231C

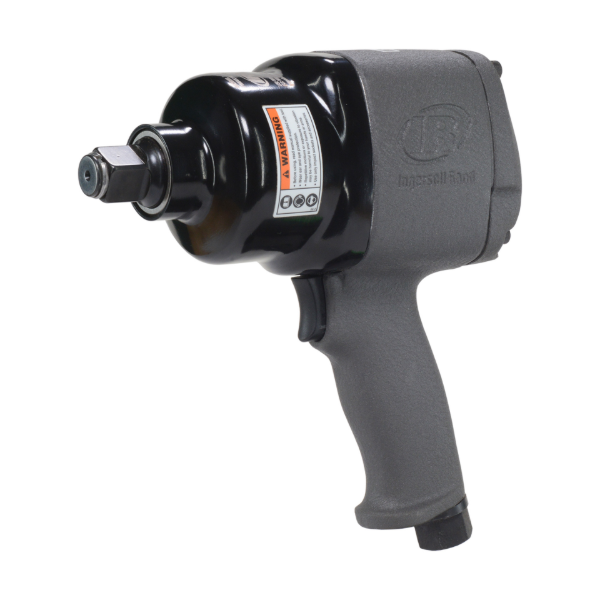

IR 2161XP

3/4" Air Impact Wrench, Ultra Duty, 1250 ft-lb Torque, Friction Ring Retainer, Pistol

The metal housing and steel hammer case of the 2161 Series Impact Wrench makes this one of the toughest tools on the market. You’ll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.

Features And Benefits

• Power: Most powerful 3/4" Impact in the industry with 1.250 ft.-lbs. of max torque and 6,000 rpm. Finely tuned twin hammer impact mechanism and 6-vane motor.
• Versatility: Ideal for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
• Power Regulator: 3-position power regulator with full power in reverse.
• Durable: This heavy-duty impact wrench has a steel hammer case and is tough enough to handle harsh environments and repeated drops.

Includes: Bare Tool
Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 46
Air Consumption @ Load (l/min): 1303
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 1025
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Ultra Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 97.2 / 108.2
Hammer Case: Steel
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 92.8 / 103.8
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1250
Max Torque (in-lb): 15002
Max Torque (nm): 1695
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: 3
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 103.3
Product Length (in): 8.5
Product Width (in): 3.5
Product Height (in): 9.5
Product Weight (lb): 12.14
Recommended Forward Torque Range (ft-lb): 300-1000
Recommended Forward Torque Range (in-lb): 3602-12002
Recommended Forward Torque Range (nm): 407-1356
Retainer Type: Friction Ring
Side to Center Distance (in): 1.8
Side to Center Distance (mm): 46
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 9.8
Warranty: 1-year

Similar IR

• 2161P
• 2161XP-6
• 2171XP

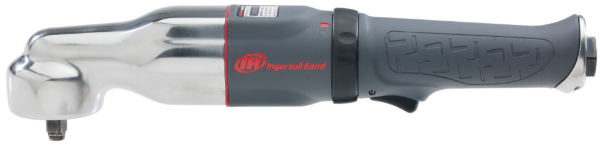

IR 2015MAX

3/8" Air Impact Wrench, 180 ft-lb Torque, Friction Ring Retainer, Right Angle

This revolutionary product is unlike any other on the market today. The Hammerhead Low Profile impact wrench offers the power and speed of an impact with the reach of a ratchet. The combination of MAX power, MAX control, and MAX access now allows you to use an Ingersoll Rand impact wrench for virtually any application. Say goodbye to awkward extensions and swivel sockets, and watch your productivity soar as you conquer tasks in minutes that once took you hours.

Features And Benefits

• Max Power: With 180 ft-lbs of max torque and 9000 rpm, this tool offers more than twice the power of the leading competitor's ratchet.
• Max Control: A feather-touch trigger, two-position forward power regulator and conveniently located forward / reverse ring provide precise control.
• Max Access: A head height of under 2" and reactionless torque allow you to safely use this powerful tool in tight spaces.
• Feather touch trigger, 2-position forward power regulator, forward/reverse ring
• Compact design, with head height under 2 inches, makes operation and access easier in tight spots so you can perform even the most detailed work with this air impact wrench.
• Ergonomically sound rear exhaust system.
• Offers the same reach as a ratchet.
• Optimized for the vehicle repair industry, body shops, and MRO.
• 1-year warranty.

Product Application and Uses: Designed to remove and install threaded fasteners. Optimized for the vehicle repair industry, body shops, and MRO
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 19
Air Consumption @ Load (l/min): 538
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 2100
Color: Grey
Configuration/Handle Type: Right Angle
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 94.1 / 105.1
Hammer Case: Aluminum
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Single Hammer
Impacting Sound Pressure/Power Db(A): 96.6 / 107.6
Max Bolt Diameter (in): 0.4375
Max Free Speed (rpm): 9000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 180
Max Torque (in-lb): 2160
Max Torque (nm): 244
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 2
Power Source: Air Powered
Product Length (in): 13.1
Product Width (in): 2.2
Product Height (in): 3.1
Product Weight (lb): 3.4
Recommended Forward Torque Range (ft-lb): 45-140
Recommended Forward Torque Range (in-lb): 540-1682
Recommended Forward Torque Range (nm): 61-190
Recommended Reverse Torque (ft-lb): 45-160
Recommended Reverse Torque (nm): 61-217
Retainer Type: Friction Ring
Side to Center Distance (in): 1.1
Side to Center Distance (mm): 28
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 17.4
Warranty: 2-year

Similar IR

• 2025MAX

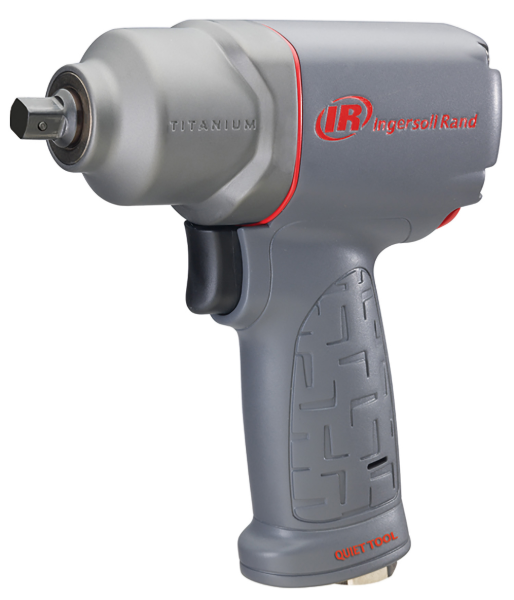

IR 2115PTIMAX

3/8" Air Impact Wrench, 300 ft-lb Torque, Titanium Hammercase, Pin Retainer, Pistol

The 2115TiMAX delivers best in class performance for a tool less than six inches long and weighing less than two and a half pounds. The minimal size of this tool will allow greater access to tight spaces, while the minimal weight will reduce operator fatigue...all while still delivering MAX performance.

Features And Benefits

• Durable: With a titanium hammer case and composite housing, this wrench can withstand anything, including repeated drops and harsh environments. In fact, we provide a 2-year warranty to prove it.
• Versatile: This tool is so versatile, it can be used in just about any market.
• Reliable This wrench has been tested and is guaranteed to last. It’ll deliver the same level of power every time.
• Easier access to grease fitting – for quicker maintenance and less downtime
• Enhanced socket retention
• 7-vane Motor delivers added power with less weight
• Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency
• Feather-touch trigger provides maximum control of this air impact wrench
• Anodized end plate for enhanced durability
• Pin anvil ensures positive socket retention
• Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction
• Patented one-hand forward/reverse control for easy operation
• Optimized air flow for maximized performance when using this pneumatic impact wrench

Includes: Bare Tool
Product Application and Uses: General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 17
Air Consumption @ Load (l/min): 481
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Blows per Min: 1500
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 89.7 / 100.7
Hammer Case: Titanium
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 93.2 / 104.2
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 300
Max Torque (in-lb): 3602
Max Torque (nm): 407
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 4
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 120.9
Product Length (in): 5.9
Product Width (in): 2.2
Product Height (in): 6.7
Product Weight (lb): 2.48
Recommended Forward Torque Range (ft-lb): 250
Recommended Forward Torque Range (in-lb): 3000
Recommended Forward Torque Range (nm): 339
Retainer Type: Pin Detent
Side to Center Distance (in): 1.1
Side to Center Distance (mm): 28
Special Features: Titanium hammercase, 2-year Max warranty
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 7.8
Warranty: 2-year

Similar IR

• 2115TIMAX

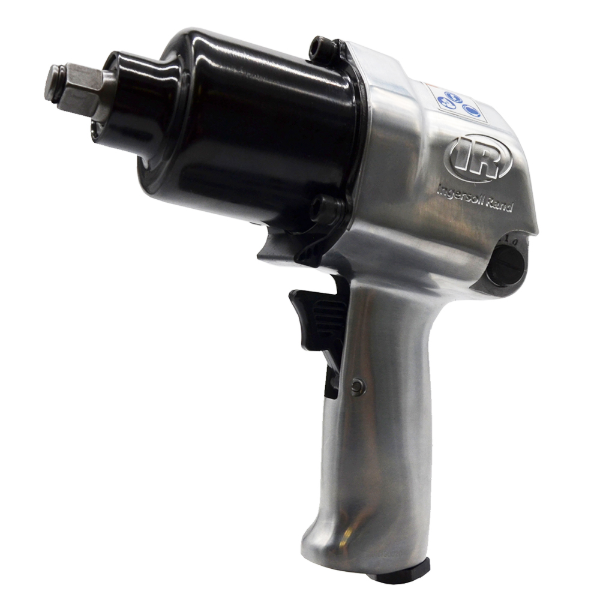

IR 244A

1/2" Air Impact Wrench, Super Duty, 500 ft-lb Torque, Friction Ring Retainer, Pistol

The 244A Series ½” Impact Wrench comes loaded with a steel hammer case, square socket retaining ring, vane motor and metal housing — making this wrench one of the toughest, most durable impact wrenches on the market.

Features And Benefits

• Increased Control: The power regulator on the 244A Series provides you with increased control and stability on even your toughest projects.
• Durability: Tough and durable, the metal housing and steel hammer case on the 244A Series will help it hold up through repeated drops and harsh environments.
• Two-Piece Construction: Easy-to-service two-piece construction.
• Comfort and Control: Contoured handle for comfort and control. Patented one-hand forward/reverse for easy operation.
• Pressure Feed Lubrication: Pressure feed lubrication system automatically greases the impact mechanism.

Includes: Bare Tool
Product Application and Uses: General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 21
Air Consumption @ Load (l/min): 595
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 5.4
Average Air Consumption (l/min): 153
Blows per Min: 1300
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 93.0 / 104.0
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 7000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 500
Max Torque (in-lb): 6001
Max Torque (nm): 678
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 6
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 83.3
Product Length (in): 7.3
Product Width (in): 2.95
Product Height (in): 7.85
Product Weight (lb): 6
Recommended Forward Torque Range (ft-lb): 40-350
Recommended Forward Torque Range (in-lb): 478-4204
Recommended Forward Torque Range (nm): 54-475
Recommended Reverse Torque (ft-lb): 40-350
Recommended Reverse Torque (nm): 54-475
Retainer Type: Friction Ring
Side to Center Distance (in): 1.5
Side to Center Distance (mm): 38
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 8.7
Warranty: 1-year

Similar IR

• 244A-2
• 2135QXPA
• 2235TIMAX

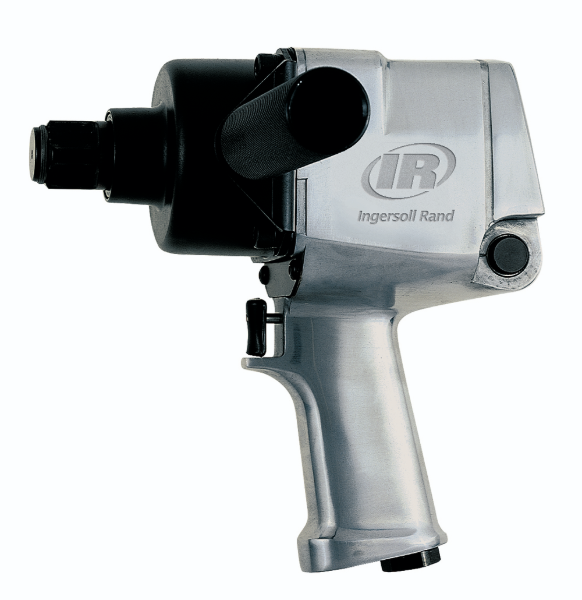

IR 271

1" Air Impact Wrench, Super Duty, 1100 ft-lb Torque, Friction Ring Retainer, Pistol

The 271 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where you’ll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.

Features And Benefits

• RELIABILITY: The 271 Series is made to last, and will be a trusted tool for all your heavy machinery projects and more
• POWER: The vane motor on the 271 Series provides a high torque output for increased power.
• DURABILITY: The impact wrench’s jumbo hammer provides a great power-to-weight ratio and is easy to maintain.
• VEHICLE REPAIR: The square socket retaining ring makes this an ideal impact wrench for projects where you need increased socket connection.

Includes: Bare Tool
Product Application and Uses: Vehicle Repair And Heavy Truck Markets
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 39
Air Consumption @ Load (l/min): 1104
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 9.5
Average Air Consumption (l/min): 269
Blows per Min: 1000
Color: Silver
Configuration/Handle Type: Pistol Grip
Configuration/Handle Type: Auxiliary Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 100.5 / 111.5
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 98.5 / 109.5
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1103
Max Torque (in-lb): 13241
Max Torque (nm): 1496
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 96
Product Length (in): 8.9
Product Width (in): 8
Product Height (in): 8
Product Weight (lb): 12.5
Recommended Forward Torque Range (ft-lb): 100-750
Recommended Forward Torque Range (in-lb): 1204-9001
Recommended Forward Torque Range (nm): 136-1017
Recommended Reverse Torque (ft-lb): 100-750
Recommended Reverse Torque (nm): 136-1017
Retainer Type: Friction Ring
Side to Center Distance (in): 4
Side to Center Distance (mm): 102
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 13.2
Warranty: 1-year

Similar IR

• 261
• 259
• 231C

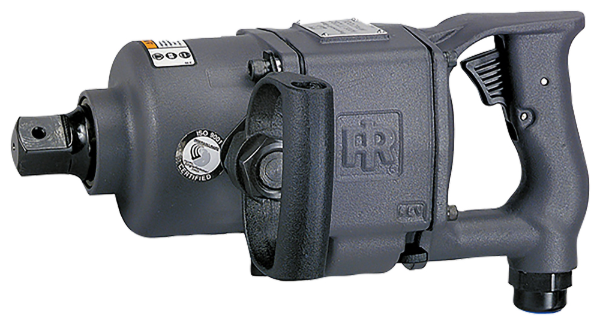

IR 1712B2

1" Air Impact Wrench, Heavy Duty, 1400 ft-lb Torque, Thru-hole Retainer, D-handle Inside Trigger

The 1712B2 Impact Wrench features a jumbo hammer impact mechanism and a square thru hole anvil. Paired with its steel hammer case and metal housing, this tool is ready for even the toughest jobs.

Features And Benefits

• Power: Vane motor and jumbo hammer
• Durability: Steel hammercase
• Productivity: Thru-hole 1" square drive and D-handle with auxiliary handle

Includes: Bare Tool
Product Application and Uses: General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 47
Air Consumption @ Load (l/min): 1331
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 800
Color: Black
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 107.7 / 118.7
Hammer Case: Steel
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 103.0 / 114.0
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1400
Max Torque (in-lb): 16800
Max Torque (nm): 1898
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 73.7
Product Length (in): 11.25
Product Width (in): 10.24
Product Height (in): 6.3
Product Weight (lb): 18.25
Recommended Forward Torque Range (ft-lb): 451-1003
Recommended Forward Torque Range (in-lb): 5417-12037
Recommended Forward Torque Range (nm): 612-1360
Retainer Type: Thru-hole
Side to Center Distance (in): 5.1
Side to Center Distance (mm): 130
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 19.7
Warranty: 1-year

IR 2161P

3/4" Air Impact Wrench, 1250 ft-lb Torque, Thru-hole Retainer, Pistol

The metal housing and steel hammer case of the 2161 Series Impact Wrench makes this one of the toughest tools on the market. You’ll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.

Features And Benefits

• Durability: This heavy-duty impact wrench is tough enough to handle harsh environments and repeated drops.
• Versatility: The 2161 Series is an ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
• Increased Safety: The square pin drive of the 2161 Series provides the strongest connection to the socket to increase safety, especially when doing overhead work.

Product Application and Uses: Ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 46
Air Consumption @ Load (l/min): 1303
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 55
Average Air Consumption (l/min): 1558
Blows per Min: 1025
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 97.7 / 108.7
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 90.7 / 101.8
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1250
Max Torque (in-lb): 15002
Max Torque (nm): 1695
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 8.5
Product Width (in): 3.5
Product Height (in): 9.5
Product Weight (lb): 12.14
Recommended Forward Torque Range (ft-lb): 300-1000
Recommended Forward Torque Range (in-lb): 3602-12002
Recommended Forward Torque Range (nm): 407-1356
Retainer Type: Thru-hole
Side to Center Distance (in): 1.75
Side to Center Distance (mm): 44
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 11.5
Warranty: 1-year

Similar IR

• 2171P
• 2161XP-6

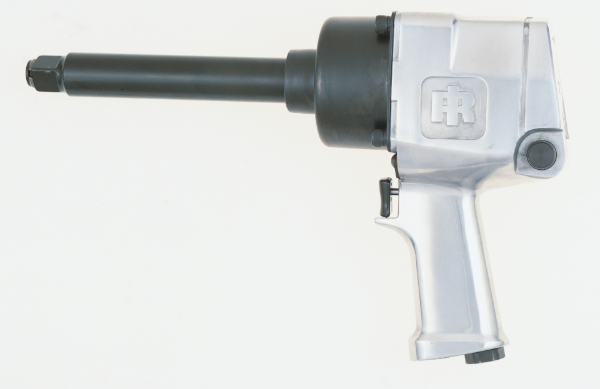

IR 261-6

3/4" Air Impact Wrench, 6" Ext Anvil, Super Duty, 1100 ft-lb Torque, Friction Ring Retainer, Pistol

The 261 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where you’ll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.

Features And Benefits

• Power: The 6 vane motor on the 261 Series provides a high torque output for increased power.
• Jumbo Hammer Mechanism: The patented jumbo hammer is unaffected by air pressure changes and delivers 1100 ft-lbs. of max torque and a working torque of 200-900 ft-lbs.
• Square Socket: The square socket retaining ring makes this an ideal impact wrench for projects where you need increased socket connection, like auto repair and heavy truck and machinery jobs.
• Lasting Performance: This power tool is equipped with a pressure-fed lube system which provides trouble-free, longer performance.
• Handle Exhaust: Handle exhaust directs dust and dirt from being blow at you while working as it directs air away from the operator.
• Extended Reach: The 6-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.

Product Application and Uses: Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 38
Air Consumption @ Load (l/min): 1076
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: 6" Extended
Average Air Consumption (cfm): 9.5
Average Air Consumption (l/min): 269
Blows per Min: 1000
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 100.3 / 111.3
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 98.4 / 109.4
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1100
Max Torque (in-lb): 13196
Max Torque (nm): 1491
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 14.8
Product Width (in): 3.76
Product Height (in): 10.3
Product Weight (lb): 13.7
Recommended Forward Torque Range (ft-lb): 200-600
Recommended Forward Torque Range (in-lb): 2399-7196
Recommended Forward Torque Range (nm): 271-813
Recommended Reverse Torque (ft-lb): 200-600
Recommended Reverse Torque (nm): 271-813
Retainer Type: Friction Ring
Side to Center Distance (in): 1.88
Side to Center Distance (mm): 48
Special Features: Extended anvil
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 10.4
Warranty: 1-year

Similar IR

• 271
• 259

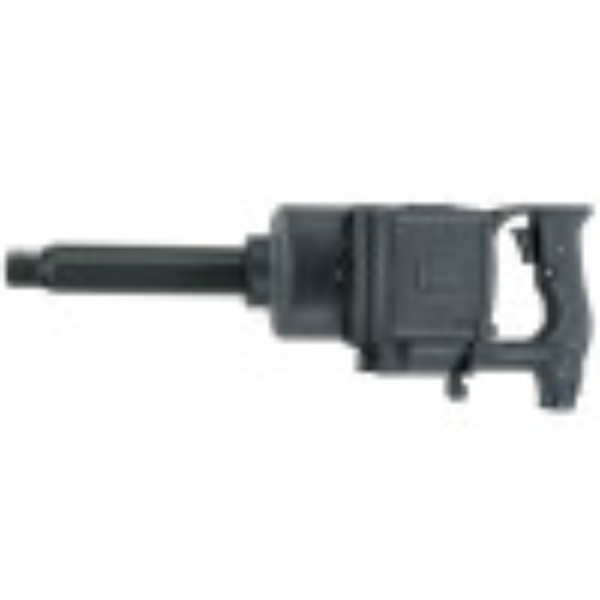

IR 280-6

1" Air Impact Wrench, 6" Ext Anvil, Super Duty, 1600 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger

For a versatile impact wrench that doesn’t compromise safety for power, the 280 Series can’t be beat. The D-shaped handle fits comfortably in your hand and the jumbo hammer impact mechanism provides an excellent power-to-weight ratio.

Features And Benefits

• Durability: The steel hammer case and metal housing of the 280 Series make this impact wrench incredibly durable and long-lasting.
• Increased Safety: Square thru-hole retainer increases on-the-job safety by providing a strong socket connection.
• Power: The jumbo hammer impact mechanism and 6 vane motor gives you the ability to power up to 1600 ft.-lbs. of torque for your toughest applications.
• Extended Reach: The 6-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.

Product Application and Uses: Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 55
Air Consumption @ Load (l/min): 1557
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: 6" Extended
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 750
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 107.7 / 118.7
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 103 / 114
Max Bolt Diameter (in): 1.25
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1600
Max Torque (in-lb): 19197
Max Torque (nm): 2169
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 18.5
Product Width (in): 4.8
Product Height (in): 6.7
Product Weight (lb): 23.8
Recommended Forward Torque Range (ft-lb): 148-1003
Recommended Forward Torque Range (in-lb): 1770-12037
Recommended Forward Torque Range (nm): 200-1360
Recommended Reverse Torque (ft-lb): 148-1003
Recommended Reverse Torque (nm): 200-1360
Retainer Type: Thru-hole
Special Features: Extended anvil
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 21.8
Warranty: 1-year

Similar IR

• 280
• 285B-6

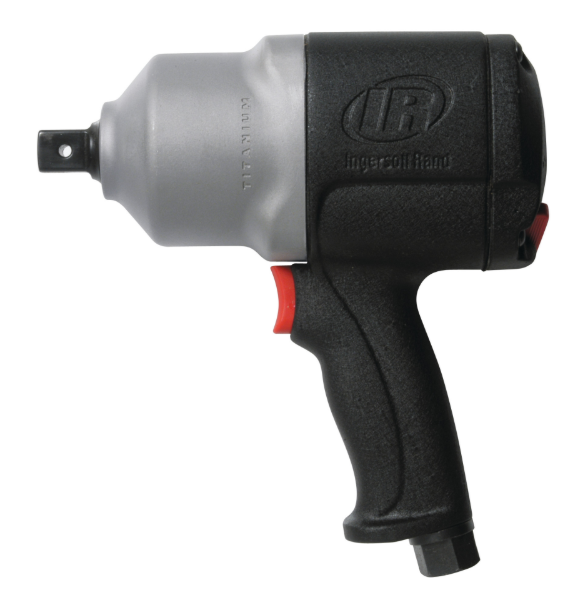

IR 2925P1TI

3/4" Air Impact Wrench, Super Duty, 1100 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, Pistol

Armed with a titanium hammer case and a special corrosion preventative treatment, this series is rust and corrosion resistant.

Features And Benefits

• Durability: Thanks to a titanium hammer case, this wrench is both lightweight and durable.
• Reliability: The 2925 Series’ twin hammer impact mechanism means it's less sensitive to air pressure fluctuation, which means you never have to worry about your location affecting your wrench's effectiveness.
• Bronze endplates and a corrosion preventative treatment prevents internal in outdoor, wet environments.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool.
• Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.
• Integral muffler
• 1-year warranty

Product Application and Uses: Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 60
Air Consumption @ Load (l/min): 1699
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 12
Average Air Consumption (l/min): 340
Blows per Min: 1050
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6
Hammer Case: Titanium
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.9 / 106.9
Max Bolt Diameter (in): 1.125
Max Free Speed (rpm): 5200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1497
Max Torque (in-lb): 17967
Max Torque (nm): 2030
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 8.9
Product Width (in): 3.5
Product Height (in): 9.6
Product Weight (lb): 12
Recommended Forward Torque Range (ft-lb): 1298
Recommended Forward Torque Range (in-lb): 15577
Recommended Forward Torque Range (nm): 1760
Retainer Type: Thru-hole
Side to Center Distance (in): 1.75
Side to Center Distance (mm): 44
Special Features: Titanium Hammer case
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 10.5
Warranty: 1-year

Similar IR

• 2925P3TI
• 2955B2

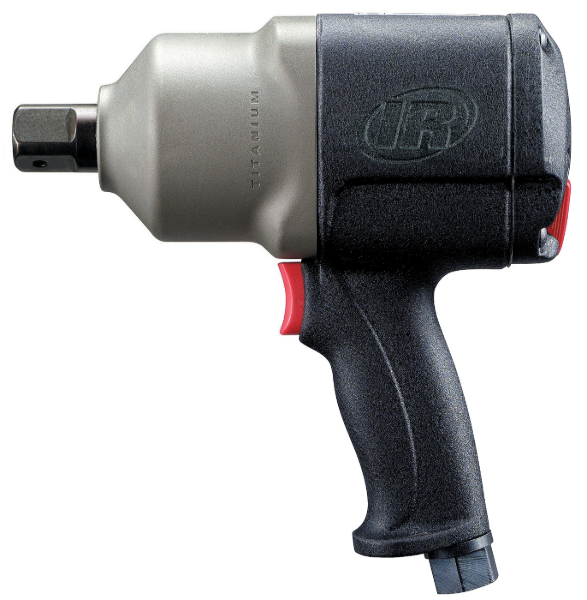

IR 2925P3TI

1" Air Impact Wrench, Heavy Duty, 1450 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, Pistol

Armed with a titanium hammer case and a special corrosion preventative treatment, this series is rust and corrosion resistant.

Features And Benefits

• Thanks to a titanium hammer case, this wrench is both lightweight and durable.
• The twin hammer impact mechanism means it's less sensitive to air pressure fluctuation, which means you never have to worry about your location affecting your wrench's effectiveness.
• Bronze endplates and a corrosion preventative treatment prevents internal in outdoor, wet environments.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool.
• Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.
• Integral muffler.
• 3/8” NPT inlet.

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 60
Air Consumption @ Load (l/min): 1699
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 1050
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.9 / 106.6
Max Bolt Diameter (in): 1-1/8
Max Free Speed (rpm): 5200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1497
Max Torque (in-lb): 17967
Max Torque (nm): 2030
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 9
Product Width (in): 3.5
Product Height (in): 9.6
Product Weight (lb): 12.2
Recommended Forward Torque Range (ft-lb): 1298
Recommended Forward Torque Range (in-lb): 15577
Recommended Forward Torque Range (nm): 1760
Retainer Type: Thru-hole
Side to Center Distance (in): 1.8
Side to Center Distance (mm): 46
Special Features: Titanium hammercase
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 10.5
Warranty: 1-year

Similar IR

• 2925P1TI
• 2925B2TI
• 2925RBP1TI

IR 2925RBP1TI

3/4" Air Impact Wrench, Heavy Duty, 1600 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, Pistol

Armed with a titanium hammer case and special Corrode-x, this Series is rust and corrosion resistant.

Features And Benefits

• Thanks to a titanium hammer case, this wrench is both lightweight and durable.
• The twin hammer impact mechanism means it’s less sensitive to air pressure fluctuation, which means you never have to worry about your location affecting your wrench’s effectiveness.
• Bronze endplates and a corrosion preventative treatment prevents internal in outdoor, wet environments.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool.
• Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.
• Integral muffler.

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 60
Air Consumption @ Load (l/min): 1699
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 12
Average Air Consumption (l/min): 340
Blows per Min: 1050
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.9 / 106.9
Max Bolt Diameter (in): 1-1/8
Max Free Speed (rpm): 5200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1497
Max Torque (in-lb): 17967
Max Torque (nm): 2030
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 133.3
Product Length (in): 8.9
Product Width (in): 3.5
Product Height (in): 9.6
Product Weight (lb): 12
Recommended Forward Torque Range (ft-lb): 1298
Recommended Forward Torque Range (in-lb): 15577
Recommended Forward Torque Range (nm): 1760
Retainer Type: Thru-hole
Side to Center Distance (in): 1.8
Side to Center Distance (mm): 46
Special Features: Titanium hammercase
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 10.5
Warranty: 1-year

Similar IR

• 2925P1TI
• 2925P3TI
• 2925B2TI
• 2146Q1MAX
• 2146Q2MAX
• 2175MAX

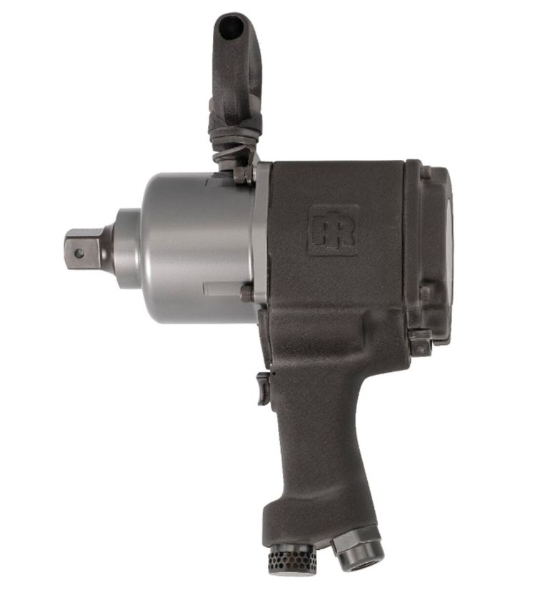

IR 2940P2

1" Air Impact Wrench, 1600 ft-lb Torque, 810 BPM, Pistol

Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 810
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1
Drive Type: Square
Duty Rating: Industrial Duty
Exhaust Location: Bottom
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 1-3/8
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1601
Max Torque (in-lb): 19206
Max Torque (nm): 2170
Min Hose Size (in): 3/4
Motor: Non-Biased
Power Source: Air Powered
Recommended Forward Torque Range (ft-lb): 1003-1601
Recommended Forward Torque Range (in-lb): 12037-19206
Recommended Forward Torque Range (nm): 1360 - 2170
Recommended Reverse Torque (ft-lb): 1003-1601
Recommended Reverse Torque (nm): 1360-2170
Sound Pressure/Power Db(A): 94.2 / 105.2
Tool Type: Full-size
Vibration Level (m/s2): 18.1
Vibration Uncertainy K* (m/s2): 5.6
Warranty: 1-year

Similar IR

• 2934P2

IR 36QMAX

1/2" Ultra Compact Air Impact Wrench, Quiet, 640 ft-lb Torque, Friction Ring Retainer, Pistol

This tool has been rigorously tested, beaten up, dropped and pushed to the limits to make sure it lasts twice as long as the competition. With the twin hammer design, unmatched durability, superior accessibility and up to 640 ft-lbs* of nut busting torque at just 2.4 lbs, the 36QMAX is not just the tool you want, it is the tool you need to get REAL WORK done time and time again.

Features And Benefits

• Power-to-Weight: At 2.4 lbs, this tool is amongst the lightest on the market, and still delivers 640 ft-lbs of nut busting torque; delivering the power you expect from an Ingersoll Rand impact.
• Access: There is no place for work to hide. The compact design provides a user the access and power they need, even if the task is up, under, over, or around any awaiting obstruction.
• Reliability: Built on the IR Impact Wrench legacy, this tool is tested at 2X the life of competitive products available today.
• Quiet: The sound baffling technology provides a quiet design at only 91.3 dB(A).
• Control: The one-handed forward/reverse push button and 3-mode power regulator give you max control and max performance.

Includes: Bare Tool
Product Application and Uses: Vehicle Maintence And Industrial Mro For Resctricted Areas
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 19
Air Consumption @ Load (l/min): 538
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 24
Average Air Consumption (l/min): 680
Blows per Min: 1300
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 87.6 / 98.6
Hammer Case: Aluminum
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 91.3 / 102.3
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 8000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 472
Max Torque (in-lb): 5664
Max Torque (nm): 640
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 640
Nut-busting/Breakaway Torque (in-lb): 7682
Nut-busting/Breakaway Torque (nm): 868
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 180.77
Product Length (in): 4.61
Product Width (in): 2.36
Product Height (in): 7.13
Product Weight (lb): 2.6
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 384
Recommended Forward Torque Range (in-lb): 4602
Recommended Forward Torque Range (nm): 520
Retainer Type: Friction Ring
Side to Center Distance (in): 1.2
Side to Center Distance (mm): 30
Special Features: Quiet, Ultra compact
Speed Setting: Variable Speed
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Compact
Vanes: 7
Vibration Level (m/s2): 8.1
Warranty: 2-year

Similar IR

• 15QMAX

SX STP10S7B12

Tapper SS 700Rpm B12 Taper

IR 280

1" Air Impact Wrench, Super Duty, 1600 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger

For a versatile impact wrench that doesn’t compromise safety for power, the 280 Series can’t be beat. The D-shaped handle fits comfortably in your hand and the jumbo hammer impact mechanism provides an excellent power-to-weight ratio.

Features And Benefits

• Reliability: The 280 Series Impact Wrench will stand the test of time. You can count on this tool to deliver the same high-impact performance time and time again.
• Durability: The steel hammer case and metal housing of the 280 Series make this impact wrench incredibly durable and long-lasting.
• High Power: The drive type on the 280 Series provides a higher torque output and an increased reach to help you get the job done.
• Increased Safety: This impact wrench increases on-the-job safety by providing a strong socket connection.

Product Application and Uses: Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 55
Air Consumption @ Load (l/min): 1557
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 750
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 107.7 / 118.7
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 103 / 114
Max Bolt Diameter (in): 1.25
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1600
Max Torque (in-lb): 19197
Max Torque (nm): 2169
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 13
Product Width (in): 4.8
Product Height (in): 6.7
Product Weight (lb): 22
Recommended Forward Torque Range (ft-lb): 148-1003
Recommended Forward Torque Range (in-lb): 1770-12037
Recommended Forward Torque Range (nm): 200-1360
Recommended Reverse Torque (ft-lb): 148-1003
Recommended Reverse Torque (nm): 200-1360
Retainer Type: Thru-hole
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 19.7
Warranty: 1-year

Similar IR

• 280-6
• 2940B2

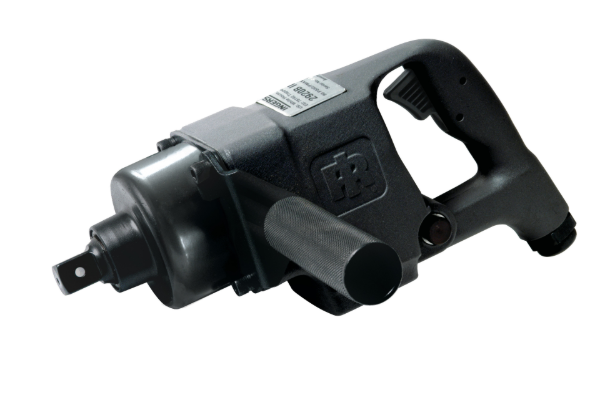

IR 2920B1

3/4" Air Impact Wrench, Super Duty, 1100 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger

The 2920 Series' finely tuned motor and power regulator make this wrench one to beat. Reliable, durable and variable, it can get any job done.

Features And Benefits

• Durability: This wrench can withstand drops or harsh conditions, thanks to its steel hammer case and metal housing.
• Reliability: With a twin hammer impact mechanism that delivers even blows every time, and a power regulator that helps keep control, you’ll never doubt that this wrench will perform the way you want it to. Comes with a 1-year warranty.
• Pressure-fed mechanism lubrication
• Integral muffler

Product Application and Uses: Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 36
Average Air Consumption (l/min): 1020
Blows per Min: 950
Color: Grey
Configuration/Handle Type: D-Handle
Configuration/Handle Type: Auxiliary Handle
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 84.9 / 95.9
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1100
Max Torque (in-lb): 13196
Max Torque (nm): 1491
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 12.5
Product Weight (lb): 13.19
Recommended Forward Torque Range (ft-lb): 250-800
Recommended Forward Torque Range (in-lb): 3000-9603
Recommended Forward Torque Range (nm): 339-1085
Recommended Reverse Torque (ft-lb): 250-800
Recommended Reverse Torque (nm): 339-1085
Retainer Type: Thru-hole
Side to Center Distance (in): 1.91
Side to Center Distance (mm): 49
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 19.9
Warranty: 1-year

Similar IR

• 2920B9

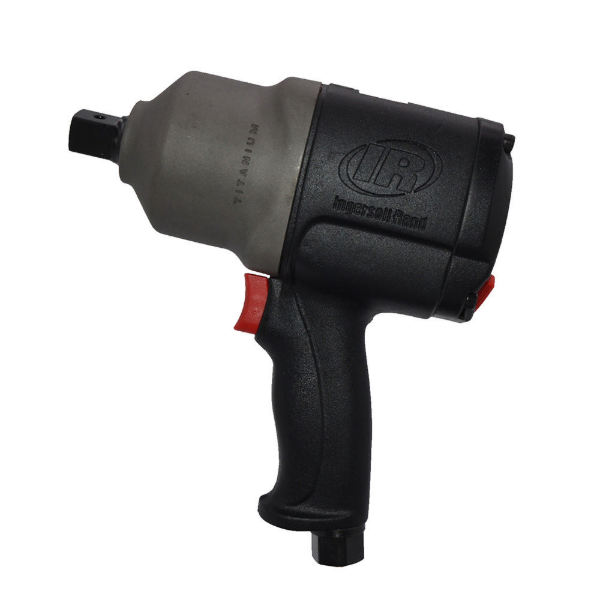

IR 2925RBP1TIEX

3/4" Air Impact Wrench, ATEX/Hazardous Duty, 1600 ft-lb Torque, Titanium Hammercase, Pistol

Specifically designed to meet ATEX Zone 1 or Zone 2 requirements and armed with a titanium hammer case and a corrosion preventative treatment, this ATEX certified impact wrench is rust and corrosion resistant.ATEX Marking: ATEX 2014/34/EU and Ex h IIA T6 Gb XISO 80079-36 Certified

Features And Benefits

• Durability: Bronze end plates and a corrosion preventative treatment prevent internal corrosion and wear in wet, outdoor environments. And thanks to a titanium hammer case, this impact wrench is both lightweight and durable.
• Reliability: The 2925 Series’ twin hammer impact mechanism means it's less sensitive to air pressure fluctuation, which means you never have to worry about your location affecting your wrench’s effectiveness.
• Control: This tool features a feather-touch trigger that provides users precise delivery of pressure and speed.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• ATEX markings: ATEX 2014/34/EU and Ex h IIA T6 Gb X
• ISO 80079-36 Certified
• 3/8" NPT inlet
• 1-year warranty

Includes: Bare Tool
Product Application and Uses: Optimized For General Industrial Use, Rail, Heavy Machinery, Oil And Gas, And Shipbuilding
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 60
Blows per Min: 1050
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Atex/Hazardous Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6
Hammer Case: Titanium
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 95.9 / 106.9
Max Bolt Diameter (in): 1-1/8
Max Free Speed (rpm): 5200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1497
Max Torque (in-lb): 17967
Max Torque (nm): 2030
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 8.9
Product Width (in): 3.5
Product Height (in): 9.6
Product Weight (lb): 12
Recommended Forward Torque Range (ft-lb): 1298
Recommended Forward Torque Range (in-lb): 15577
Recommended Forward Torque Range (nm): 1760
Retainer Type: Thru-hole
Side to Center Distance (in): 1.8
Side to Center Distance (mm): 46
Special Features: ATEX Rated, Titanium hammercase
Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 10.5
Warranty: 1-year

Similar IR

• 2925P1TI
• 2925B2TI
• 2925P3TI
