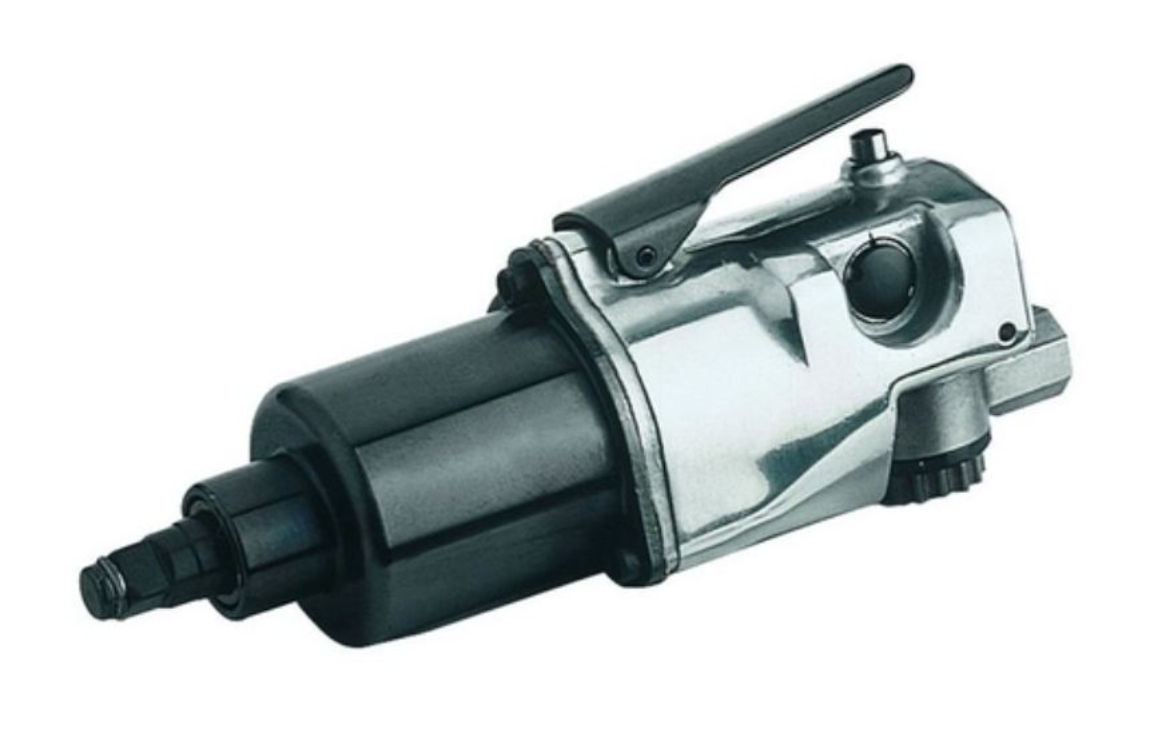

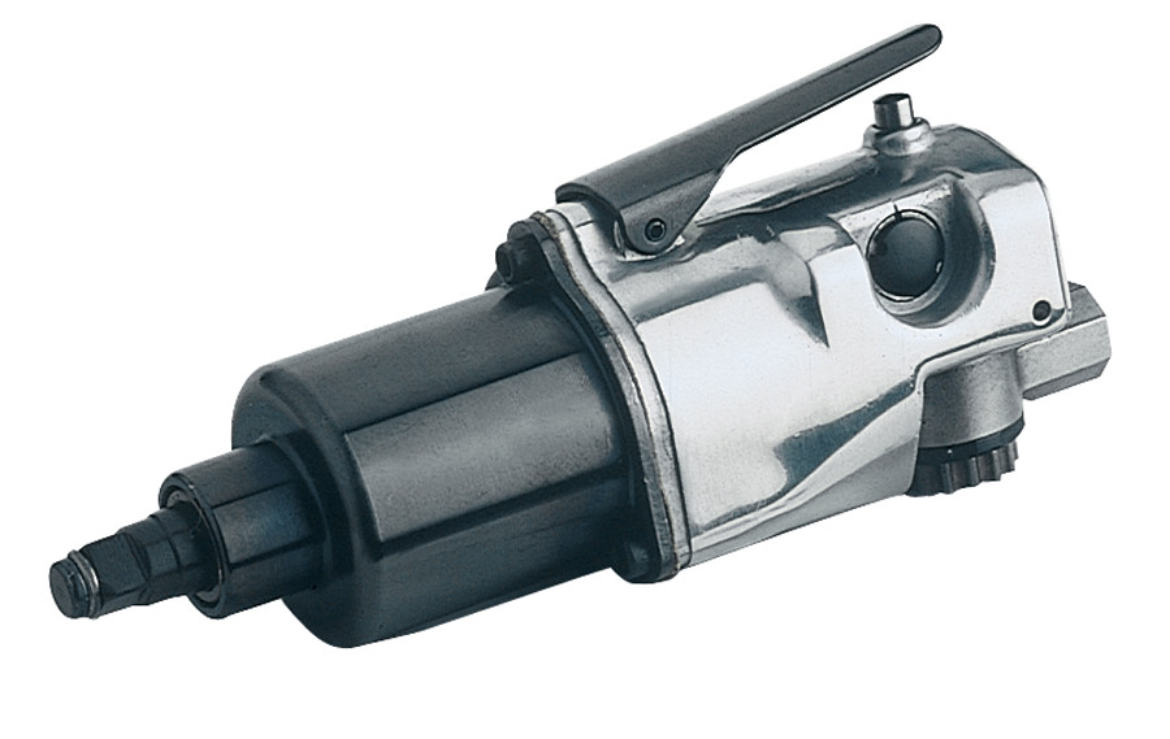

Air Impact Wrench - 3/8

IR 211

3/8" Air Impact Wrench, 150 ft-lb Torque, Friction Ring Retainer, Inline

Description: The 211 Straight Impact Wrench is extremely efficient. Tested just for you, this wrench doesn't stall and you can rely on it from beginning to end.

Features And Benefits:

• Power: The ball and cam mechanism delivers a high output of power. Coupled with its vane motor and power regulator, you'll be speeding through your work in no time.
• Access: Thanks to its straight grip and overall design, this impact wrench is great for use in hard-to-reach spaces.
• Great for Vehicle Repair: The square socket retaining ring makes this an ideal impact wrench for projects where you'll be switching sockets frequently.
• Durability: This impact wrench's steel hammer case provides you with increased durability for heavy-duty projects. No matter how hard you work, this wrench can handle it.
• 1-year warranty

Product Application and Uses:

Designed to remove and install threaded fasteners. Optimized for the vehicle repair industry, body shops, and MRO

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 11
• Air Consumption @ Load (l/min): 10
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 2.5
• Average Air Consumption (l/min): 71

• Blows per Min: 1500

• Color: Silver
• Configuration/Handle Type: Straight
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 98.4 / 105.6

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Ball and Cam
• Impacting Sound Pressure/Power Db(A): 94.6 / 105.6

• Max Bolt Diameter (in): 0.375
• Max Free Speed (rpm): 13000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 150
• Max Torque (in-lb): 1797
• Max Torque (nm): 203
• Min Hose Size (in): 3/8
• Motor: Non-Biased

• Number of Power Settings: 5
• Power Source: Air Powered
• Product Length (in): 6.6

• Product Width (in): 2
• Product Height (in): 3.6
• Product Weight (lb): 2.4
• Recommended Forward Torque Range (ft-lb): 20-125
• Recommended Forward Torque Range (in-lb): 239-1505
• Recommended Forward Torque Range (nm): 27-170
• Recommended Reverse Torque (ft-lb): 20-125
• Recommended Reverse Torque (nm): 27-170
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 5.9
• Warranty: 1-year

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 1702-A727
• Parts: 211-TK2

• Parts: 5020-716
